1948→1958 Stanguellini 750 Sport Internazionale

1948→1958 Stanguellini 750 Sport Internazionale

1948→1958 Stanguellini 750 Sport Internazionale

Built alongside the larger and faster 1100, the 750 was Stanguellini’s smallest sports racecar. It used a highly advanced twin-cam engine which produced over 100 bhp per liter. Because of this, the 750’s engine was used in numerous other cars and became Stanguellini’s most revered design.

The absolute highlight of the 750 was it’s engine designed by Oberdan Golfieri. It was a highly tuned inline-four that used semi-domed pistons and twin overhead cams for optimum combustion shape. Later versions were built out of aluminum, with cooling fins on the oil pan and filter. By 1955 a short-stroke unit was fitted in the the Sport Internazionale.

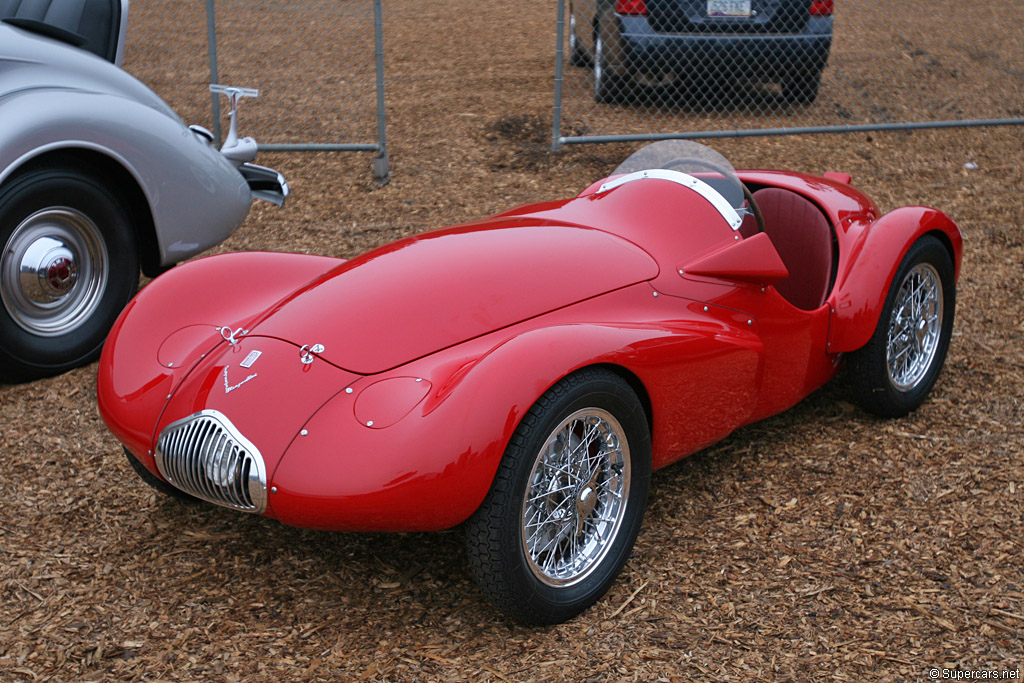

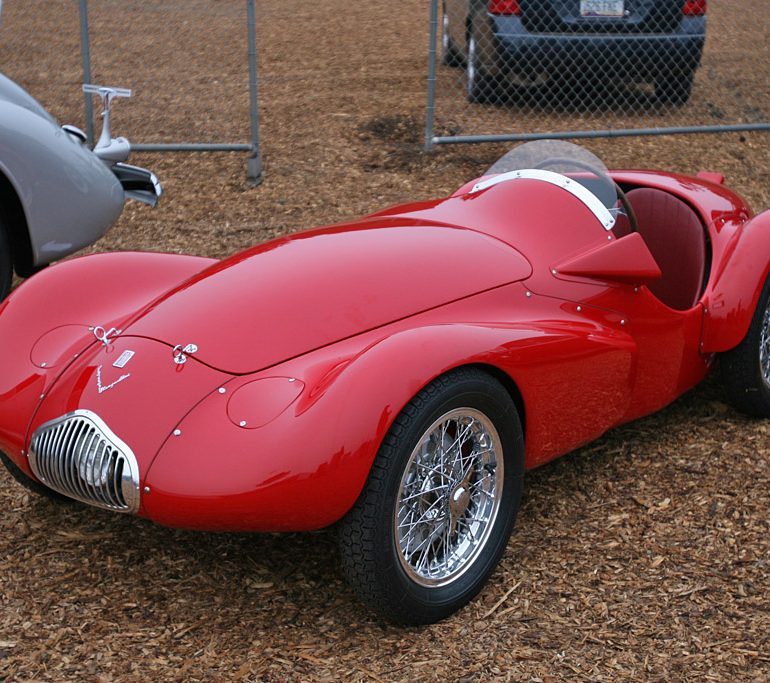

At first the Stanguellini was fitted with Spider Corsa bodywork similar to the Ferrari with detachable fenders. In 1953, the Italian regulations outlawed cycle wings, so all enveloping fenders were fitted with large fasteners for quick removal. Ocassionally the lights was fitted inside the small front grill.

In Detail

type Racing Car
production years 1948 – 1958
engine Inline-4
position Front, Longitudinal
aspiration Natural
block material Aluminum
valvetrain Chain-Driven DOHC, 2 Valves per Cyl
fuel feed 2 Weber DCO Carburetors
displacement 741 cc / 45.22 in³
bore 62 mm / 2.4 in
stroke 61.5 mm / 2.4 in
power 55.9 kw / 75 bhp @ 8500 rpm
specific output 101.21 bhp per litre
bhp/weight 157.89 bhp per tonne
body / frame Aluminum Body over Steel Tube Frame
driven wheels RWD
front tires 4.25-15
rear tires 4.25-15
front brakes Drums
rear brakes Drums
f suspension Lower A-Arms w/Upper Transverse Leaf Spring
r suspension Live Axle
curb weight 475 kg / 1047 lbs
wheelbase 2000 mm / 78.7 in
front track 1160 mm / 45.7 in
rear track 1130 mm / 44.5 in
transmission Fiat
tran clutch Single Dry Plate
