1956 Porsche 550A RS Spyder

On June 10, 1956, 50 years ago, the company now known as Dr. Ing. h.c. F. Porsche AG, Stuttgart, celebrated one of its biggest and most important racing victories. Italian racing driver Umberto Maglioli was the surprise overall winner in a Porsche 550 A Spyder at what was then the world’s longest-standing and most difficult road race, the Targo Florio, in Sicily.

The young Porsche company gained worldwide recognition with this victory, as it was the first time that a driver in a smaller class of racing vehicle (of up to two litres engine capacity) managed to beat vehicles with a higher cylinder displacement. With an average speed of 90.9 km/h and a lead of nearly 15 minutes on the second place vehicle, Maglioli not only out-classed the competition but also assured the first overall victory for Porsche in the World Championship.

This victory was made all the more surprising because of the fact that the Porsche 550 A Spyder only debuted eleven days before the Targa Florio at a 1,000 kilometre race on the Nurburgring in Germany.

1956_Porsche_550ARSSpyder-1-1024

Spurred on by the victory in this class, the Head of Racing at Porsche, Huschke von Hanstein, traveled to Sicily with driver Maglioli and two mechanics to test the open-top Spyder’s competitiveness once again. In contrast to other road races of the time, routes were not closed during training, so the drivers always had to be prepared for traffic and other obstacles. Furthermore, for Porsche it was the first time it took part in this legendary race as, at the time, the Targo Florio was seen as the territory of large Italian racing stables. Maglioli completed the 720 kilometre route without changing drivers in a time of 7:54.52 hours and thanks to the reliability of his Porsche, only pulled into the pit stop to refuel.

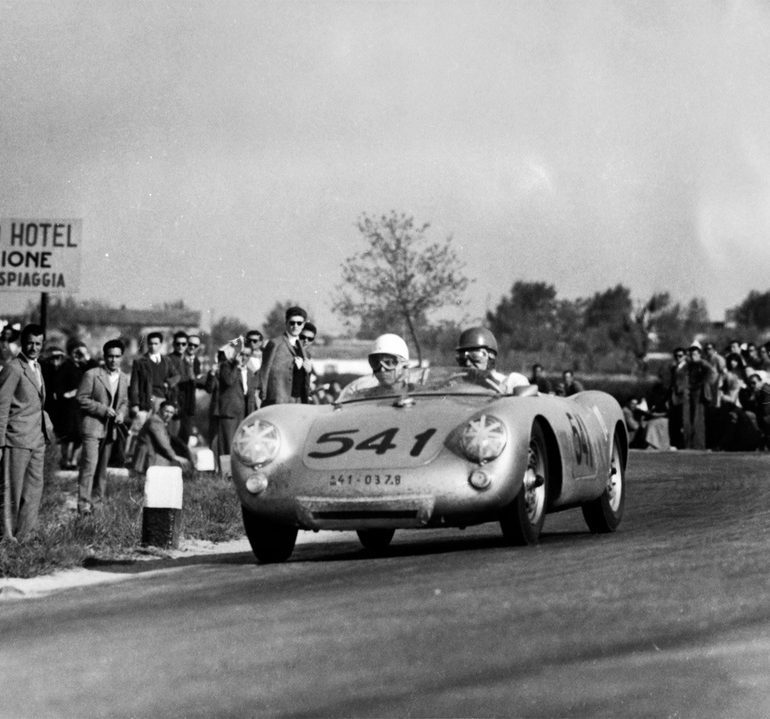

1956_Porsche_550ARSSpyder-0-1024 1956_Porsche_550ARSSpyder-2-1024

In Detail

submitted by Richard Owen
type Racing Car
built at Germany
predeccesor 1954 Porsche 550 RS Spyder
succeccesor 1957 Porsche 718 RSK Spyder
engine Air-Cooled, Aluminum Type 547 Flat-4
position Mid, Longitudinal
aspiration Natural
valvetrain DOHC, 2 Valves per Cyl
fuel feed Twin Solex PJJ Carburetors
displacement 1498 cc / 91.4 in³
bore 85 mm / 3.35 in
stroke 66 mm / 2.6 in
compression 9.5:1
power 100.7 kw / 135 bhp
specific output 90.12 bhp per litre
body / frame Aluminum Body over Steel Ladder-Type Frame
driven wheels RWD
front brakes Drums
rear brakes Drums
steering Worm & Nut
f suspension Twin Paralel Arms w/Transverse Torsion Bars
r suspension Swing Axles w/Torsion Bars, Telescopic Shock Absorbers
wheelbase 2101 mm / 82.7 in
front track 1290 mm / 50.8 in
rear track 1250 mm / 49.2 in
length 3600 mm / 141.7 in
width 1540 mm / 60.6 in
height 1050 mm / 41.3 in
transmission 4-Speed Manual
top speed ~220.5 kph / 137 mph
designers Erwin Komenda
