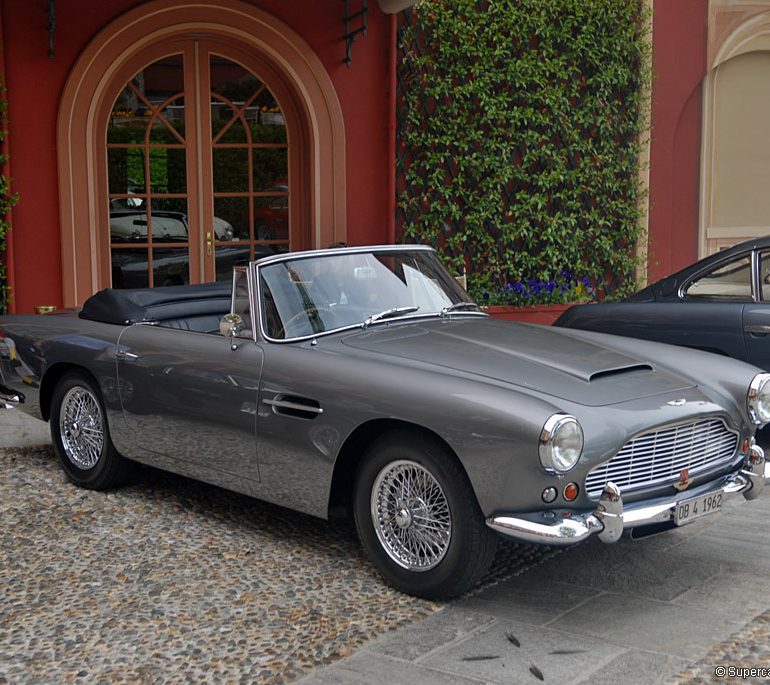

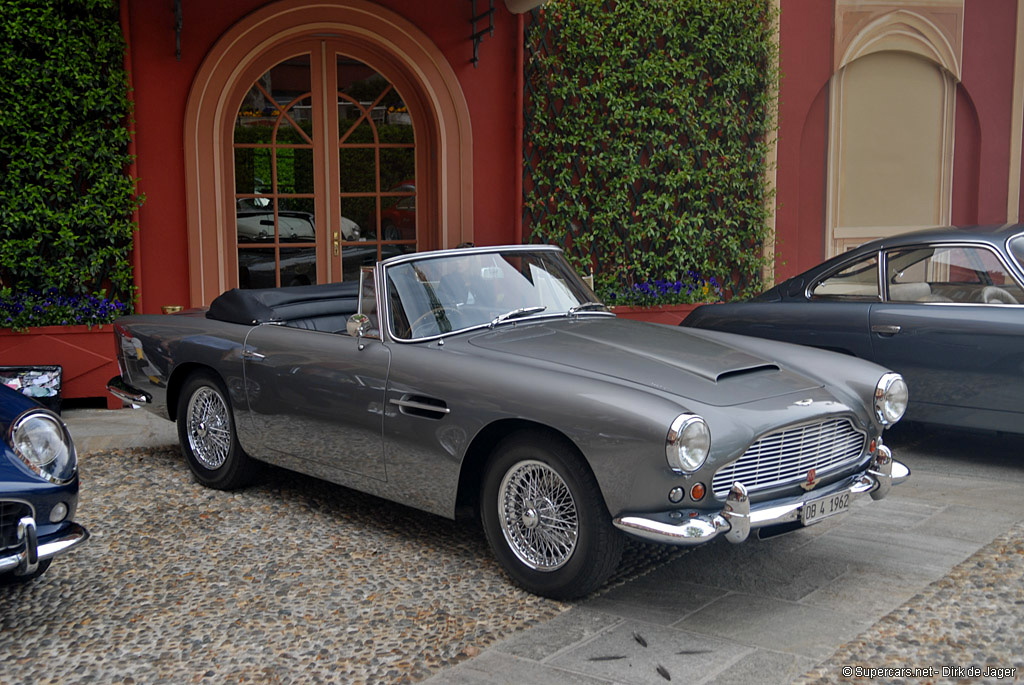

1961→1963 Aston Martin DB4 Convertible

Tadek Marek’s new 3.7 litre, six-cylinder twin overhead camshaft, all alloy engine first ran in 1956 and was raced in the DBR2 in 1957.

Work on the DB4 started in 1956, at the same time as the DB Mark III. The key people involved in the development of the DB4 were general manager John Wyer, chassis designer Harold Beach, and engine designer Tadek Marek. Every major component in the DB4 was new. The four-seater body was design by Carrozzeria Touring of Milan, using their ‘Superleggera’ system by which alloy panels are fixed to a tubular frame built onto the very strong platform chassis.

The entirely new car was shown at the London Motor show in 1958, sharing a stand with the DB Mark III which was to continue in production for almost a year. The DB4 was the first production car to capable of 0-100-0 mph in under 30 sec. claiming to reach the 100 mph mark in 21 seconds. A very impressive car that put Aston Martin back in competition with other Mediterranean sports car manufacturers.

A four-seater convertible was announced at the London Motor Show in 1961.

By the time that the DB4 ended it’s production run, there were five distinct series.

Story by Aston Martin Lagonda Limited

In Detail

type Series Production Car
production years 1961 – 1963
released at 1961 London Motor Show
built at Newport Pagnell , England
coachbuilder Carrozzeria Touring
production 70
price £/td> £4,194
engine Inline-6
valvetrain DOHC
displacement 3670 cc / 224.0 in³
bore 92 mm / 3.62 in
stroke 92 mm / 3.62 in
compression 8.25:1
power 179.0 kw / 240 bhp @ 5500 rpm
specific output 65.4 bhp per litre
bhp/weight 177.25 bhp per tonne
torque 366.0 nm / 269.9 ft lbs @ 5000 rpm
driven wheels Front Engine / RWD
front brakes Discs
rear brakes Discs
front wheels F 40.6 x 15.2 cm / 16 x 6 in
rear wheels R 40.6 x 15.2 cm / 16 x 6 in
curb weight 1354 kg / 2985 lbs
wheelbase 2490 mm / 98.0 in
front track 1360 mm / 53.5 in
rear track 1354 mm / 53.3 in
length 4570 mm / 179.9 in
width 1680 mm / 66.1 in
height 1335 mm / 52.6 in
transmission 4-Speed Manual
gear ratios 2.92:1, 1.85:1, 1.25:1, 1.00:1
top speed ~225.0 kph / 139.8 mph
0 – 60 mph ~8.5 seconds
