1967 Lamborghini P200 Marzal

The 1967 Marzal was a prototype by Bertone which led the way for the Espada produced only one year later. By having ample room for four people and repositioning the V12 engine up front, the design was a huge departure for Lamborghini design. It was also the second Lamborghini penned by Bertone after the successful Miura supercar.

Bertone designer Marcello Gandini was responsible for the P200 Marzal which was first displayed at the 1967 Geneva Motor Show. He gave the car huge gullwing doors with windows below the beltline. Ferruccio Lamborghini said these windows “offer no privacy: a lady’s legs would be there for all to see.” The large use of glass meant that an air conditioner was necessary.

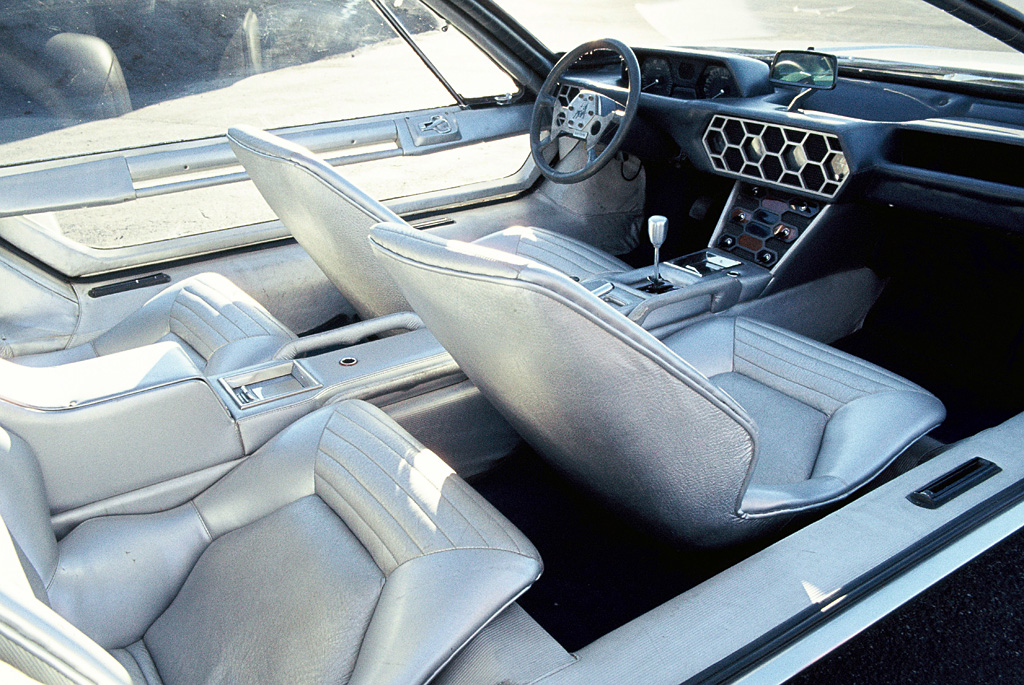

Many prototype patterns were used such as on the top of the rubber bumpers, for rear roof panel and the hexagonal honeycomb pattern in the dashboard, steering wheel and seat cushions. These were later modified. Polished aluminum sills and Campagnolo Magnesium completed the look.

The Marzal was powered by a prototype inline-six engine which was never put into production. This was essentially half of Lamborghini’s V12 and was positioned longitudinally behind the rear axle. This meant the prototypes long hood provided ample storage space and an 80-liter fuel tank.

Bertone based the car around the Miura platform with a box-steel chassis that was extended.

In their event report, Road & Track described the car as “A Bertone design so fresh that everything else looks old fashioned.” Designer Marcello Gandini said “the Marzal was drifting towards what science-fiction writers had been promising. With these prototypes a public declaration was made of our way of seeing the cars of the future.”

After the show, the car was driven by and Prince Rainier together with Princess Grace at the start of the 1967 Monaco Grand Prix. Later is given a full test by Quattroruote magazine. Not long afterward the production version known as the Espada was being developed from the Marzal’s overall shape. It did away with the gullwing doors, and rear-engine layout, but some of the first pre-production prototypes used gullwing doors.

Bertone retained the Marzal for their private collection and sometimes lent it out for public display at shows. In 2011 it will be offered for sale at the Concorso d’Eleganza Villa d’Este, 21 May, 2011 by RM Auctions.



Detail

type Concept / Prototype Car
released at 1967 Geneva Motor Show
built at Italy
body stylist Marcello Gandini
coachbuilder Bertone
production 1
engine Inline-6
position Rear, Longitudinal
aspiration Natural
fuel feed 3 Weber 40DCOE Carburetors
displacement 1964 cc / 121.9 in³
bore 82 mm / 3.23 in
stroke 62 mm / 2.44 in
compression 9.2:1
power 130.5 kw / 175.0 bhp @ 6800 rpm
specific output 89.1 bhp per litre
bhp/weight 133.59 bhp per tonne
torque 178.97 nm / 132.0 ft lbs @ 4600 rpm
body / frame Steel Sheet w/Aluminum Hood
wheel type Campagnolo Magnesium
front tires HS 205-14
rear tires HS 205-14
front brakes Discs
rear brakes Discs
front wheels F 35.6 x 16.5 cm / 14.0 x 6.5 in
rear wheels R 35.6 x 16.5 cm / 14.0 x 6.5 in
f suspension Wishbones w/Coil Springs, Telescopic Dampers, Anti-Roll Bar
r suspension Wishbones w/Coil Springs, Telescopic Dampers, Anti-Roll Bar
curb weight 1310 kg / 2888 lbs
wheelbase 2620 mm / 103.1 in
front track 1480 mm / 58.3 in
rear track 1480 mm / 58.3 in
length 4450 mm / 175.2 in
width 1709 mm / 67.3 in
height 1110 mm / 43.7 in
transmission 5-Speed Manual
final drive 5.3:1
top speed ~225 kph / 139.8 mph
fuel capacity 80 litres or 21.12 gal.



1967 Lamborghini P200 Marzal

1967 Lamborghini P200 Marzal – sold for €1,512,000. From the Collection of Bertone S.p.A. Unveiled at Geneva Motor Show (March 1967). One-off Lamborghini four seat, gullwing concept. A futuristic Marcello Gandini design with unique, prototype engine. Predecessor to the Espada production car. Auction Source: RM 2011 Villa d’Este Auction
