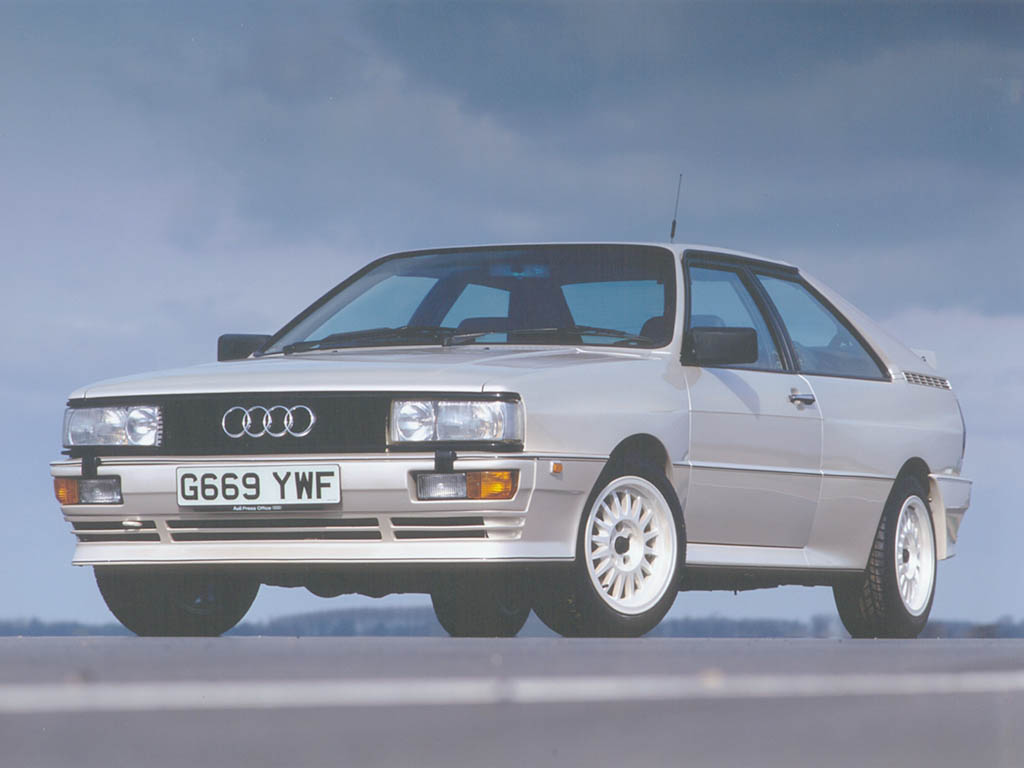

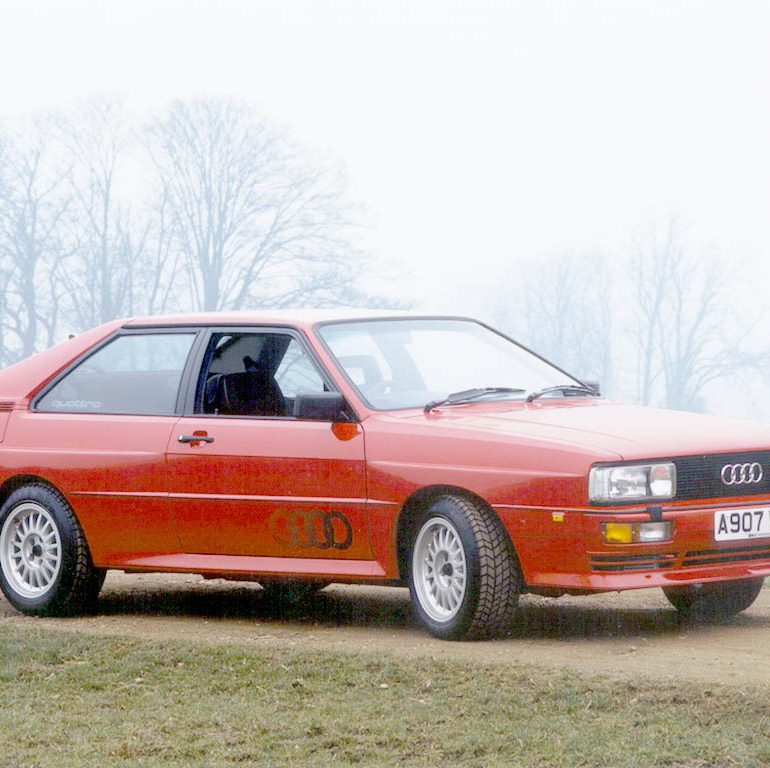

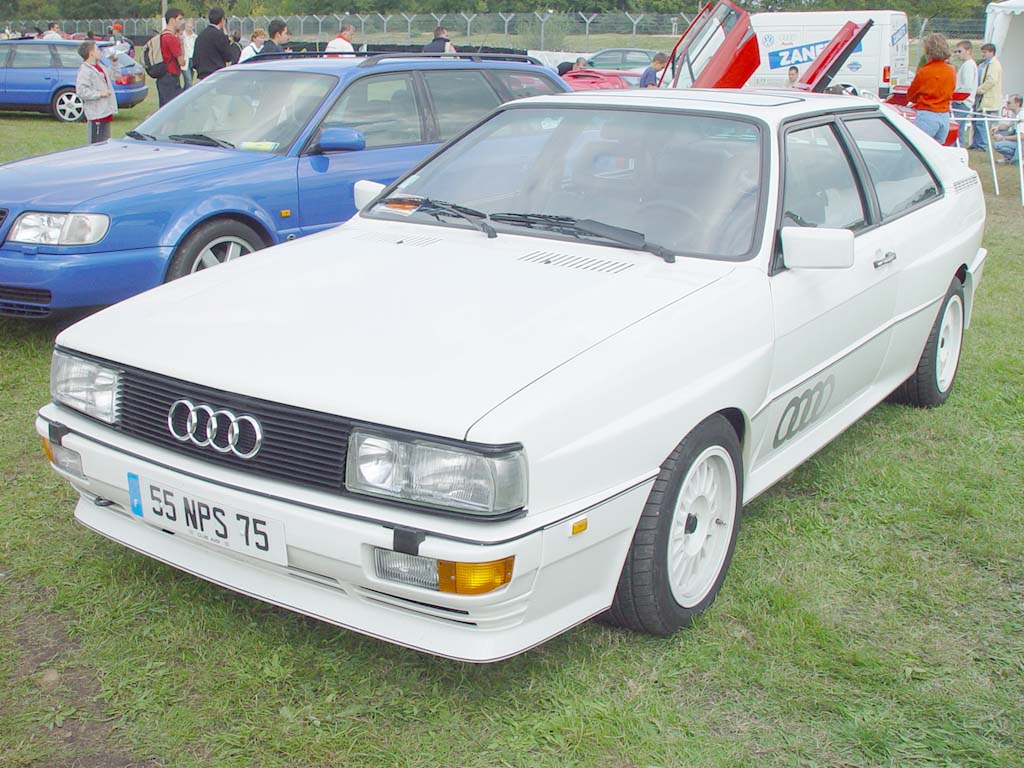

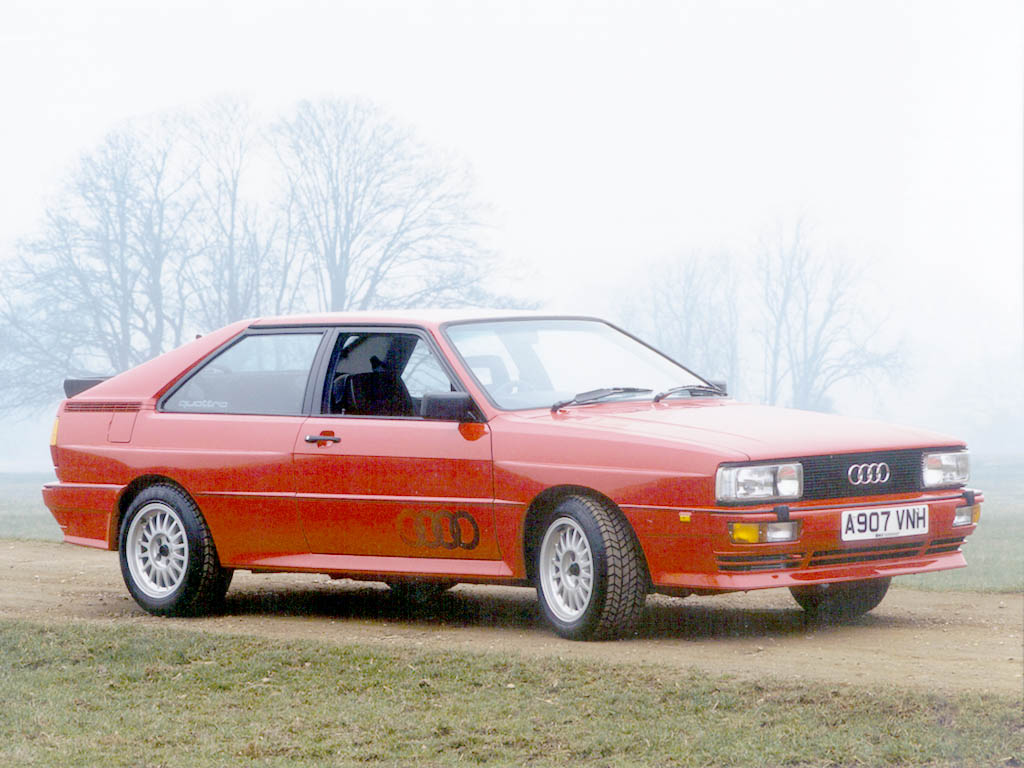

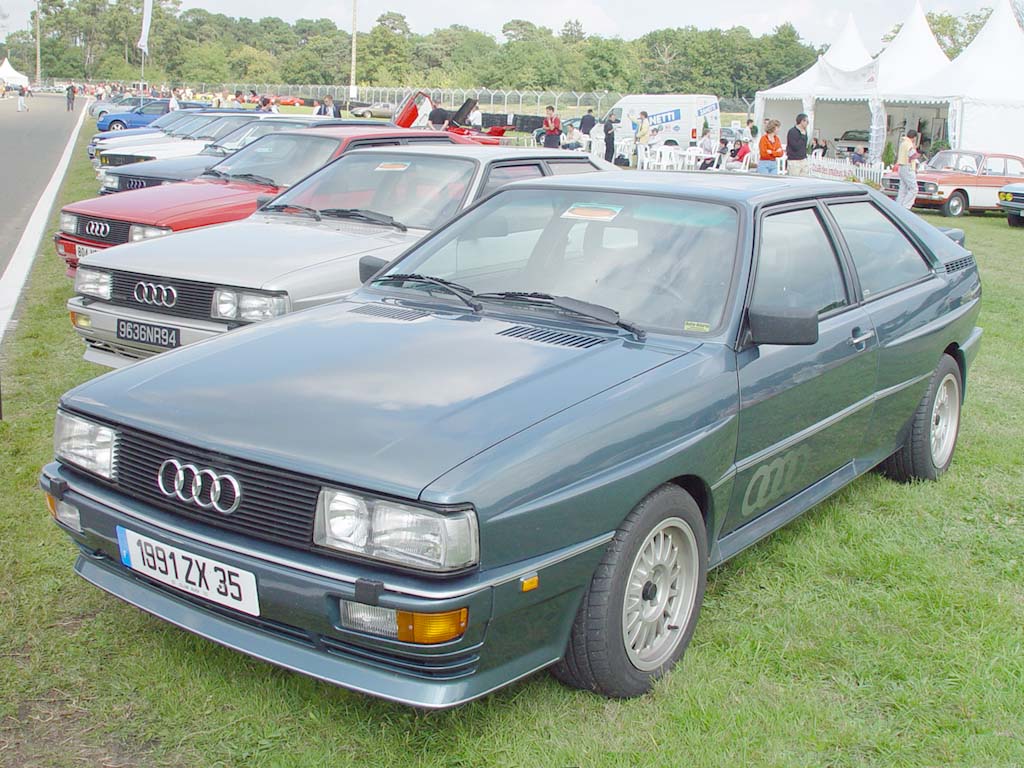

1984 Audi Quattro

In 1984 the Audi Quatto was slight updated. Changes Include:

ABS Brakes Larger Wheels & Tires Significant Changes to Suspension Updated Interior including Digital Speedomter Aero-style H1/H4 headlights

In Detail

submitted by Richard Owen
engine Type WR Inline-5
position Front Longitudinal
aspiration KKK-K26 oil cooled
valvetrain 2 Valves per Cy;
fuel feed K-Jetronic with Lambda CIS fuel injection
displacement 2144 cc / 130.8 in³
bore 79.5 mm / 3.13 in
stroke 86.4 mm / 3.4 in
compression 7.0:1
power 149.1 kw / 200 bhp @ 5800 rpm
specific output 93.28 bhp per litre
bhp/weight 155.04 bhp per tonne
torque 288.79 nm / 213 ft lbs @ 3500 rpm
body / frame Unit Steel
driven wheels Quattro Permanent 4WD
front tires 215/50VR15 Pirelli P7
rear tires 215/50VR15 Pirelli P7
front brakes Vented Discs w/Single Piston Calipers, ABS
f brake size x 280 mm / x 11.0 in
rear brakes Vented Discs w/Single Piston Calipers, ABS
r brake size x 240 mm / x 9.4 in
front wheels F 38.1 x 20.3 cm / 15 x 8 in
rear wheels R 38.1 x 20.3 cm / 15 x 8 in
f suspension MacPherson struts
r suspension MacPherson struts
curb weight 1290 kg / 2844 lbs
transmission 5-Speed Manual
gear ratios 3.60:1, 2.13:1, 1.36:1, 0.97:1, 0.78:1, :1
final drive 3.89:1
top speed ~212.4 kph / 132 mph
0 – 60 mph ~6.9 seconds
