2002 Honda NSX-R

2002 Honda NSX-R

2002 Honda NSX-R

Development

When Honda introduced the NSX in 1990, they set out to establish a new concept in sports car value. Within the broader sports car category that included everything from small to large displacement vehicles, they offered the NSX, having a mid-engine, three-liter, normally-aspired engine and an all aluminum body construction. They also offered a commitment toward exhaust emission levels that responded strongly to environmental concerns. These advances all originated in Honda’s desire to create a new, distinctive set of values in high-performance driving.

And now the NSX has entered a new phase of evolution. Its advanced styling and wider tires propel it to news heights in speed. Ten years after the introduction of the original NSX-R, Honda’s objective is delivering new aerodynamic technologies to achieve a level of stability beyond earlier designs.

Aerodynamics

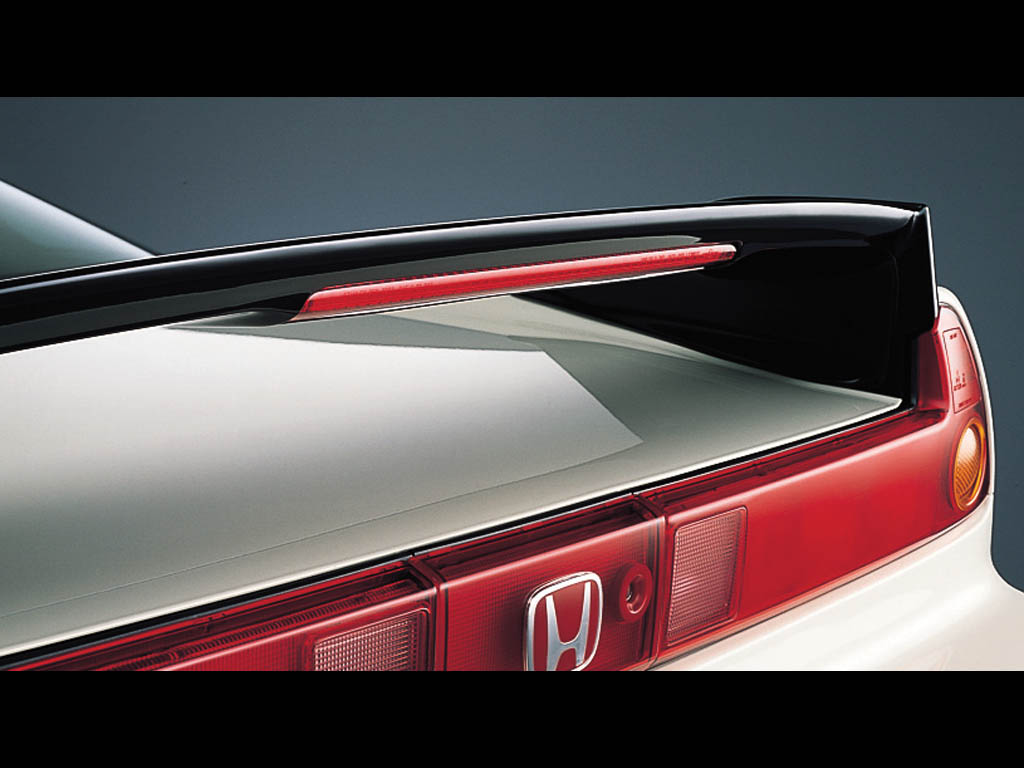

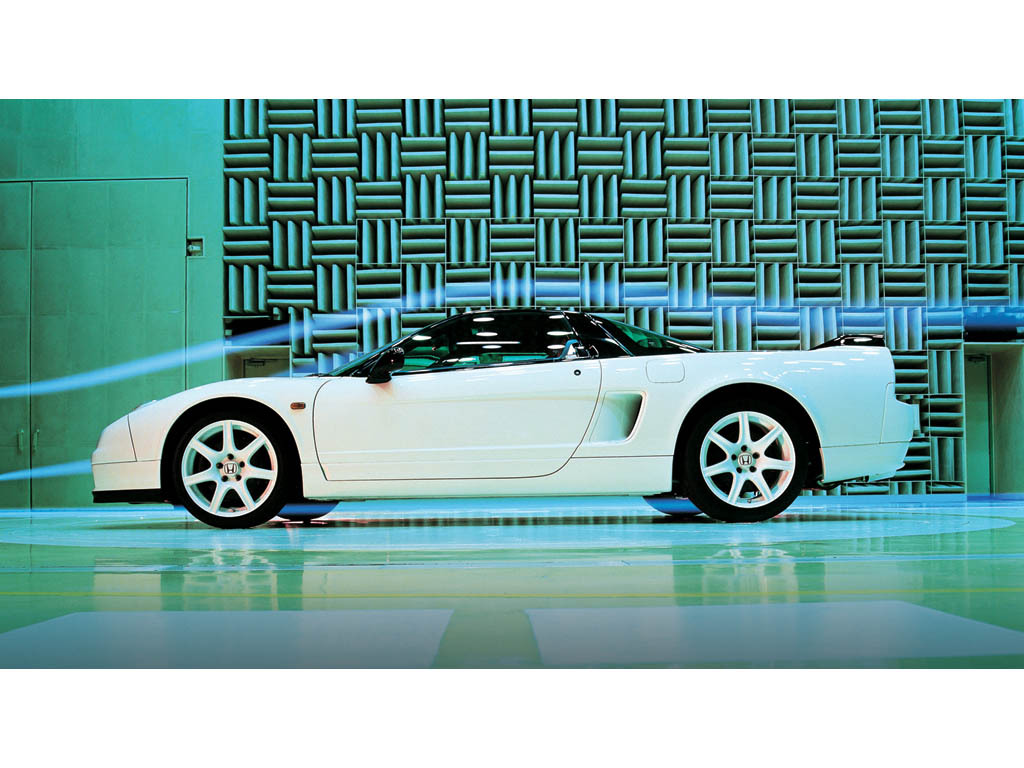

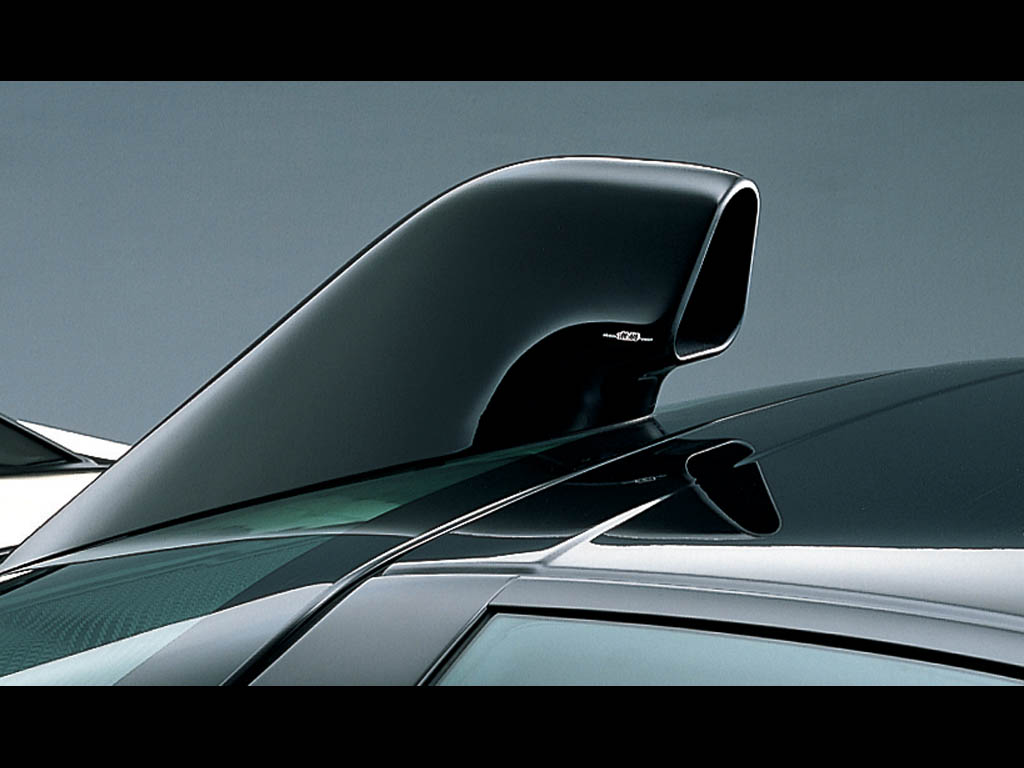

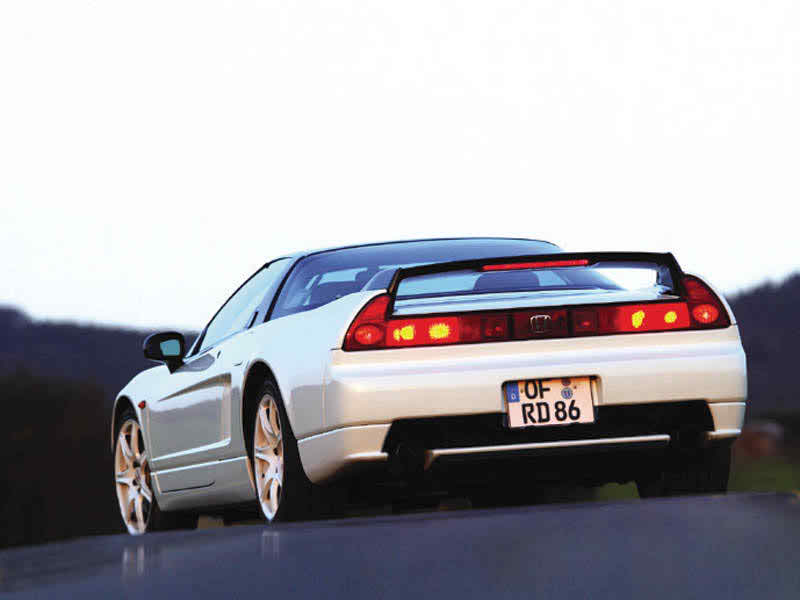

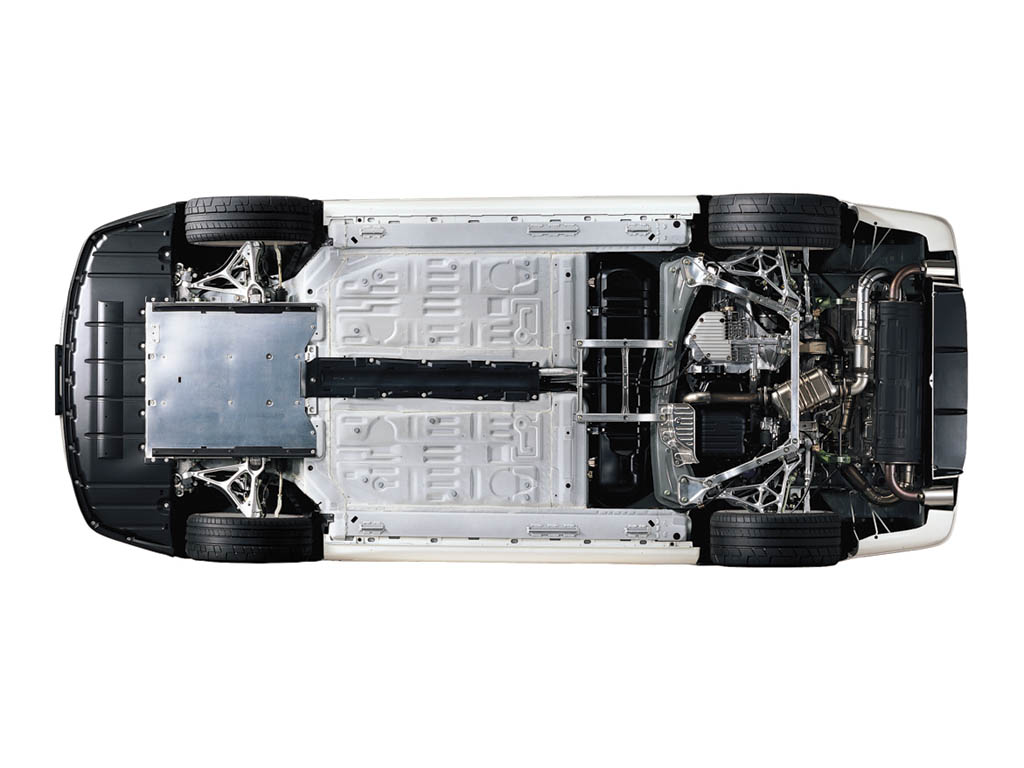

Honda have channeled their efforts towards increased high-speed stability and improved aerodynamics. At the rear down force is created by a carbon fiber spoiler. At the front, large aerodynamic devices were left off as they adversely effect ground clearance. Instead Honda redesigned the underbody of the car to be as flat as possible to encourage smooth airflow and promote down force.

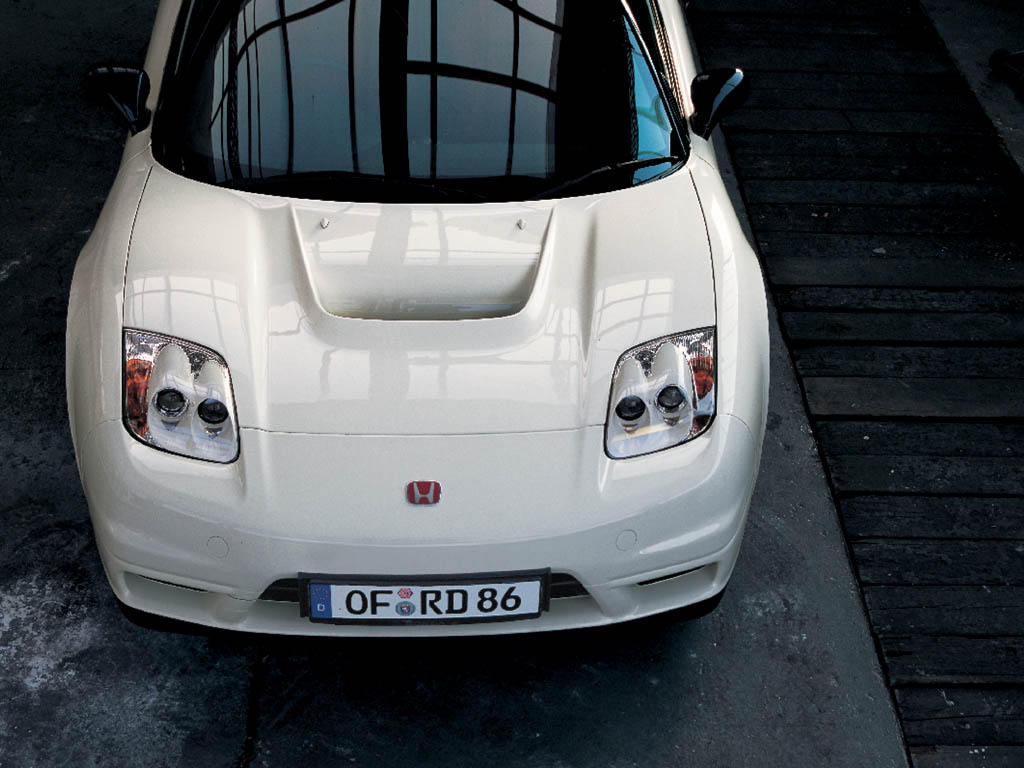

Taking advantage of the of the car’s mid-ship layout, an air duct was added in the hood to provide the necessary extraction route for the front radiator. Longitudinal fins were also added to the outer left and right sides of the under body cover to prevent air passing under the car, entering though the wheel wells. Similarly, spats have been added to channel air passing through the ducts, away from the wheel wells. These devices result in smoother airflow under the body, achieving the desired down force.

Handling

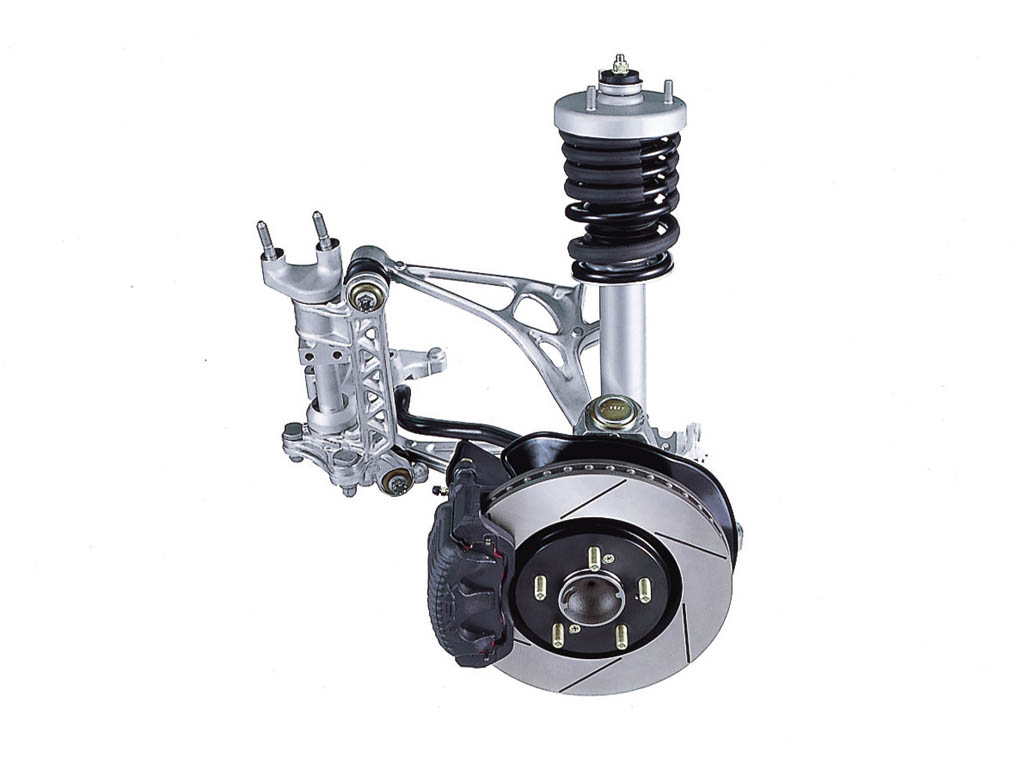

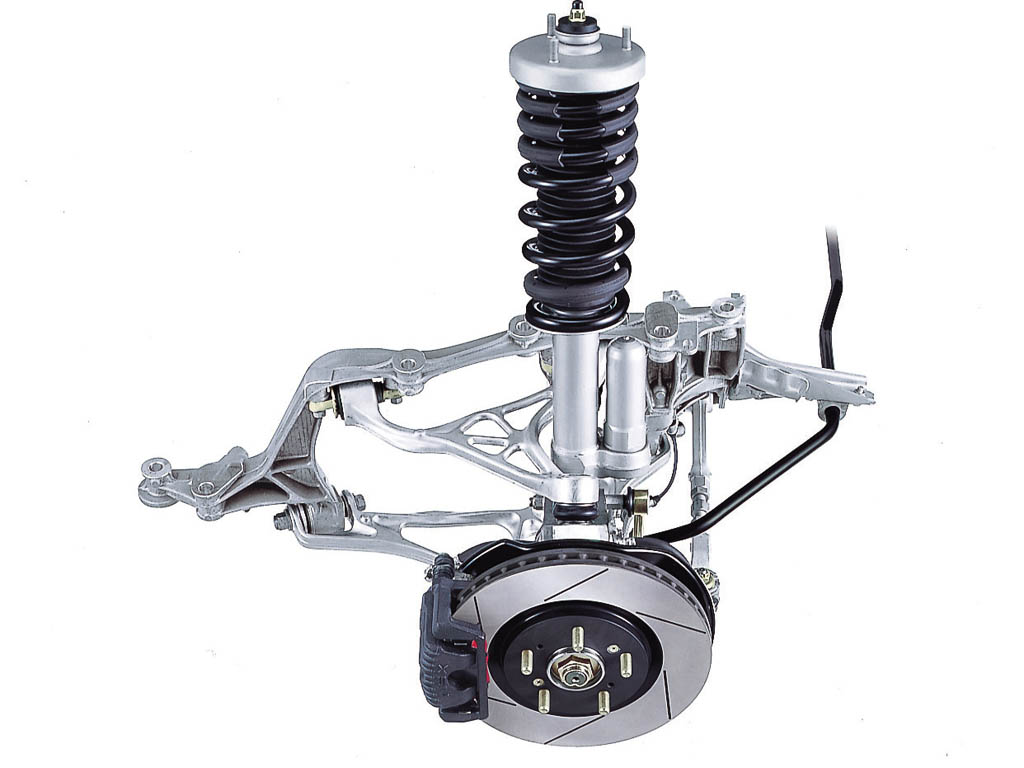

By contributing to high-speed stability, the aerodynamically induced down force achieved in the NSX-R has forced a selection of harder suspension settings which increase cornering performance. Overall the suspension is tuned to promote higher cornering limits. Increased damping rates, larger stabilizer bars, reinforced damper mounts and rear control arm bushings make for a more responsive drive.

The limited slip differential has been tuned as has body rigidity with strut tower bars.

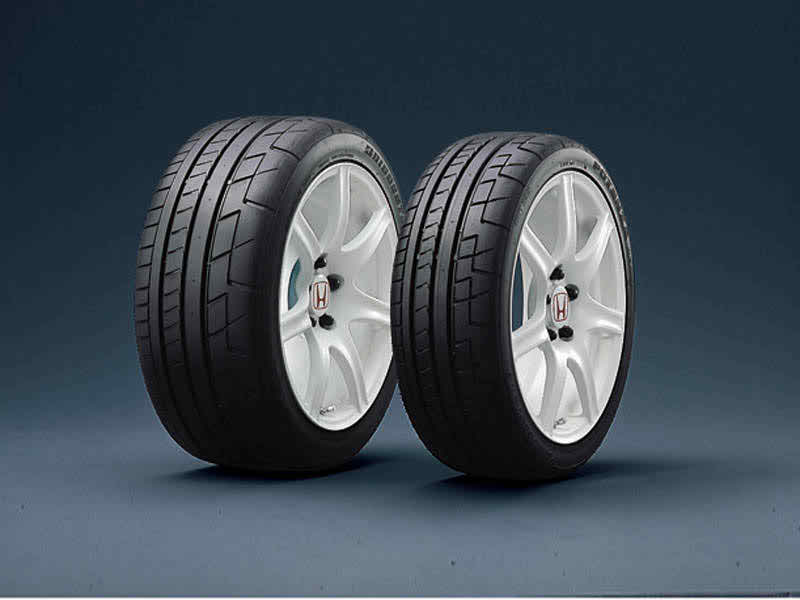

Honda’s quest for high cornering speeds led them to develop a custom, asymmetrically patterned Potenza R070. Repeated Suzuka Circuit testing during the tire’s development laid the groundwork for detailed balancing of the tire grip in tune with the balance of the suspension settings. Lightweight wheels were developed together with BBS.

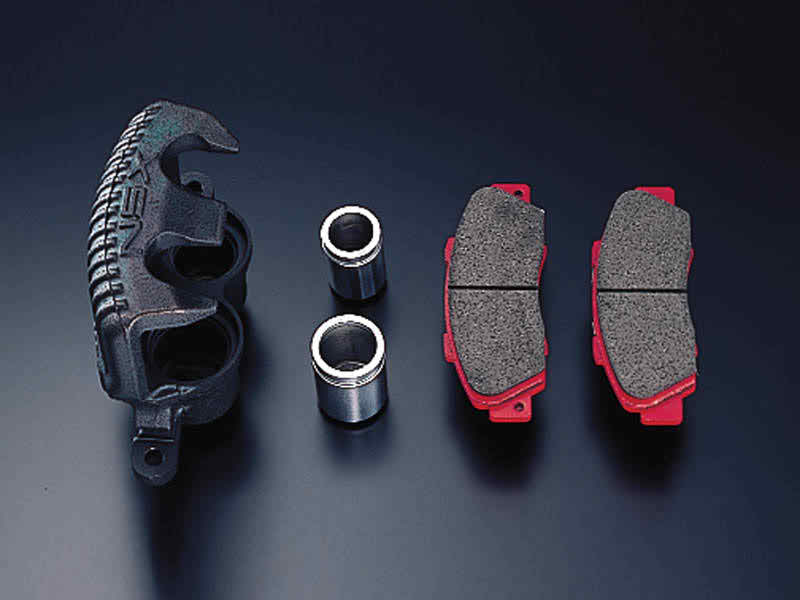

Significant improvements were achieved in the braking systems, specifically resistance to high temperature and fade. The hydraulic assistance has been increased and the ABS has been tuned to match the harder suspension settings.

Powertrain

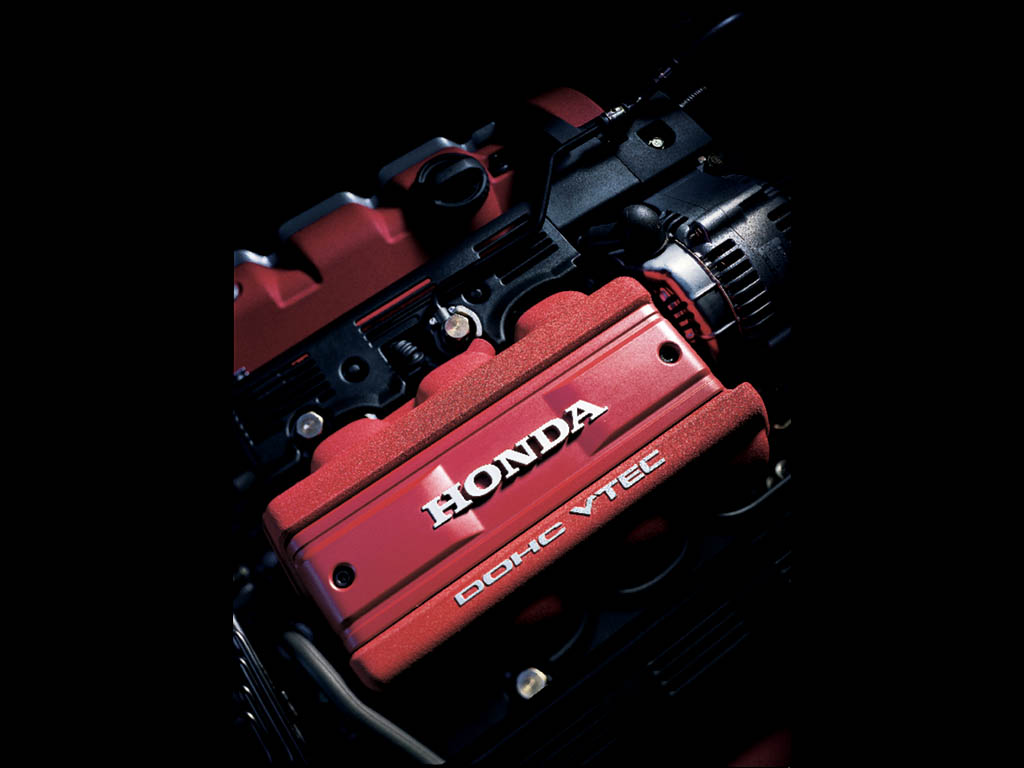

Drawing upon acquired knowledge from the Japanese GT Championship, precision production methods were adopted to create a better engine feedback. Honda improved the feeling of linearity between throttle operation and the resultant variation in torque output.

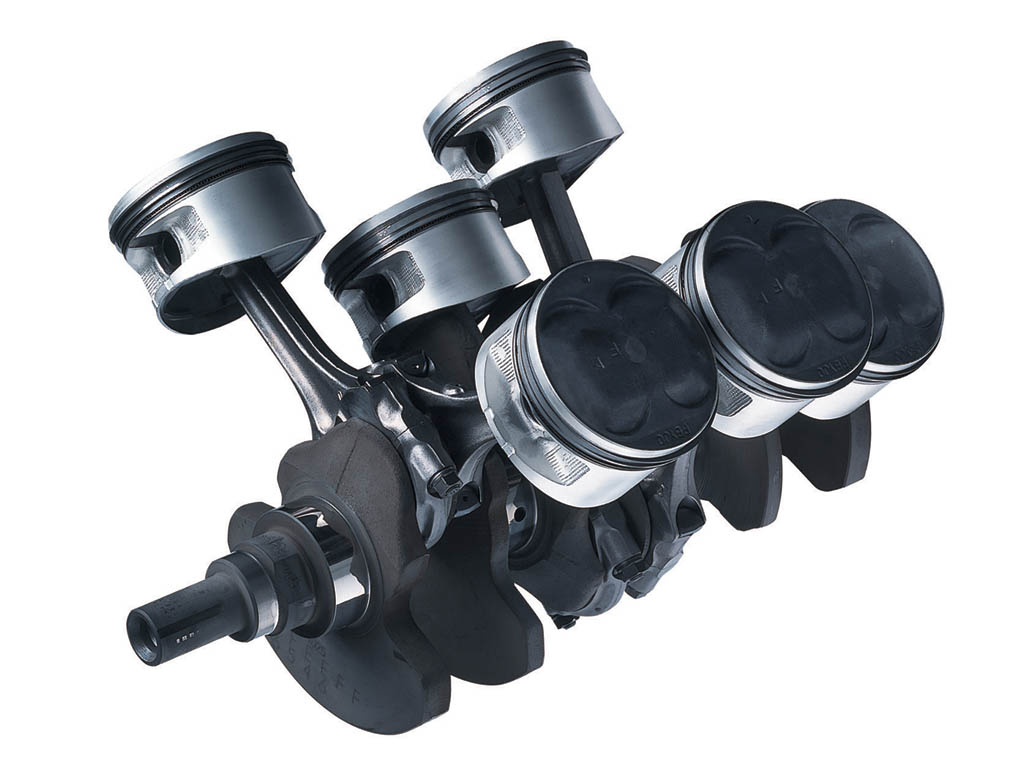

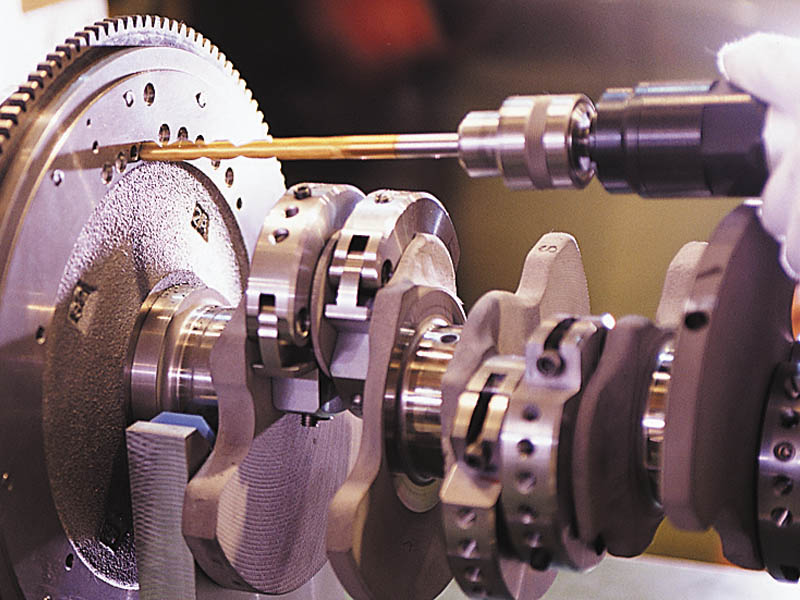

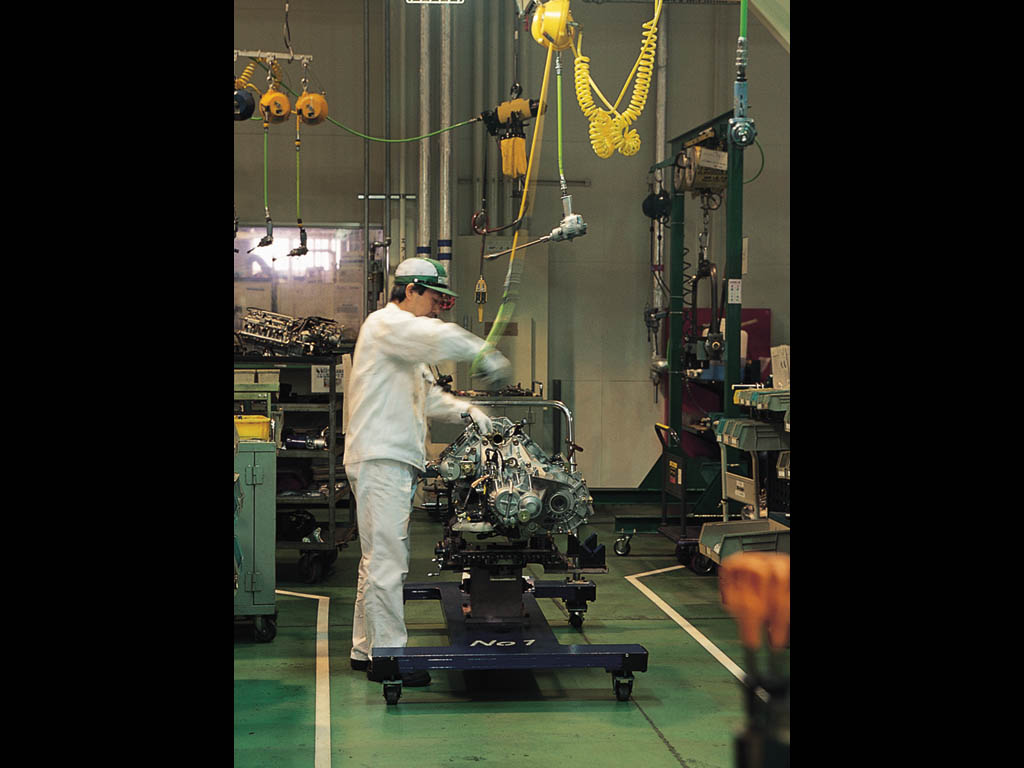

The NSX-R employs the same high precision balancing as found in the race engines at the JGTC. Qualified technicians check each assembly, including clutch cover, fly wheel and pulleys. Rotating weight tolerance is reduced to below 1/10 that of the base NSX. Weight tolerances of the piston and connecting rods pairs are controlled to within half that of the base model.

Weight Reduction

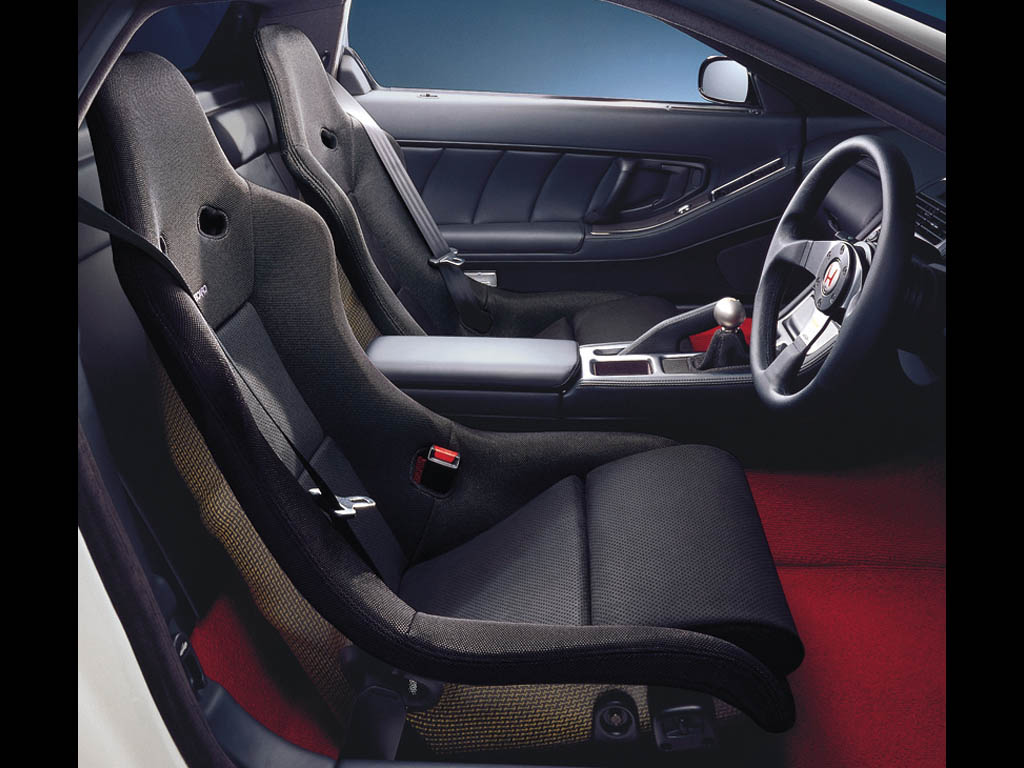

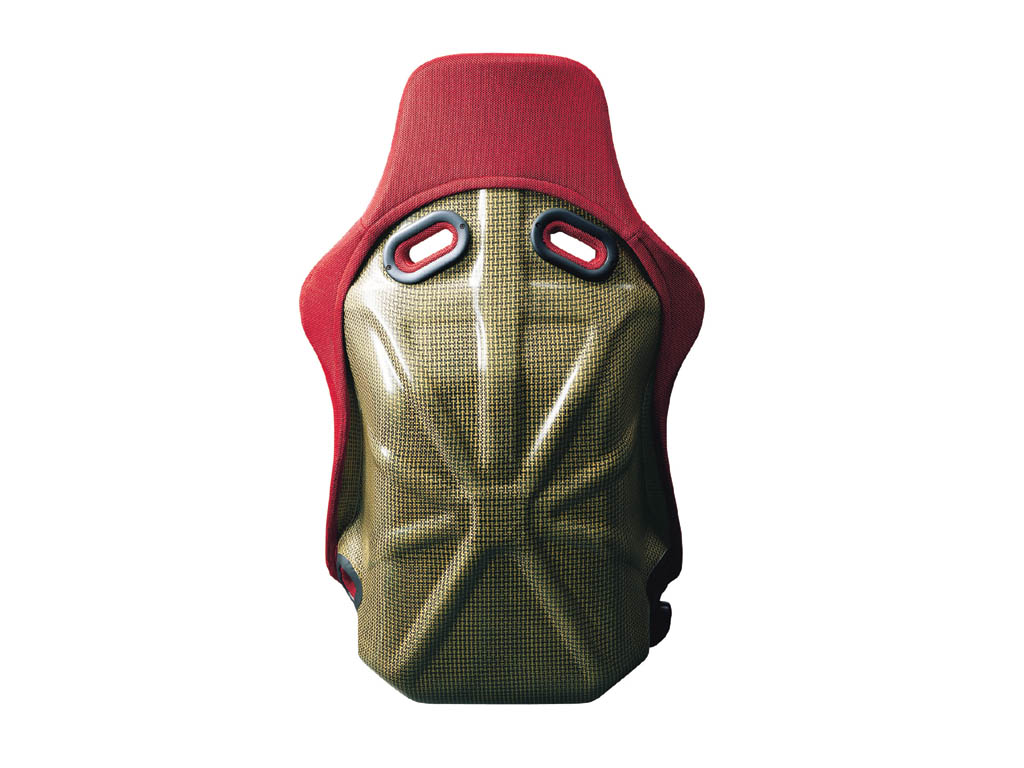

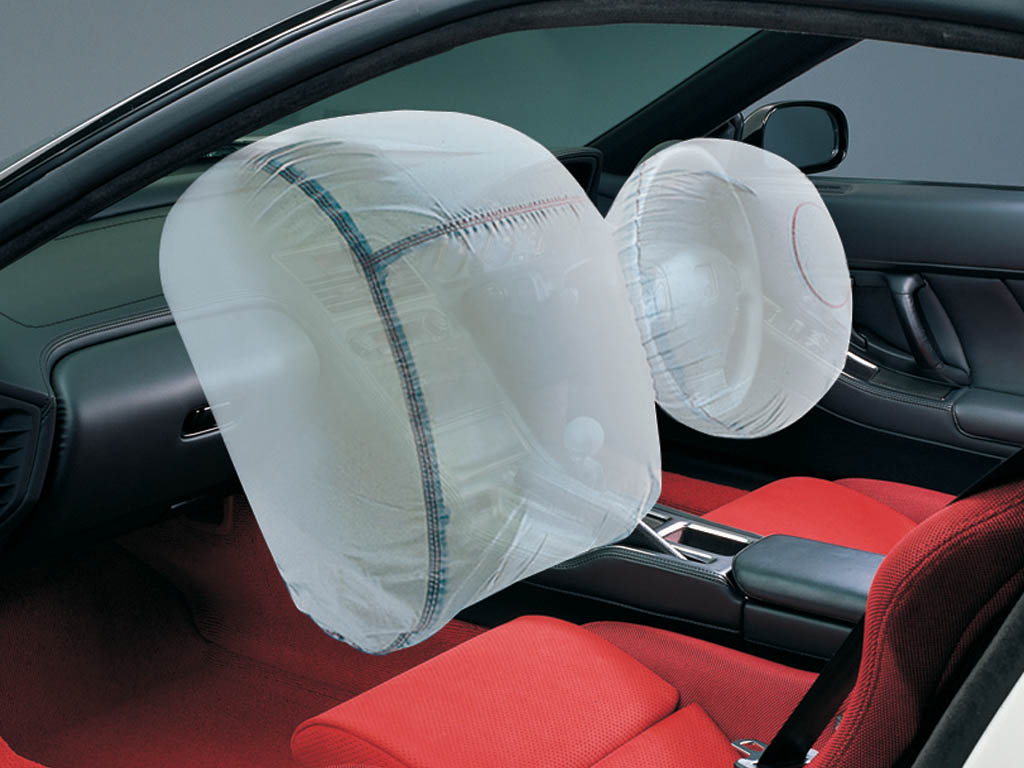

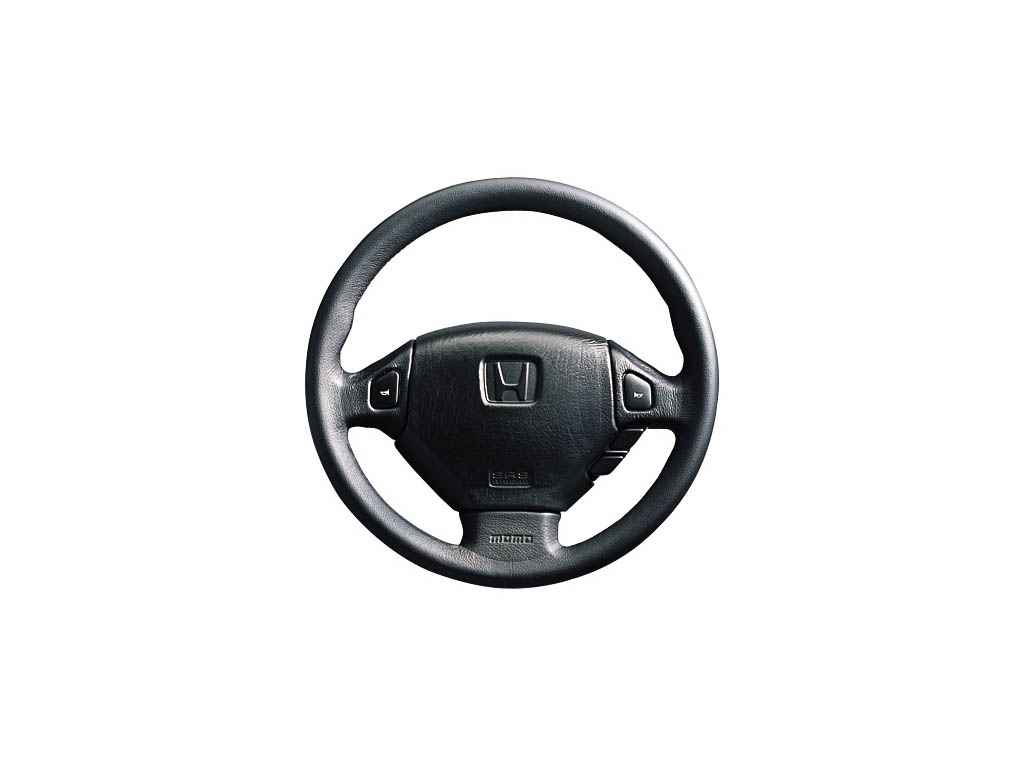

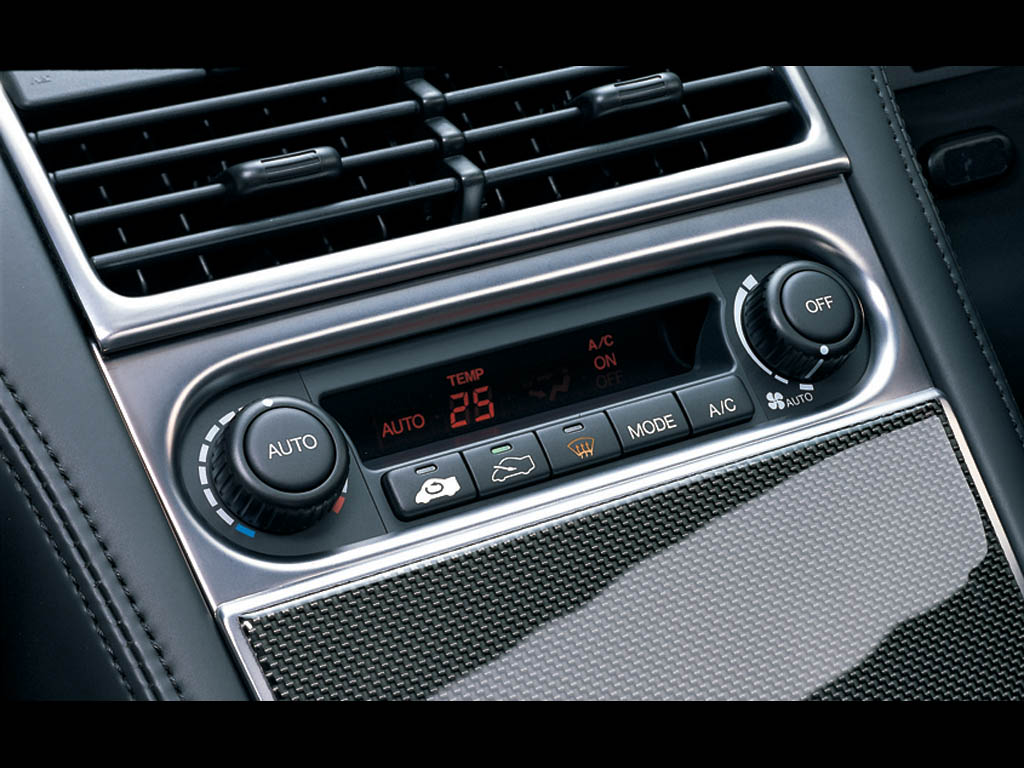

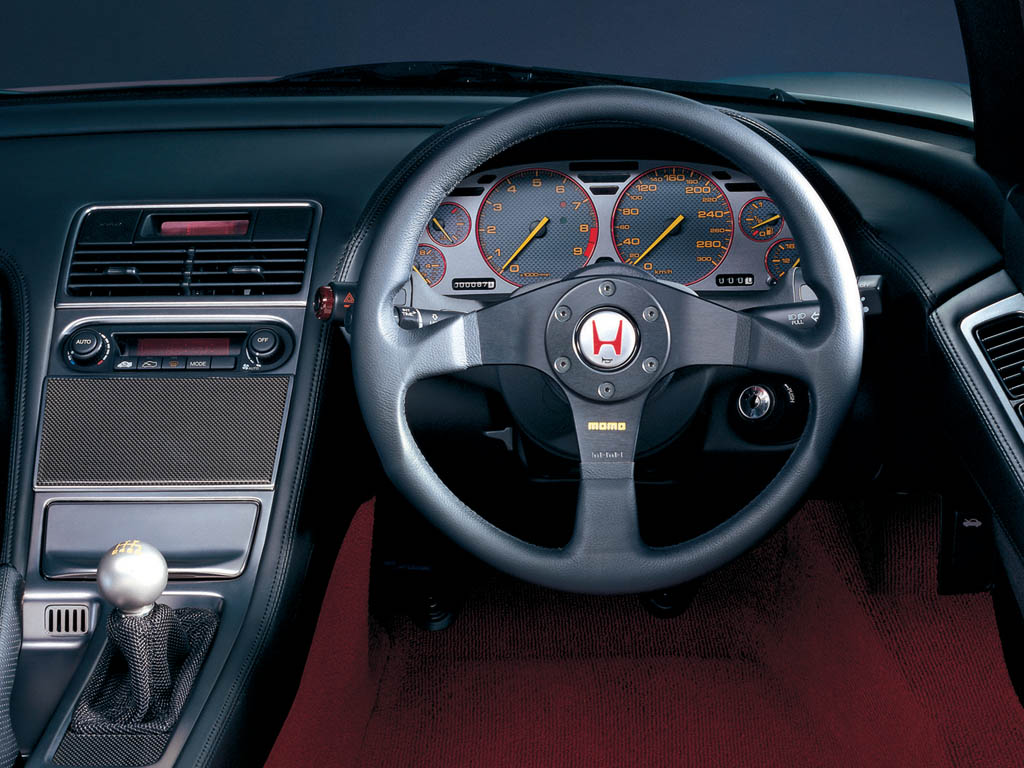

Over the years Honda has continued to pursue weight reduction in the NSX. The design of the NSX-R incorporates weight reduction technologies achieved through the evolution of the base model. For the second generation NSX, Honda have employed fixed headlights, stainless exhausts and thinner exterior panels. Weight reduction specific to the NSX-R include carbon fiber aerodynamic devices, Recaro Bucket Seats, Momo steering wheel, no sound insulation, smaller battery, no power locks or doors, no hydrualic clutch damper, non-powered mirrors with air conditioning, audio and airbags being optional. These elements lower the weight of NSX-R by 78 kgs (172 lbs).

Story by Supercars.net & Honda Motor Co, Ltd

In Detail

submitted by Richard Owen
engine C32B Inline-6
position Mid Longitudinal
aspiration Natural
valvetrain Belt-Driven DOHC, 4 Valves per Cyl w/VVT
fuel feed Electronic Fuel Injection
displacement 3179 cc / 194.0 in³
bore 93 mm / 3.66 in
stroke 78 mm / 3.07 in
compression 10.2:1
power 206 kw / 276.2 bhp @ 7300 rpm
specific output 86.88 bhp per litre
bhp/weight 217.48 bhp per tonne
torque 304 nm / 224.2 ft lbs @ 5300 rpm
redline 8000

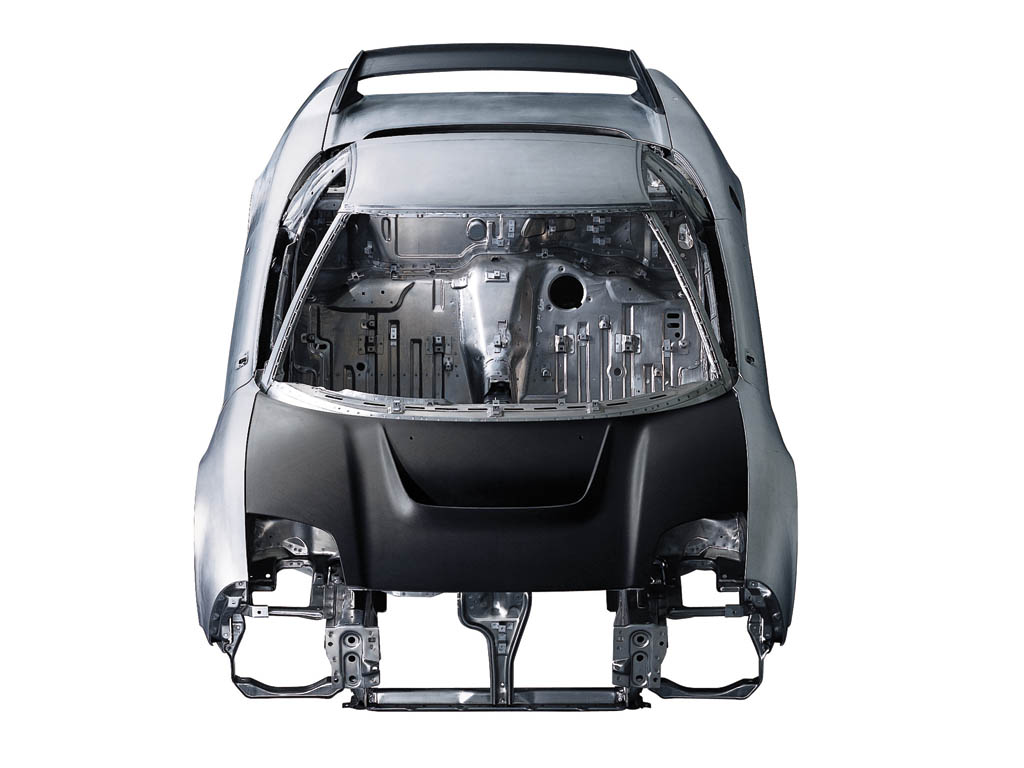

body / frame Aluminum Monocoque w/Carbon Fib?er Hood
driven wheels RWD w/LSD
front tires 215/40R17 Bridgestone Potenza R070
rear tires 215/40R17 Bridgestone Potenza R070
front brakes Vented Discs w/Specially Developed ABS
f brake size mm / in
rear brakes Vented Discs w/Specially Developed ABS
r brake size mm / in
steering Rack & Pinion
f suspension Double Wishbones w/torion Bars,
curb weight 1270 kg / 2800 lbs
wheelbase 2530 mm / 99.6 in
front track 1510 mm / 59.4 in
rear track 1540 mm / 60.6 in
length 4430 mm / 174.4 in
width 1810 mm / 71.3 in
height 1160 mm / 45.7 in

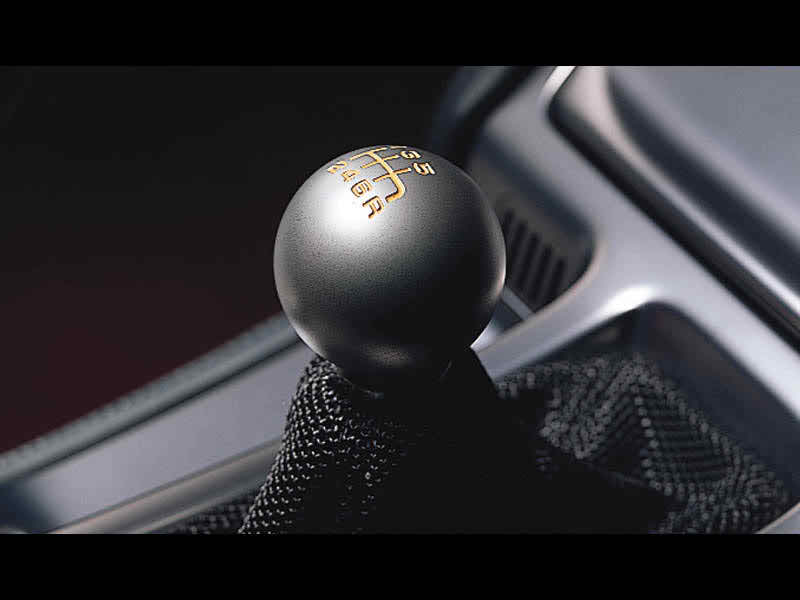

transmission 6-Speed Manual
gear ratios 3.066:1, 1.956:1, 1.428:1, 1.125:1, 0.914:1, 0.717:1, :1
final drive 4.235:1
top speed ~280 kph / 174.0 mph
0 – 60 mph ~4.7 seconds
0 – 100 mph ~11.2 seconds
drag 0.32 Cd
