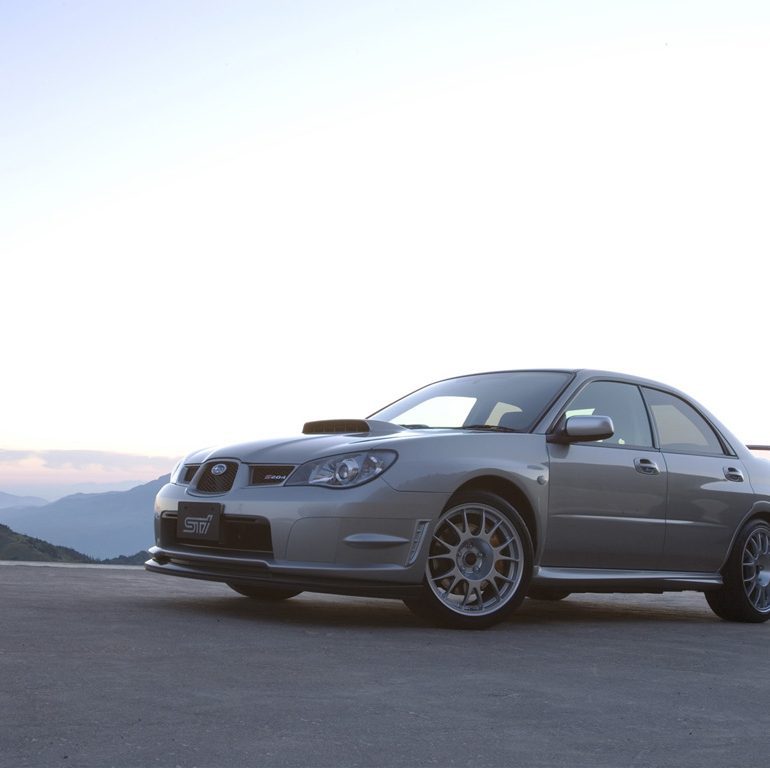

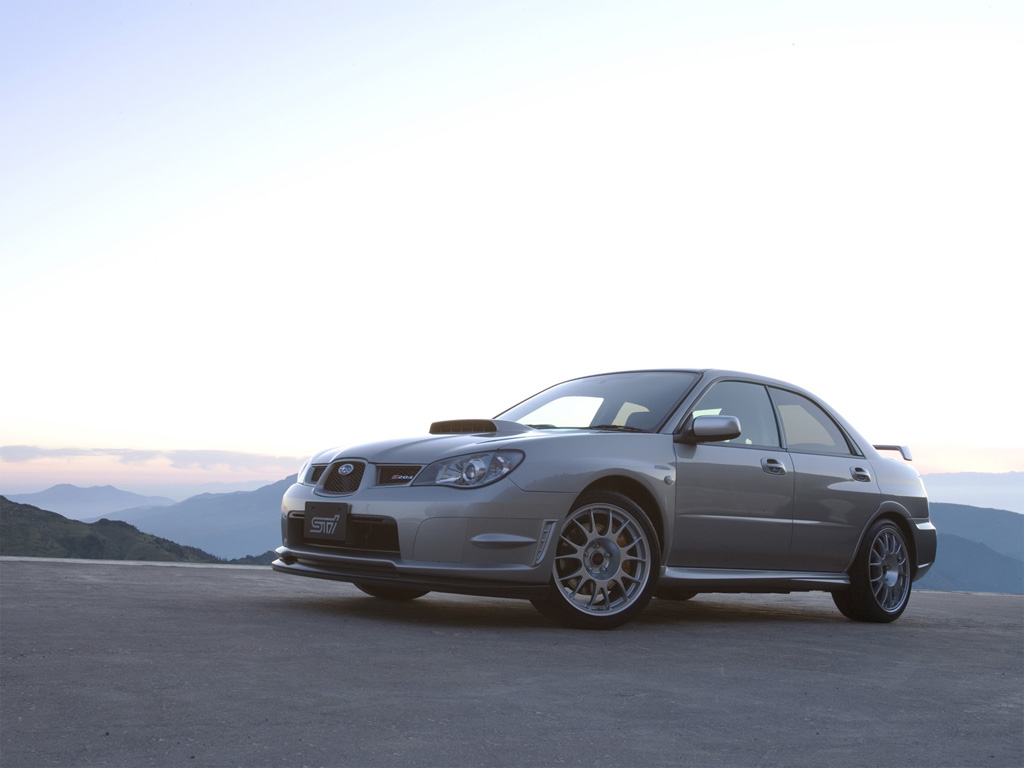

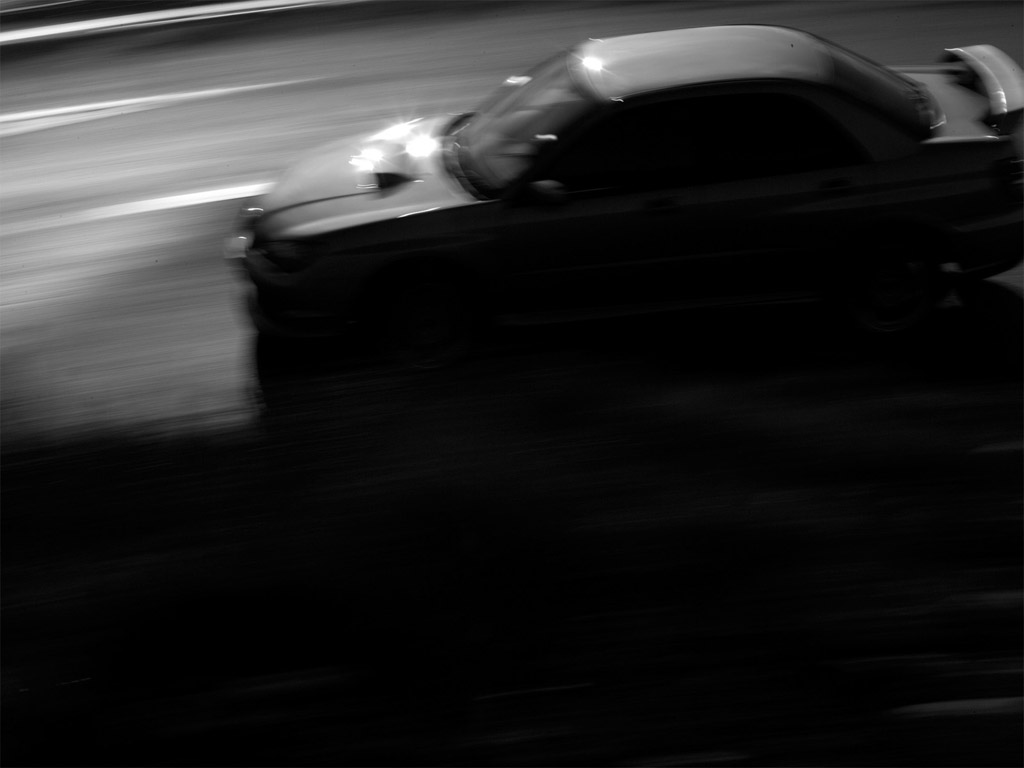

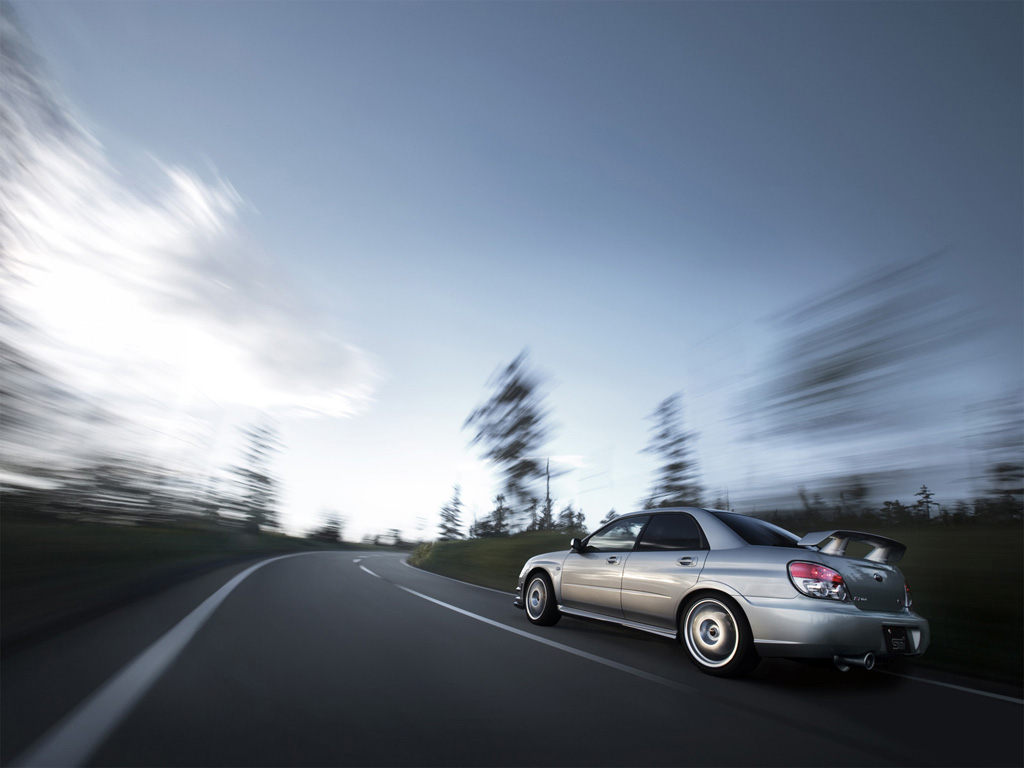

2006 Subaru Impreza WRX STi S204

The S04 follows the S202, and S203, as a special edition Impreza limited to 600 examples. Each costs five million yen and are built specifically for the Japanese market. (approx $40,000 USD)

Aside form the upgraded STi package, the S04 sports a more power thanks to new larger, ball-bearing turbocharger from FHI. The added bits offer 320 bhp and 319 lb-ft of torque from the small two liter engine! The performance parts include a large-sized twin scroll ball-bearing turbo, sports ECU, sports catalyzer, titanium sports muffler, silicon air intake duct, air cooled engine oil cooler, high strength casting pistons, STI large size intercooler, hard type engine mounts and balanced engine internals.

The chassis was completely reworked with a new suspension featuring lower springs, performance dampers jointly developed by YAMAHA and STi, piro-boll bush suspension bushings, 21mm roll bars, sports brake pads, 18×8.5 BBS alloy wheels, strut braces,

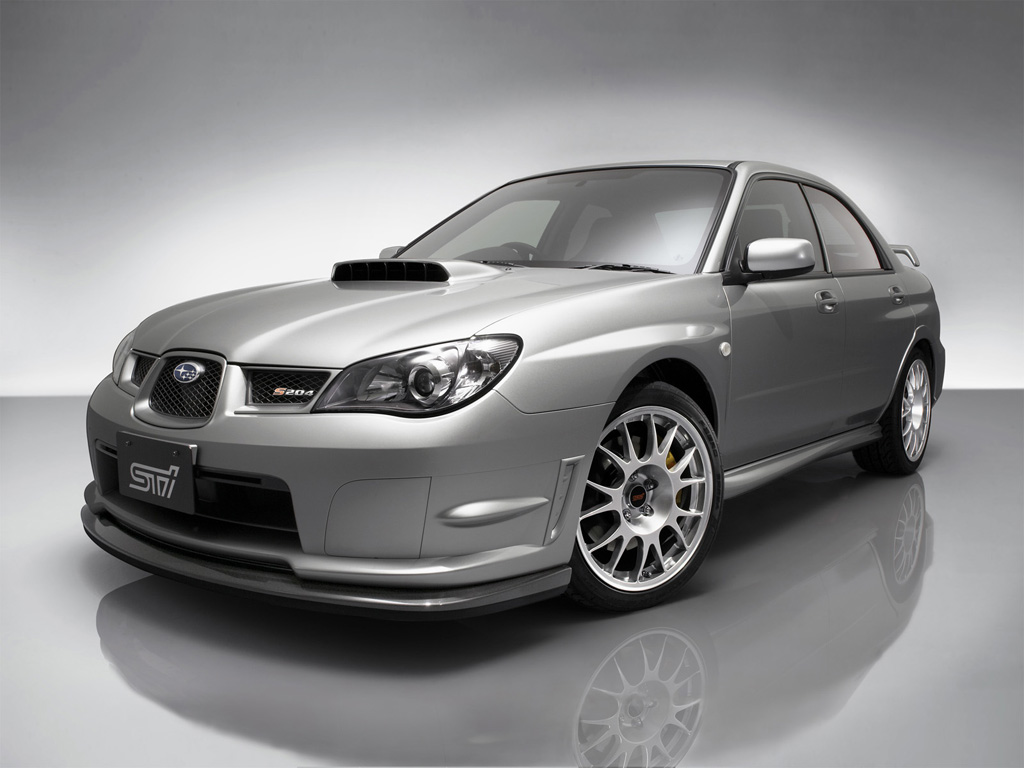

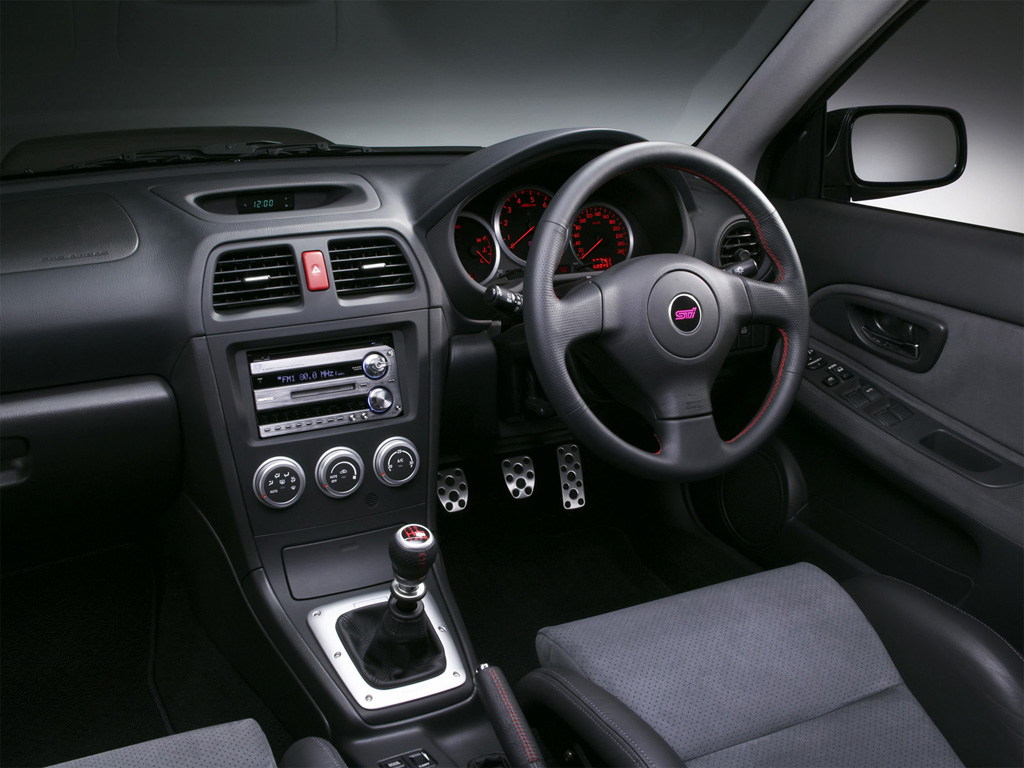

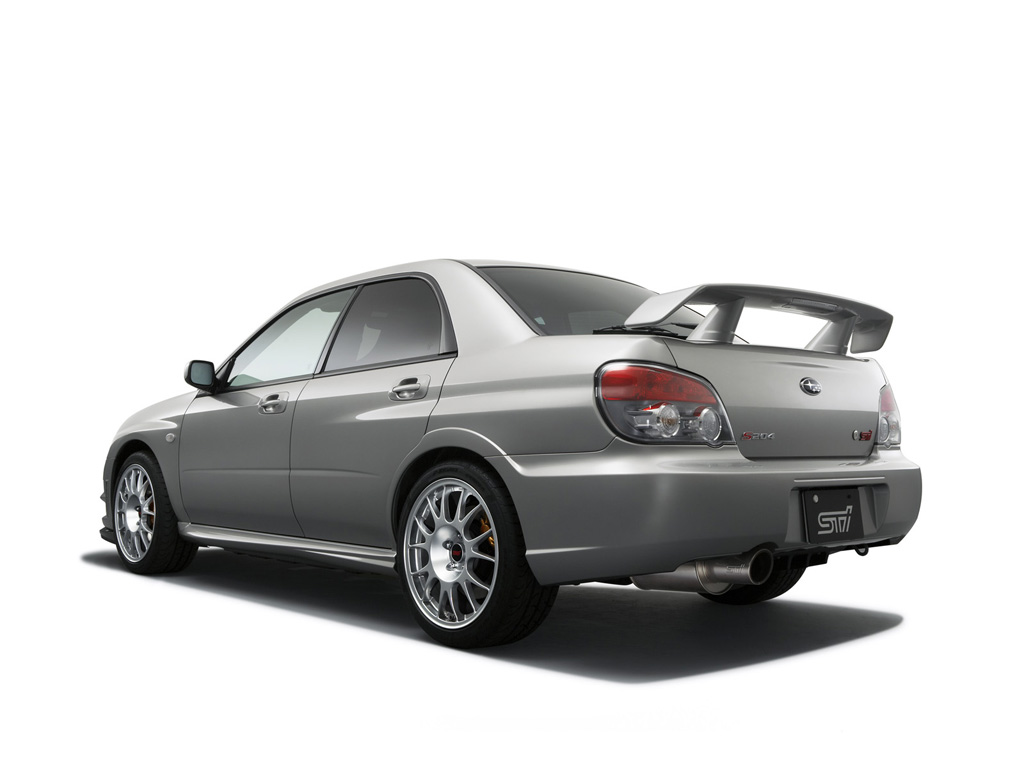

Inside the S04 gets a leather wrapped SRS steering wheel with STi stitch, shift knob with stitch, an aluminum shift boot ring with S204 serial number, sports pedals with aluminum pads, full auto air conditioning and exclusive bucket seats that recline. Outside, customers can choose three colors: WRC blue, grey or black with standard options being HID headlights, electric mirrors, exclusive front skirt, silver mesh front grille, Rear wing spoiler with high mounted stop lamp, Aluminum front hood, Front corner spoilers and a rear diffuser.

In Detail

engine EJ20 Boxer-4
aspiration Twin Scroll Ball-Bearing FHI Turbo
valvetrain DOHC, 4 Valves per Cyl w/VVT
fuel feed Multipoint Fuel Injection
displacement 1994 cc / 121.7 in³
bore 92 mm / 3.62 in
stroke 75 mm / 2.95 in
compression 8.0:1
power 238.6 kw / 320 bhp @ 6400 rpm
specific output 130.24 bhp per litre
bhp/weight 220.69 bhp per tonne
torque 432.51 nm / 319 ft lbs @ 4400 rpm
body / frame Unit Steel
driven wheels AWD w/Driver Control Center Diff (DCCD), Front Helical LSD, Rear Mechanical LSD
front tires 235/40ZR18 Pirelli P-Zero Corsa
rear tires 235/40ZR18 Pirelli P-Zero Corsa
front brakes Brembro Discs w/4-Piston Calipers, Sports ABS
f brake size x 323 mm / x 12.7 in
rear brakes Brembro Discs w/Twin-Piston Calipers, Sports ABS
r brake size x 312 mm / x 12.3 in
steering Quick Ratio Rack & Pinion
f suspension MacPherson Struts w/Lower L Arms
r suspension MacPherson Struts w/Trailing Arms
curb weight 1450 kg / 3196 lbs
wheelbase 2540 mm / 100 in
front track 1490 mm / 58.7 in
rear track 1500 mm / 59.1 in
length 4475 mm / 176.2 in
width 1740 mm / 68.5 in
height 56.3 mm / 1410 in
transmission 6-Speed Manual
gear ratios 3.636:1, 2.375:1, 1.761:1, 1.346:1, 0.971:1, 0.756:1, :1
final drive 155:1
