2009→2010 Morgan AeroMax

2009→2010 Morgan AeroMax

2009→2010 Morgan AeroMax



Just 2 years after its debut at the 2006 Geneva Autoshow as a one off built to order for one of Morgan’s discerning customers, the AeroMax coupe has entered series production at the Morgan factory.

Such was the interest surrounding this unique design that it was decided, with the kind permission of its owner, to make a limited production run of 100 cars, all of which were sold within just a few weeks of its announcement.

Following a two year intense period of production development, and a number of minor improvements to the overall design, the first customer AeroMax is shortly to be delivered.

No expense has been spared in ensuring that the production quality mirrors expectations. Innovations include a world first, the use of high tech super formed aluminium panels for the entire body. This process allows the most complex of shapes to be made in aluminium which are then fitted over a traditional ash frame. Beautifully detailed inside, the coachbuilt ash frame proves that construction of the Morgan AeroMax remains true to Morgan philosophy. Using this unique mix of technology and high quality materials, the AeroMax is assembled with care and dedication by the craftsman and women in Malvern. This method of construction offers a minimum of carbon emissions and maximum sustainability.

The body is bolted to a stiff yet lightweight Aero 8 chassis which from 2008 is fitted with the 367Bhp 4.8 litre BMW V8 engine. This gives AeroMax performance to match its looks. For the first time a Morgan can have an automatic gearbox. The latest ZF 6HP 26 gearbox gives the fastest change in the world and endows the automatic with better acceleration and fuel economy than the manual thanks to its lock up clutch, low power loss and instant change characteristics. It also delivers lower CO2 emissions, 267 g/km, a figure not normally associated with a 0-62 mph (100 kph) capability of just 4.2 seconds and a top speed in excess of 170mph.

This will be the first Morgan to use Canbus software to control not only the engine functions but also some body technology such as lighting, wipers and instrumentation. Reassurance and security are provided by Electronic Brake Distribution, cruise control, tyre pressure monitoring, ABS and Siemens electronic airbags.

The twin electrically operated glass rear windows allow easy access for the optional stitched calf leather Connolly luggage.

The technically advanced engine and lightweight construction give the best of all worlds – performance, economy and low emissions, yet still with all of the safety systems one would expect in a modern performance car.

Morgan believes with AeroMax it leads the way in exclusive bespoke low volume car construction using quality raw materials and advanced technologies that are not available to Morgan’s competitors in the world of luxury car production. Owners of the Morgan AeroMax will be joining a very exclusive club with a unique opportunity to share their motoring dreams

Story by Morgan Motor Company

In Detail

submitted by admin
type Series Production Car
production years 2009 – 2010
built at Malvern Link, England
production 100
price £/td> £110,000
engine BMW N62B48 V8
position Front Longitudinal
aspiration Natural
block material Alusil Aluminum Alloy
valvetrain 4 Valves per Cyl w/double-VANOS VVT
fuel feed SFI Electronic Injection
displacement 4799 cc / 292.85 in³
bore 93 mm / 3.7 in
stroke 88.3 mm / 3.5 in
power 270 kw / 362.1 bhp @ 6300 rpm
specific output 75.45 bhp per litre
bhp/weight 306.86 bhp per tonne
torque 500 nm / 368.8 ft lbs @ 3600 rpm
redline 6500
driven wheels RWD
wheel type Aluminium Alloy
front tires 225/35 ZR19 Avon ZZ3
rear tires 245/35 ZR19 Avon ZZ3
front brakes Ventilated Discs w/EBD, ABS
rear brakes Ventilated Discs w/EBD, ABS
front wheels F 48.3 x 21.6 cm / 19 x 8.5 in
rear wheels R 48.3 x 21.6 cm / 19 x 8.5 in
r suspension Double Wishbones
curb weight 1180 kg / 2602 lbs
transmission 6-Speed Manual
top speed ~273.53 kph / 170 mph
0 – 60 mph ~4.2 seconds



Auction Sales History

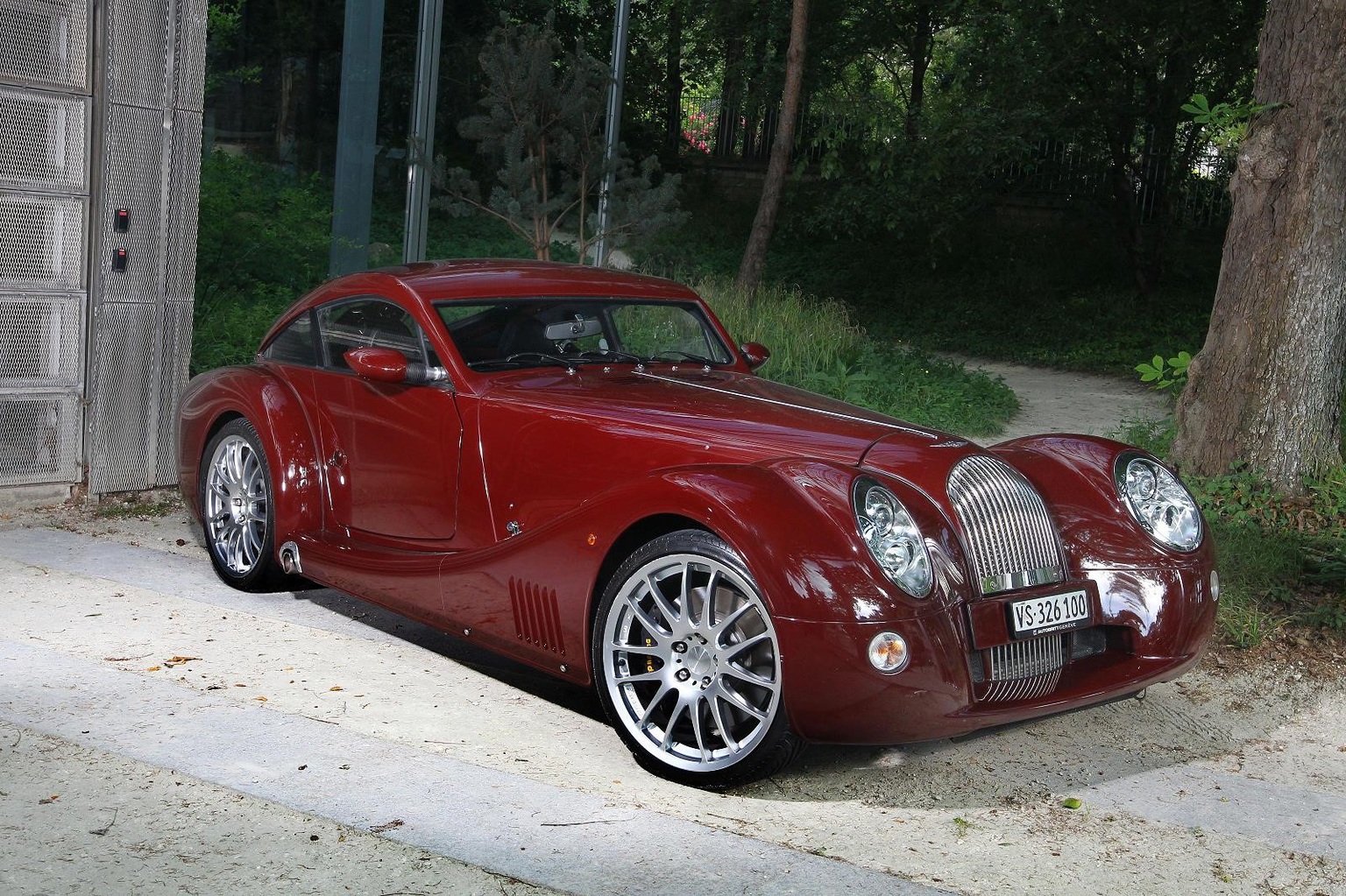

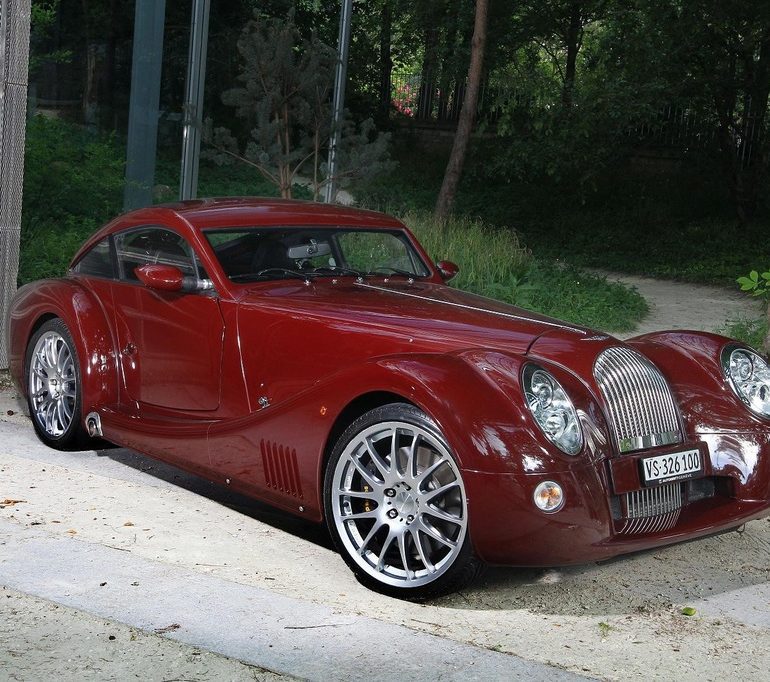

2009 Morgan Aeromax 4.8-Litre SA9AEROMAX48A0100 – sold for €172,500
Number 100/100 built. Like the majority of its fellows, chassis number ‘100’ is left-hand drive and has the six-speed automatic transmission. The Aeromax has covered only 6,200 kilometres in the hands of the original owner, Alain Dominique Perrin and is presented in commensurately excellent condition. It is one of only two finished in Cartier’s Bordeaux livery, and according to Mr Perrin is the most reliable car in his collection. Representing an exceptionally rare opportunity to acquire one of these exciting and exclusive limited-edition British supercars, this Aeromax comes with all of its original books and tools and is offered with Swiss Carte Grise.
Auction Source: The Chantilly Sale 2015

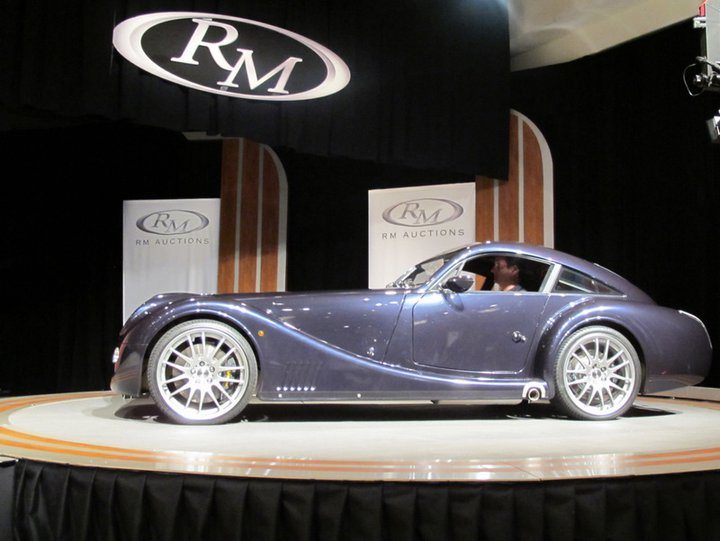

2010 Morgan Aeromax Coupe – sold for $209,000
One of the 100 cars produced by Morgan at Malvern Link in commemoration of the marque’s historic 100th anniversary, this 2010 Aeromax is a true custom-built example with its colors, interior and trim personally selected by the original owner. Handsomely finished with a Dark Metallic Blue exterior, Dark Red leather upholstery and black piano wood interior trim, it is virtually new and shows fewer than 200 miles today. It is equipped with a ZF six-speed automatic gearbox as well. According to marque expert Martin Button, it is one of only seven examples legally imported into the United States. A stunning modern high-performance motor car and an incredible design statement, this Aeromax also holds the distinction of being the sole available example in the United States at the time of writing.
Auction Source: 2011 Automobiles of Arizona by RM Auctions
