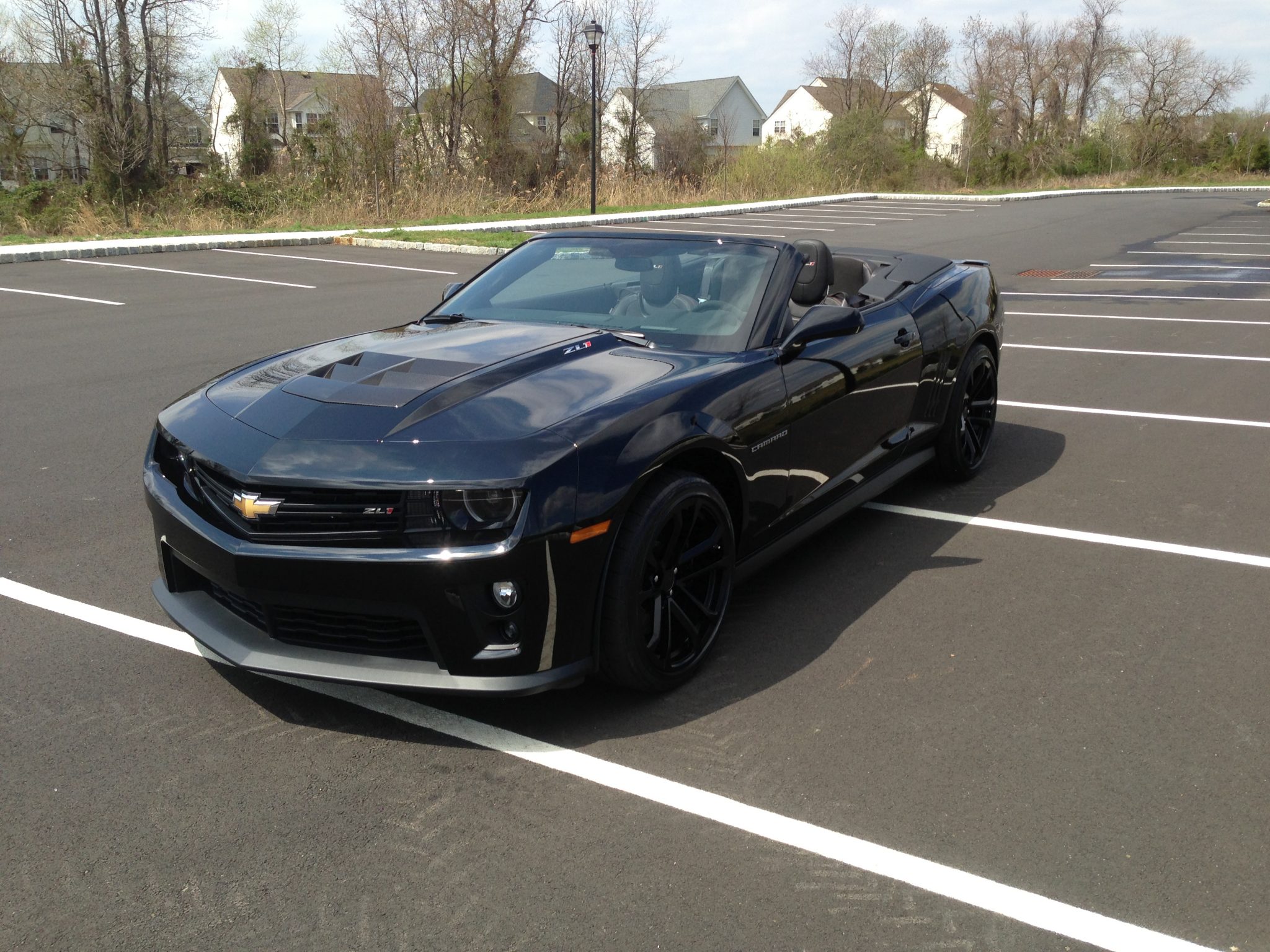

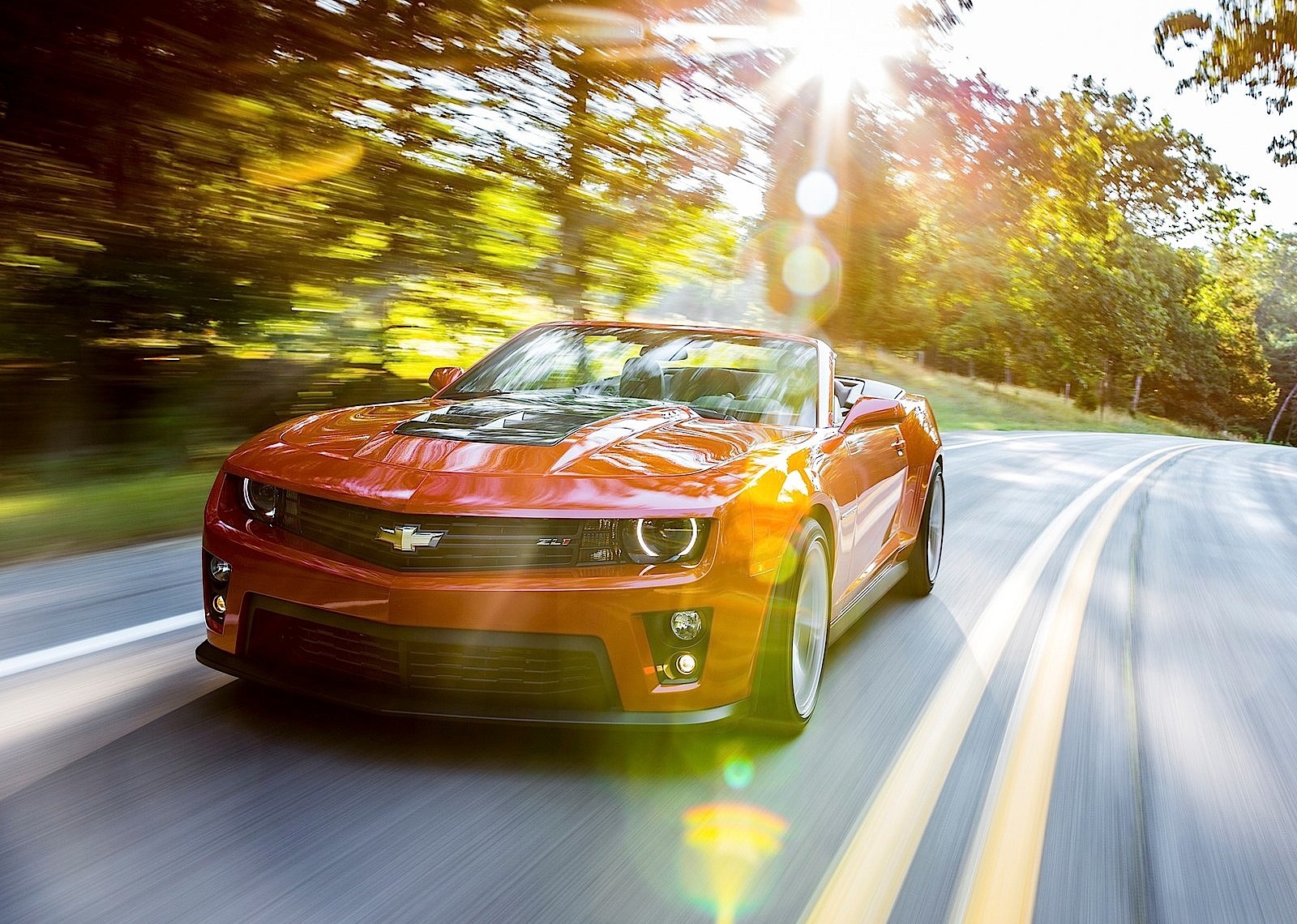

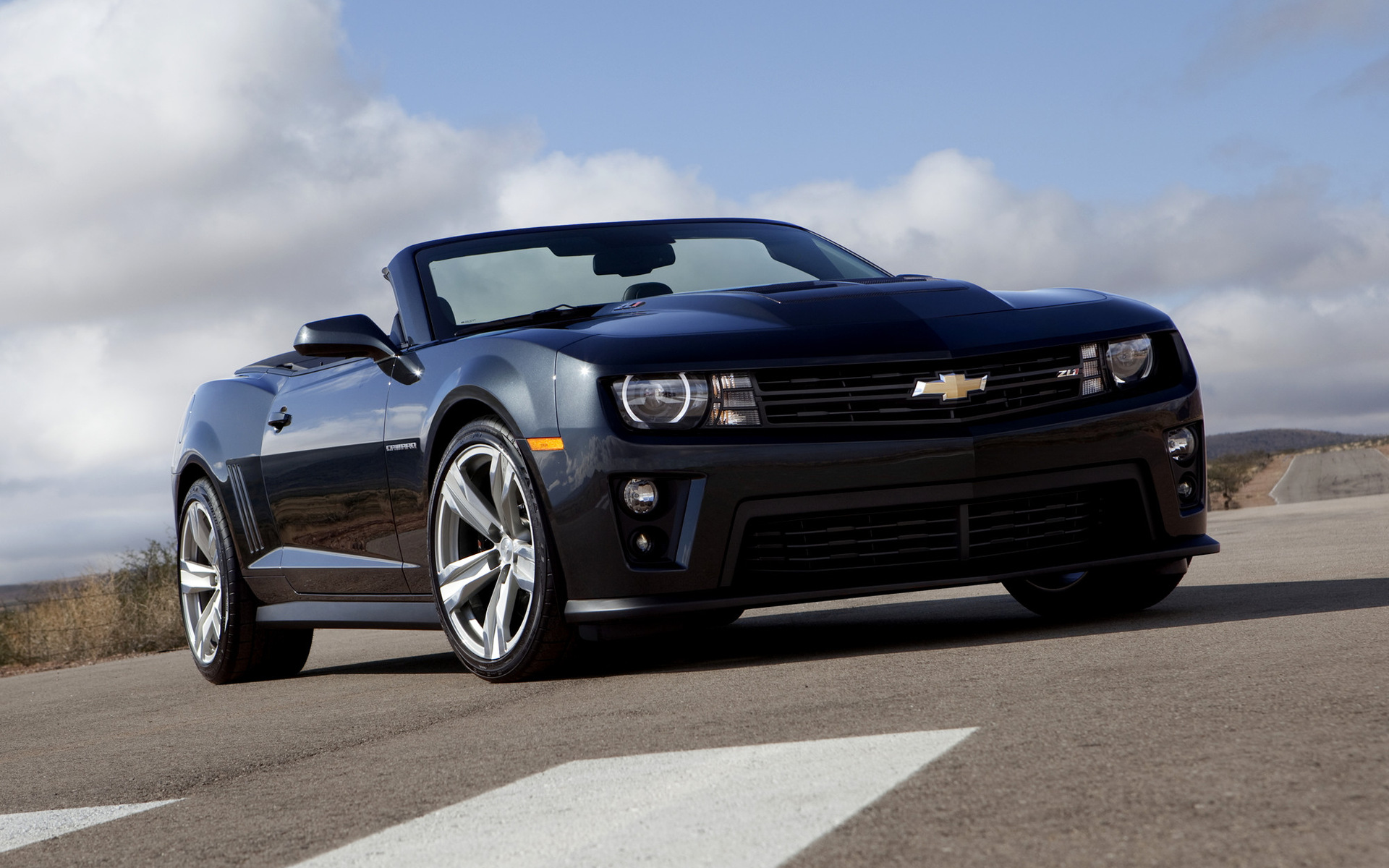

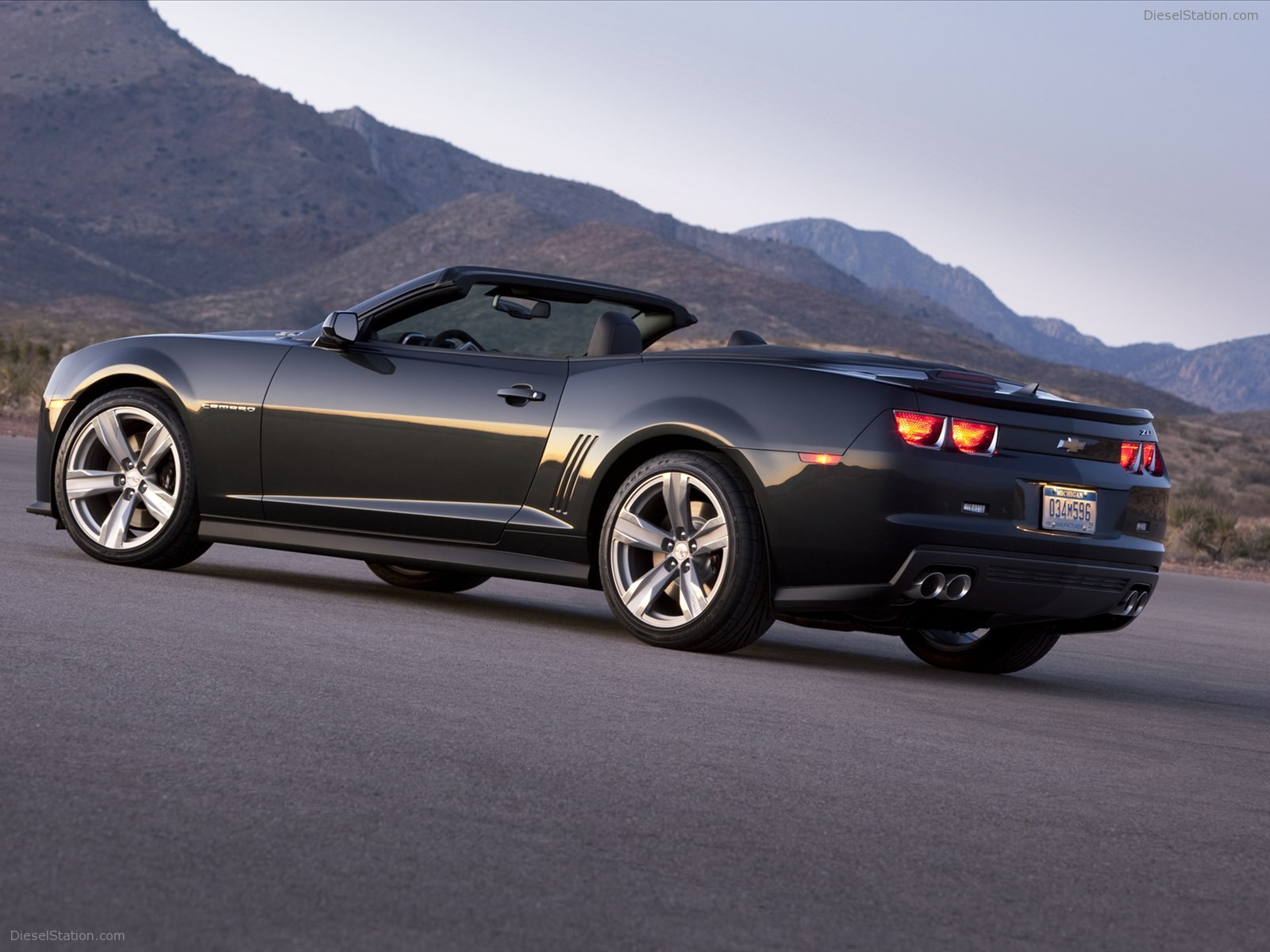

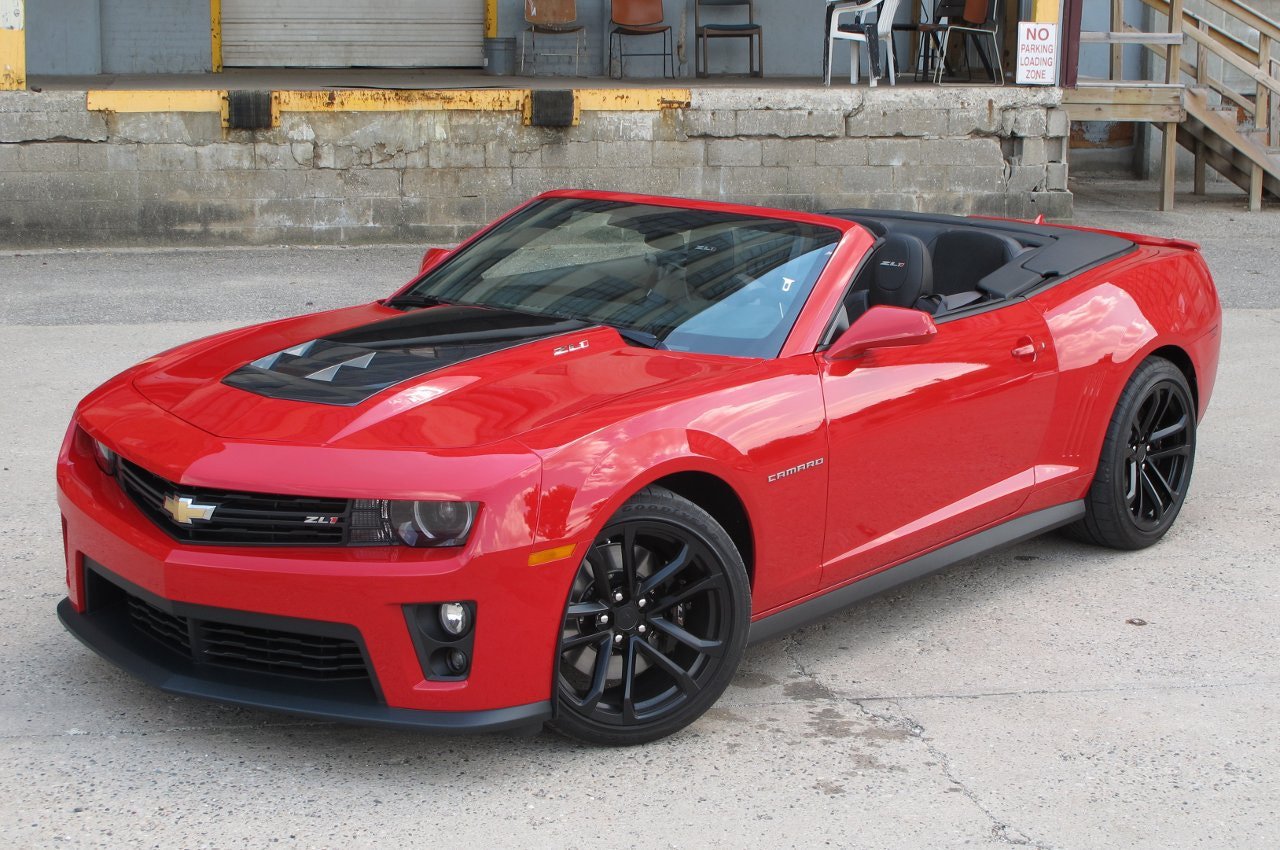

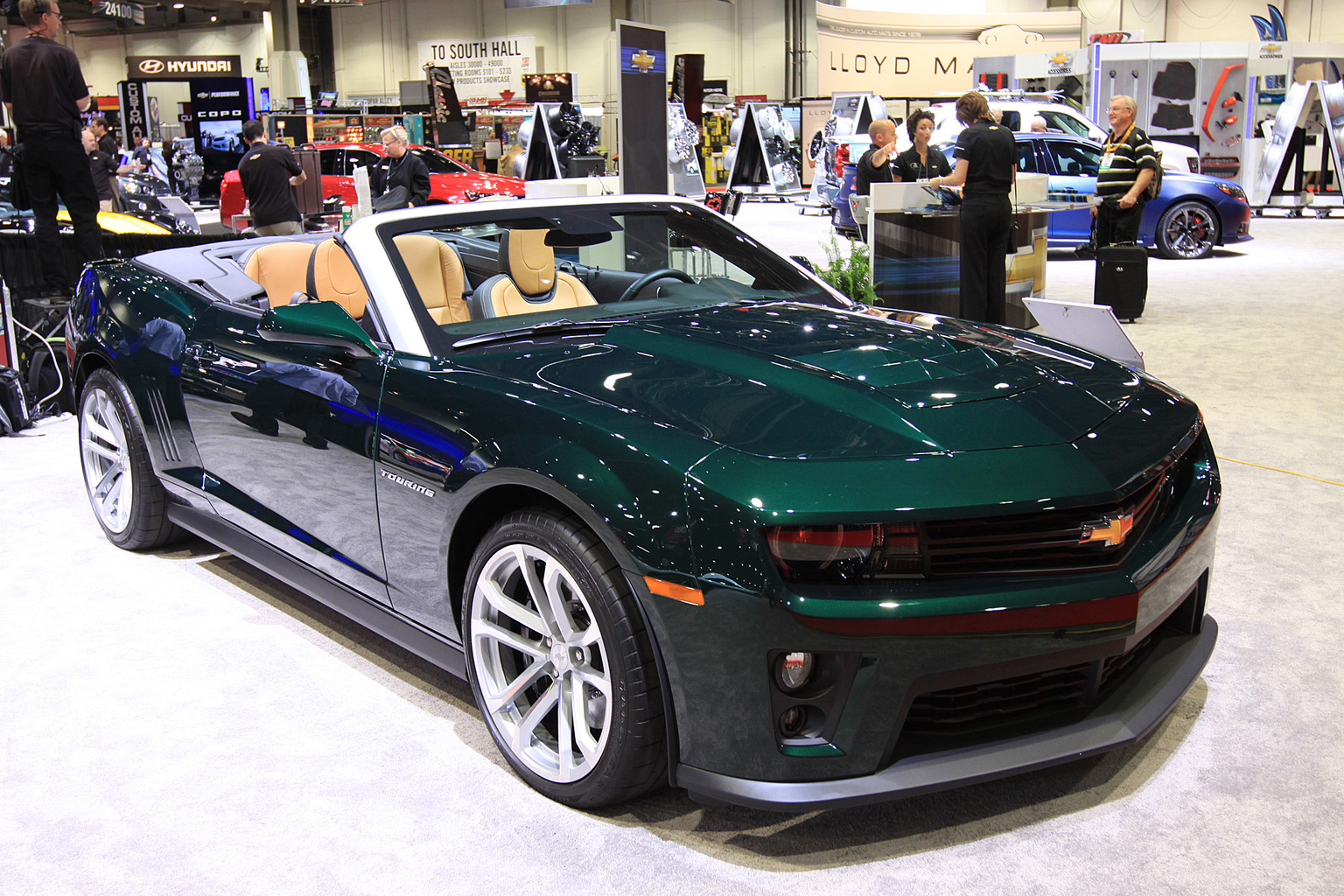

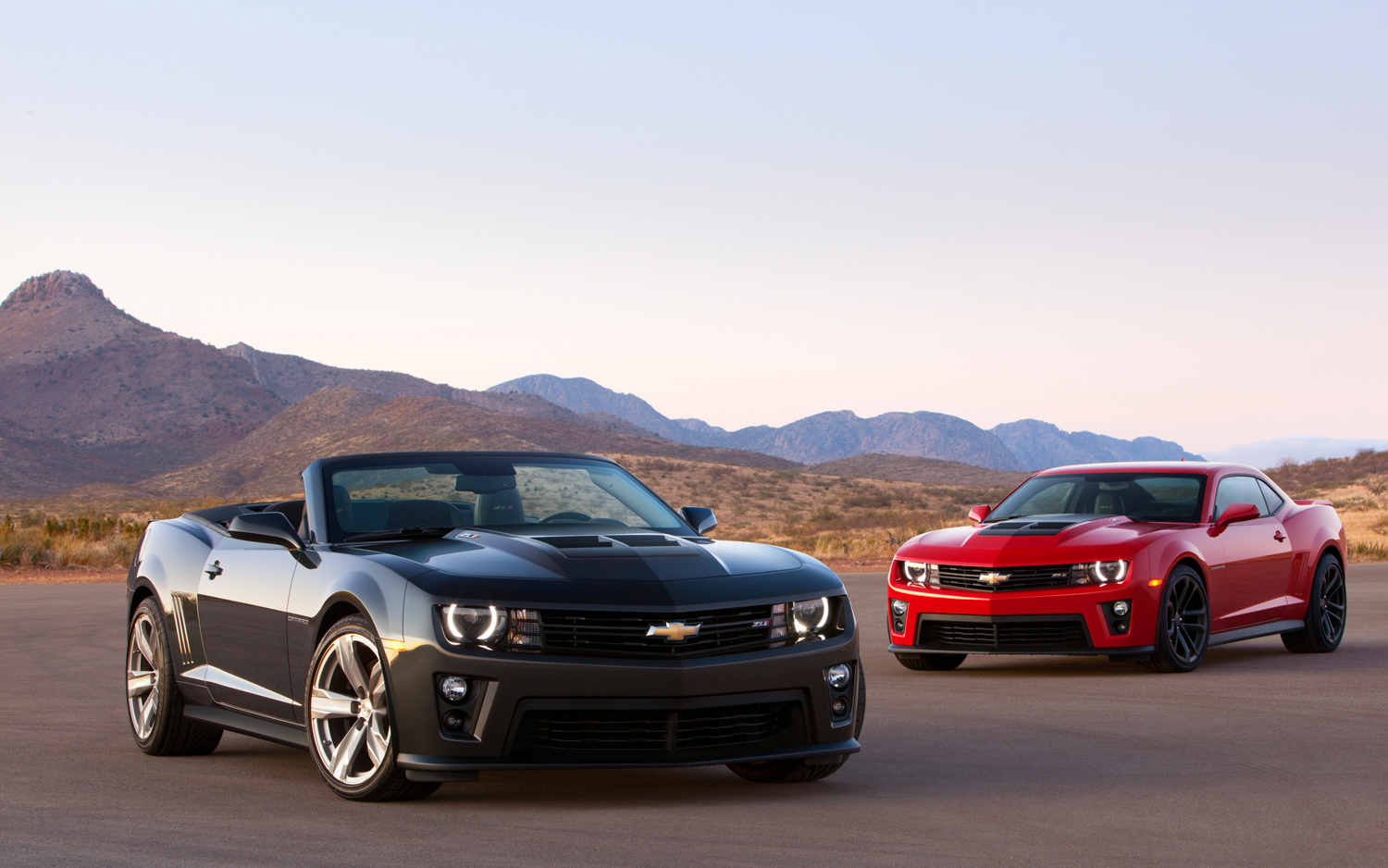

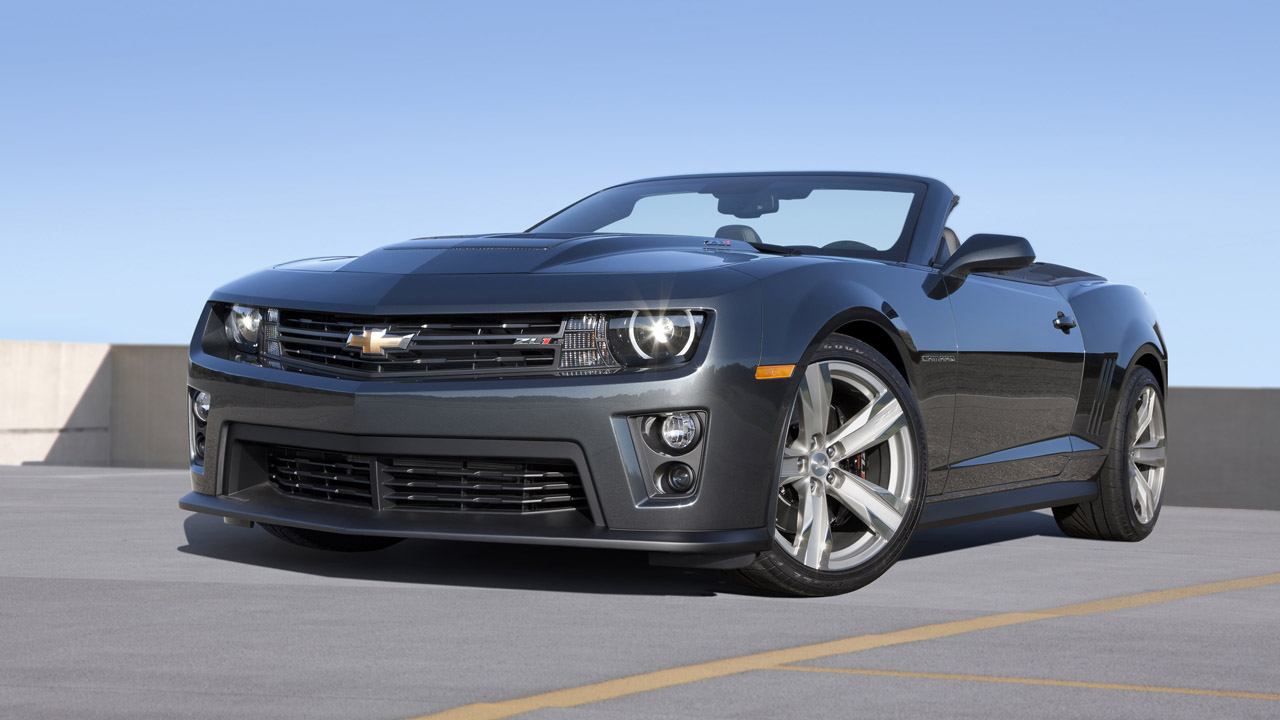

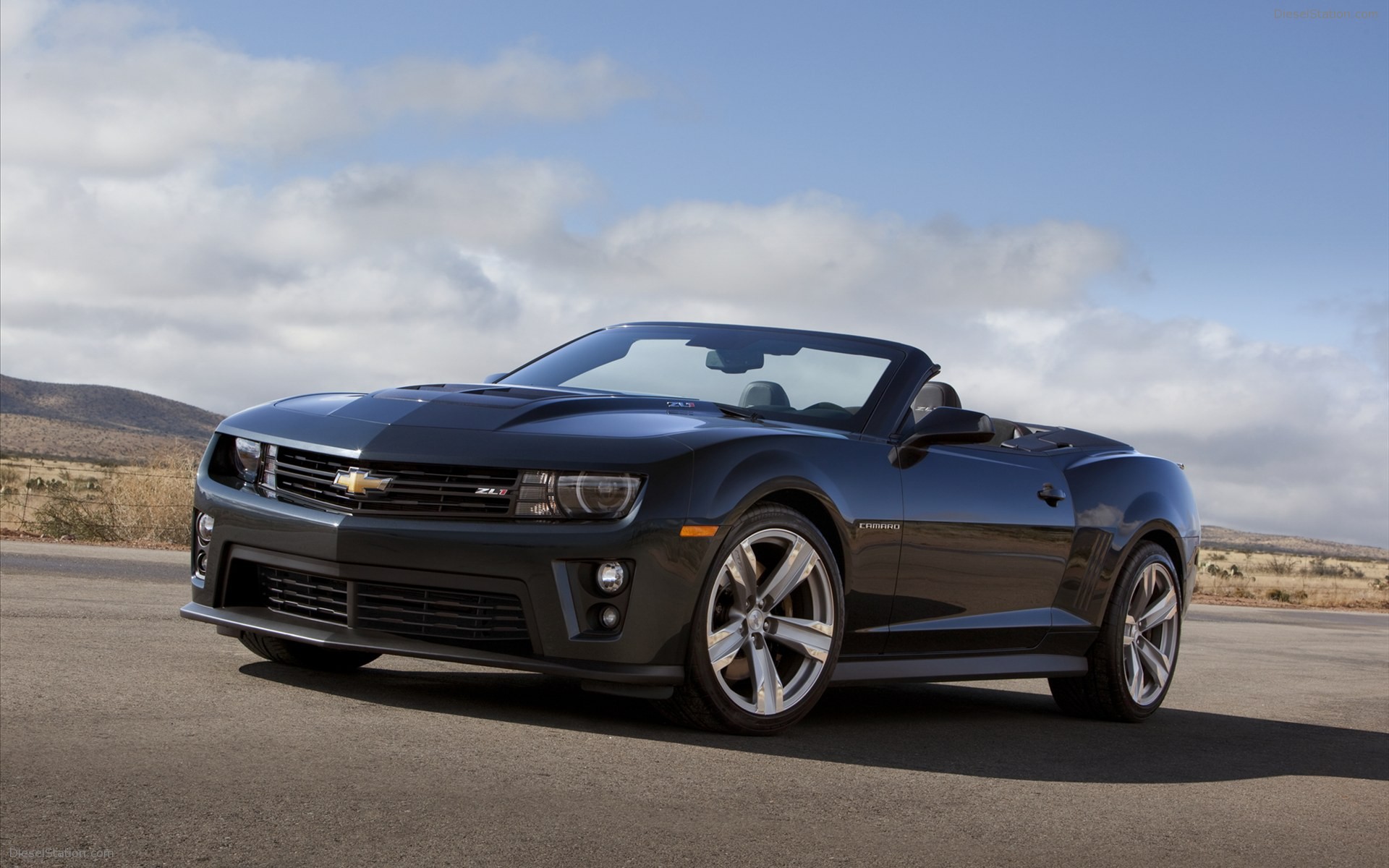

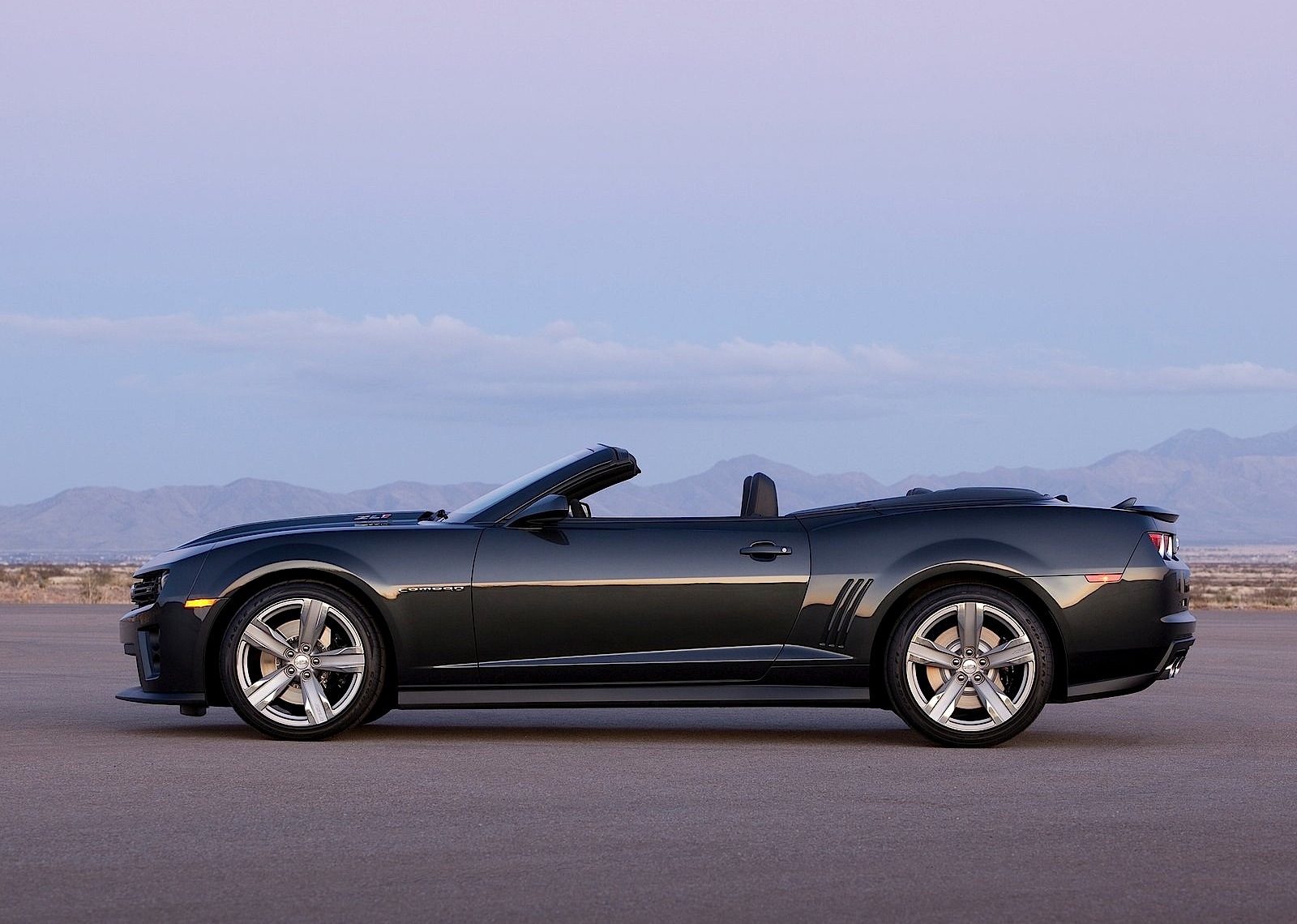

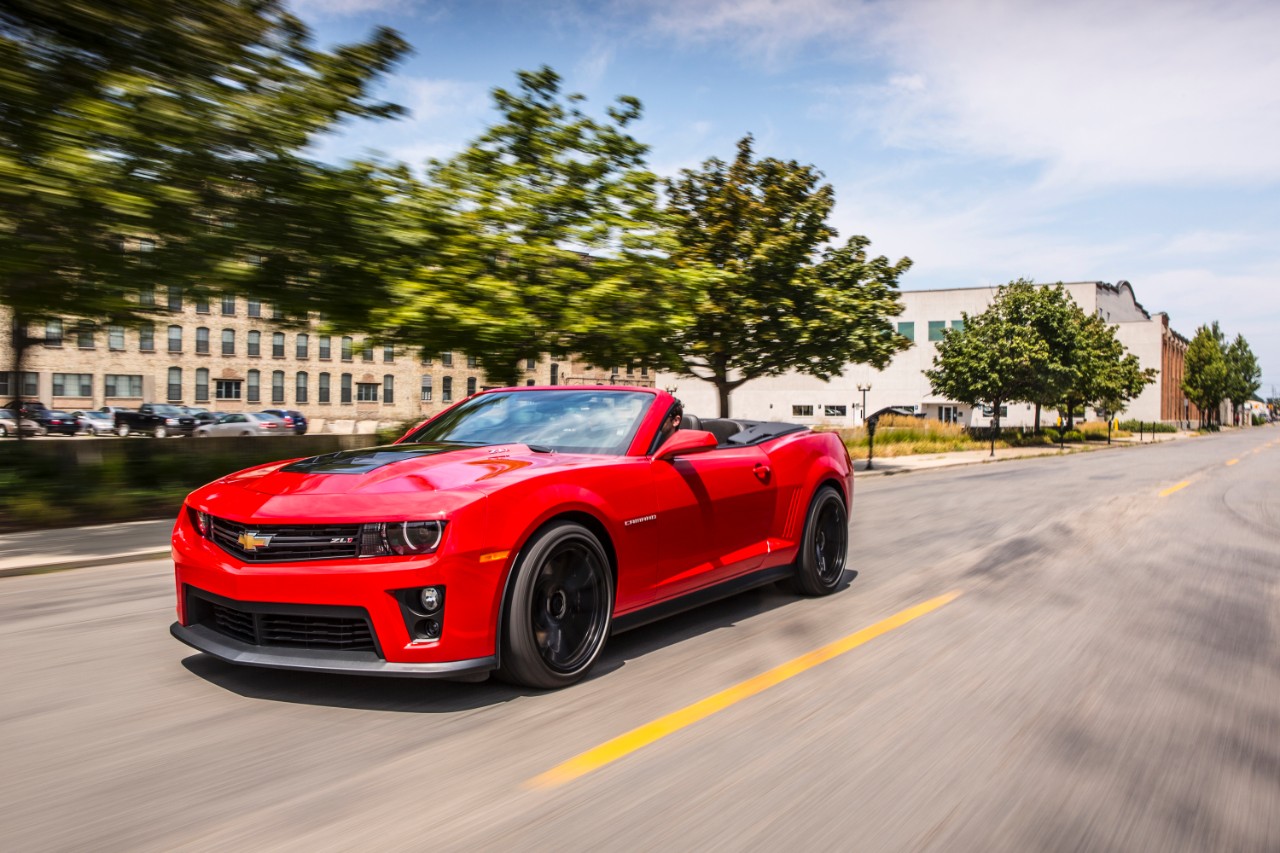

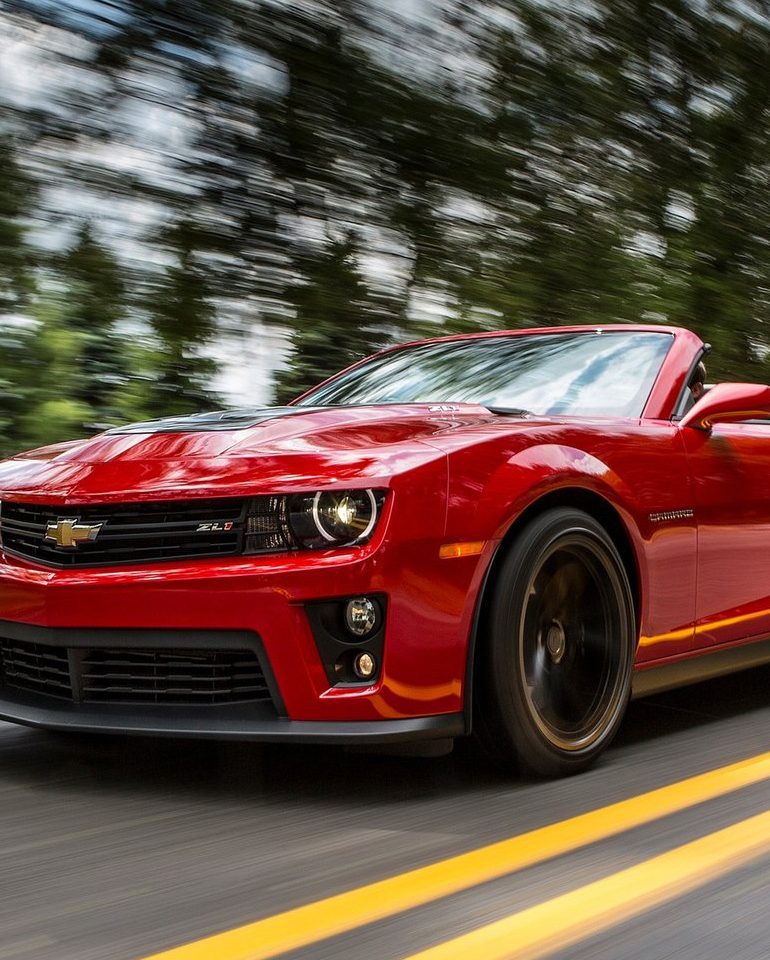

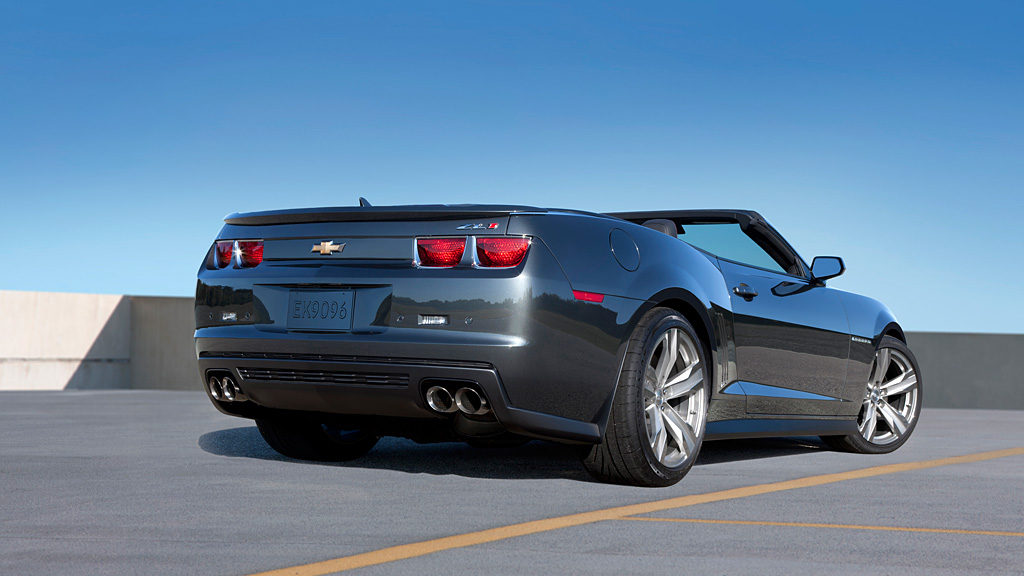

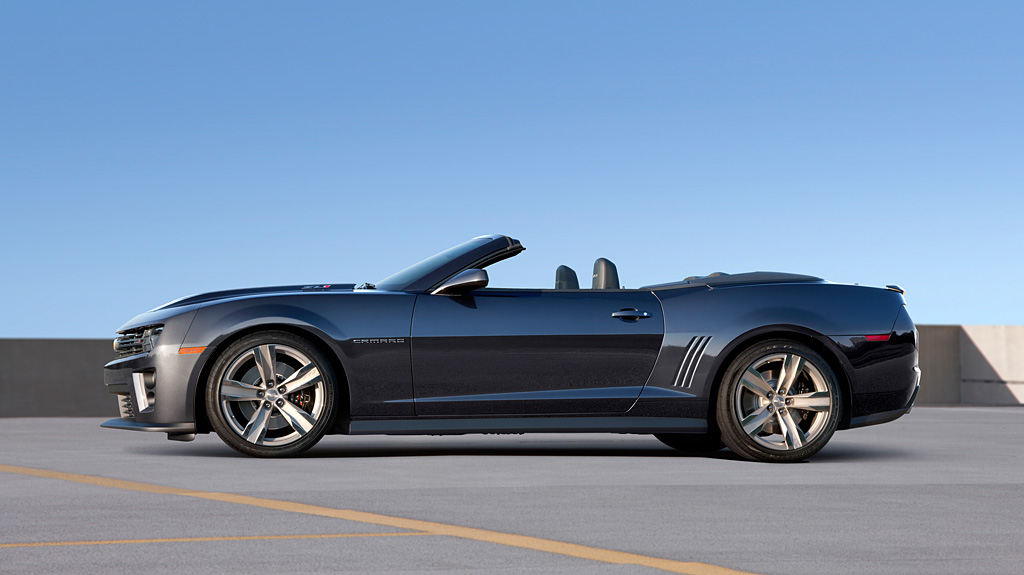

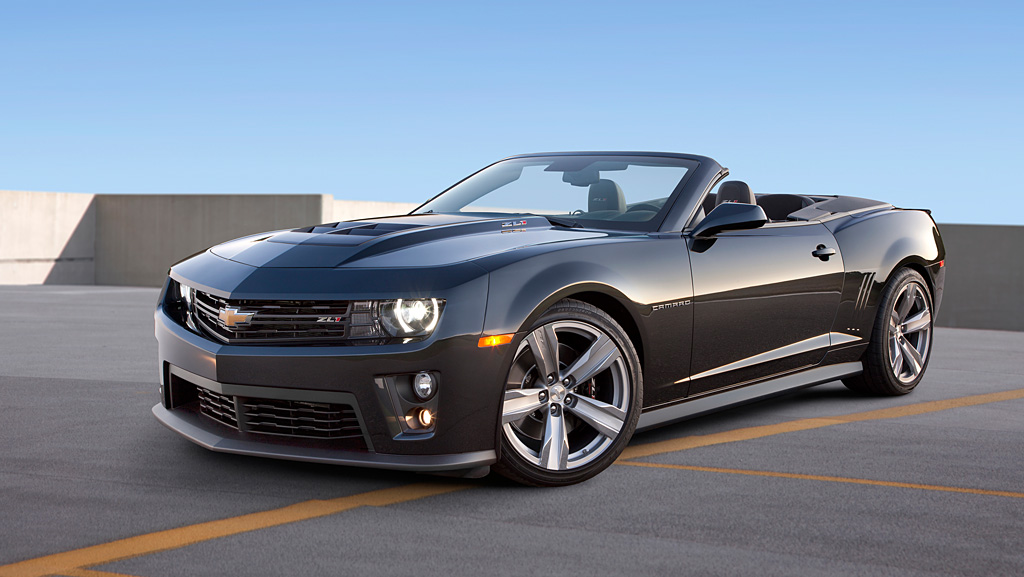

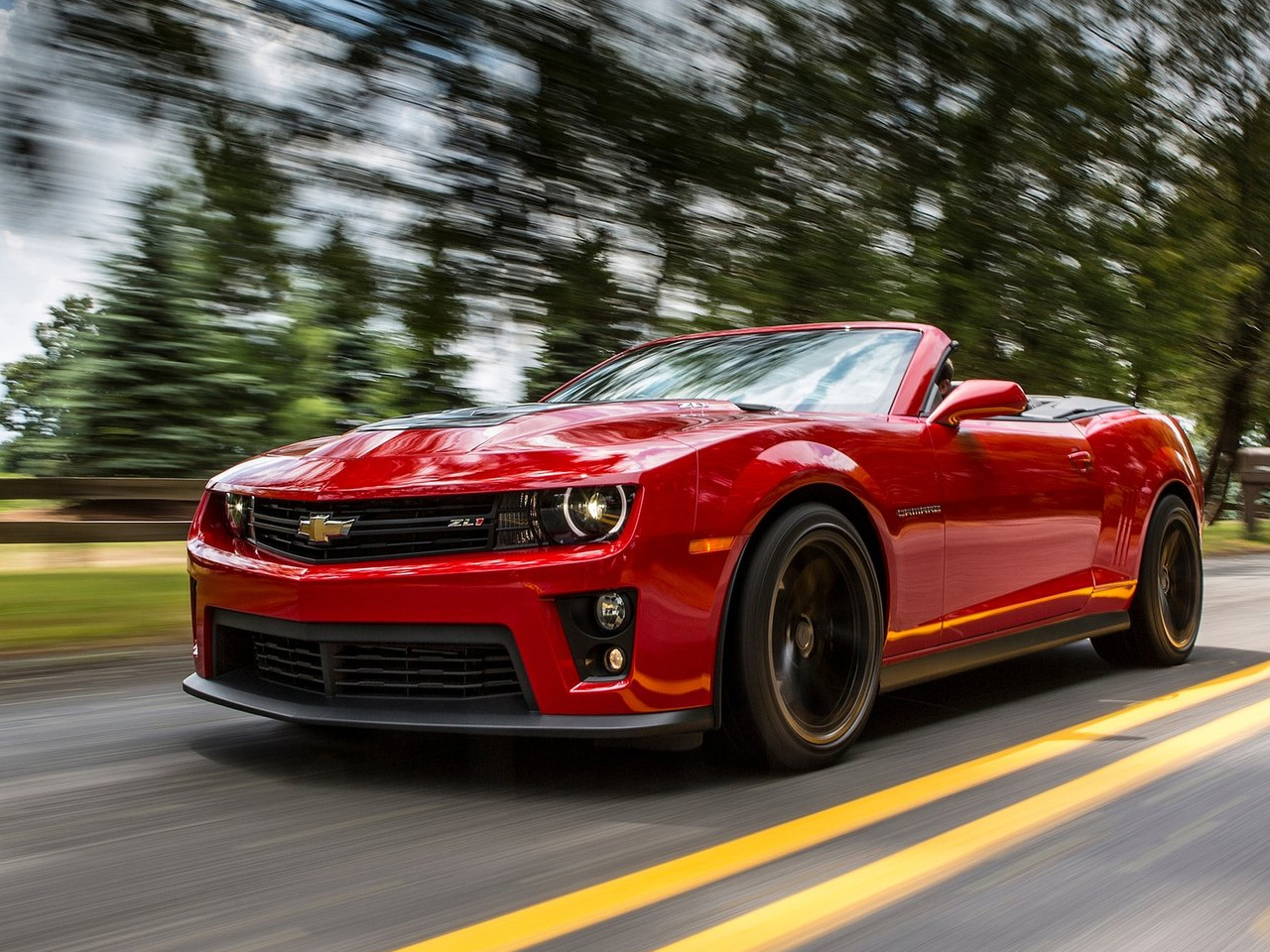

2012 Chevrolet Camaro ZL1 Convertible

DETROIT – Chevrolet announced today the brand’s most-powerful convertible ever – the 2013 Camaro ZL1 – will debut at the Los Angeles Auto Show next month. When it goes on sale in late 2012, it will deliver more performance and technology than many exotic cars and ultra-luxury convertibles.

“The Camaro ZL1 convertible will be one of the most powerful and most capable, convertibles available at any price,” said Al Oppenheiser, Camaro chief engineer. “This is a car that is guaranteed to put a smile on your face every time you drop the top – or hit the gas.”

Like the coupe, the Camaro ZL1 convertible features a supercharged 6.2L “LSA” engine, SAE-rated at 580 horsepower (432 kW) and 556 lb.-ft. of torque (754 Nm). That’s enough to exceed the output of 2+2 convertibles of many performance icons, including:

*2012 Aston Martin DB9 Volante – 470 hp / 443 lb.-ft.
*2012 Mercedes SL63 AMG – 518 hp / 465 lb.-ft.
*2011 Porsche 911 Turbo S – 530 hp / 516 lb.-ft.
*2011 Ford Shelby GT500 – 550 hp / 510 lb.-ft.

The Camaro ZL1 convertible’s power is complemented by advanced powertrain and chassis technologies designed to deliver exceptional performance on the road or track. In fact, it’s the same balance of acceleration, handling and ride quality that enabled a Camaro ZL1 coupe recently to lap the Nürburgring’s Nordschleife course in 7:41.27 minutes.

From Day One, the architecture for the fifth-generation Camaro was designed to accommodate a convertible model, which gives the ZL1 convertible coupe-like driving dynamics. Four strategic reinforcements enhance the already-stiff body structure to quell the cowl and steering wheel shake common in convertibles. They include:

*A tower-to-tower brace under the hood
*A transmission support reinforcement brace
*Underbody tunnel brace
*Front “X” brace and stiffer cradle as well as rear underbody “V” braces.

Additional structural reinforcements in the ZL1 convertible are designed to improve noise and vibration characteristics, while also reducing unwanted ride and body motions. They include a hydrofoamed tube in the A-pillars, an inner reinforcement bracket in the windshield header, a reinforced front hinge pillar and reinforcements inside the rockers.

The suspension of the ZL1 convertible uses the third-generation of Magnetic Ride. New, twin-wire/dual-coil dampers at all four corners enable faster response, with damping levels now adjusted up to 1,000 times per second – about one adjustment per inch of vehicle travel at 60 mph – making the system exceptionally responsive to changing driving and road conditions.

The Camaro ZL1 convertible will also offer Performance Traction Management as standard equipment, which is exclusive to General Motors. First introduced on the Corvette ZR1, it is an advanced system that integrates magnetic ride control, launch control, traction control and electronic stability control, to enhance both launch-acceleration performance and corning.

The result is a convertible designed to preserve nearly all the acceleration, road-holding and performance capabilities of the Camaro ZL1 coupe, which goes on sale in early 2012.



In Detail

submitted byF1Owner
typeSeries Production Car
released at2011 Chicago Motor Show
built atOshawa, Ontario, Other
body stylistSangyup Lee
price $$ 60,445
predeccesor1969 Chevrolet Camaro ZL1 COPO 9560
engineLSA V8
positionFront, Longitudinal
aspirationEaton Supercharger
ignitionCoil On Plug
block materialCast Aluminum
valvetrainOHV, 2 Valves per Cyl
fuel feedMPFI (Multi-Point Fuel Injection)
displacement6162 cc / 376.03 in³
bore103.25 mm / 4.06 in
stroke92 mm / 3.62 in
compression9.1:1
power410.1 kw / 550 bhp @ 6100 rpm
specific output89.26 bhp per litre
torque745.7 nm / 550 ft lbs @ 3800 rpm
redline6200
body / frameUnitary Steel Monocoque
driven wheelsRWD
wheel type20-inch Forged Aluminum
front tiresP245/45ZR20 Goodyear Supercar F2
rear tiresP275/40ZR20 Goodyear Supercar F2
front brakesVentilated Discs w/6-Piston Brembo Calipers, ABS
f brake size32 x 370 mm / 1.3 x 14.6 in
rear brakesVentilated Discs w/4-Piston Calipers, ABS
r brake size28 x 365 mm / 1.1 x 14.4 in
front wheelsF 50.8 x 20.3 cm / 20 x 8 in
rear wheelsR 50.8 x 22.9 cm / 20 x 9 in
steeringRack & Pinion w/Electric Assist
f suspensionMacPherson Struts w/Anti-Roll Bar, Coil Springs, Magnetorheological Dampers
r suspensionMulti-Link w/Anti-Roll Bar, Coil Springs, Magnetorheological Dampers
wheelbase2852 mm / 112.3 in
front track1618 mm / 63.7 in
rear track1618 mm / 63.7 in
length4836 mm / 190.4 in
width1918 mm / 75.5 in
transmissionTremec TR6060 MG9 6-speed Manual
gear ratios2.66:1, 1.78:1, 1.30:1, 1.00:1, 0.80:1, 0.63:1
final drive3.73:1
