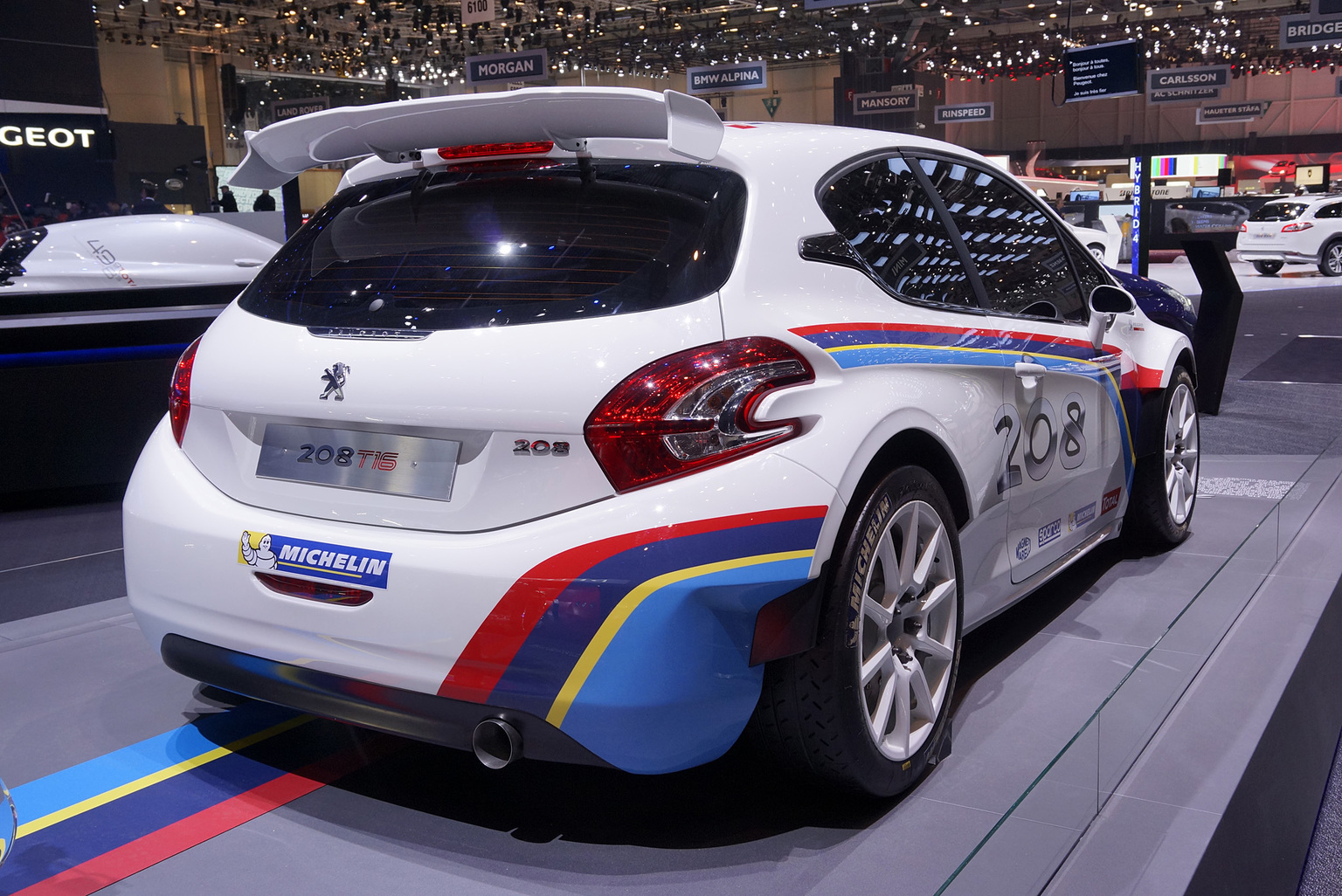

2013 Peugeot 208 T16

2013 Peugeot 208 T16

2013 Peugeot 208 T16

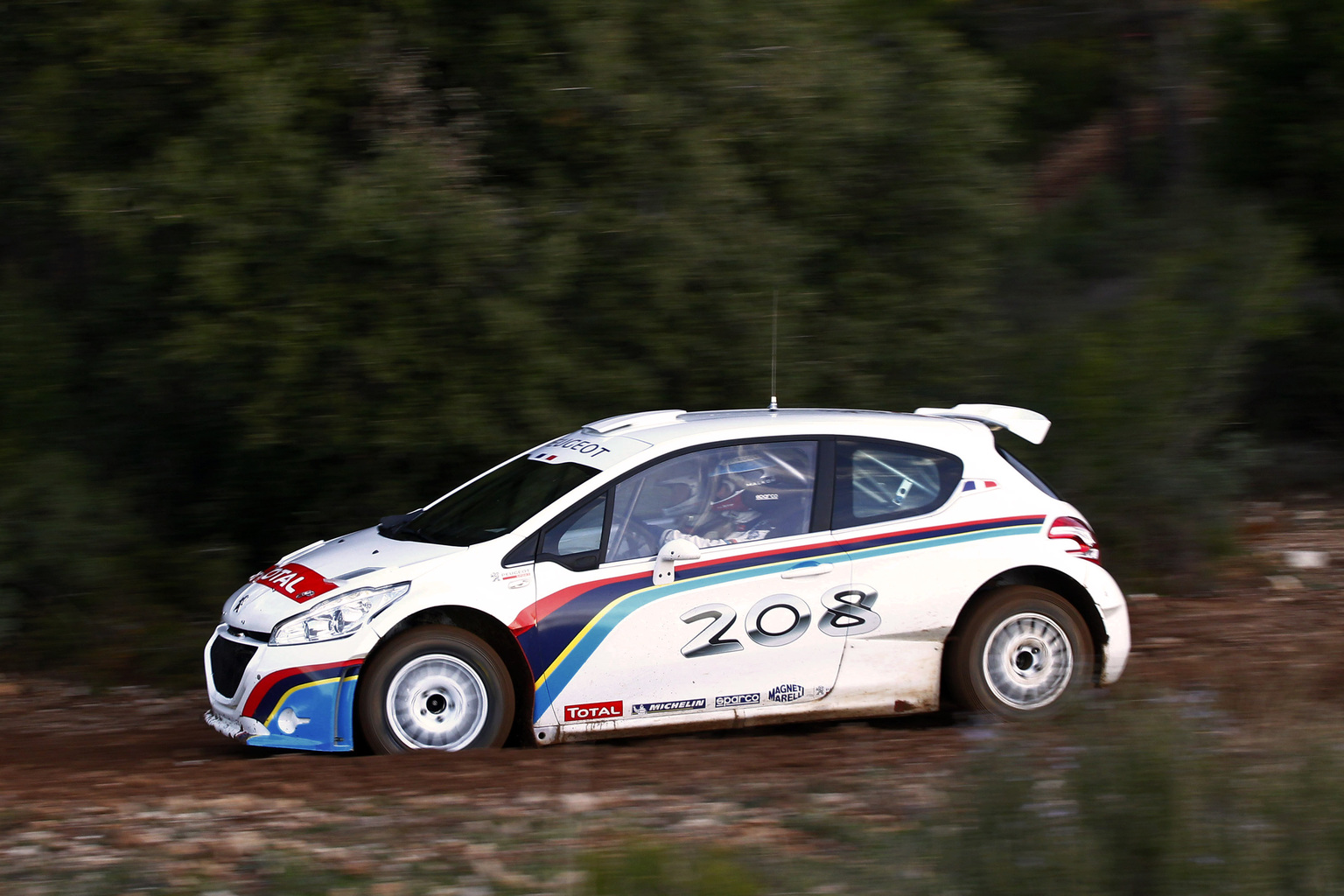

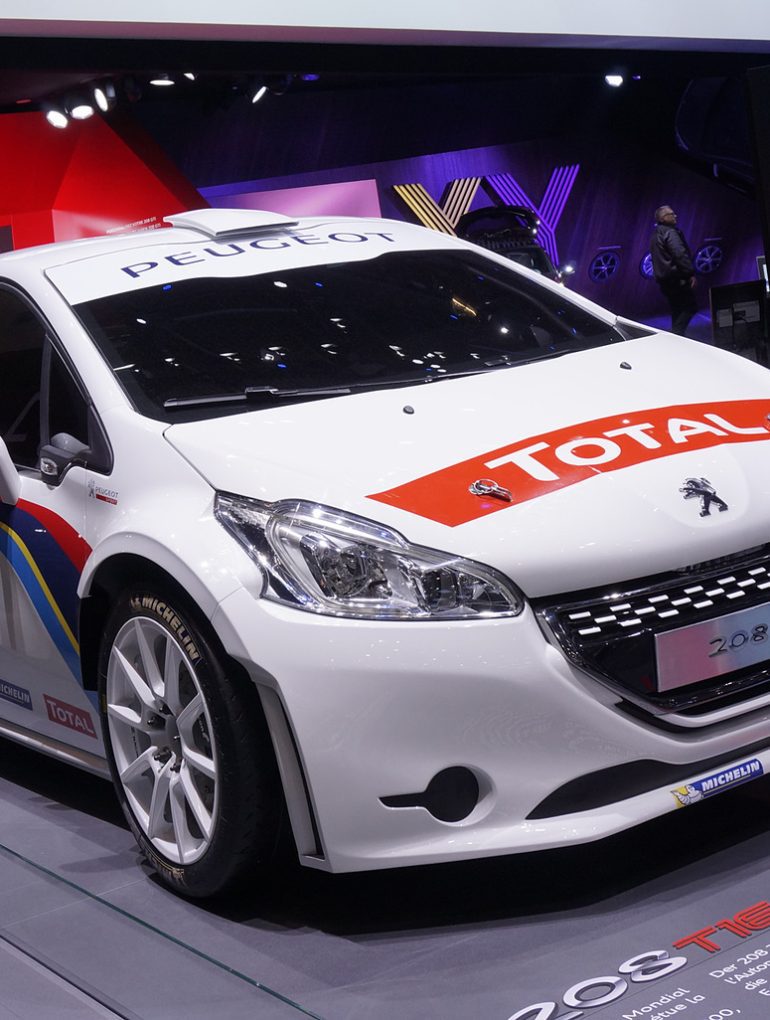

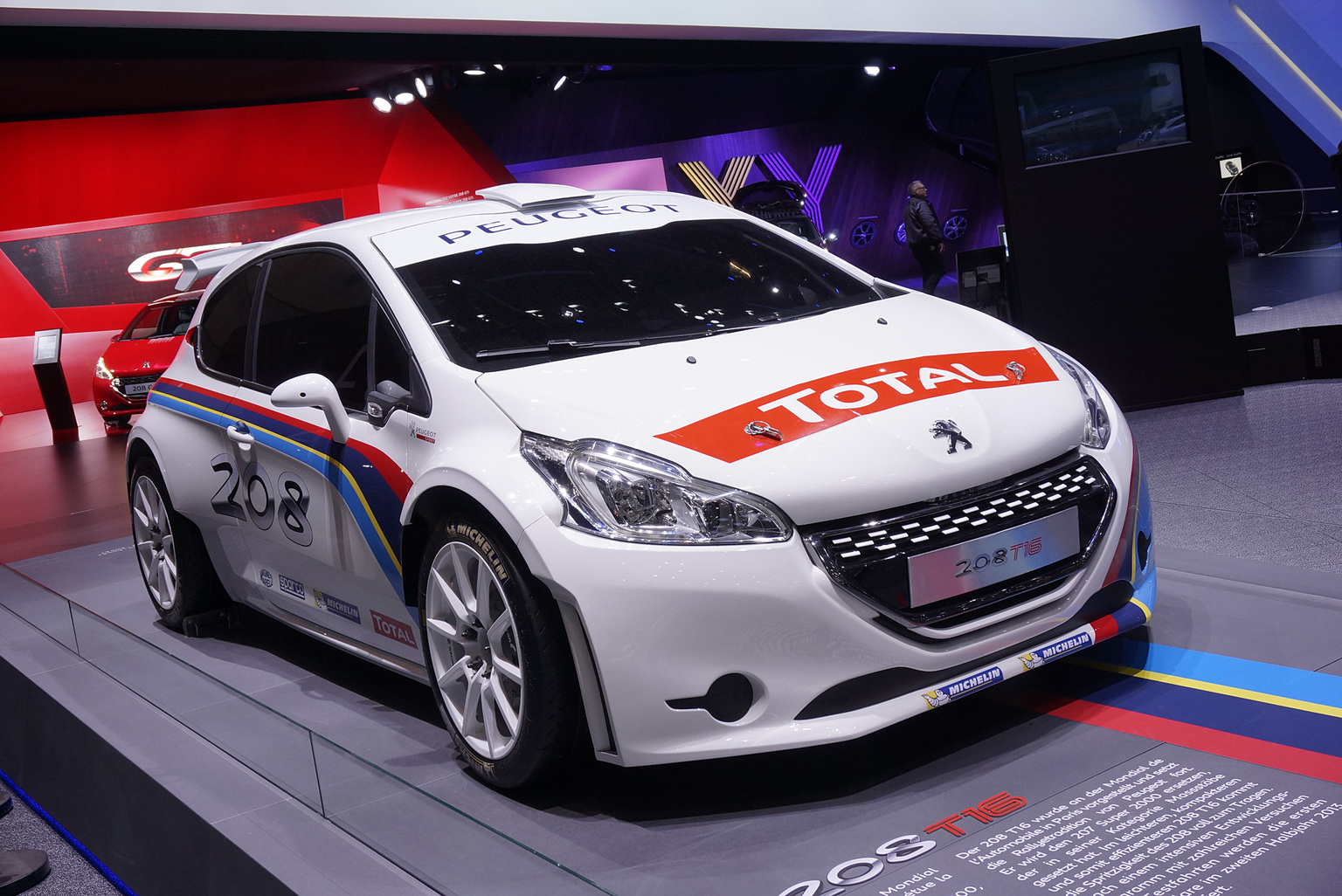

Announced at the end of 2011, the 208 Type R5 will be unveiled at the Paris Motor Show on 27th September and on show until 14th October. Its contours and its technical assets continue Peugeot’s rallying tradition. ‘Body built’ for asphalt (tarmac) and loose-surfaces (gravel), the 208 Type R5 will compete in its first rallies and go on sale in the 2nd half of 2013 in order to be able to conquer the national and international championships the following season.

In the footsteps of success

As a pioneer, the 207 Super 2000 won everything and has without doubt had the greatest record in the category. It has accumulated six Intercontinental Rally Challenge titles, many crowns in various national championships and numerous victories worldwide including San Remo, the Tour de Corse and the Monte Carlo. One hundred and seven of these vehicles have been sold, run by private customers, importers or on behalf of Peugeot subsidiaries: South Africa, Belgium, Denmark, Spain, France, Hungary, Italy, Poland, Portugal, Czech Republic and in the UK. Drivers like Thierry Neuville and Kris Meeke were ‘discovered’ and defined their skills at its wheel. So the 208 Type R5 will have to demonstrate that it is a worthy successor to the 207 Super 2000.

The 208 Type R5 benefits from all the expertise and experience of Peugeot Sport, acquired and recognised over many years. Under the direction of Alexis Avril, Technical Manager of Peugeot Sport, Bertrand Vallat, formerly responsible for the 207 S2000, is the Project Leader for the 208 Type R5.

Performance and cost reduction

The R5 category consists of group A vehicles derived from a production model, of which at least 25,000 must have been produced. Launched for 2013 by the FIA, among its objectives is a noticeable reduction in costs, including operating expenditure. Therefore, the technical regulations will adopt the major assets of the S2000 category: four-wheel drive, five-speed sequential gearbox, no central differential and long travel suspension. This is also the case externally with widened tracks, a spoiler, the increase in the wheel arches to fit 18″ wheels without forgetting the minimum weight set at 1200kg for the gravel (loose-surface) and asphalt (tarmac) version, as for the WRC.

“Based on an optimisation of costs”, explains Bertrand Vallat, “the regulations impose, among other things, a maximum price for certain parts and technical limitations such as a minimum weight of components of the chassis and engine. In addition, a certain number of components of the vehicle must be similar. The hub carrier is a perfect example. All four must be identical. This makes operation considerably easier and limits costs and stocking.”

Another major difference: the engine, the 2.0-litre naturally aspirated unit is replaced by the 1.6-litre turbo. The 208 Type R5 will adopt the EP6 CDT as standard. “We are aiming for performance which is slightly higher than that of the S2000″, emphasises Bertrand Vallat.

“We start with the 1.6-litre THP engine that is already a competition winner. We know that it is both reliable and powerful, and can achieve 280bhp. We have serious foundations with this engine as it is the same as that of the RCZ Racing Cup which currently develops 260 horsepower in its endurance version. We are also aiming for a very high level of durability and reliability in competition with a potential 5000 kilometres (according to the components and conditions), which will also reduce the operating costs.” Finally, the FIA has also set the maximum price for the ‘R5s’ at €180,000 excluding taxes.

The 208: an asset

The 208 Type R5 benefits from the product developments of the 208 production car, particularly in regards to the weight. The shell of the 208 has benefited from a weight reduction of approximately 40 kilos compared with its predecessor the 207. Its dimensions are an advantage for the Type R5 with its long wheelbase which provides excellent chassis stability. Also, being more compact, the 208 will be more agile and efficient as a result, key factors that are sought after in a competition car. All of these dynamic qualities of the 208 combine to give the R5 excellent road holding.”

Commitments from 2013

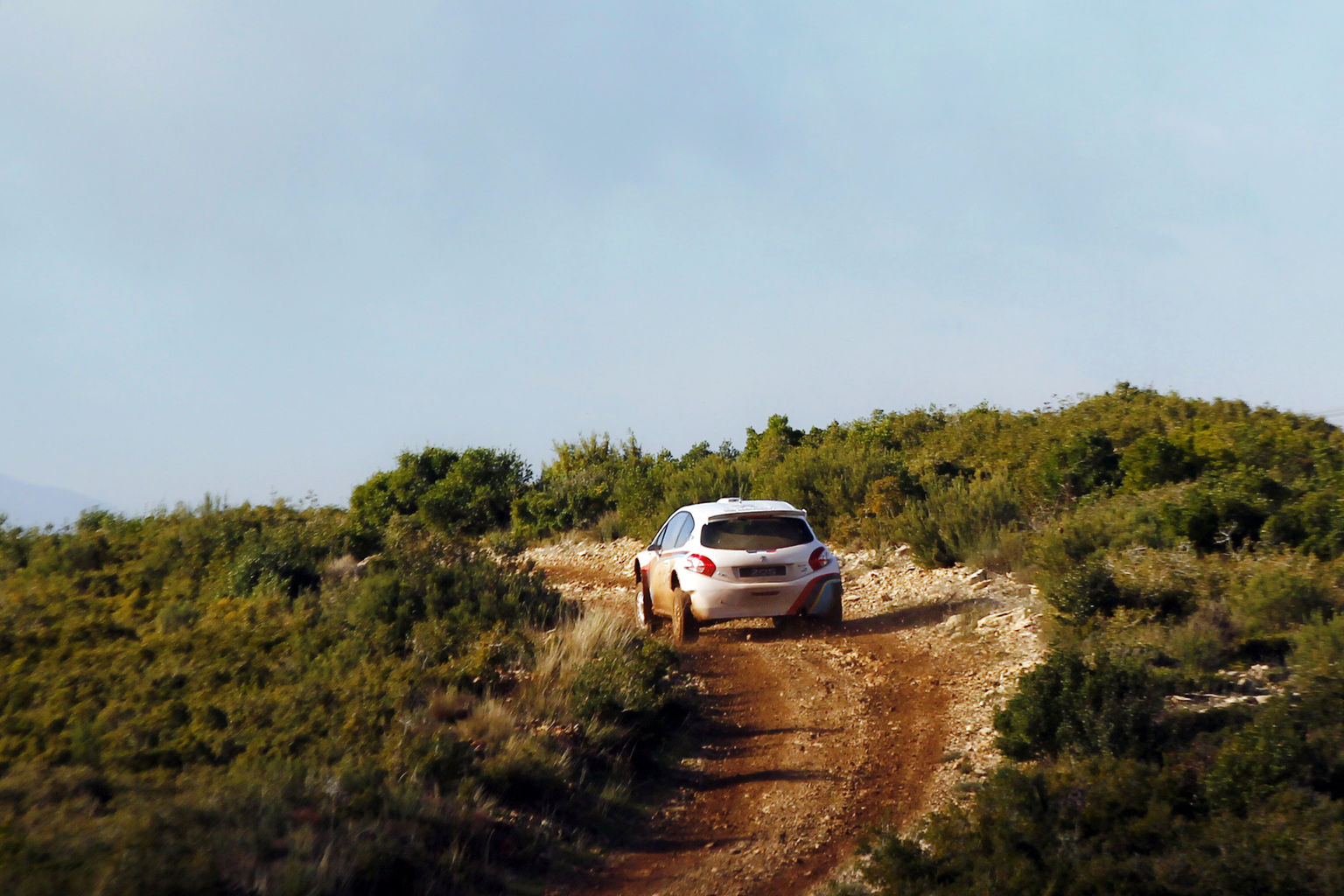

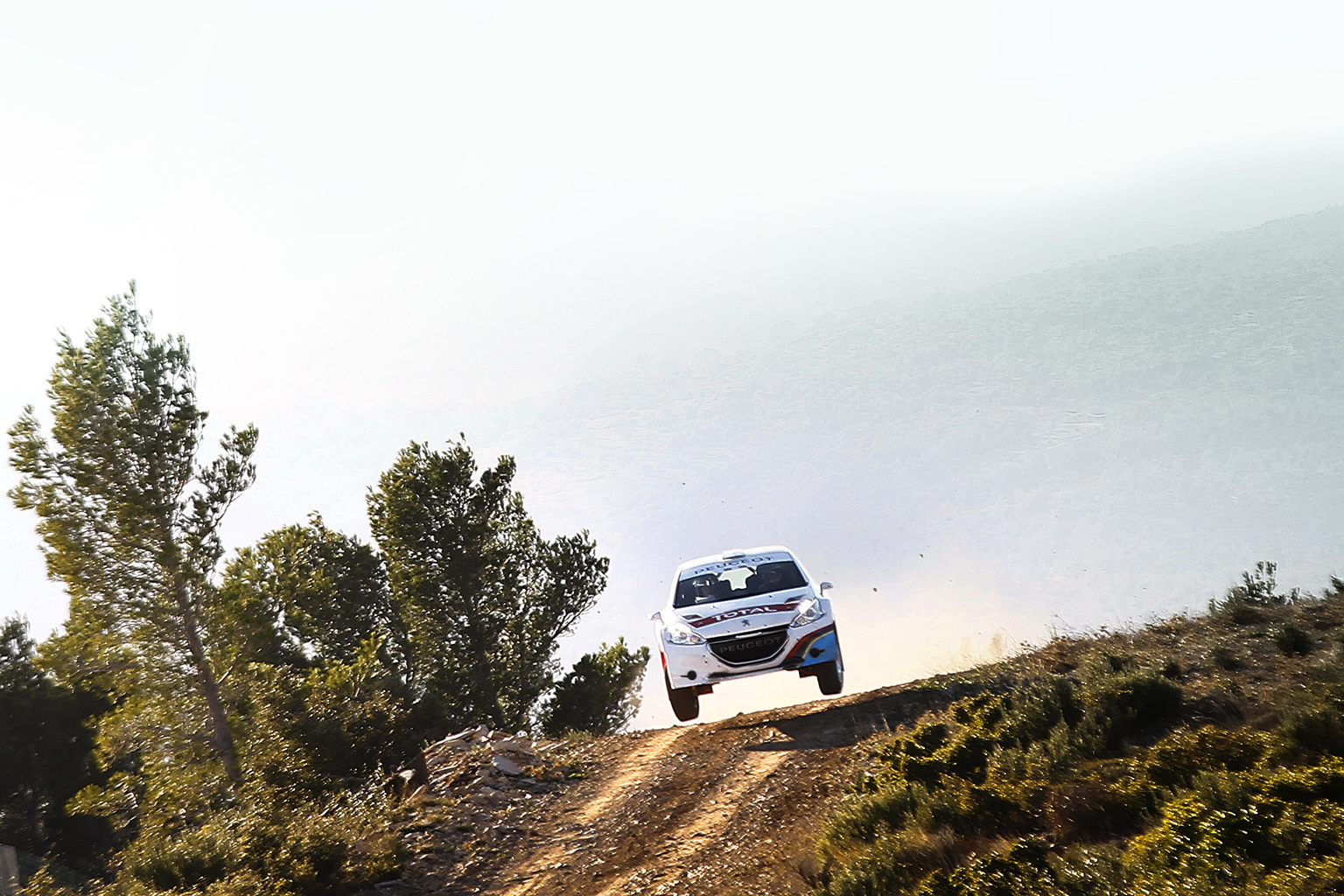

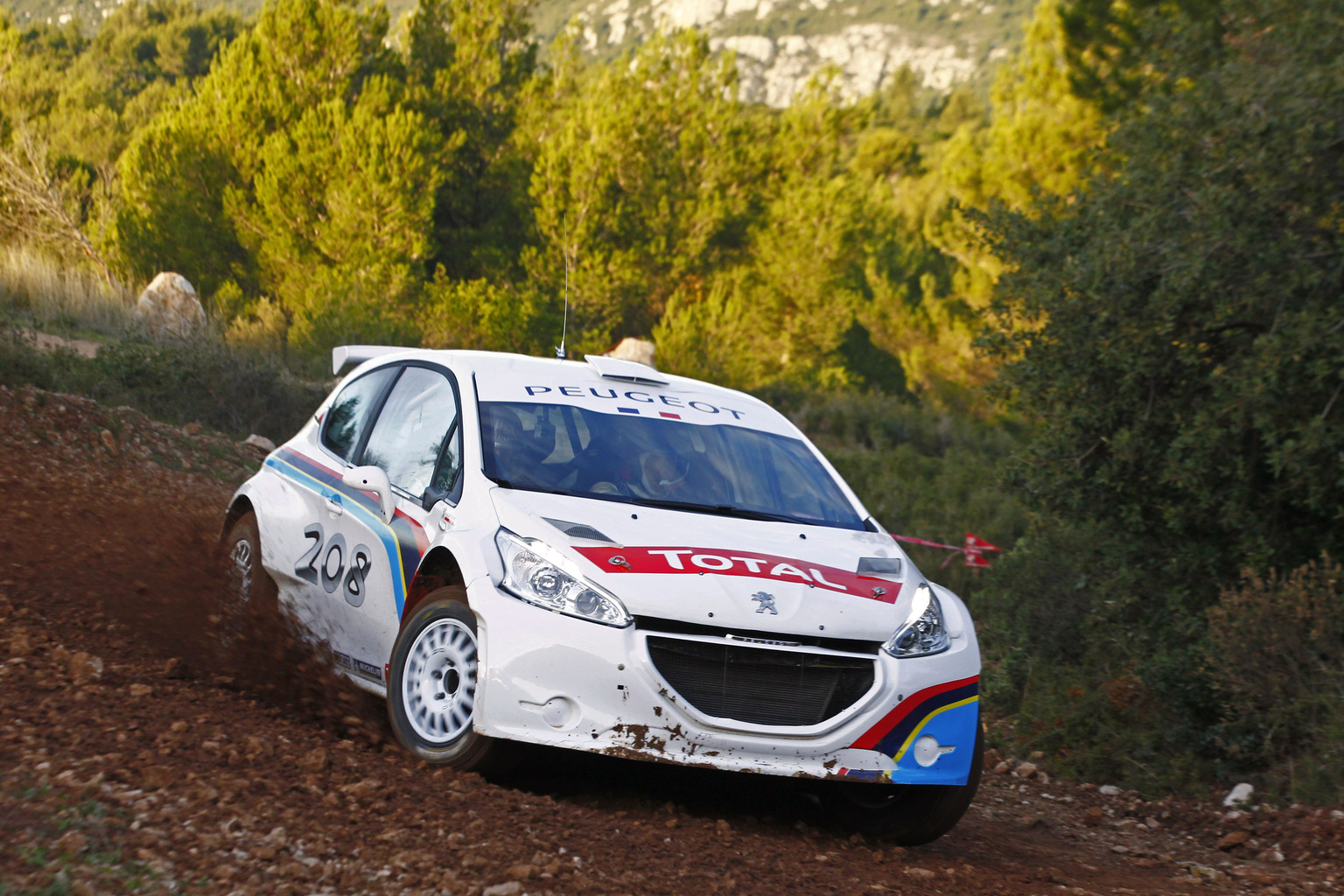

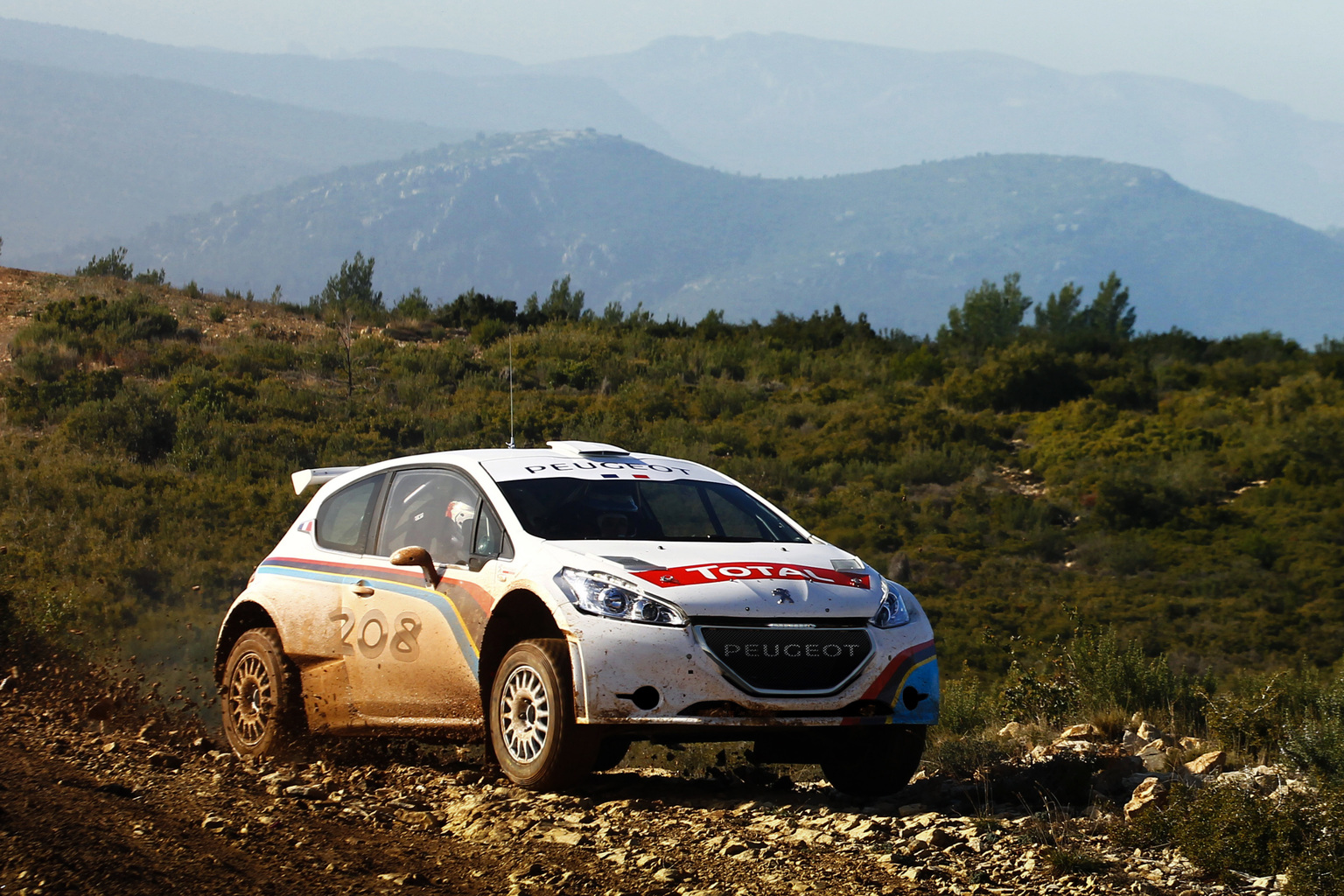

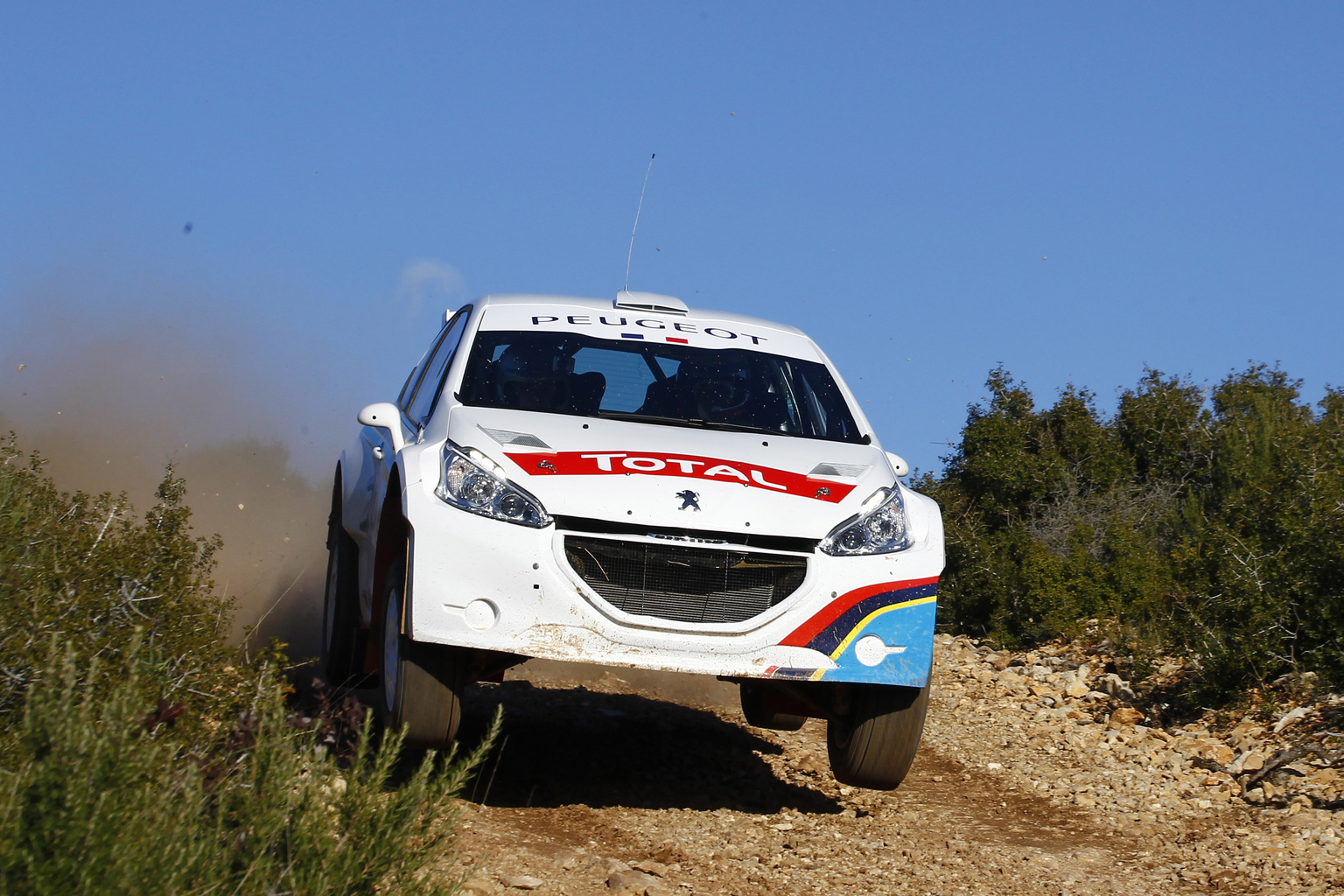

The 208 Type R5 has big ambitions. Designed and assembled in the workshops of Peugeot Sport in Vélizy, it will begin a vast test programme from the end of 2012, both on asphalt and on loose surface (gravel). This will continue throughout its life in order to constantly evolve developments for customers and subsidiaries in order to guarantee chances of victory in a very competitive sector. On sale during the second half of 2013, the 208 Type R5 will compete at the highest level in key championships:

– Intercontinental Rally Challenge
– European Rally Championship
– National Championships

A 208 Type R5 video and photos can be seen on the facebook.com/peugeot.sport page from 27th September 2012.

In Detail

type Racing Car
built at France
engine EP6 CDT Inline-4
position Front, Transverse
fuel feed Magneti Marelli High Pressure Direct
displacement 1598 cc / 97.52 in³
power 208.8 kw / 280 bhp @ 6000 rpm
specific output 175.22 bhp per litre
bhp/weight 233.33 bhp per tonne
torque 400 nm / 295.0 ft lbs @ 2500 rpm
redline 7500
body / frame Unitary Steel Monocoque
driven wheels 4WD
wheel type Aluminium Monoblock
front tires 225x40x18
rear tires 225x40x18
front brakes Alcon 4-Piston Calipers
rear brakes Alcon 4-Piston Calipers
front wheels F 45.7 x 20.3 cm / 18 x 8 in
rear wheels R 38.1 x 17.8 cm / 15 x 7 in
f suspension Pseudo MacPherson
r suspension Pseudo MacPherson
curb weight 1200 kg / 2646 lbs
wheelbase 2560 mm / 100.8 in
length 3962 mm / 156.0 in
width 1820 mm / 71.7 in
transmission Sequential 5-Speed
tran clutch Dual-Disc
