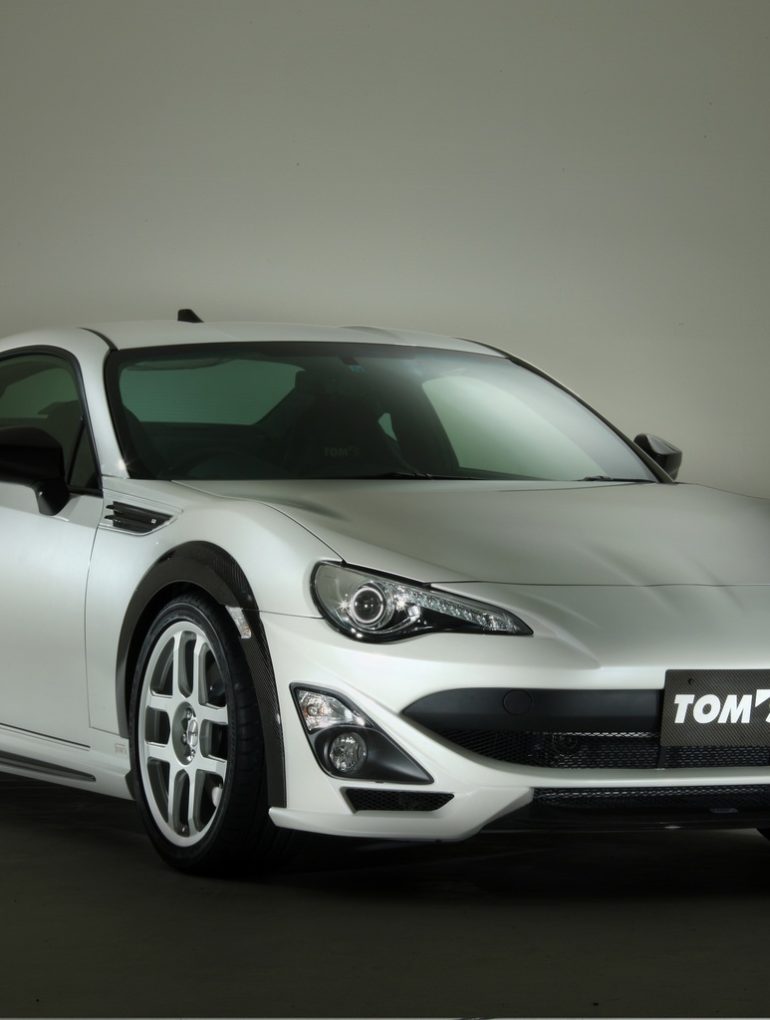

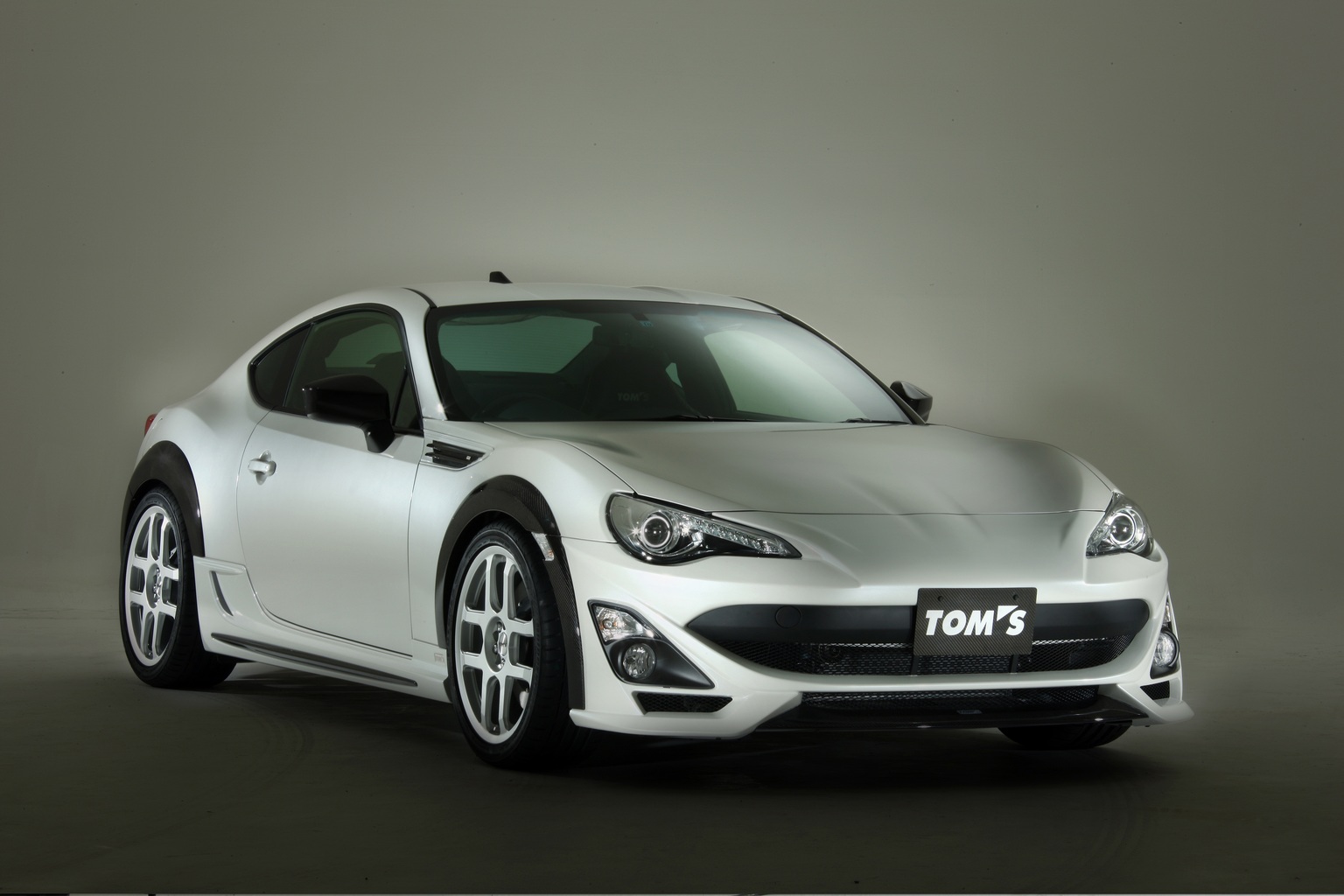

2013 TOM’S N086V Concept

For the 2013 Tokyo Auto Salon, TOM’S made a concept car on the Toyota GT96 platform. Key the modification is the fitting of a 3.5-liter V6 that produces nearly 400 bhp.

In addition to the engine swap, the TOM’S used a TMS bodykit that features a completely revised front end which is similar to the Ferrari F12. Inside is more TMS pieces including reclining bucket seats, carbon fiber steering wheels, floor mats, shift knob and shoulder pads
Larger 355mm 4-piston brakes are fitted as will as Advox coil damper units, TMS exhaust and a clutch-based limited-slip differential.

Larger 355mm 4-piston brakes are fitted as will as Advox coil damper units, TMS exhaust and a clutch-based limited-slip differential.

In Detail

type	Professionally Tuned Car
built at	Japan
engineers	Tetsuya Tada
production	1
engine	2GR-FSE V6
position	Front, Longitudinal
aspiration	Natural
valvetrain	DOHC, 4 Valves per Cyl
fuel feed	Direct Injection
displacement	3456 cc / 210.90 in³
power	294 kw / 394.3 bhp @ 5200 rpm
specific output	114.09 bhp per litre
torque	450 nm / 331.9 ft lbs @ 4000 rpm
body / frame	Unitary Steel Monocoque
driven wheels	RWD
front tires	225 / 40 – 18 Bridgestone Potenza S 001
rear tires	225 / 40 – 18 Bridgestone Potenza S 001
front brakes	Ventilated Discs w/4-Piston Calipers
rear brakes	Ventilated Discs w/2-Piston Calipers
front wheels	F 45.7 x 19.1 cm / 18 x 7.5 in
rear wheels	R 45.7 x 19.1 cm / 18 x 7.5 in
f suspension	MacPherson Struts
r suspension	Double Wishbones
weight distro	53 % / 47 %
wheelbase	2570 mm / 101.2 in
front track	1520 mm / 59.8 in
rear track	1540 mm / 60.6 in
length	4270 mm / 168.1 in
width	1795 mm / 70.7 in
height	1270 mm / 50.0 in
transmission	6-Speed Manual or Automatic
fuel capacity	50 litres or 13.20 gal.
