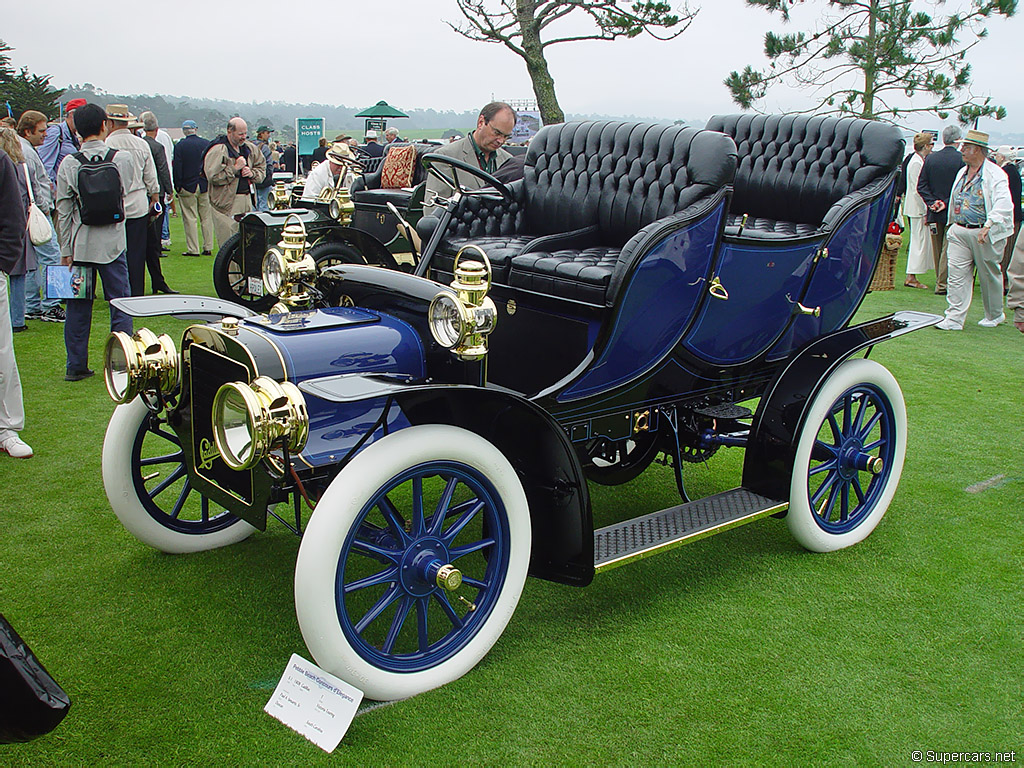

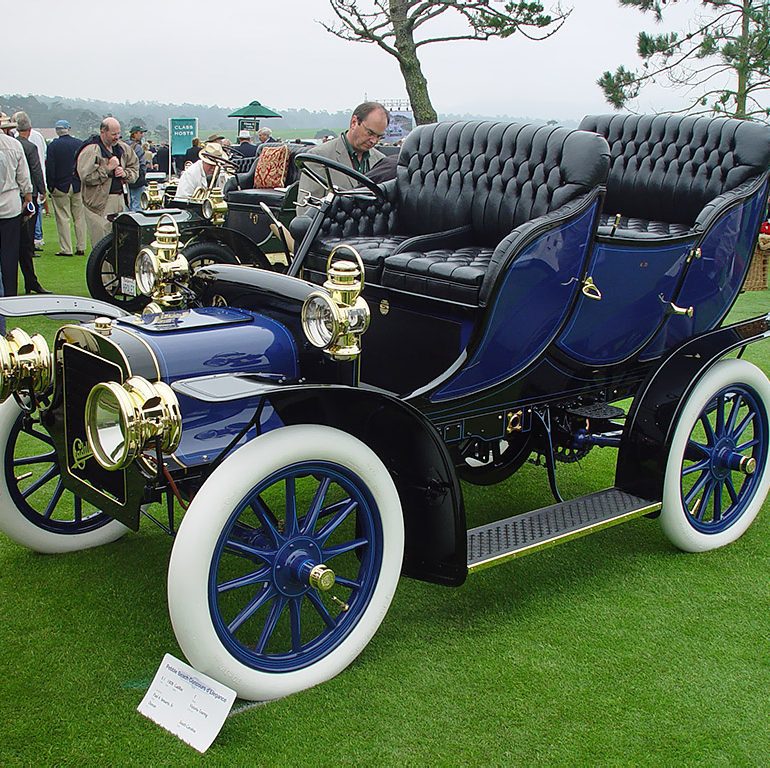

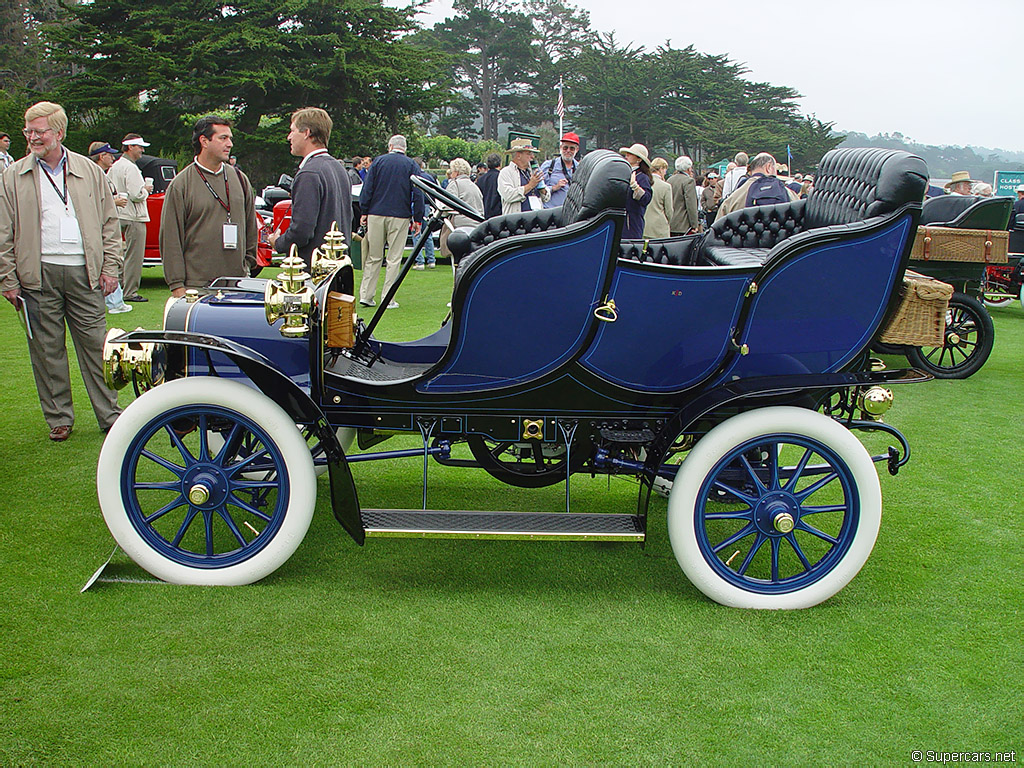

1908 Cadillac Model T

1908 Cadillac Model T

1908 Cadillac Model T

In November of 1907, Cadillac introduced the Model T which was a variant of their 10HP single-cylinder car. This was nearly identical to the Model M, Model S which were all essentially the same model with different body styles and wheelbases. The Model T was a 4-seat runabout body on the 82 inch wheelbase chassis.

Engineering principles for the aging single-cylinder Cadillac were similar to the very first Model A of 1903. It used a Leland & Faulconer engine, 2-speed transmission and a Brown-Lipe differential. By 1907 the power had increased from 6.5 to 10 advertised bhp.

The Model T could be ordered with an optional Cape Cart top for $115.

Story by

In Detail

type Series Production Car
built at Detroit, Michigan, USA
engine Leland & Faulconer Single Cylinder
position Under Front Seat
aspiration Natural
block material Cast Iron w/Copper Water Jacket
fuel feed Updraft Mixer
displacement 1609 cc / 98.2 in³
bore 127.0 mm / 5.0 in
stroke 127.0 mm / 5.0 in
power 7.5 kw / 10 bhp
specific output 6.22 bhp per litre
body / frame Steel Body over Steel Frame
driven wheels RWD
wheel type Wooden 12-Spoke
front tires 30×3
rear tires 30×3
front brakes None
rear brakes Inboard Drums
front wheels F 61.0 x 5.1 cm / 24 x 2 in
rear wheels R 61.0 x 5.1 cm / 24 x 2 in
transmission 2-Speed Manual
gear ratios 3.00:1, 1.00:1
