1960 Jaguar E2A Gallery

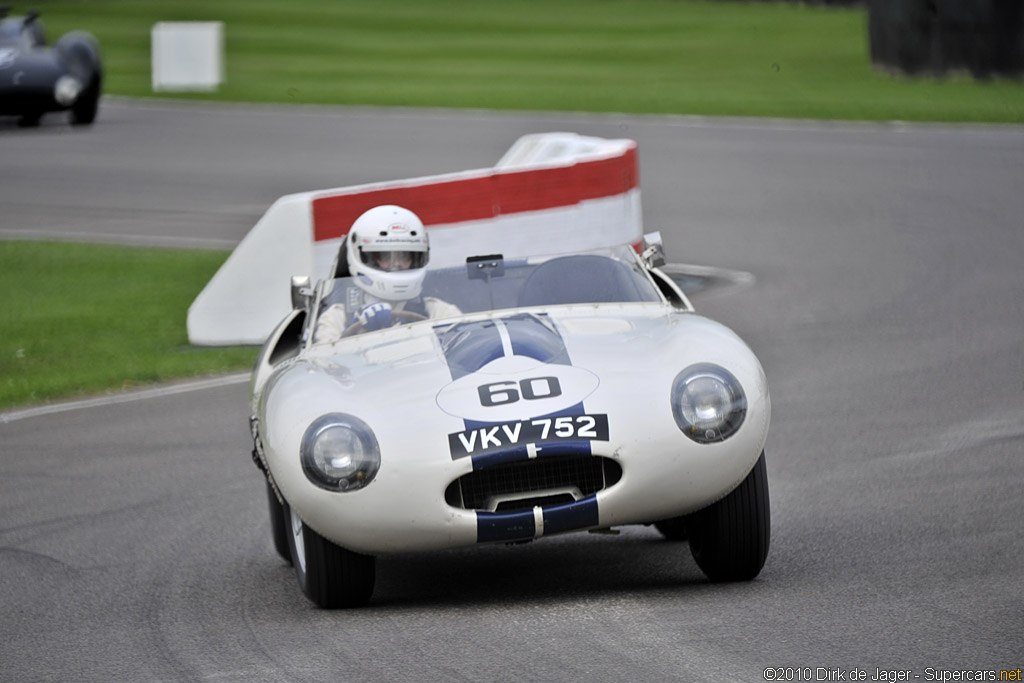

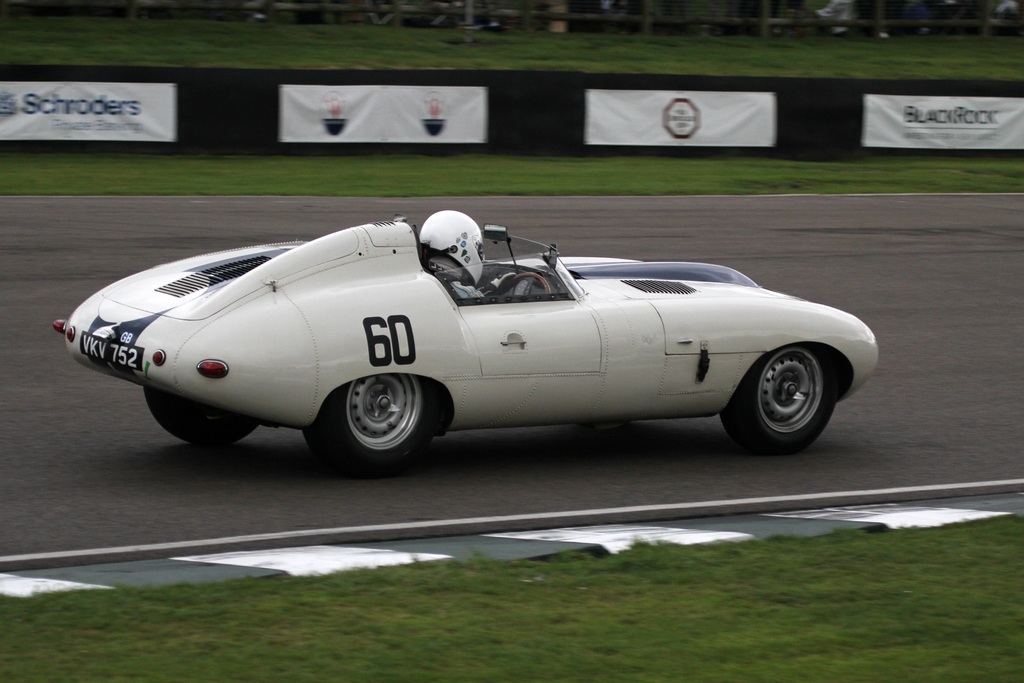

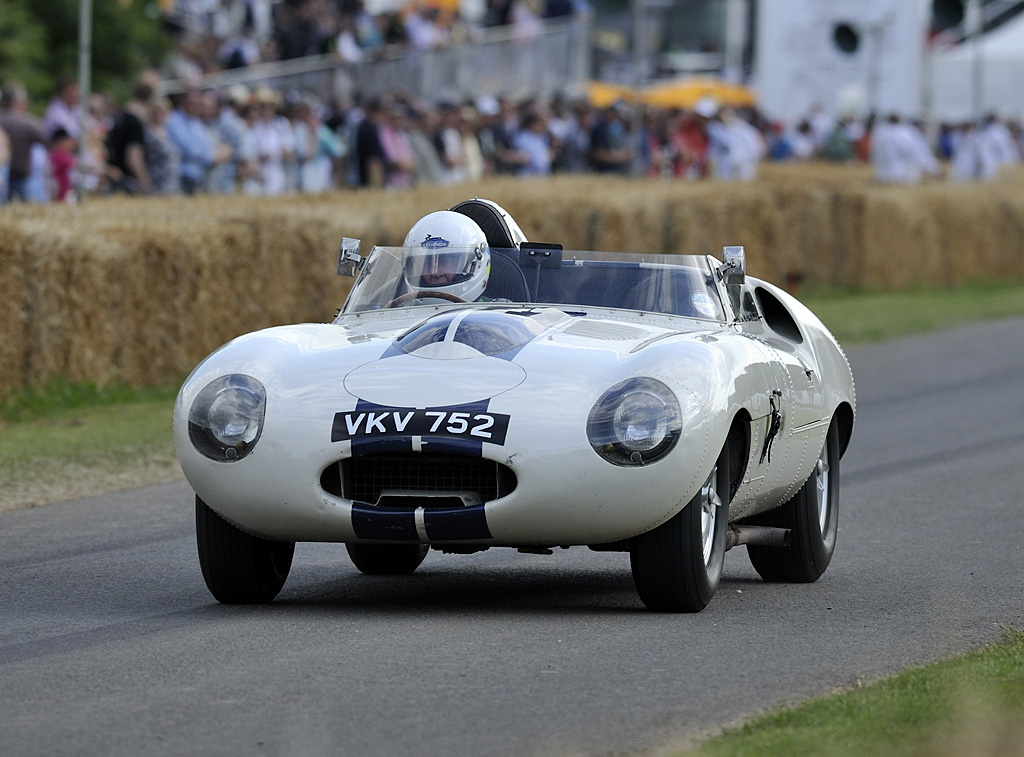

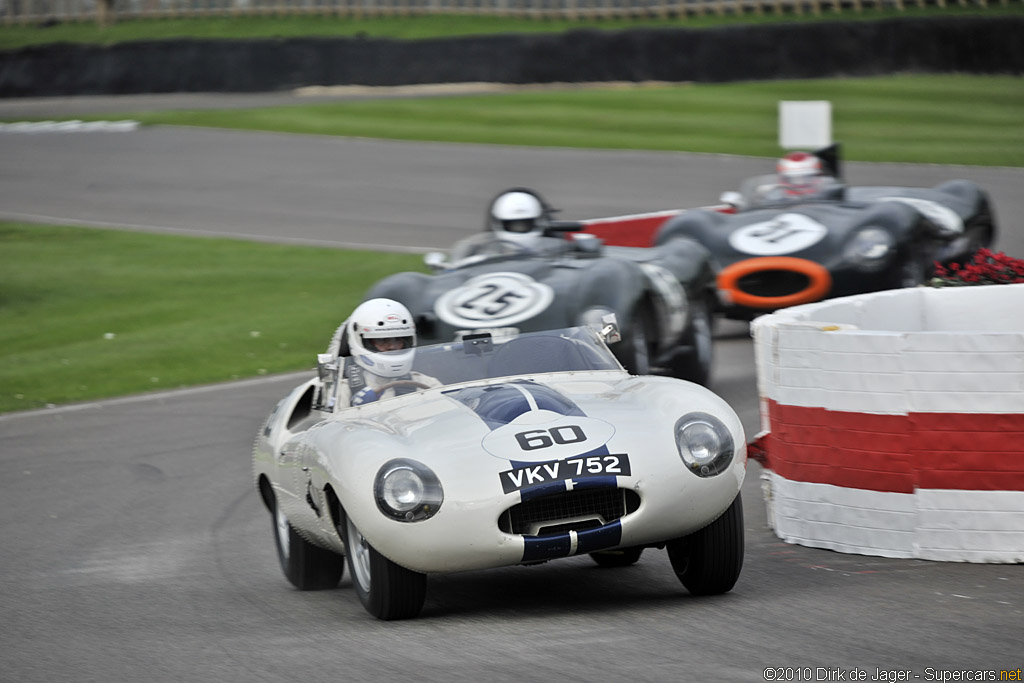

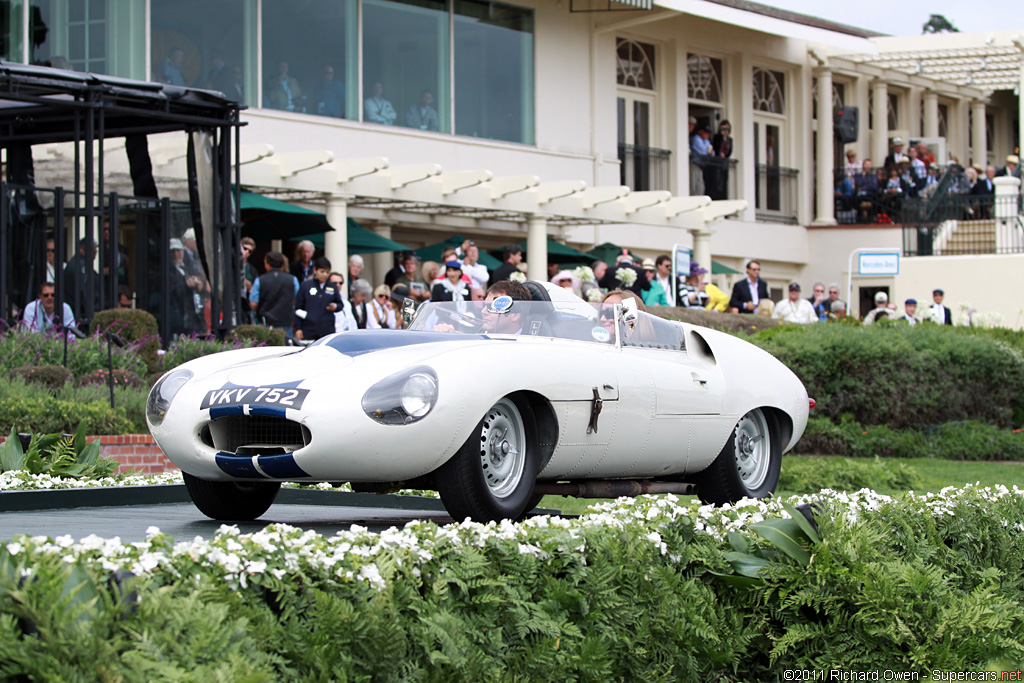

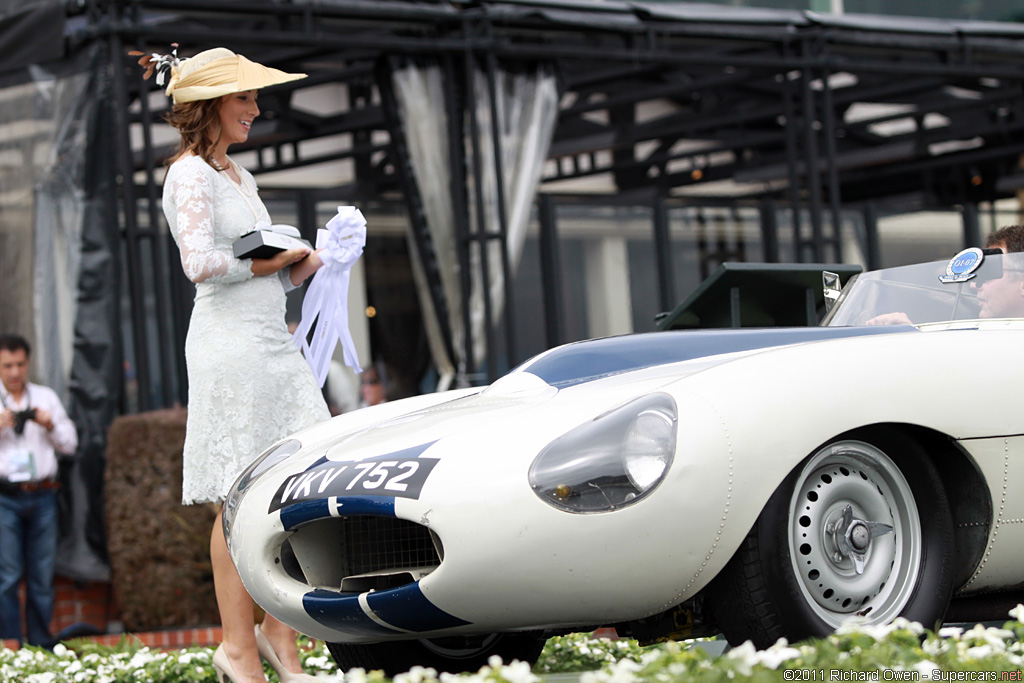

1960 Jaguar E2A

1960 Jaguar E2A

After a successful decade of racing, Jaguar created a E2A, a new prototype that would lend its development to future racing and production cars. Essentially, E2A became an interim model bridging the gap between the iconic E-Type and the victorious D-Type.

The release of E2A marked Jaguar’s possible intention to continue their motor sports program which ended in 1956. E2A was designed to accommodate the new 1960 sports car regulations which included minimum heights for both the car and windscreen. It was these same restrictions which forced Bizzarrini to raise the windscreen angle on his Ferrari GTO, effectively ruining his initial form.

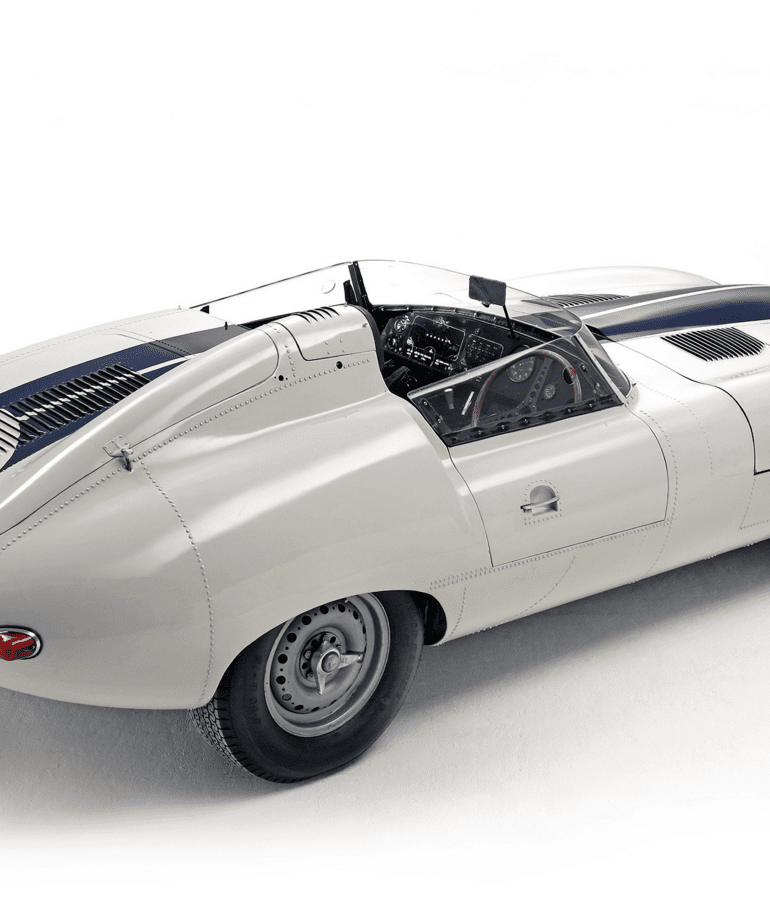

E2A borrowed much from the D-Type it effectively replaced. The body and chassis formed a single aluminum monocoque. Compared to the long-nose D-Type, E2A was stretched six inches to maintain proper aerodynamics with the large windscreen. Having a high windscreen also necessitated the need for window wipers instead of having the driver just look over the window.


Similar to the D-Type, E2A used an XK-based engine having the same DOHC cylinder head. Different materials were used in the engine, such as an aluminum block and titanium connecting rods. Lucas Fuel Injection was also installed.

As a significant change from the D-Type, E2A used an independent rear suspension with inboard rear brakes. Two ducts just behind the doors provided cooling for the brakes. E2A marks the first Jaguar to have an independent rear suspension.

See full 1960 Jaguar E2A Gallery

1960 Jaguar E2A

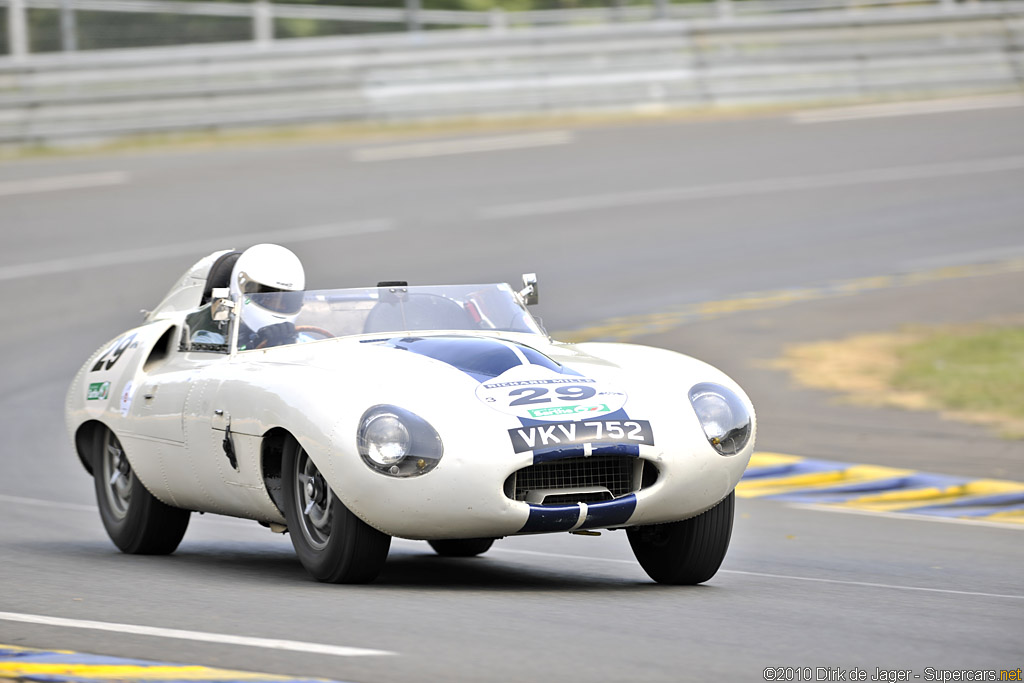

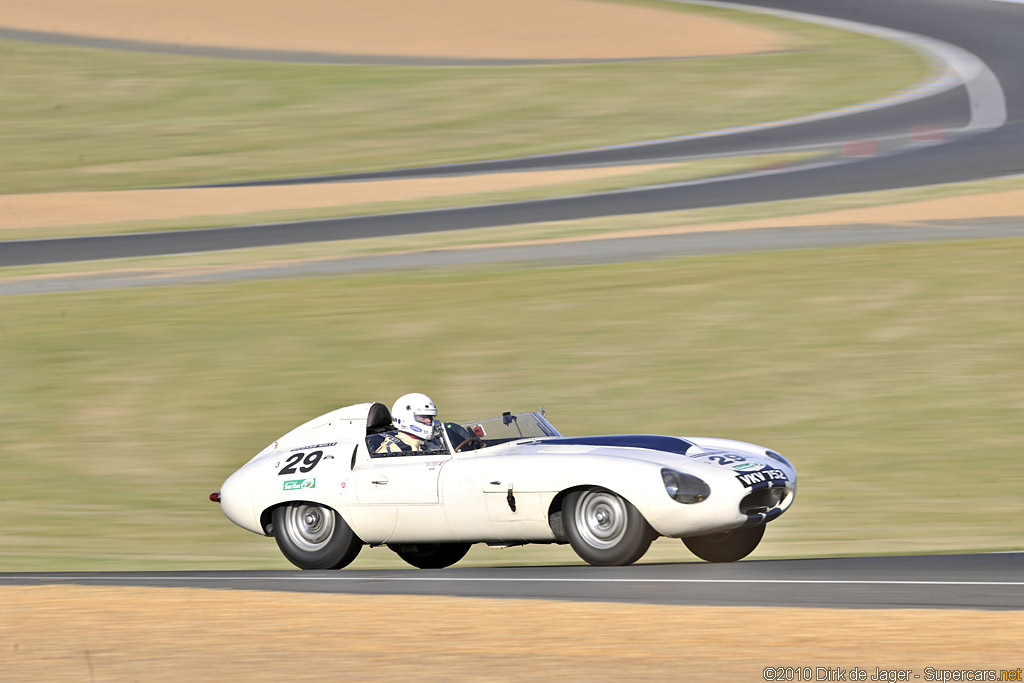

E2A was initially ordered by Brigs Cunningham for a private assault on LeMans. The car was never given a model designation, but is known for its chassis stamping, E2A. It raced in the 1960 LeMans 24 Hour Race with drivers Dan Gurney and Walt Hansgen. Unfortunately the car retired due to head gasket failure caused by faulty fuel injection.

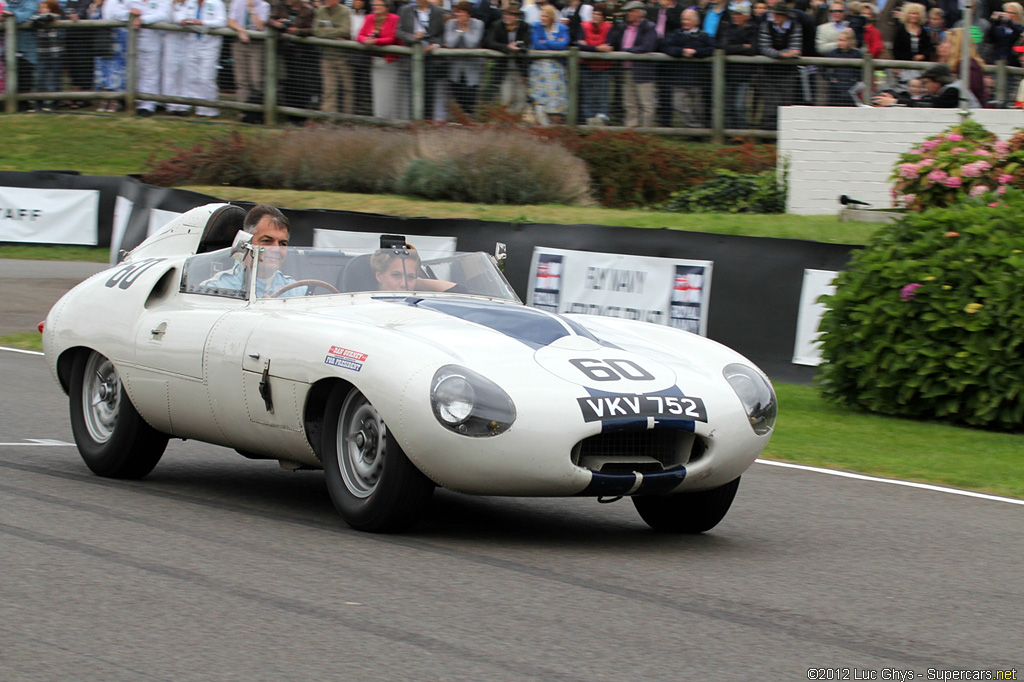

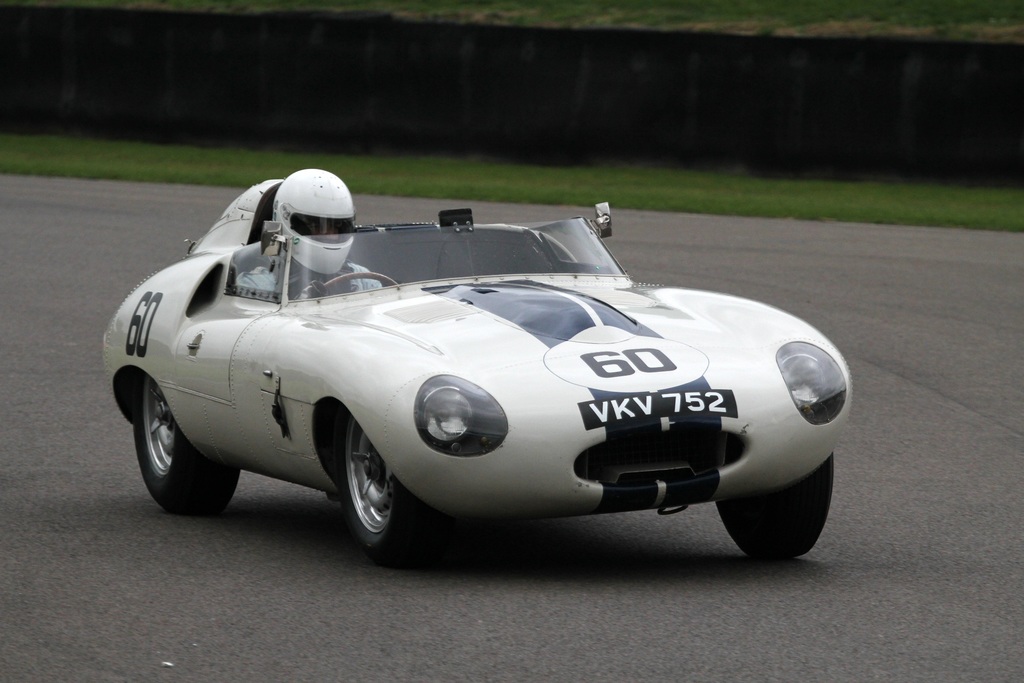

After LeMans, the windscreen on the car was reduced and a 3.8-litre engine with triple Webers was installed. It continued racing in America for some time until it was shipped back to England for brake testing.

1960 Jaguar E2A Image Gallery

See full 1960 Jaguar E2A Gallery


In Detail

type Racing Car
built at England
production 1
engine Inline-6
valvetrain DOHC, 2 Valves per Cyl
fuel feed Lucas Fuel Injection
displacement 2997 cc / 182.9 in³
bore 85 mm / 3.35 in
stroke 88 mm / 3.46 in
power 220.0 kw / 295 bhp @ 6800 rpm
specific output 98.43 bhp per litre
bhp/weight 337.14 bhp per tonne
redline 7000
body / frame Aluminum Monocoque with Steel Front Subframe
front tires 6.5×16
rear tires 6.5×16
front brakes Unassisted Dunlop Discs
rear brakes Inboard Unassisted Dunlop Discs
steering Rack & Pinion
f suspension Wishbones w/Torsion Bars, Girling Dampers
r suspension Half Shafts w/Lower Wishbones, Dual Coil Springs, Girling Dampers, Anti-Roll Bar
curb weight 875 kg / 1929 lbs
wheelbase 2438 mm / 96.0 in
front track 1219 mm / 48.0 in
rear track 1219 mm / 48.0 in
length 4318 mm / 170.0 in
width 1594 mm / 62.8 in
height 1137 mm / 44.8 in
transmission 4-Speed Manual
gear ratios 2.14:1, 1.64:1, 1.277:1, 1.00:1
final drive 3.31:1
top speed ~305.8 kph / 190.0 mph

Story by Richard Owen

Auction Sales History

1960 Jaguar E2A
1960 Jaguar E2A

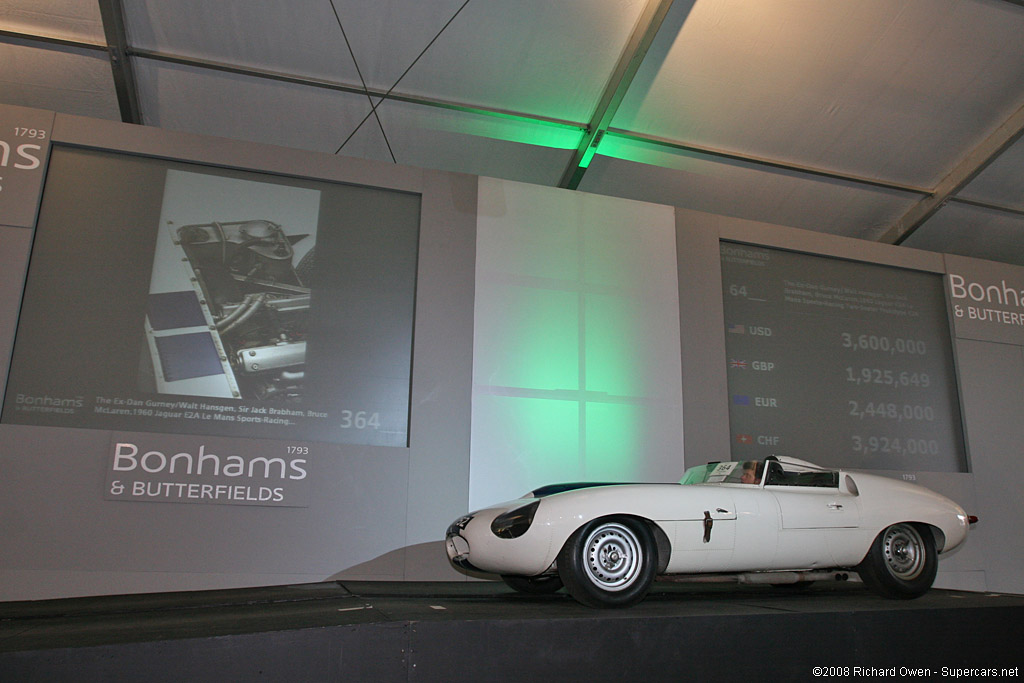

– sold for $4,957,000

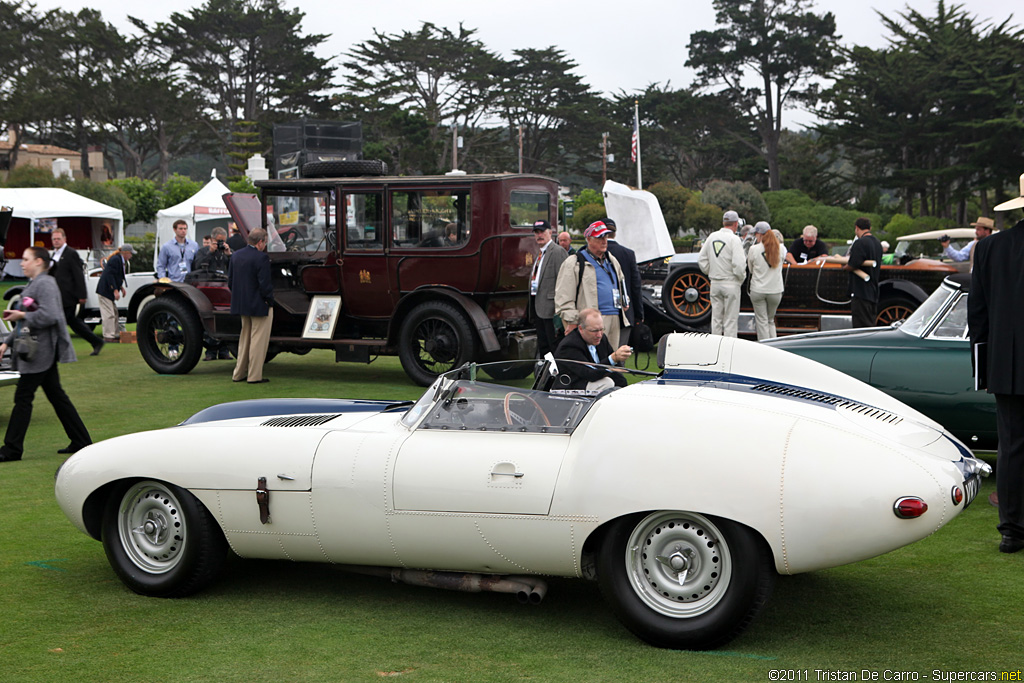

Jaguar ‘E2A’ survives today as absolutely one of the most charismatic and significant prototypes ever produced by mainstream motor industry. It is neither a cobbled-together rough-cut, nor a merely vapid show car. And what other prototype of such a significant production model has ever had a racing history to match this one? As the only surviving taproot of the iconic E-Type Jaguar series, ‘E2A’ towers in stature for that alone. Auction Source: 2008 Monterey Preview
