2009 Chevrolet Corvette ZR1

2009 Chevrolet Corvette ZR1

2009 Chevrolet Corvette ZR1

Dec. 20, 2007 – Chevrolet officially announced the 2009 Corvette ZR1 – an American supercar that brings the technology and engineering refinement of carbon-fiber, ceramics and electronics together in a distinctive design. ”Chevrolet?s goal with the new ZR1 is to show what an American supercar can deliver, at a price that trumps exotics that cost two, three or four times as much ? and does so with exceptional driveability,” said Ed Peper, Chevrolet general manager.

Preliminary testing shows the ZR1 builds on the highly respected Corvette Z06 in every performance category, from acceleration and braking, to cornering grip and top speed,? said Peper. ?It all boils down to the power-to-weight ratio and the ZR1?s is exceptional ? better than the Porsche 911 GT2, the Ferrari 599 and even the Lamborghini LP640. In fact, the ZR1 is expected to be the first production Corvette to achieve a top speed of at least 200 mph.

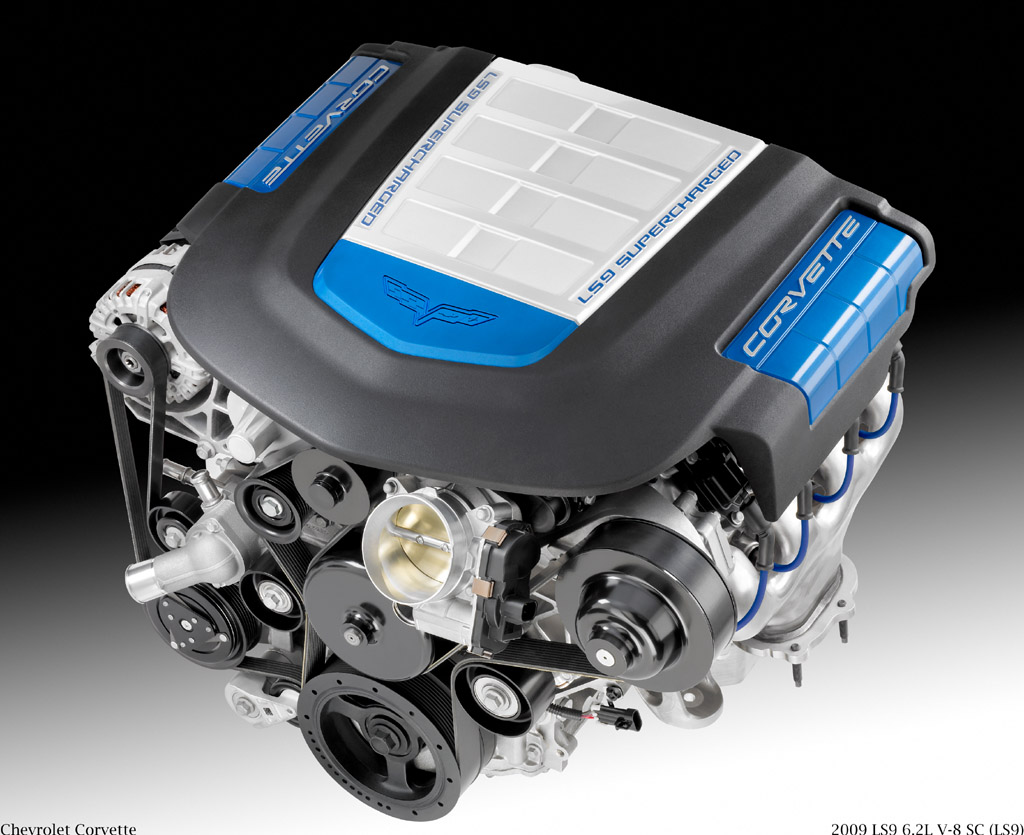

Supercharged LS9 engine

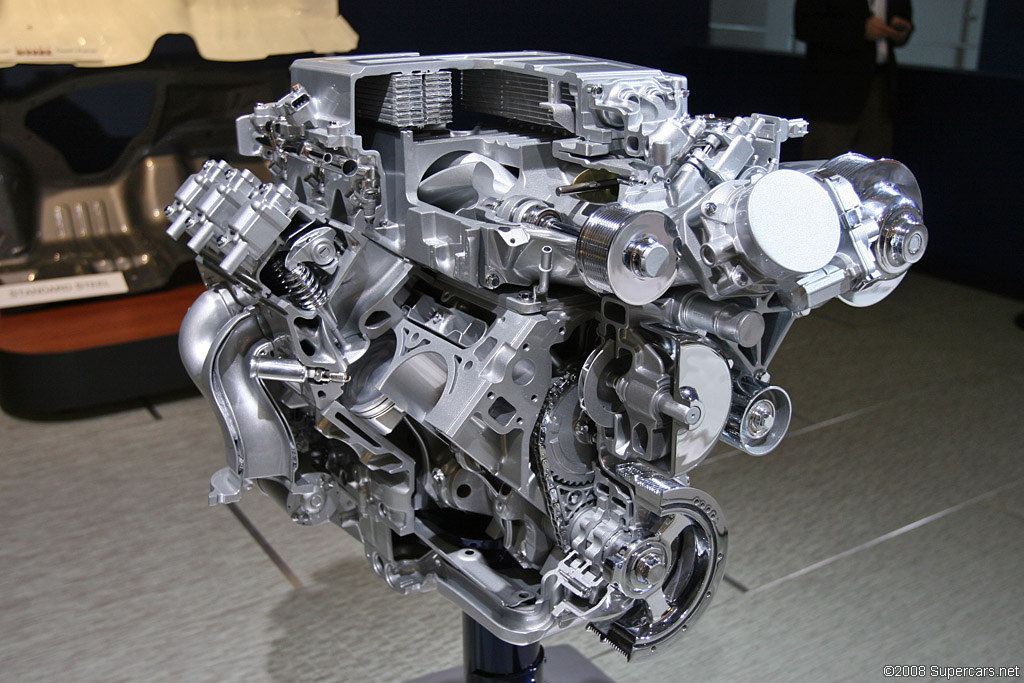

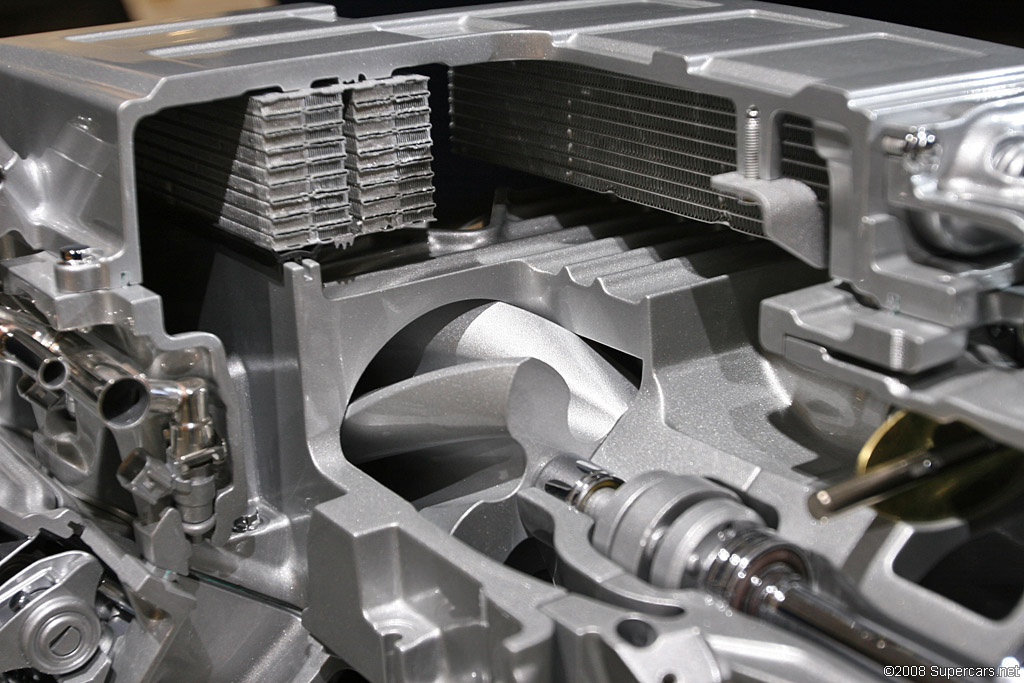

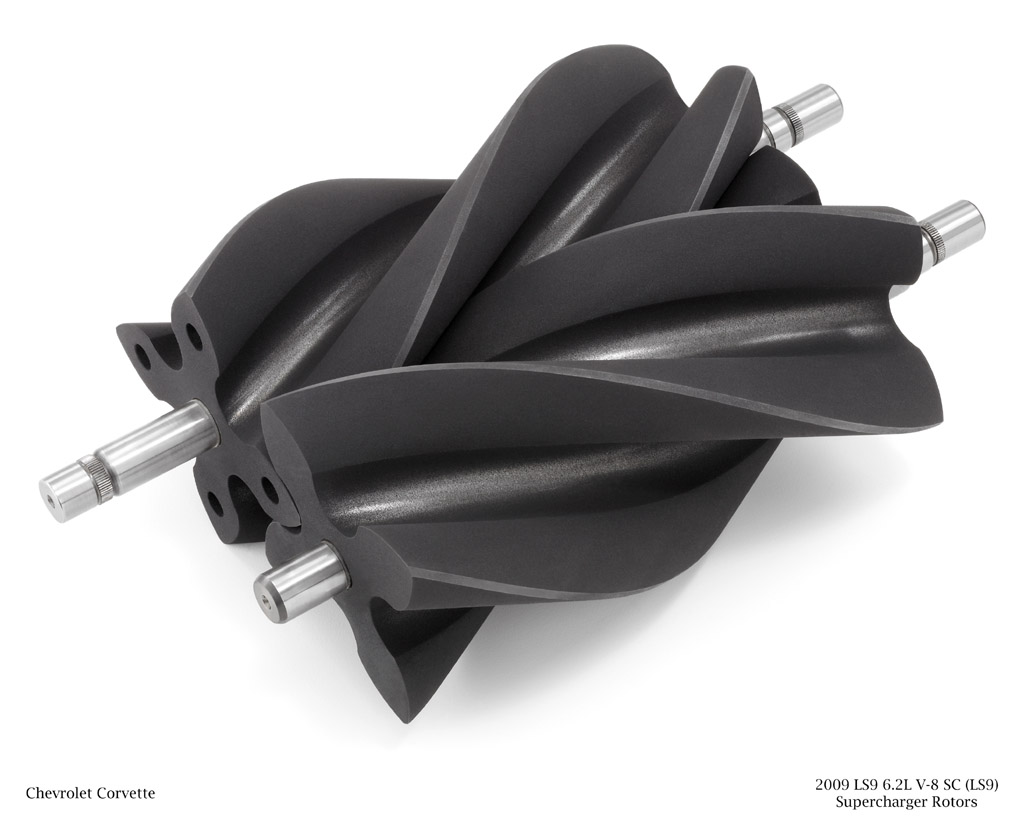

The new LS9 6.2L small-block engine is the power plant the supports the ZR1?s performance capability. The enabler of the LS9?s performance and refinement is a large, positive-displacement Roots-type supercharger with a new, four-lobe rotor design. It is augmented with an integrated charge cooling system that reduces inlet air temperature for maximum performance.

A sixth-generation supercharger developed by Eaton helps the LS9 make big power and torque at lower rpm and carries it in a wide arc to 6,600 rpm, as it pushes enough air to help the engine maintain power through the upper levels of the rpm band ? the area where supercharged performance tends to diminish. Heavy-duty and lightweight reciprocating components enable the engine?s confident high-rpm performance.

The LS9 is hand-assembled at GM?s Performance Build Center, in Wixom, Mich., and incorporates specialty processes typically seen in racing engines to produce a highly refined and precise product. For example, cast iron cylinder liners are inserted in the aluminum block and are finish-bored and honed with a deck plate installed. The deck plate simulates the pressure and minute dimensional variances applied to the block when the cylinder heads are installed, ensuring a higher degree of accuracy that promotes maximum cylinder head sealing, piston ring fit and overall engine performance.

Transmission and axle

The LS9 engine is backed by a new, stronger six-speed manual transmission and a twin-disc clutch that provide exceptional clamping power, while maintaining an easy clutch effort. ZR1-specific gearing in the transmission provides a steep first-gear ratio that helps launch the car, and top speed is achieved in sixth gear – a change from the fifth-gear top-speed run-outs in the manual-transmission Corvette and Corvette Z06.

As the term implies, the twin-disc clutch system employs a pair of discs, which spreads out the engine?s torque load over a wider area. This enables tremendous clamping power when the clutch is engaged, while also helping to dissipate heat better and extend the life of the clutch.

The twin-disc clutch system also contributes to the ZR1?s exceptional driving quality, with smooth and easy shifting. The twin-disc system’s design enables a 25-percent reduction in inertia, thanks to smaller, 260-mm plates, corresponding to a pedal effort that is similar to the Corvette Z06?s 290-mm single-disc system.

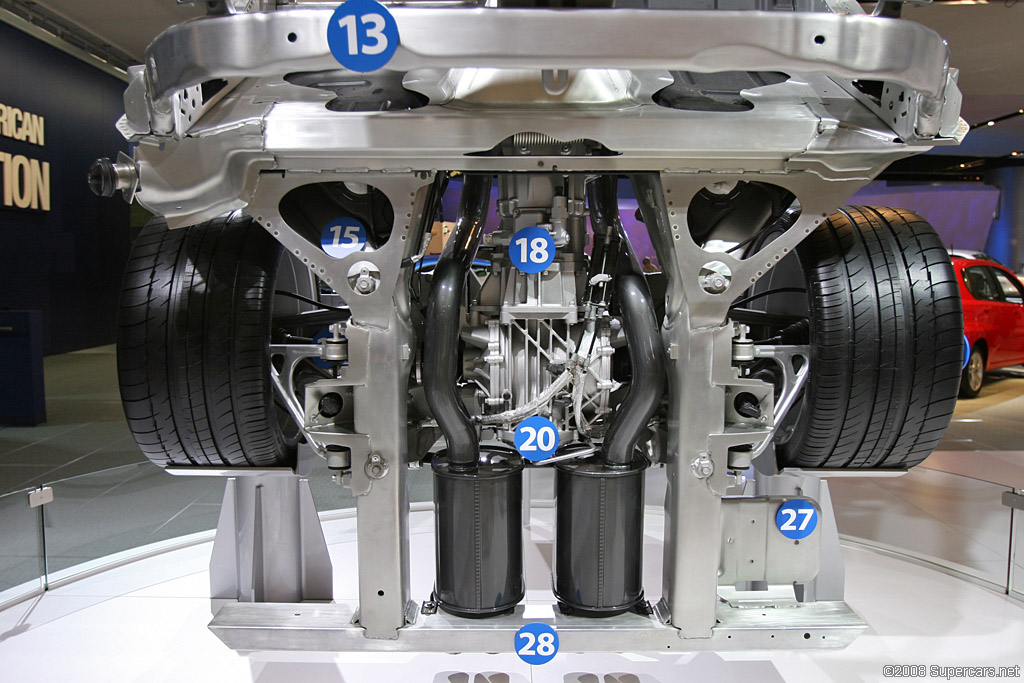

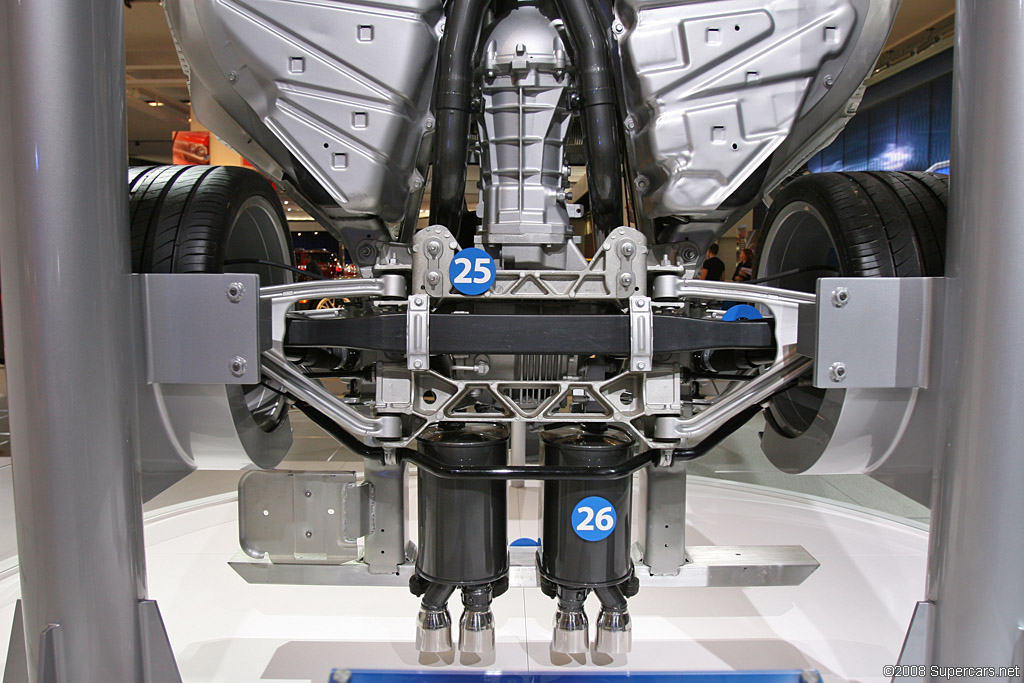

The rear axle also is stronger in the ZR1 and features asymmetrical axle-shaft diameters that were developed after careful testing to provide optimal torque management. The axles are also mounted on a more horizontal plane that correlates with the wider width of the rear wheels and tires.

Ride and handling

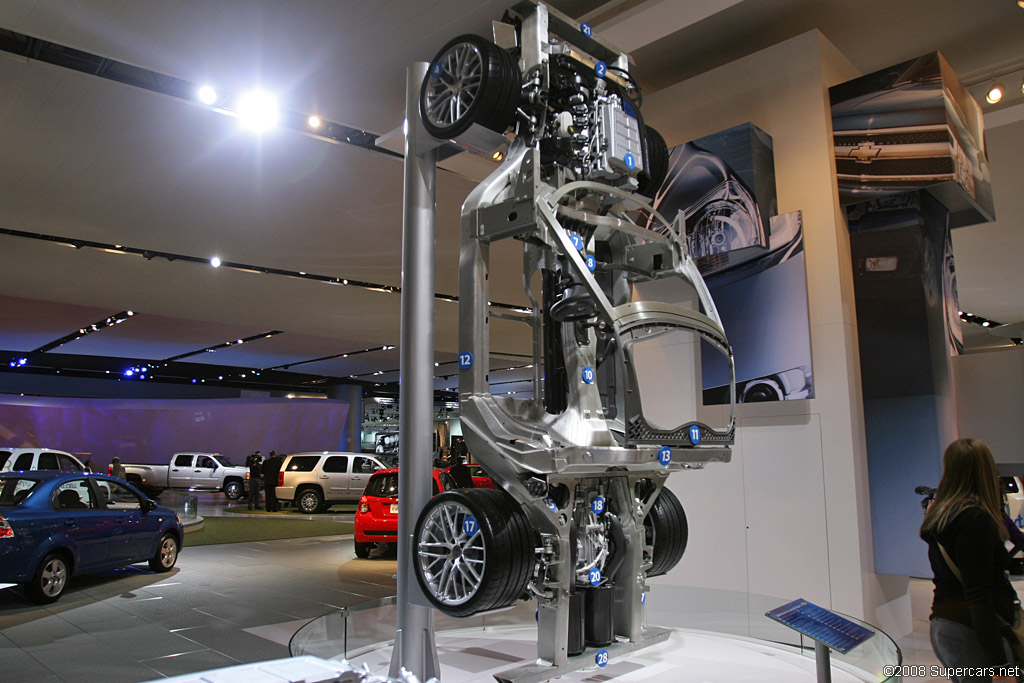

The ZR1 is built on the same aluminum-intensive chassis as the Corvette Z06 and features similar independent SLA front and rear suspensions, with aluminum upper and lower control arms. Where the ZR1 differs is the suspension tuning, which was optimized for the car?s steamroller-wide front and rear tires.

Magnetic Selective Ride Control is standard and tuned specifically for the ZR1. The system?s ability to deliver a compliant ride with nearly instantaneous damping adjustments enabled engineers to develop a surprisingly supple ride quality in a supercar that still delivers cornering grip of more than 1g.

From a high-performance perspective, Magnetic Selective Ride Control helps the rear axle remain planted during launch for smooth, hop-free acceleration. It also helps suppress axle movement when cornering on broken or uneven pavement.

Brakes, wheels and tires

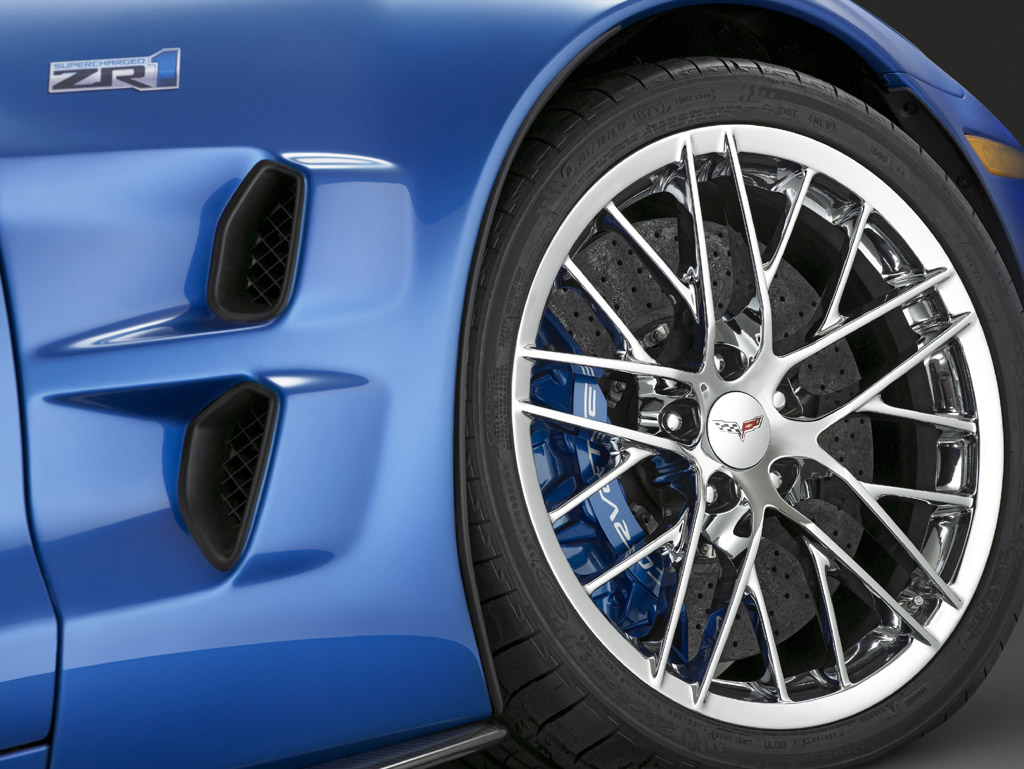

Commensurate with the ZR1’s engine output is the braking system, which is headlined by carbon-ceramic brake rotors. Found on only a few exotics and more expensive supercars, carbon-ceramic brake rotors are made of a carbon-fiber-reinforced ceramic silicon carbide material . Their advantage comes in low mass and resistance to wear and heat. In fact, the rotors should never show any corrosion or require replacement for the life of the vehicle, when used in normal driving.

The vented and cross-drilled rotors on the ZR1 measure 15.5 inches (394 mm) in diameter in the front and 15 inches (380 mm) in diameter in the rear ? making them among the largest carbon-ceramic rotors available on any production vehicle.

Clamping down on the high-tech rotors are six-piston front calipers and four-piston rear calipers, each painted a ZR1-exclusive blue. The front pads are equivalent in size to the largest on any production car with a single-pad design ? double that of the Corvette Z06?s 70-sq.-cm. front pads.

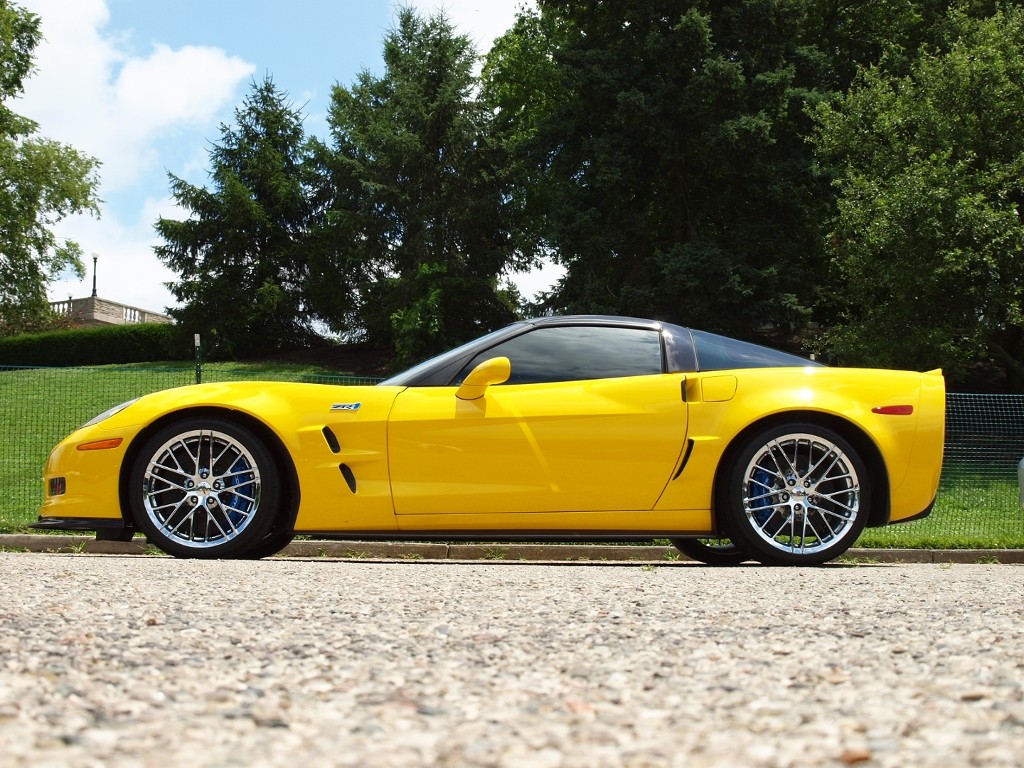

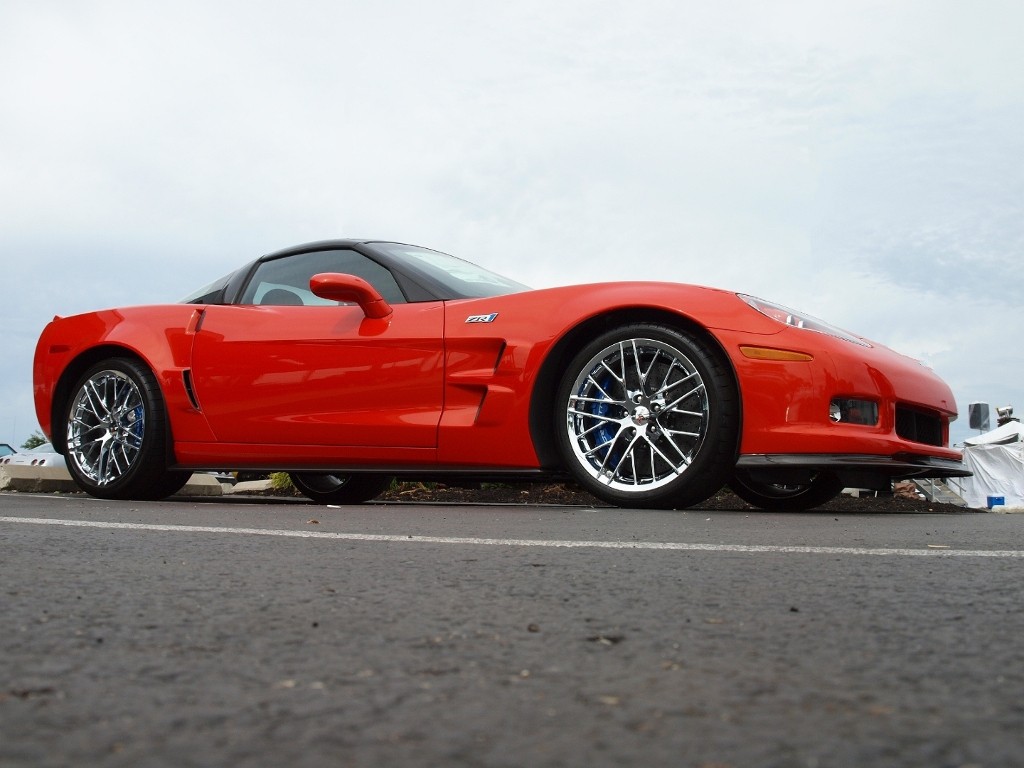

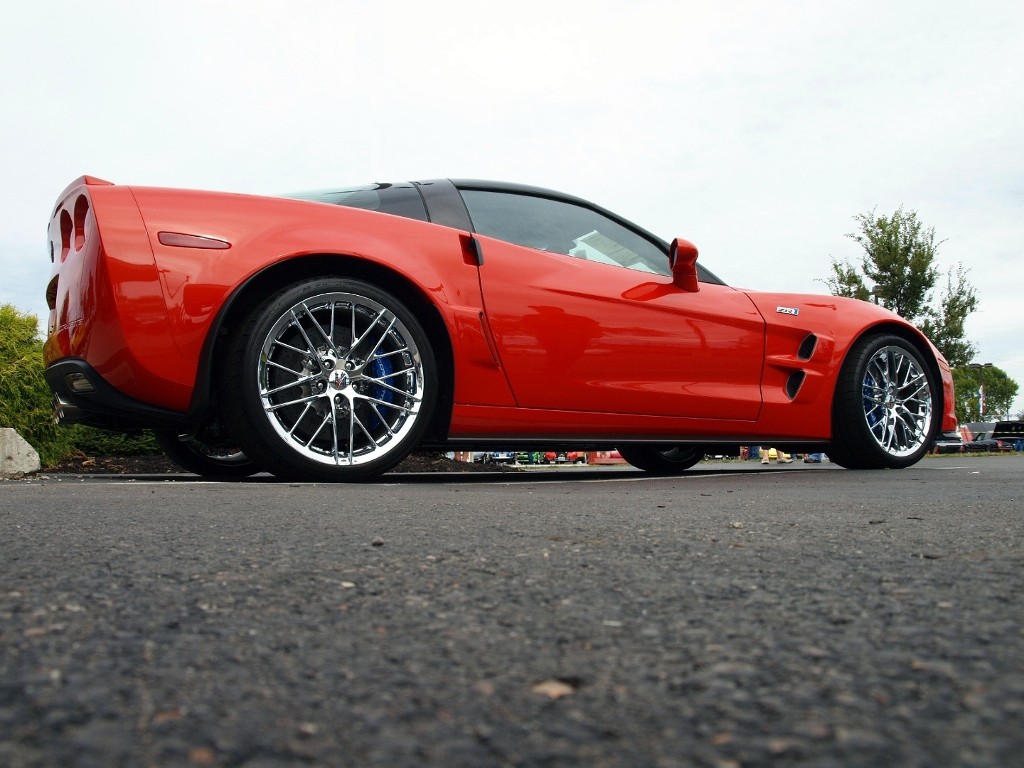

The brakes are visible through the ZR1?s exclusive wheels: 20-spoke alloy rims that measure 19 inches in diameter in the front and 20 inches in the rear. They come standard with a bright, Sterling Silver paint finish and chrome versions are optional. The wheels are wrapped in Michelin Pilot Sport 2 tires developed specifically for the ZR1, measuring P285/30ZR19 in front and P335/25ZR20 in the rear.

Exclusive exterior

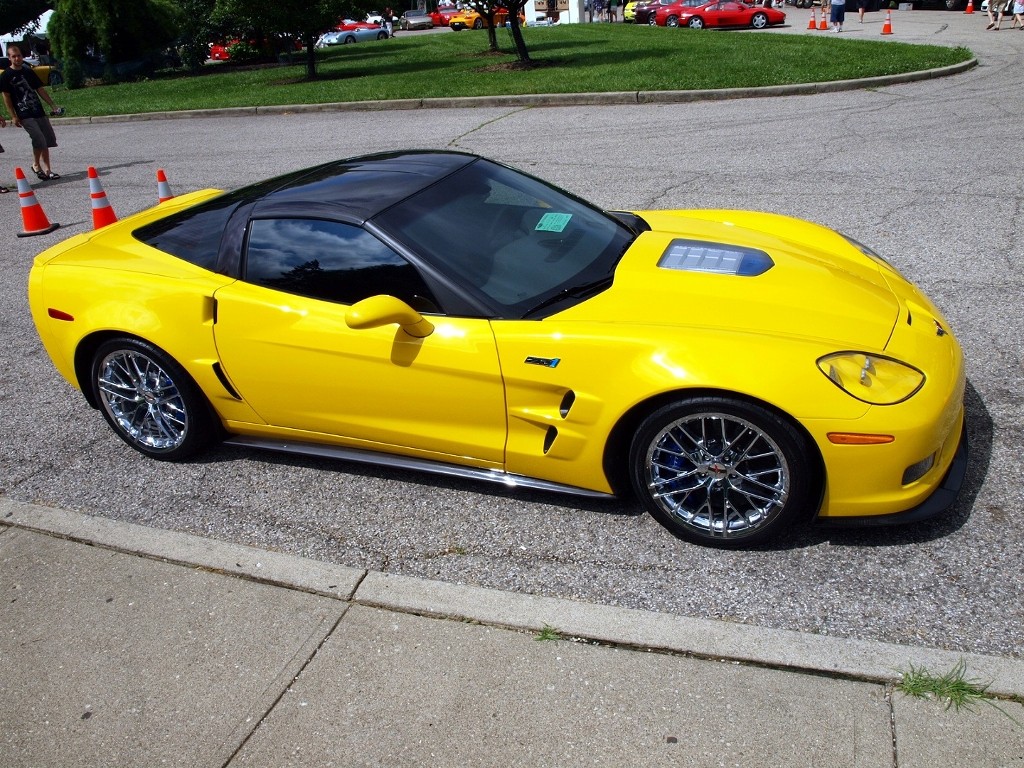

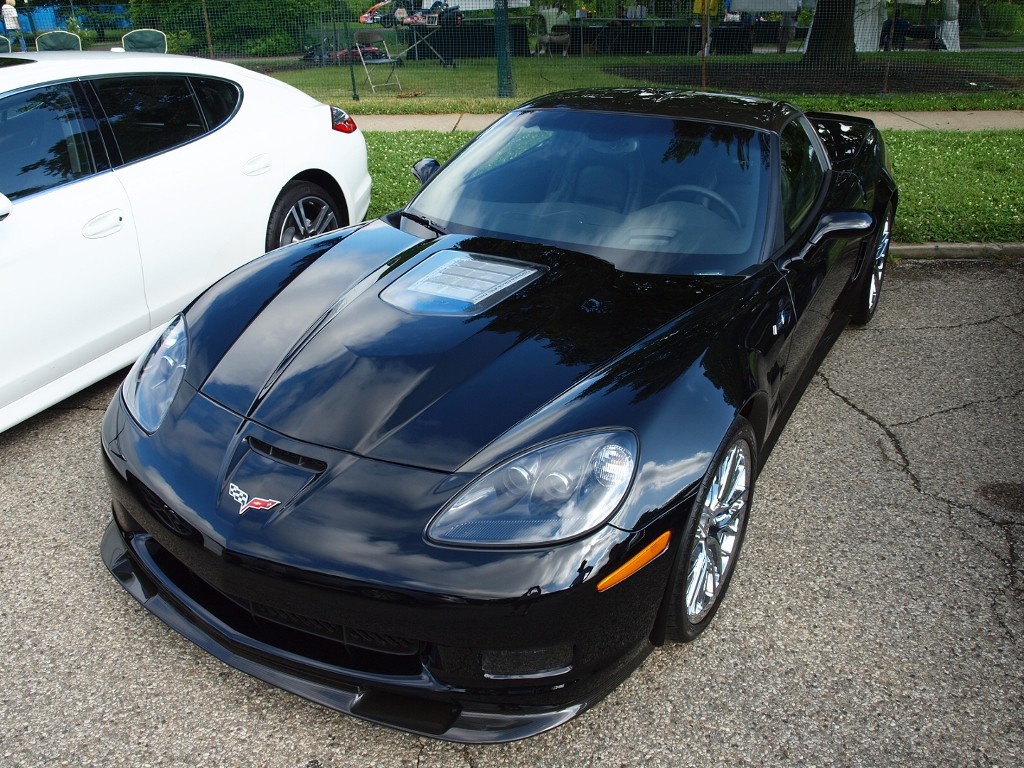

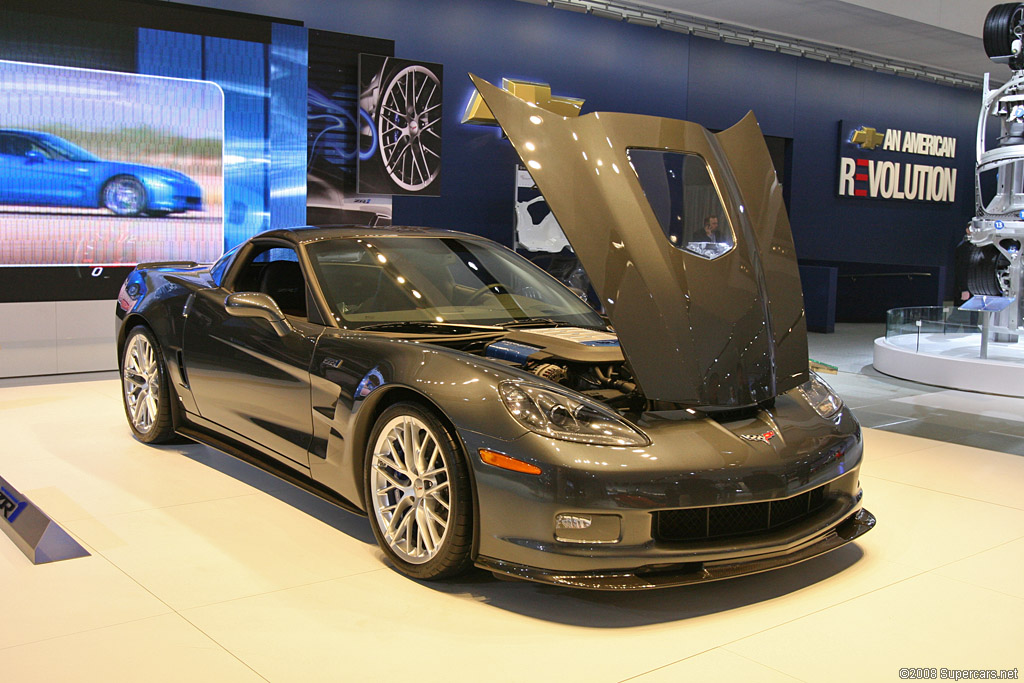

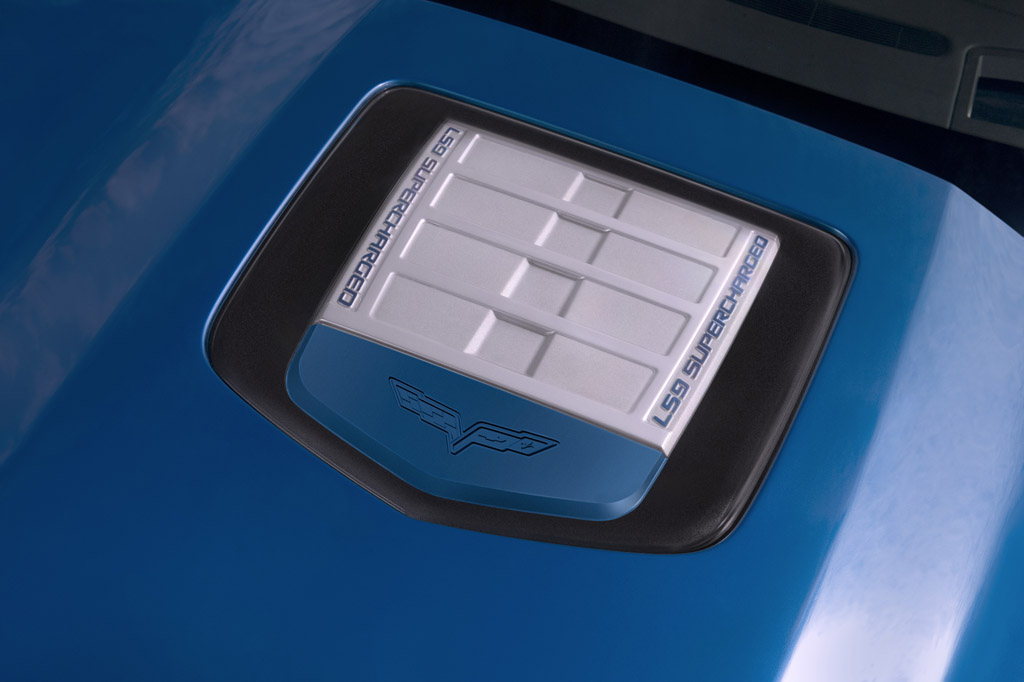

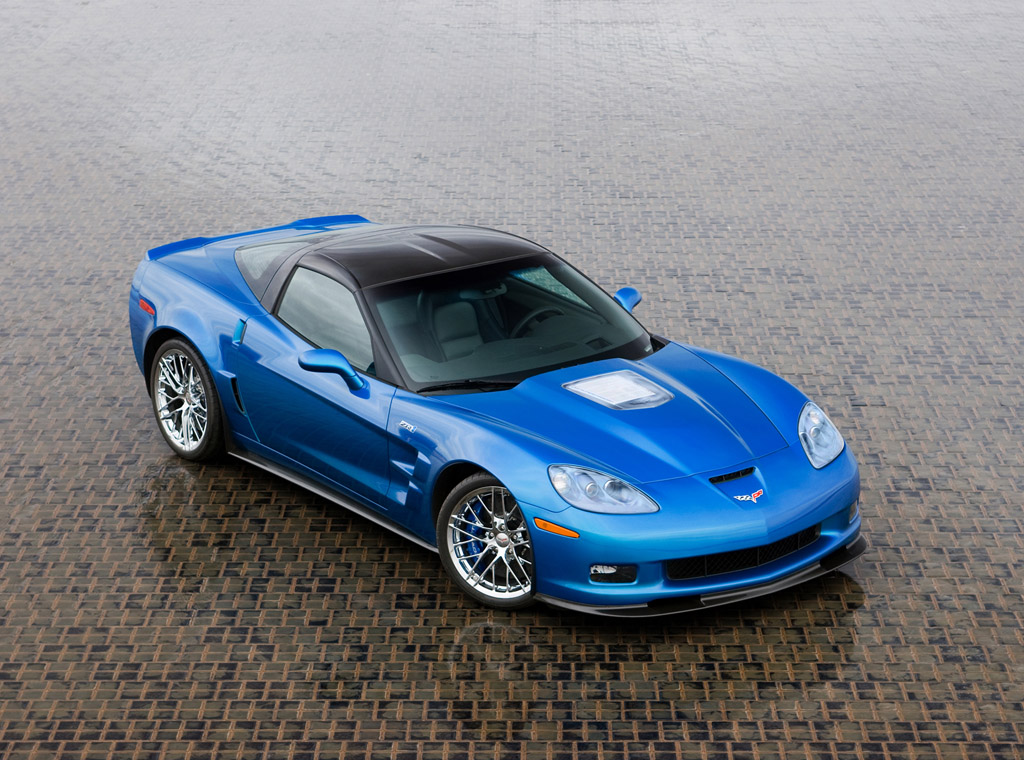

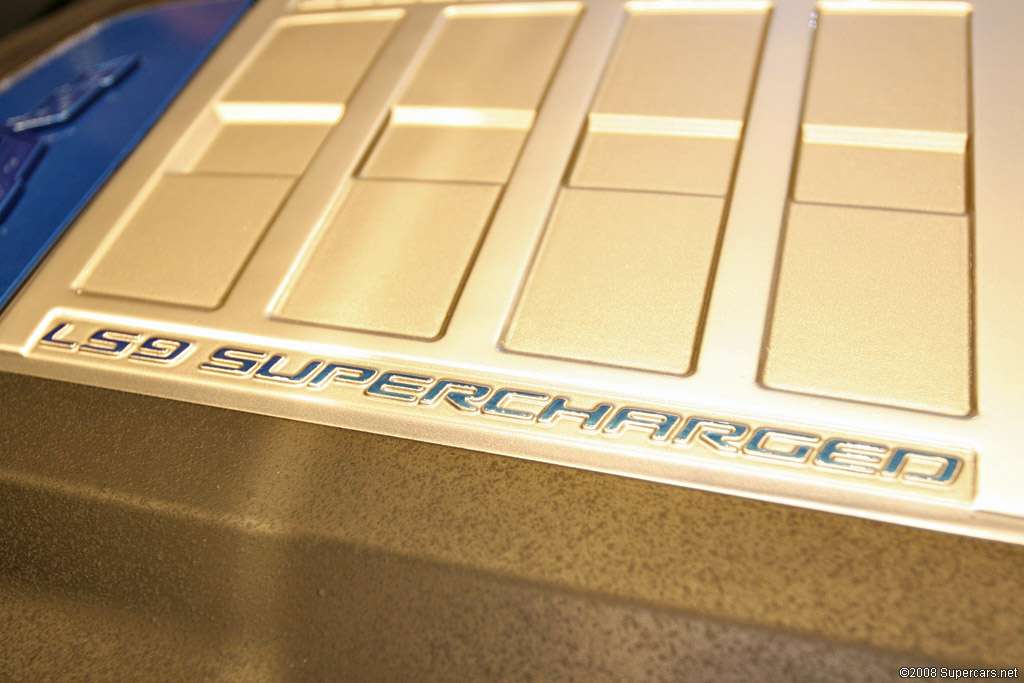

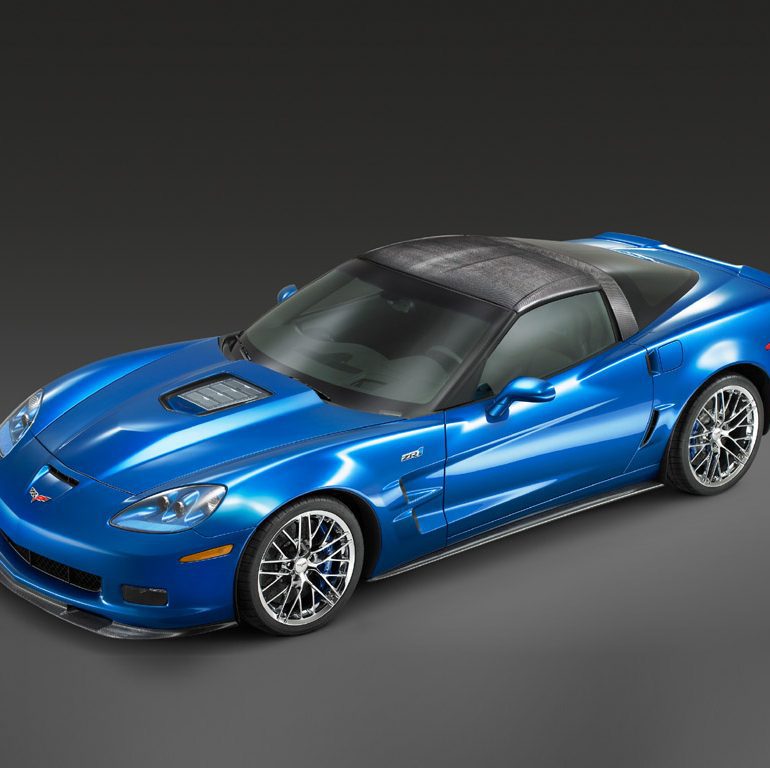

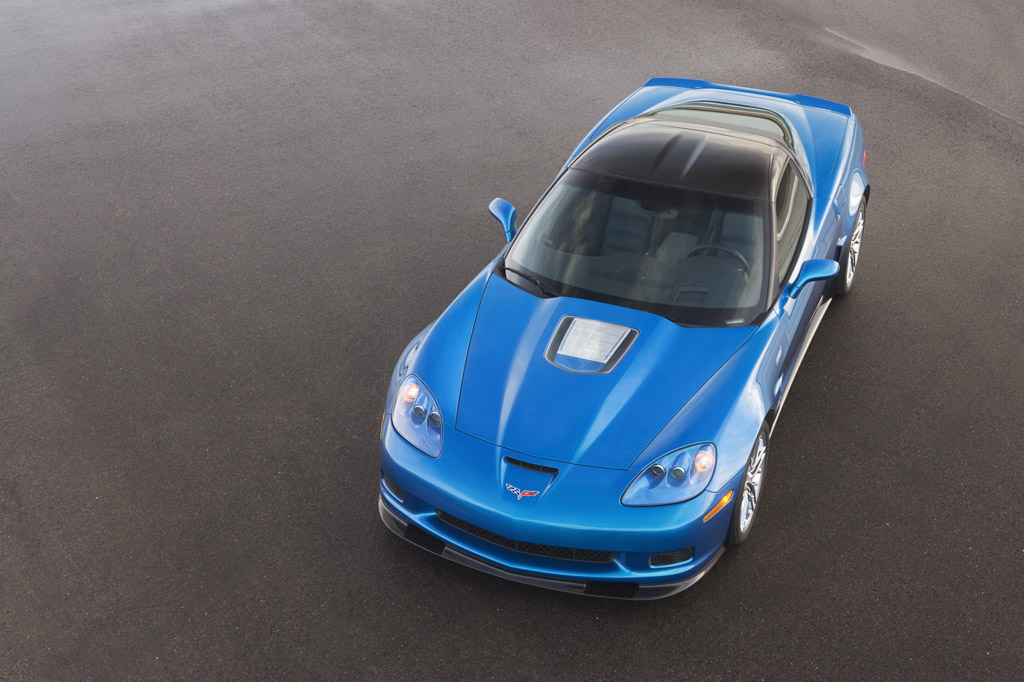

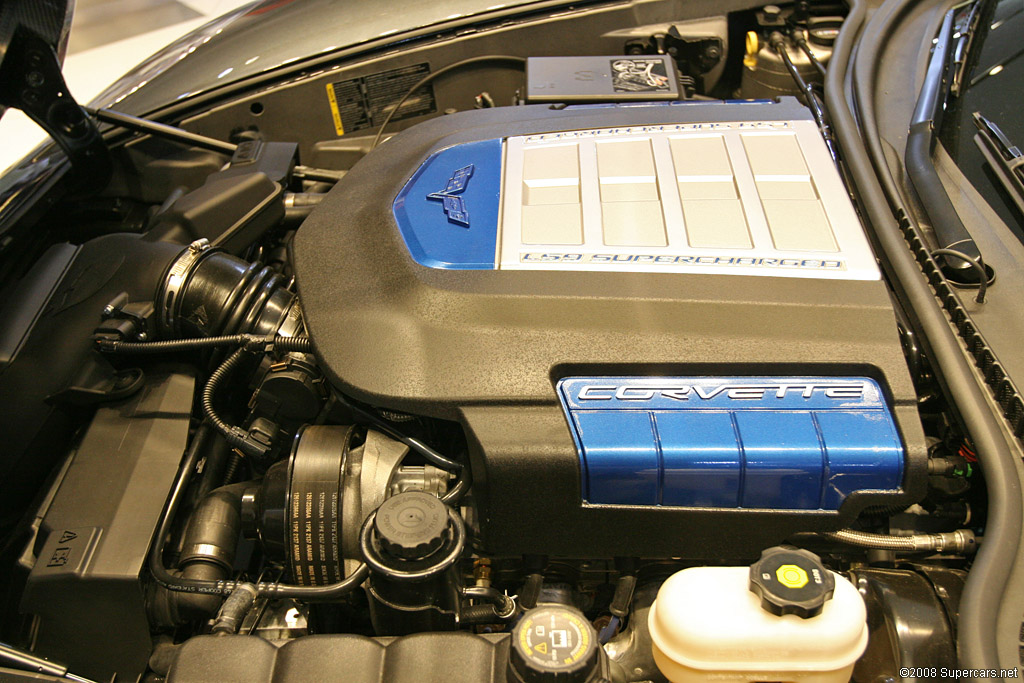

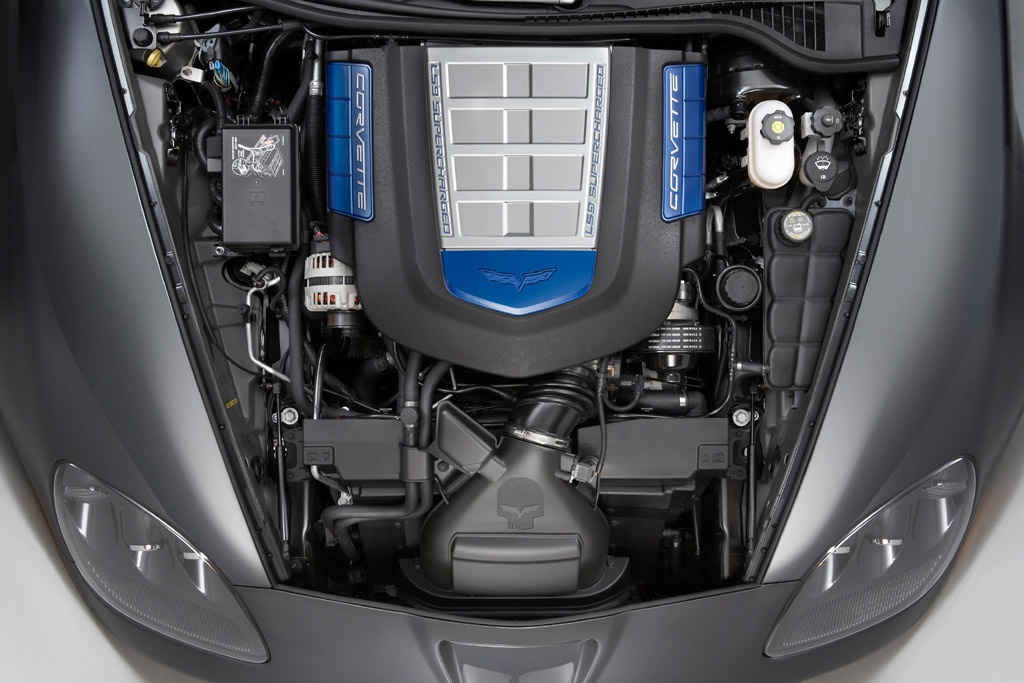

The ZR1 is instantly recognizable, with perhaps the most identifiable feature a raised, all-carbon-fiber hood that incorporates a clear, polycarbonate window. The window provides a view of the top of the engine?s intercooler, with the legend ‘LS9 SUPERCHARGED’ embossed on the left and right sides, and an engine cover with the Corvette crossed flags logo debossed at the front.

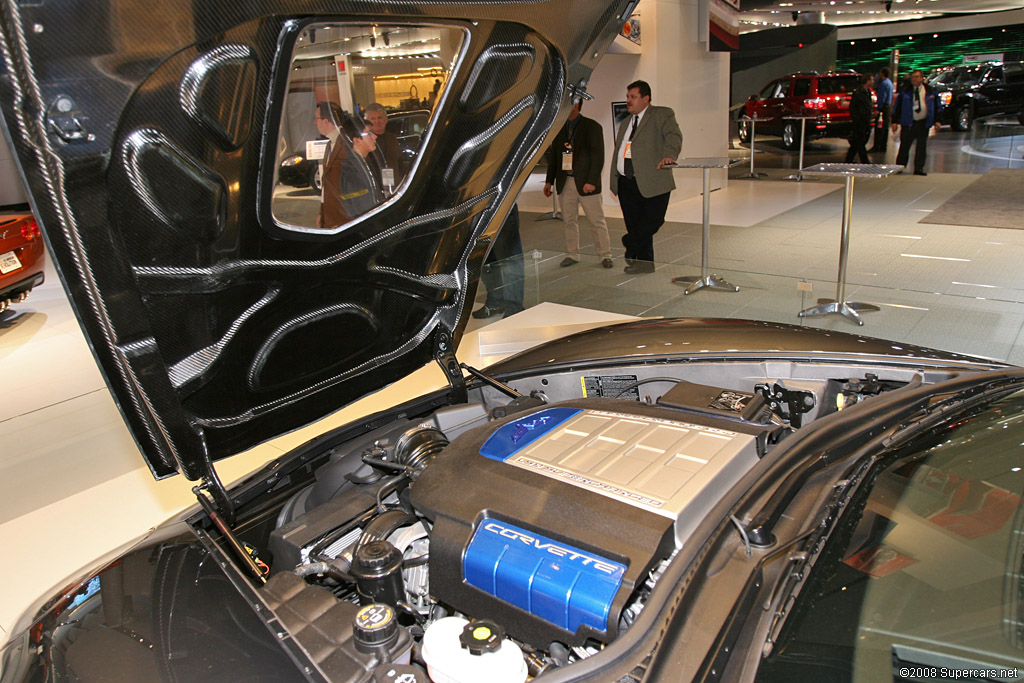

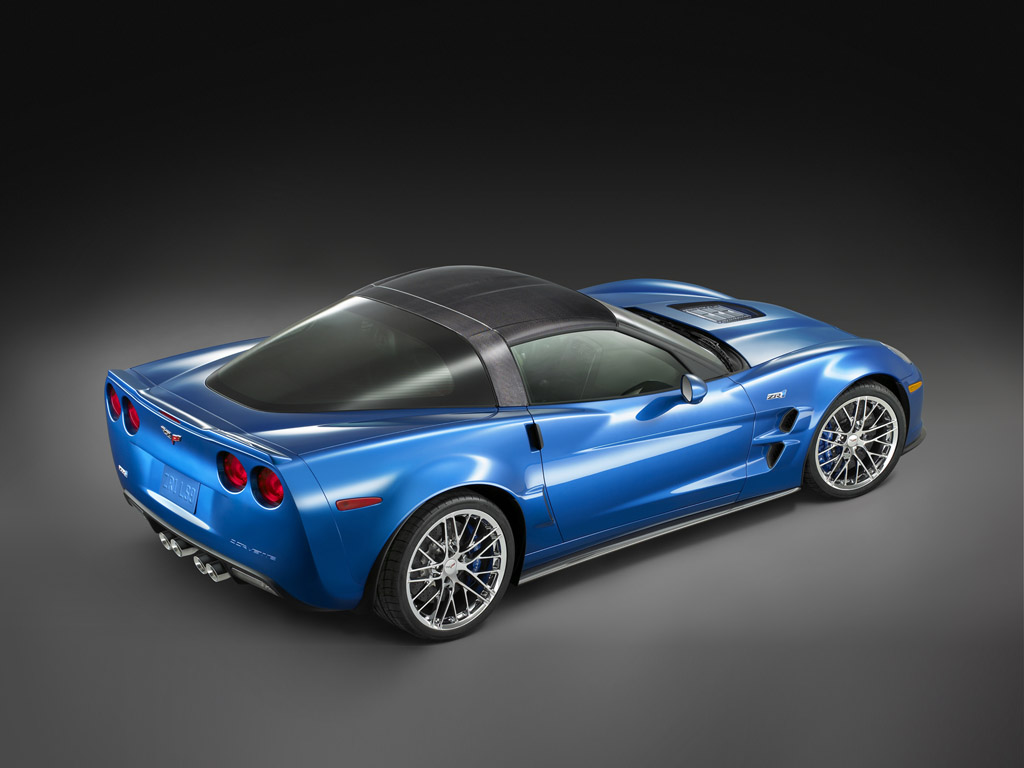

The underside of the hood has an exposed carbon-fiber-weave. Exposed carbon-fiber is used on the roof, roof bow, rocker molding and front splitter. These exterior components are protected by a specially developed glossy, UV-resistant clear coat that resists yellowing and wear.

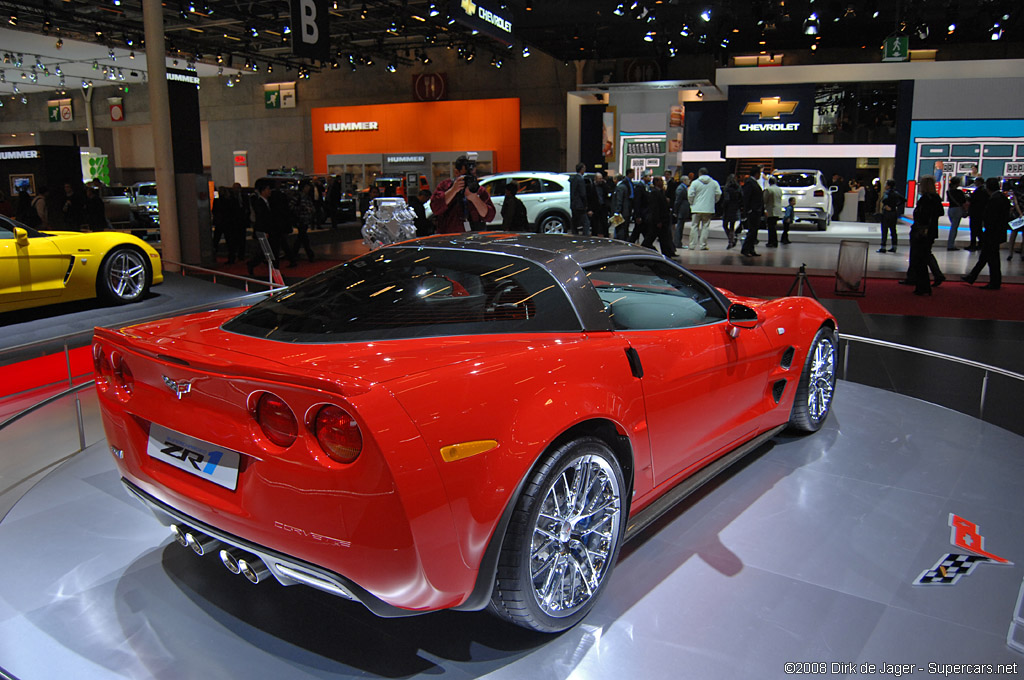

Widened, carbon-fiber front fenders with specific, dual lower vents, and a full-width, body-color rear spoiler incorporating the center high-mounted stop lamp, are also unique to the ZR1. All of the exterior features of the car were developed to enhance high-speed stability and driver control.

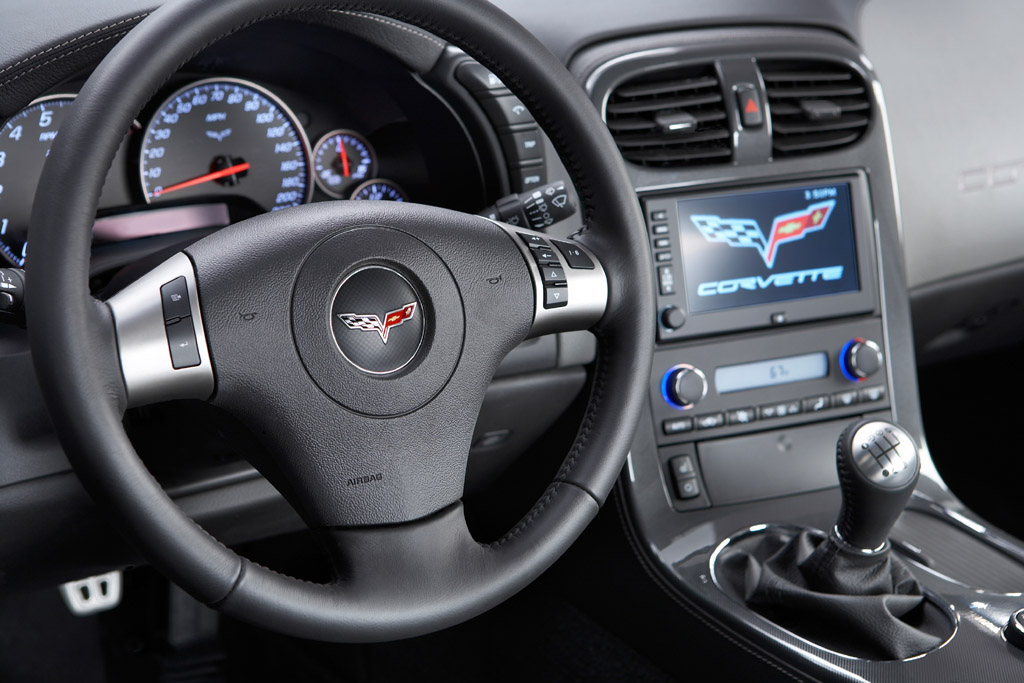

Interior details
The ZR1’s interior builds on the brand?s dual-cockpit heritage, with high-quality materials, craftsmanship and functionality that support the premium-quality experience promised by the car?s performance. The ZR1?s cabin differs from the Corvette and Corvette Z06 with the following:

-ZR1-logo sill plates

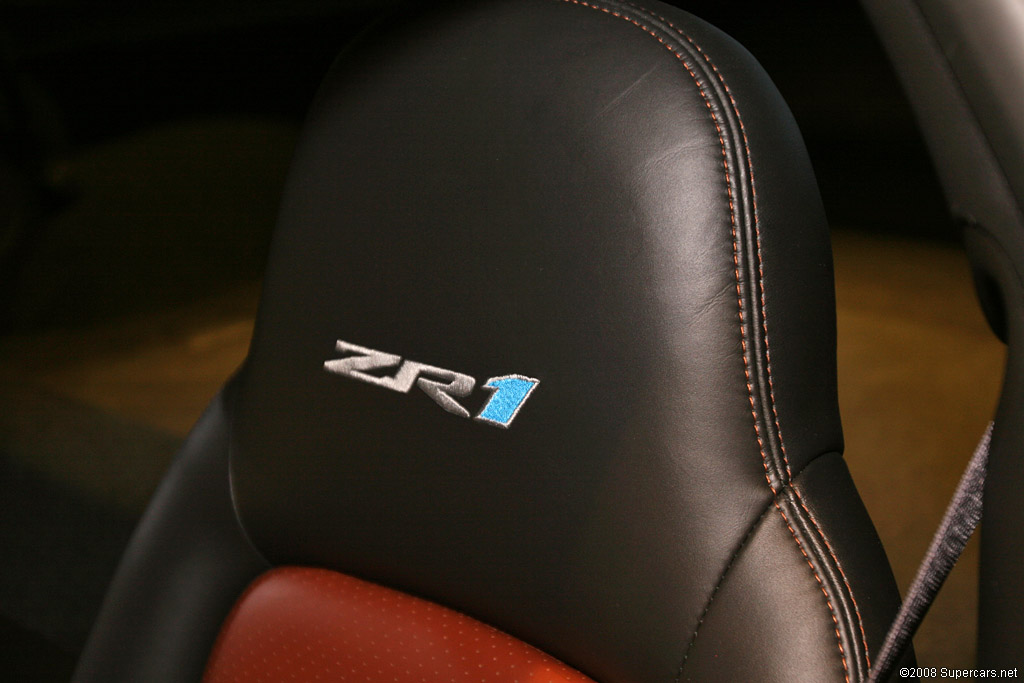

-ZR1-logo headrest embroidery
-Specific gauge cluster with ?ZR1? logo on the tachometer and a 220-mph (370 km/h) readout on the speedometer
-Boost gauge added to the instrument cluster and Head-Up Display

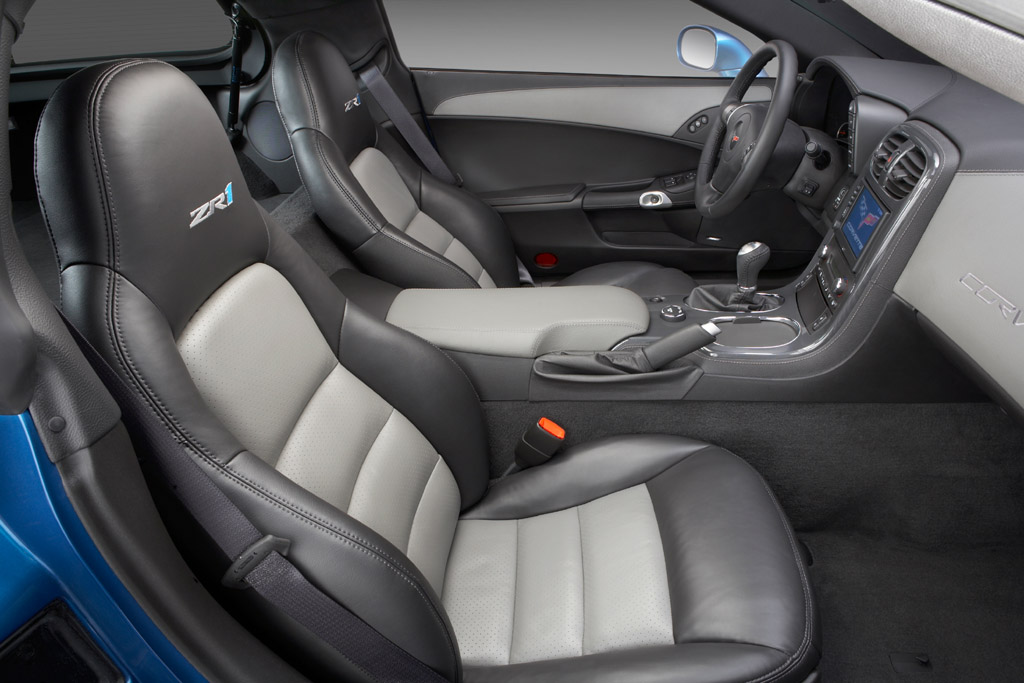

The base ZR1 (RPO 1LZ) comes with accoutrements based on the Z06, including lightweight seats and lightweight content. The uplevel interior package includes unique, power-adjustable and leather-trimmed sport seats (embroidered with the ZR1 logo); custom, leather-wrapped interior available in four colors; navigation system, Bluetooth connectivity and more.

By the numbers

In addition to the exterior cues and powertrain, ZR1 models will be distinguished from other Corvette models by their VIN. Each will carry a unique, identifying VIN digit, as well as a sequential build number. This makes it easy to determine the build number of a specific car ? information treasured by enthusiasts and collectors. For example, a ZR1 with a VIN ending in 0150 would indicate it is the 150 th ZR1 built for the model year.

The specialized components of the new ZR1 work harmoniously to deliver the most powerful and fastest automobile ever produced by General Motors. Performance estimates will be announced closer to vehicle?s summer 2008 launch.

2009 Chevrolet Corvette ZR1 Pictures

In Detail

type Series Production Car

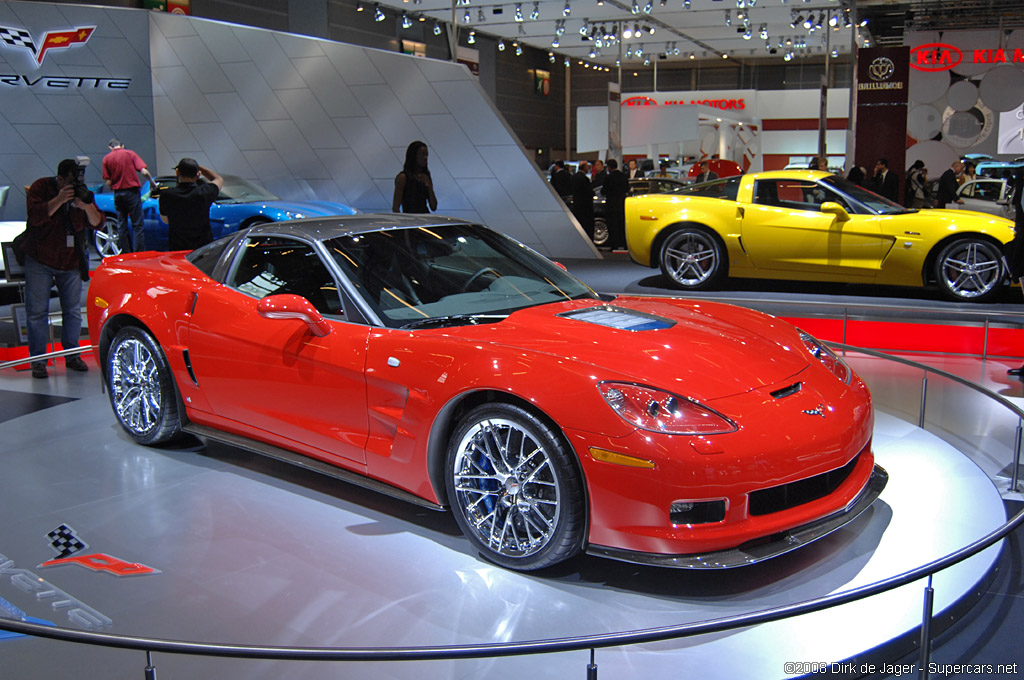

released at 2008 NAIAS
built at Bowling Green, Kentucky, USA
price $ $ 106,500
price €/td> €135,990
engine LS9 Cast Aluminum V8
position Front Longitudinal
aspiration R2300 Four-lobe Rotor Roots-Type Supercharger
block material Cast Aluminum w/A356-T6 Heads
valvetrain Pushrod OHV, 2 Valves w/Cyl
fuel feed Sequential Fuel Injection
displacement 6162 cc / 376.0 in³
bore 103.25 mm / 4.06 in
stroke 92 mm / 3.62 in
compression 9.1:1
power 475.8 kw / 638 bhp @ 6500 rpm
specific output 103.54 bhp per litre
bhp/weight 419.74 bhp per tonne
torque 818.9 nm / 604 ft lbs @ 3800 rpm
redline 6600
body / frame Composite Body Panels over Hydroformed Steel Frame w/Aluminum & Magnesium Structural Components
driven wheels RWD w/Electronic Traction Control
wheel type Forged Aluminum Alloy
front tires P285/30ZR19 Michelin Pilot Sport 2
rear tires P335/25ZR20 Michelin Pilot Sport 2
front brakes Carbon Ceramic Discs w/6-Piston Floating Calipers
rear brakes Carbon Ceramic Discs w46-Piston Floating Calipers
front wheels F 48.3 x 25.4 cm / 19 x 10 in
rear wheels R 50.8 x 30.5 cm / 20 x 12 in
steering Rack & Pinion w/Speed Sensitive Power Assist
f suspension Wishbones w/Upper & Lower Control Arms, Transverse Composite Leaf Spring, Elec Adj Monotube Shock Absorbers, Anti-Roll Bar
r suspension Wishbones w/Upper & Lower Control Arms, Transverse Composite Leaf Spring, Elec Adj Monotube Shock Absorbers, Anti-Roll Bar
curb weight 1520 kg / 3350 lbs
weight distro 52 % / 48 %
wheelbase 2685 mm / 105.7 in
length 4476 mm / 176.2 in
width 1928 mm / 75.9 in
height 1244 mm / 49.0 in
transmission Close Ratio 6-Speed Manual
gear ratios 2.29:1, 1.61:1, 1.21:1, 1.00:1, 0.81:1, 0.67:1
final drive 3.42:1
top speed ~329.84 kph / 205 mph
0 – 60 mph ~3.4 seconds
0 – 100 mph ~7.8 seconds
0 – 1/4 mile ~12.8 seconds
city fuel econ epa 16.80 L/100 km or 14 mpg-us
hwy fuel econ epa 11.76 L/100 km or 20 mpg-us
fuel capacity 68.13 litres or 18 gal.
