1904→1905 Cadillac Model B

1904→1905 Cadillac Model B

1904→1905 Cadillac Model B

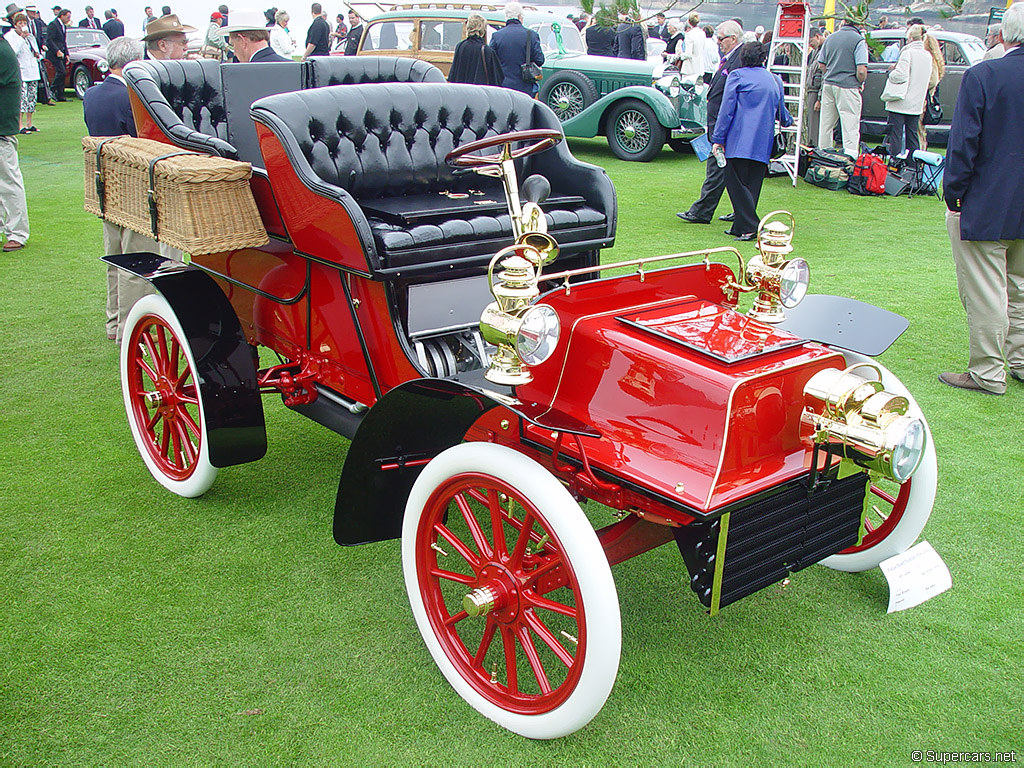

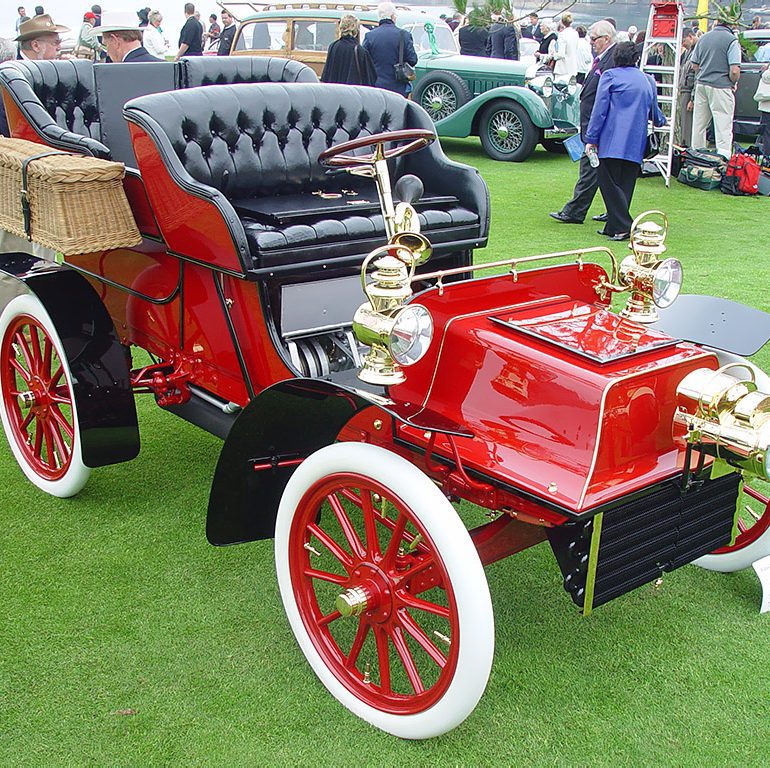

In January of 1904 Cadillac offered the Model B and at the time they were producing more cars than any other manufacturer in the country. Like the Model A, it used a single-cylinder engine that sat under the driver’s seat, but it was easily identified by its updated front end which repositioned the radiator down low.

The Model B introduced a new pressed steel frame with axles. The front was suspended by twin half-elliptic units. Like the Model A this car was largely the product of Henry Martyn Leland from Leland and Faulconer. They produced the single-cylinder engine, transmissions, and steering gears for Cadillac.

Model B chassis and bodies were all produced in house at Cadillac. The car was held together by a steel frame that was suspended on leaf springs and rigid axles. The engine sat under the driver’s seat and sent power to the rear wheels through a 2-speed transmission and Brown-Lipe differential. Braking was handled only on the rear wheels by applying friction to the half-shafts.

Leland & Faulconer produced the engine which was called the “Little Hercules.” The valvetrain was fully actuated and acceleration controlled by sliding cam on the intake valve. With a square bore and stroke of 5 inches, 8.5 horsepower was the advertised rate.

The Model B was sold as a Runabout, Touring, Surrey or Delivery bodies and remained almost identical for 1905 production.

See the 1904 Cadillac Model B Image Gallery

In Detail

type Series Production Car
production years 1904 – 1905
built at Detroit, Michigan, USA
production 2497
price $ $ 750
engine Leland & Faulconer Single Cylinder
position Under Front Seat
aspiration Natural
block material Cast Iron w/Copper Water Jacket
fuel feed Updraft Mixer
displacement 1609 cc / 98.2 in³
bore 127.0 mm / 5.0 in
stroke 127.0 mm / 5.0 in
power 6.3 kw / 8.5 bhp
specific output 5.28 bhp per litre
bhp/weight 13.67 bhp per tonne
body / frame Steel Body over Steel Frame
driven wheels RWD
wheel type Wooden 12-Spoke
curb weight 622 kg / 1370 lbs
wheelbase 1930 mm / 76 in
front track 1384 mm / 54.5 in
rear track 1384 mm / 54.5 in
length 2844 mm / 112 in
height 1524 mm / 60 in
transmission 2-Speed Manual
gear ratios 3.00:1, 1.00:1
