In 1914 Mercedes-Benz would make a triumphant return to successfull Grand Prix racing. That year Mercedes raced a 115HP double seater with the superior engineering. Previous aircraft engine design gave Mercedes valuable experience in lightweight construction. They particularly applied this knowledge to the devleopment of the 4.5-liter engine. The result was exceptional power-unit which excelled in several areas.

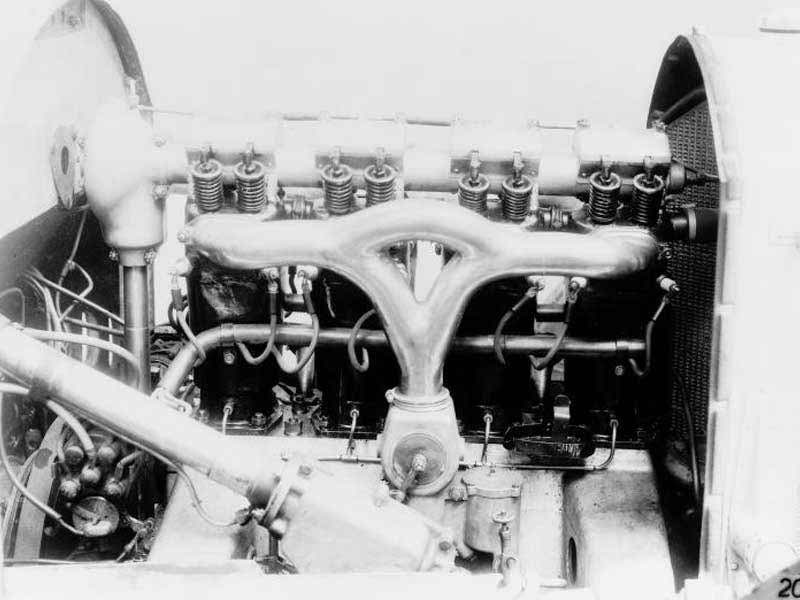

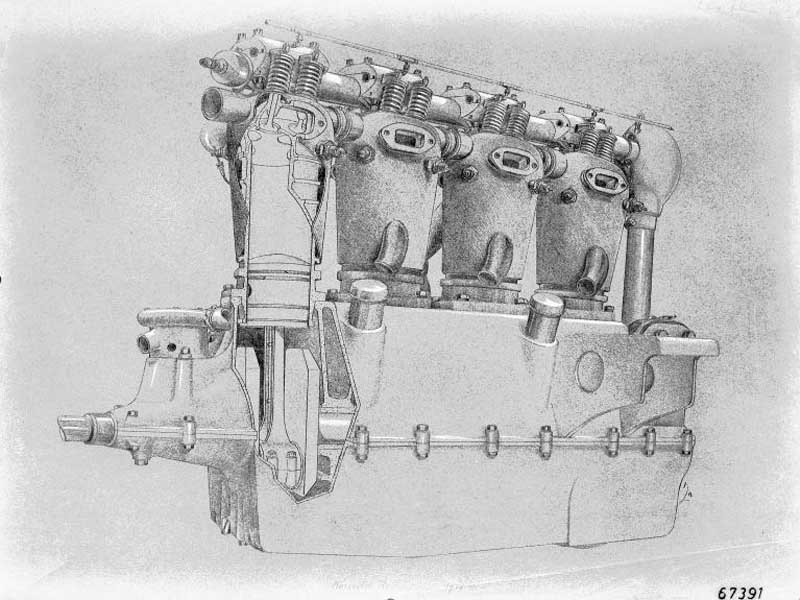

For the valvetrain, Mercedes used four valves per cylinder. This made the 1914 GP car, the first DaimlerChrysler product to feature two exhaust and two intake valves in a single combustion chamber. Such a setup allowed the engine to revolve safely at 3200 rpm. During the period, this was the only car that could achieve a redline over 3000 rpm.

The 115HP was conservative in design. Unlike some of the competition there was an absense of front brakes and only one overhead camshaft. The simplicity of the car let Mercedes focus more on reliability with strong construction materials and methods.

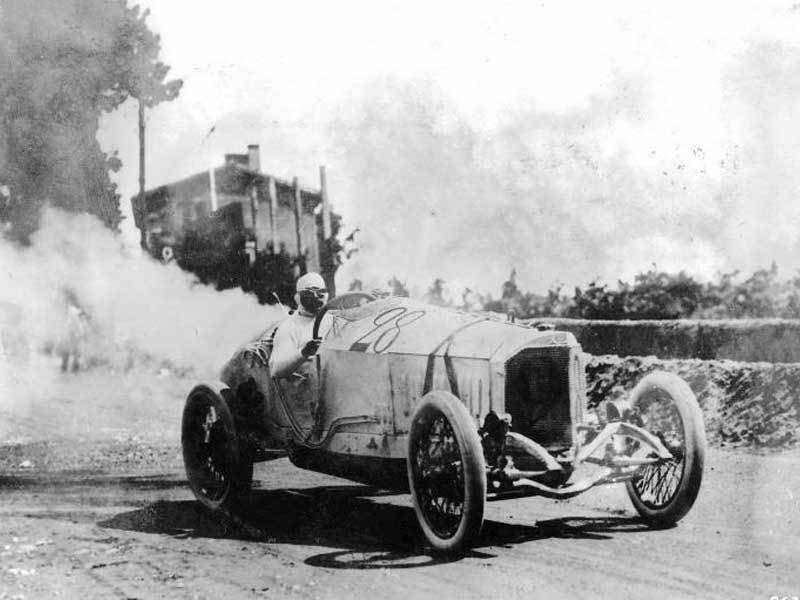

With their potent package, Mercedes won first, second and third in the 1914 French Grand Prix held at Lyons. After the Lyons victory one of the cars was shipped to England for a showroom display. Shortly after delivery of car to England, World War One broke out. Immediately the car was turned over to Rolls-Royce for studing. This very car had had huge influence on the Rolls Royce Hawk engine which was made after the study.

Indeed Mercedes develeped the superior engine in 1914. The powerplant proved itself so good in competition that eventually the British would copy the design to aid the war effort.

In Detail

submitted byRichard Owen
engineWater-Cooled, M93654, Inline-4
positionFront Longitudnal
aspirationNatural
valvetrainSOHC, 4 Valves per Cyl
displacement4483 cc / 273.6 in³
bore93 mm / 3.66 in
stroke165 mm / 6.5 in
power85.8 kw / 115.1 bhp @ 3200 rpm
specific output25.67 bhp per litre
bhp/weight106.57 bhp per tonne
redline3200
body / framePressed Steel Frame
driven wheelsRWD
front tires815×120
rear tires920×135
front brakesNone
f brake sizemm / in
rear brakesDrums
r brake sizex 343 mm / x 13.5 in
steeringWorm & Nut
f suspensionRigid Axle w/Semi-Elliptic Springs, Friction Dampers
r suspensionRigid Axle w/Semi-Elliptic Springs, Friction Dampers
curb weight1080 kg / 2381 lbs
wheelbase2845 mm / 112.0 in
front track1330 mm / 52.4 in
rear track1350 mm / 53.1 in
length4100 mm / 161.4 in
width1700 mm / 66.9 in
height1400 mm / 55.1 in
transmission4-Speed Manual
gear ratios3.00:1, 1.50:1, 1.20:1, 1.00:1, :1
top speed~185.1 kph / 115.0 mph
drag6 Cd
