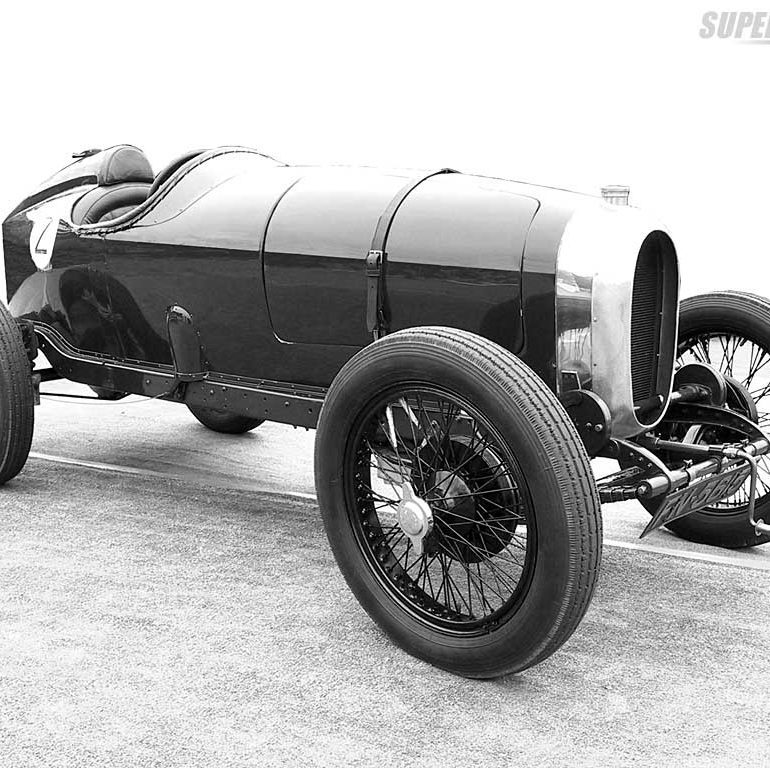

1922 Bugatti Type 29/30 Indianapolis


1922 Bugatti Type 29/30 Indianapolis

1922 Bugatti Type 29/30 Indianapolis

After winning many important voiturette races in 1921, Bugatti decided to make a larger capacity engine to compete in Grand Prix racing. The first Bugatti to recieve the Inline-8 engine was the Type 23/30 racecar. Bugatti’s Grand Prix debut was at the 1922 French Grand Prix in which the cars took a respectable 2nd and 3rd place. A year later a crew of modified Type 30s were specifically made to race the 1923 Indianapolis 500.

The Indianpolis cars featured slim bodywork that was off-set in relation to the wheels. The bodywork was designed by French avaiation engineer Bechereau and made by Lavocat & Marsaud. Although the Indianapolis cars showed much promise, especally during corners, the Bugattis couldn’t keep pace with the Mercedes and American cars.Four cars eventually broke down, with the fifth car finishing near the back.

Like the Type 30 roadcar, the Type 29/30 also featured hydraulic front brakes.

In Detail

engine Inline-8
position Front Longitudinal
aspiration Natural
valvetrain SOHC, 3 Valves per Cyl
displacement 1991 cc / 121.5 in³
bore 60 mm / 2.36 in
stroke 88 mm / 3.46 in
power 74.6 kw / 100 bhp @ 4500 rpm
specific output 50.23 bhp per litre
redline 5000
front tires Firestone
rear tires Firestone
front brakes Drums w/Hydraulic Assist
f brake size mm / in
rear brakes Drums
r brake size mm / in
front wheels F 53.3 x 12.7 cm / 21.0 x 5.0 in
rear wheels R 53.3 x 12.7 cm / 21.0 x 5.0 in
f suspension Rigid Axle w/Semi-Elliptic Springs, Friction Dampers
r suspension Live Axel w/Reversed Quarter-Ellptic Springs, Friction Dampers
transmission 4-Speed Manual
gear ratios :1
