Henry Frederick Stanley Morgan’s first automotive design was similar to this 1933 Super Sports. Its 3-wheel design offered good performance at a third of of the price. From 1910 until 1930 Morgan boasted the three-wheeler could out-perform standard cars by having a very low center of gravity, combined with a lightweight chassis.

Making the Morgan even more appealing, was the ingenious independent front suspension. Morgan boasted every three-wheeler they made had an independent suspension setup.

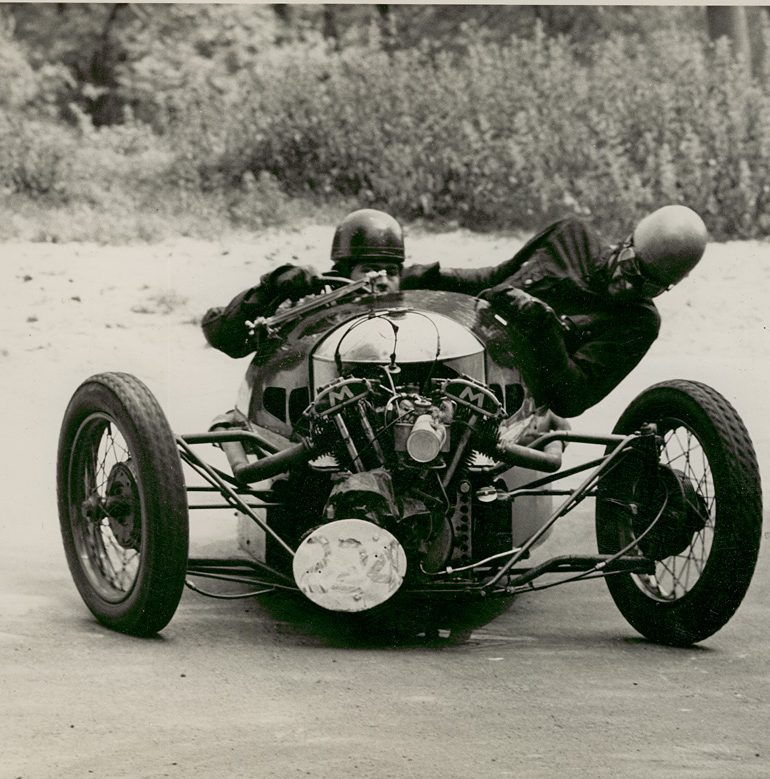

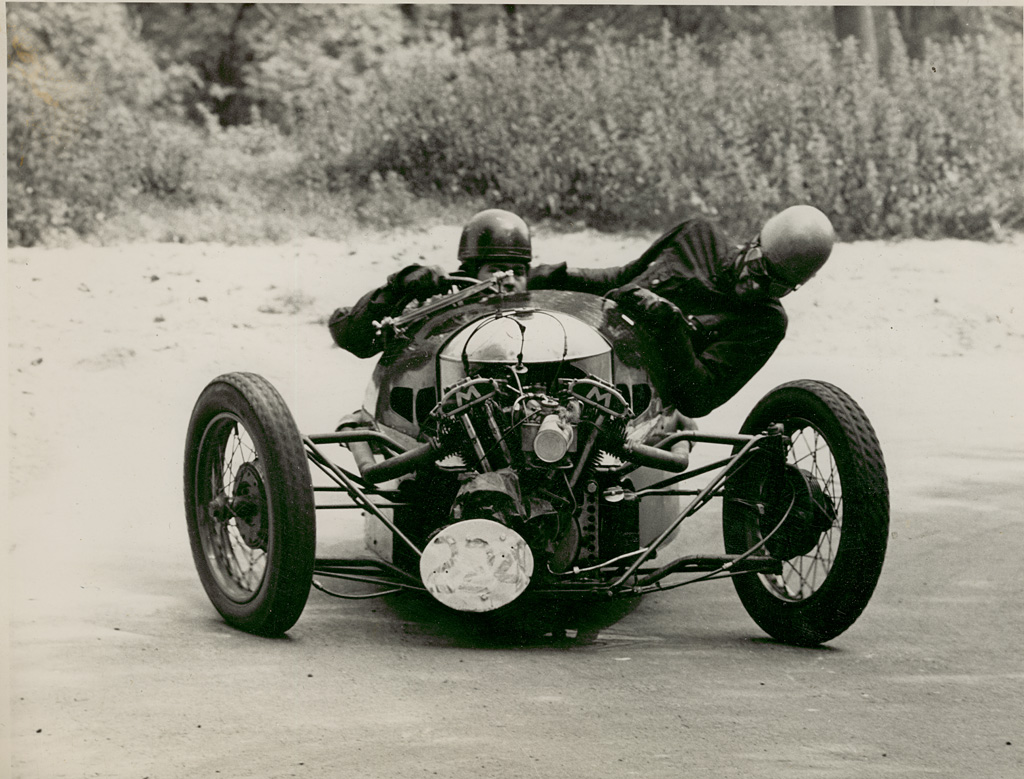

The layout of this vehicle lies somewhere in between a car and a motorcycle. The engine is located in front of the radiator and drives a single rear wheel. Power is transferred via a driveshaft tube which acts as part of the chassis.

Over the years many different engines were used on Morgan three-wheelers. The first protoype featured a air cooled Peugeot powerplant. MAG, JAP and even a 993cc Ford four-cylinder unit were used in these cars.

Morgan played a huge role in the three-wheel market and exclusively sold three-wheeled cars from 1908 until 1935. The production run on three-wheelers slowed after 1940 but continued, albeit heavily upgraded, until the 1980s.

In Detail

submitted by Richard Owen
type Series Production Car
production years 1927 – 1939
engine JAP, Water Cooled, Twin Vee
position Front
valvetrain 2 Valves per Cyl
displacement 1096 cc / 66.9 in³
bore 85.7 mm / 3.37 in
stroke 95 mm / 3.74 in
compression 6.0:1
power 33.6 kw / 45 bhp
specific output 41.06 bhp per litre
bhp/weight 110.84 bhp per tonne
body / frame Steel over Tubular Steel Chassis
driven wheels RWD
f suspension Sliding Pillar
r suspension Twin Radius Arms w/Quarter Elliptic Leaf Springs
curb weight 406 kg / 895 lbs
wheelbase 2209 mm / 87.0 in
front track 1270 mm / 50.0 in
rear track 1270 mm / 50.0 in
length 3048 mm / 120.0 in
width 1498 mm / 59.0 in
transmission 2- Speed Manual
gear ratios 3.166:1, 1.833:1
top speed ~120.7 kph / 75.0 mph



Auction Sales History

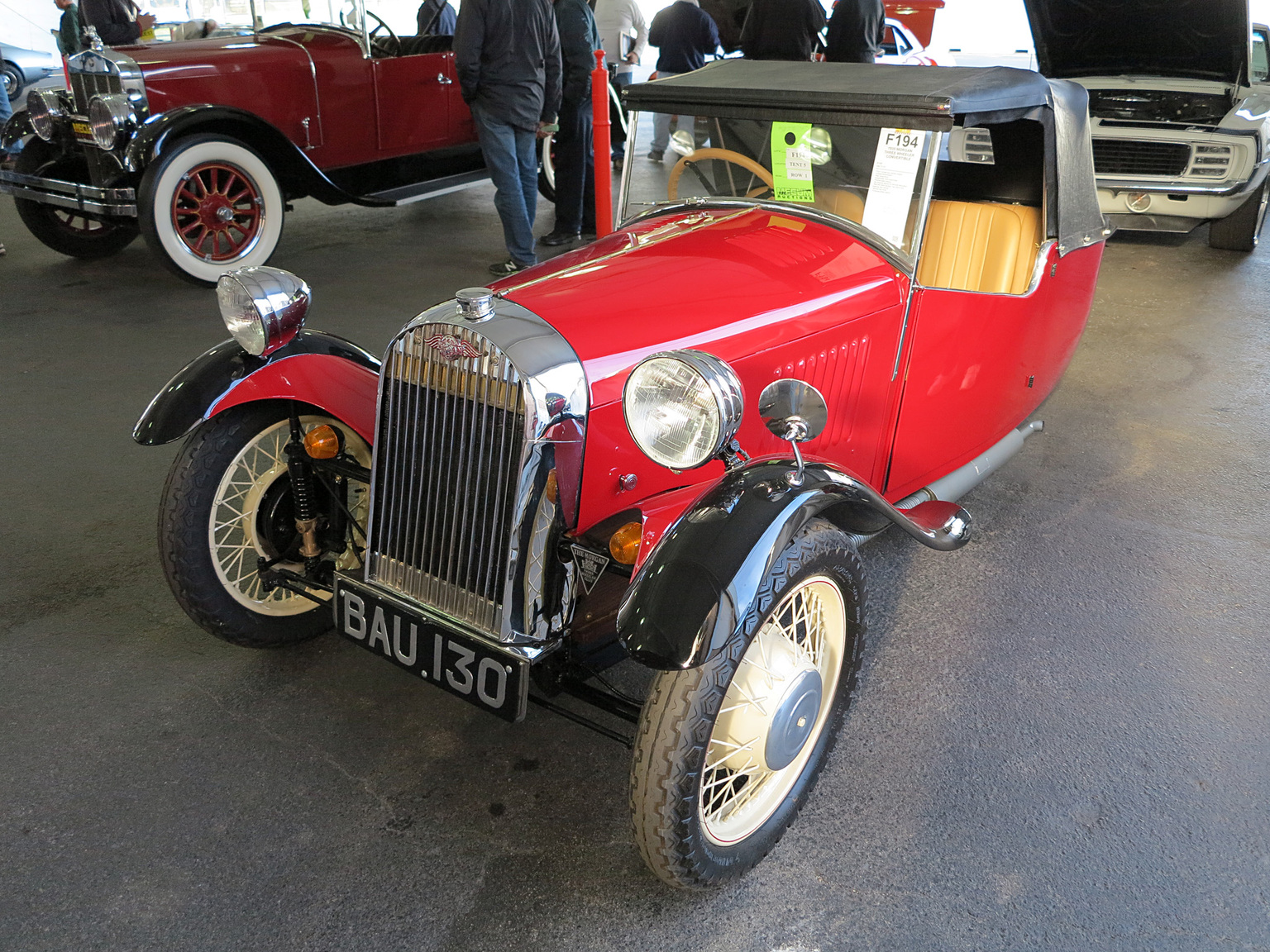

1935 Morgan Three Wheeler F173 – sold for $29,000 Ford Y-model four cylinder engine. 3-speed transmission. Rear wheel drive. Independent front suspension. Pressed steel chassis. No expense spared nut and bolt restoration. Red with Black fenders, Tan interior and matching wire wheels. Minimal test miles. A popular British classic.
Auction Source: Kissimmee 2014, #WhereTheCarsAre by Mecum
