1929→1931 Maserati Tipo V4 ‘16 Cilindri’

1929→1931 Maserati Tipo V4 ‘16 Cilindri’

1929→1931 Maserati Tipo V4 ‘16 Cilindri’

In 1929 Maserati took their their Grand Prix contender from normal to outrageous by fitting two of their Grand Prix engines in the manner usually reserved for speed-record cars.

The idea was fairly sound since the new model could produce 305 BHP with a top speed of 260 kph. This was possible due to the careful mixture of gasoline, Benzol and Ether.

Alfieri Maserati put Piero Visentini in charge for the design which used two Alfa Romeo 26B engines and combined them into a single crankcase and transfer case. The result was a V16 that with roughly 4-liters of displacement (V4). Each engine was independent with its own magneto, supercharger and crankshaft. Edoardo Weber, of Weber carburetor fame, fitted two of his prototype units and balanced the engines.

To fit two engines in the bay, Maserati’s Grand Prix chassis was widened. The bodywork also needed two bulges to clear the exhaust camshaft covers.

Famous author Luigi Orsini says the the V4’s offset starting crank renders the car unmistakable.

Due to the engine enormous thurst for fuel, a 178 liter fuel take was fitted which accommodated 52 liters/100km or roughly 4.52 MPG.

Maserati prepared the V4 for the II Gran Premio di Monza on September 15th 1929. On the track the car suffered from all the rigors of having two engines: increased tire wear and reduced braking at the forefront. All was not lost tho, the Alfa Romeo P2s outperformed all the competition.

The V4s claim to fame came at the Cremona flying 10 kilometres where Baconin Borzacchini set Maserati’s first world record by averaging 246 kilometres an hour.

With modifications to the tires and rear axle ratio the V4 won the VI Gran Premio di Tripoli, placed 3rd at the III Gran Premio di Monza and 3rd at the VI Coppa Acerbo.

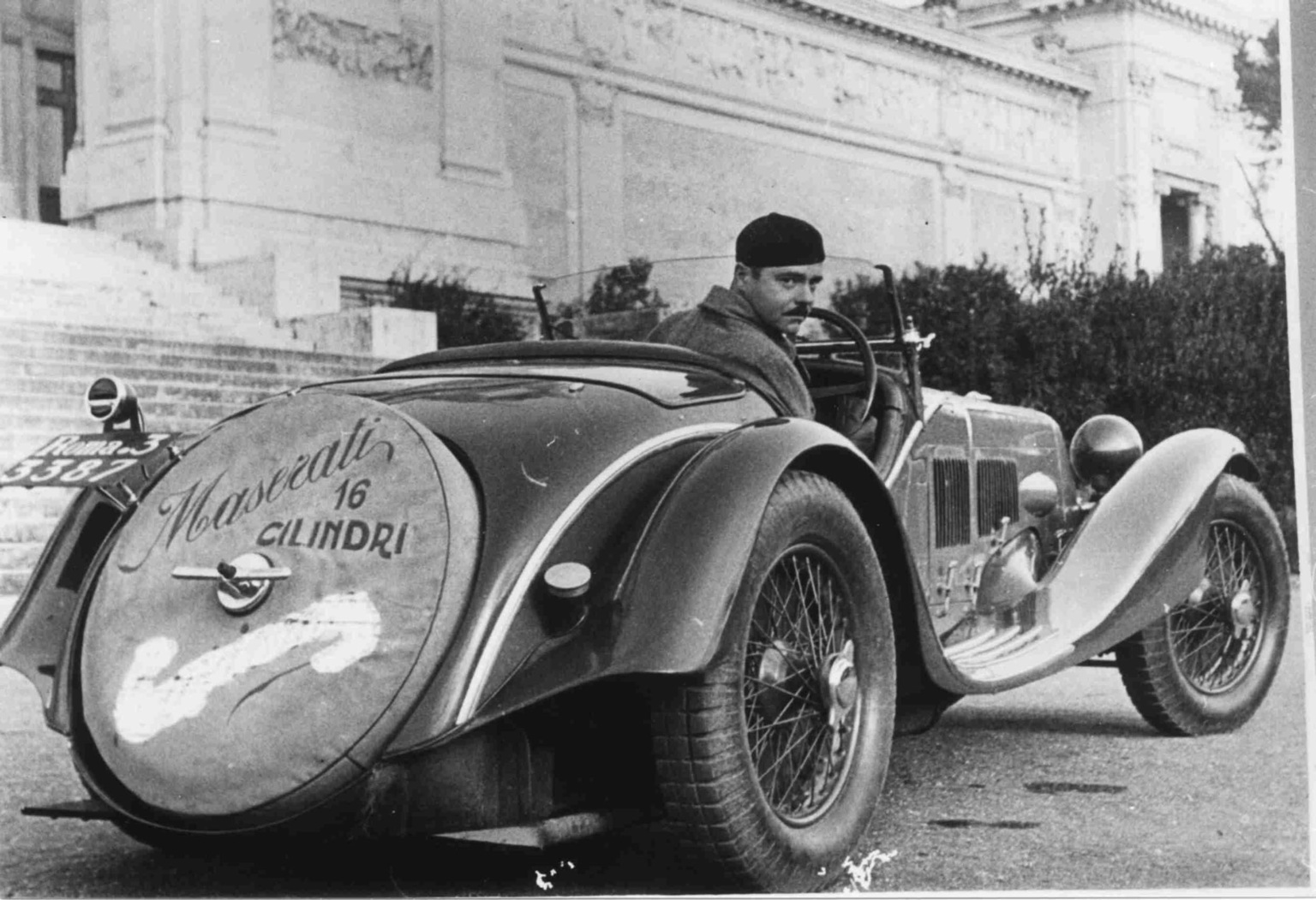

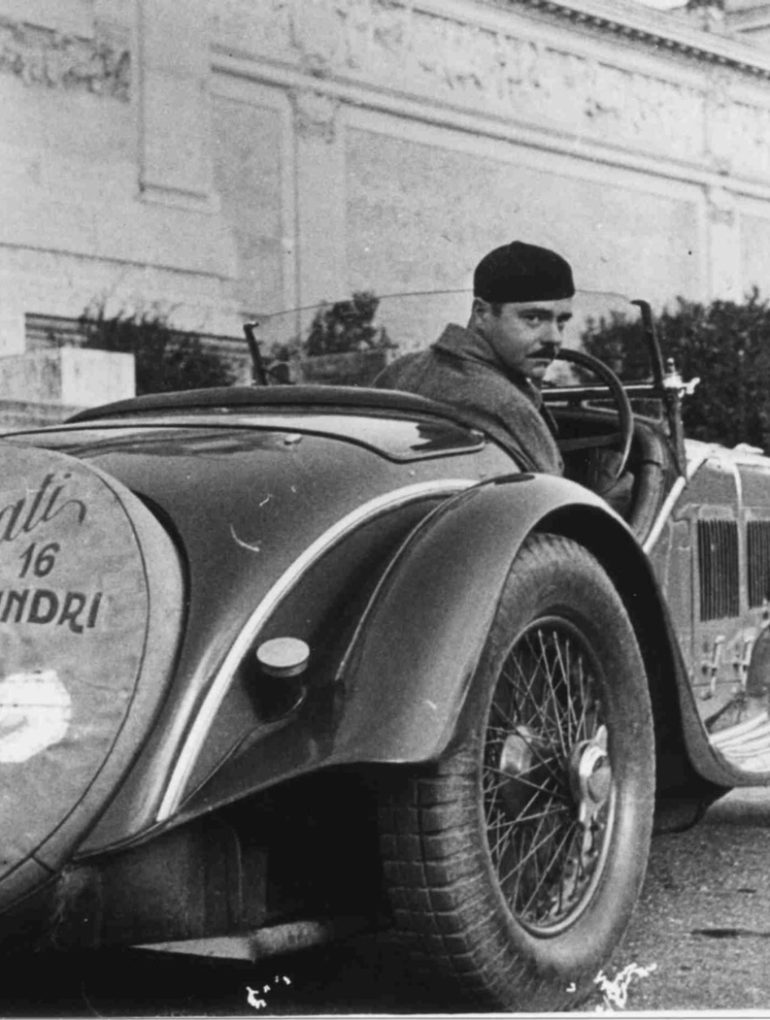

One car was sold at the end of the 1930 season to Prof. Riccardo Galeazzi and fitted with a striking Zagato Sports body for the Pincio Concorso. This is the sole-surviving Tipo 4 that retains its original body, chassis and engine.

Sources & Further Reading

1. Orsini, Luigi; Zagari, Franco. Maserati. A complete history from 1926 to the present.Liberia Dell’Automobile., Milano: 1980.

Story by Supercars.net



In Detail

tags v16
submitted by Richard Owen
type Racing Car
production years 1929 – 1931
built at Bologna, Italy
production 2
engine V16
position Front, Longitudinal
aspiration Twin Roots Superchargers
ignition Twin Bosch or Scintilla Magnetos
valvetrain DOHC 2 Valves / Cyl
fuel feed 2 Weber DO
displacement 3961 cc / 241.7 in³
bore 62 mm / 2.44 in
stroke 82 mm / 3.23 in
compression 5.5:1
power 227.4 kw / 305 bhp @ 5500 rpm
specific output 77.0 bhp per litre
bhp/weight 290.48 bhp per tonne
body / frame Aluminum Body over Steel Frame
driven wheels Front Engine
wheel type Spoked Wire
front tires Dunlop 5.25×19
rear tires Dunlop 6.5×19
front brakes Mechanical Drums
rear brakes Mechanical Drums
front wheels F 48.3 x 8.3 cm / 19.0 x 3.25 in
rear wheels R 48.3 x 10.2 cm / 19.0 x 4.0 in
steering Worm & Sector
curb weight 1050 kg / 2315 lbs
wheelbase 2750 mm / 108.3 in
front track 1350 mm / 53.1 in
rear track 1300 mm / 51.2 in
length 3874 mm / 152.5 in
width 1610 mm / 63.4 in
height 1230 mm / 48.4 in
transmission 4-Speed Manual
tran clutch Dry Multi-Disc
top speed ~260 kph / 161.46 mph
fuel econ epa 52 L/100 km or 4.52 mpg-us
fuel capacity 178 litres or 46.99 gal.

Auction Sales History

1929-30-Type Maserati V4 Recreation 4001.AH – sold for €540,875 This amazing recreation has taken some 20,000 hours work to complete. Anthony Hartley himself hand-made most of the components. The two 2-litre blocks are mounted each at 12.5-degrees on the common crankcase, in which the two individual crankshafts rotate clockwise, driving a central power-take-off gear which rotates anti-clockwise. This dictates that the crown-wheel and pinion are mounted the opposite way to normal. This stupendous mechanical assembly includes two crankshafts, 16 connecting rods and pistons, 32 valves, 64 valve springs, 55 ball races, 29 gears – plus eight in the oil pumps – two superchargers, four oil pumps, two water pumps, four camshafts and in all some 3,500 individual component parts. Just the crankshafts alone started out as 220lb steel billets. Anthony Hartley removed some 140lbs of that metal while hand-crafting them to shape on his lathe. All castings are in aluminium, whereas the originals were in magnesium apart from cast-iron heads and blocks.
Auction Source: 2012 Goodwood Revival Sale by Bonhams
