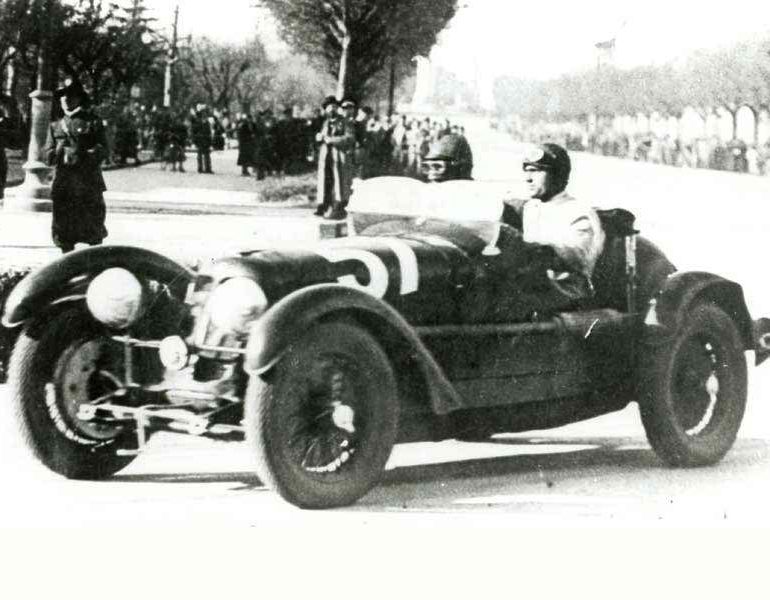

1932 Maserati 4CS 1500

The 4CS was Maserati’s first road car.

It was a two-seat version of the 4CM-1100 monoposto (single seat) racing machine that Maserati was constructing for Voiturette racing. Built on the same chassis, the prototype 4CS-1100 employed the twin-cam, supercharged, 90-hp, 1088-cc inline four-cylinder engines that powered the 4CM and added an extra seat, cycle-style fenders, a generator and a starter.

See all our Maserati 4CS posts and Maserati Race Cars. We also have our full list of awesome Maserati cars and recent Maserati posts and news.

In Detail

submitted by	Richard Owen
engine	Supercharged Inline-4
valvetrain	DOHC 2 Valves / Cyl
displacement	1497 cc / 91.4 in³
bore	69 mm / 2.72 in
stroke	100 mm / 3.94 in
compression	6.0:1
power	85.8 kw / 115.1 bhp @ 6000 rpm
specific output	76.89 bhp per litre
bhp/weight	bhp per tonne
body / frame	Aluminum
driven wheels	Front Engine
front tires	Pirelli 5.25×17
rear tires	Pirelli 5.25×17
front brakes	Mechanical Drums
f brake size	mm / in
rear brakes	Mechanical Drums
r brake size	mm / in
front wheels	F 43.2 x 10.2 cm / 17.0 x 4.0 in
rear wheels	R 43.2 x 10.2 cm / 17.0 x 4.0 in
steering	Worm & Sector
curb weight	630 kg / 1389 lbs
wheelbase	2700 mm / 106.3 in
front track	1200 mm / 47.2 in
rear track	1200 mm / 47.2 in
length	3680 mm / 144.9 in
width	1500 mm / 59.1 in
height	1350 mm / 53.1 in
transmission	4-Speed Manual
gear ratios	:1
top speed	~169.0 kph / 105.0 mph
