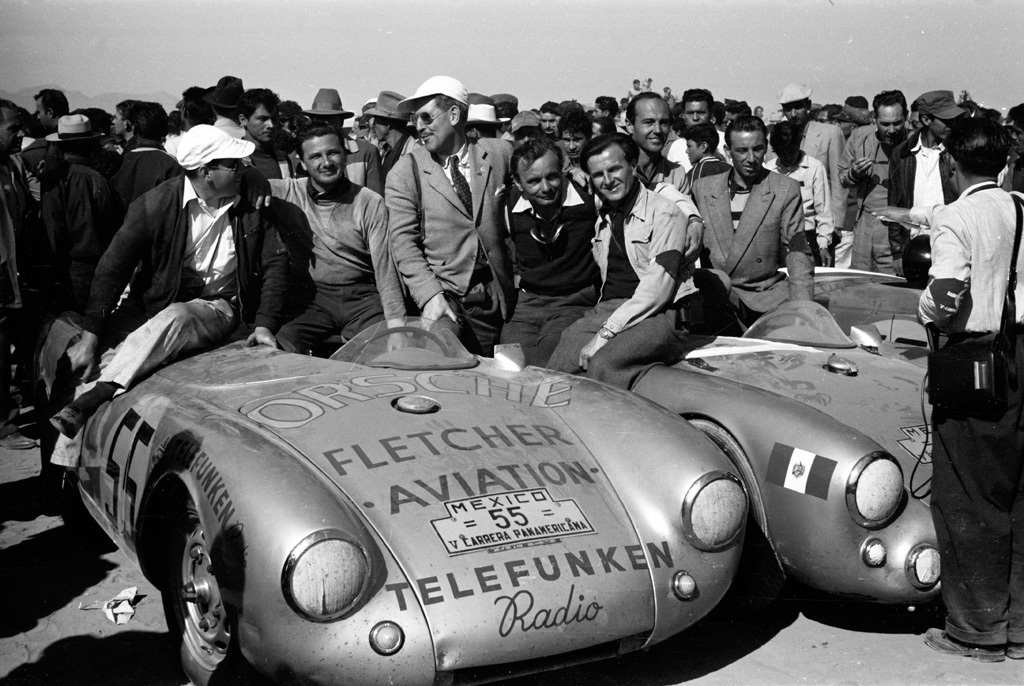

In 1953 Porsche created a series of 550 prototypes and 550-03 became the most important car in Porsche history by winning the 1954 Carrera Panamerica with Hans Herrmann at the wheel. This singular victory lent the Carrera nameplate to future models and also marked the first international victory of a mid-engine car.

Only 12 prototypes were made until regular production began in 1954 of the Porsche RS Spyder. Of these, Porsche historian Steve Heinrichs believes nine cars currently survive.

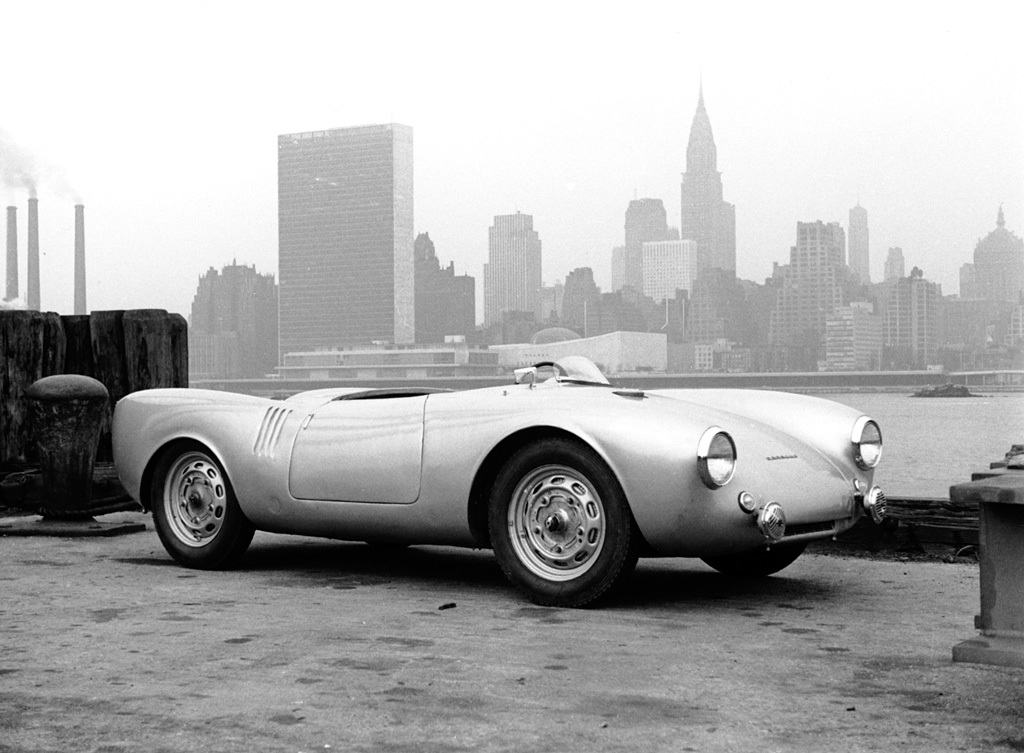

1953_Porsche_550PrototypeSpyder-0-1024

In Detail

submitted by Richard Owen
type Racing Car
built at Stuttgart, Germany
engineers Ernst Fuhrmann
production 12
engine Air-Cooled, Type 547 Flat-4 w/Dry Sump Lubrication
position Mid, Longitudinal
aspiration Natural
valvetrain DOHC, 2 Valves per Cyl
fuel feed Twin Solex PJJ Carburetors
displacement 1498 cc / 91.4 in³
bore 85 mm / 3.35 in
stroke 66 mm / 2.6 in
compression 9.5:1
power 82.0 kw / 110 bhp @ 6200 rpm
specific output 73.43 bhp per litre
bhp/weight 200.0 bhp per tonne
torque 120 nm / 88.5 ft lbs @ 5000 rpm
body / frame Aluminum Body over Steel Ladder-Type Frame
driven wheels RWD
front brakes Drums
rear brakes Drums
steering Worm & Nut
f suspension Twin Paralel Arms w/Transverse Torsion Bars
r suspension Swing Axles w/Torsion Bars, Telescopic Shock Aborbers
curb weight 550 kg / 1213 lbs
wheelbase 2101 mm / 82.7 in
front track 1290 mm / 50.8 in
rear track 1250 mm / 49.2 in
length 3600 mm / 141.7 in
width 1540 mm / 60.6 in
height 1050 mm / 41.3 in
transmission 4-Speed Manual
top speed ~220.5 kph / 137 mph
designers Erwin Komenda



Auction Sales History

1953 Porsche 550 Prototype Spyder

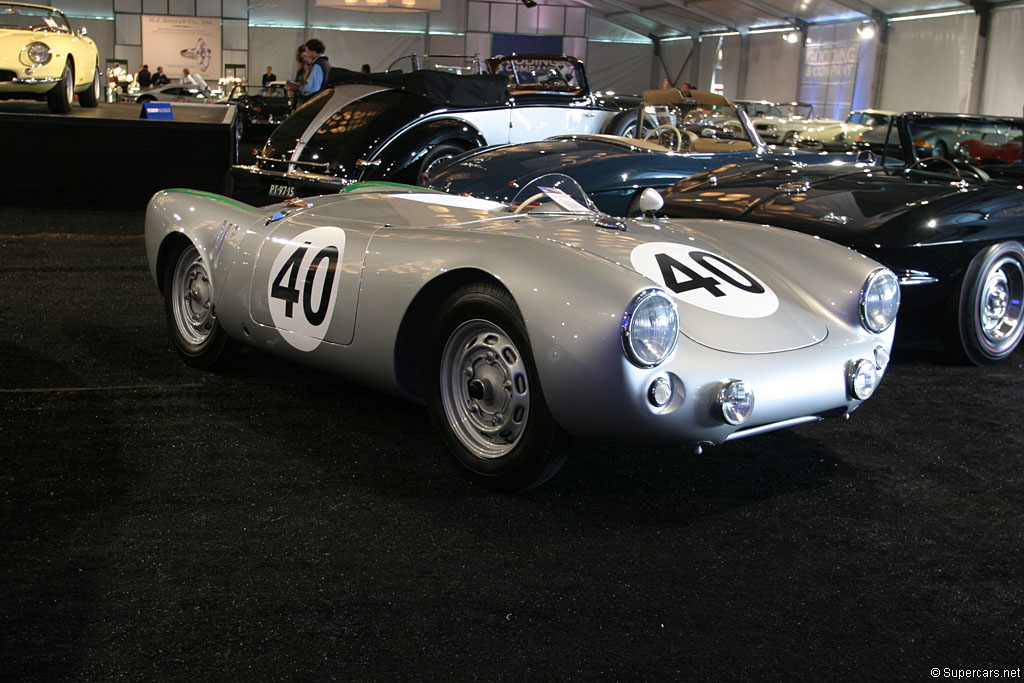

1954 Porsche 550/1500RS Prototype ‘RDO 29’ 550-0010 – sold for $1,034,000 1954 Factory Le Mans car and 1954 Nurburgring-winning. Completely restored. Auction Source: 2005 Monterey Events
