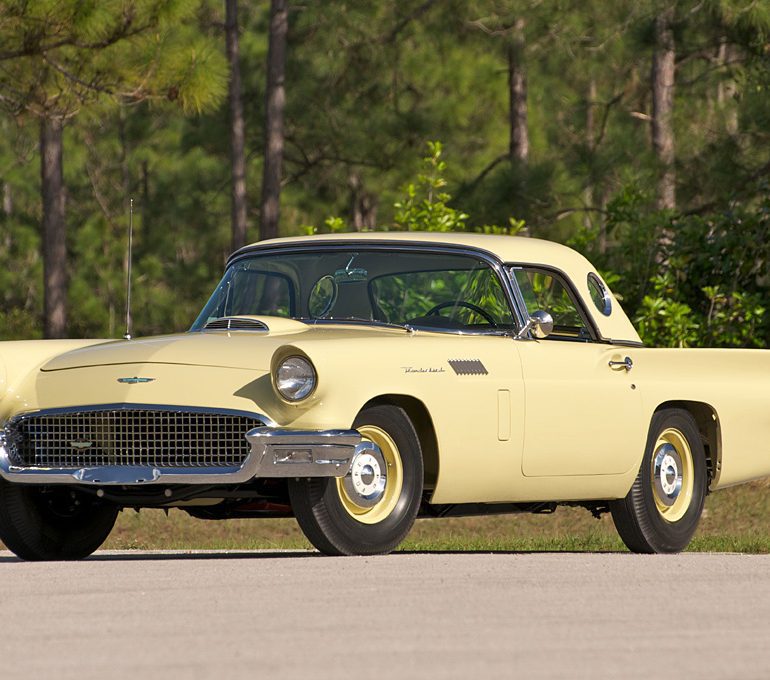

1957 Ford Thunderbird D/F-Code Phase I


1957 Ford Thunderbird D/F-Code Phase I

1957 Ford Thunderbird D/F-Code Phase I

For the 1957 Daytona Speed Weeks, Ford prepared an amarda of special cars including 15 supercharged versions of the Thunderbird. That weekend Harold Mauck ran 138.755 mph for the Two-Way Flying Mile and Ford subsequently put the F-Code supercharged Thunderbird into production.

The D/F-Code was part of a Ford Motor Company Supercharger Program to homologate Ford’s superchargers into NASCAR. As part of 100 supercharged cars, they made 15 Thunderbirds. These had their radio, heater, clock and lighter deleted as well as black tires, no fender skirts and small hubcaps.

All 15 cars were built on January 25, 1957 using a single carburetor engine, McCulloch VR57 Phase 1 supercharger and a heavy duty three-speed manual transmission.

Later that year, Ford offered the F-Code Thunderbird which used the same Paxton-McCulloch VR57 supercharger, supercharger but with the full array of options.

1957 Ford Thunderbird D/F-Code Phase I

In Detail

submitted by Richard Owen
type Racing Car
released at 1957 Daytona Speed Weeks
built at Dearborn, USA
production 15
engine P-Code 90º V8
position Front, Longitudinal
aspiration Paxton-McCulloch VR57 Supercharger
block material Cast Iron
valvetrain Pushrod OHV, 2 Valves per Cyl
fuel feed 4-Choke Carburetor
displacement 5113 cc / 312 in³
bore 96.5 mm / 3.8 in
stroke 87.4 mm / 3.44 in
power 223.7 kw / 300 bhp @ 4500 rpm
specific output 58.67 bhp per litre
bhp/weight 200.0 bhp per tonne
torque -1.0 nm / -1.0 ft lbs @ 2300 rpm
body / frame Steel Body over Steel Chassis
driven wheels RWD
steering Worm & Roller
curb weight 1500 kg / 3308 lbs
wheelbase 2591 mm / 102.0 in
length 4453 mm / 175.3 in
width 1829 mm / 72 in
height 1321 mm / 52 in
transmission 3-Speed Manual
top speed ~185.1 kph / 115 mph
0 – 1/4 mile ~17.0 seconds

Auction Sales History

1957 Ford Thunderbird D/F-Code Phase I

1957 Ford Thunderbird Phase I D/F – sold for $250,000. 1 of only 15 Thunderbirds hand built for racing. Only 8 known to exist. Ownership chain is known and documented. Drag raced by original owner, Dewey “Gilley” Gilleland. Restored by CTCI Authenticity Chairman, Gil Baumgartner. First Thunderbird to receive perfect score in CTCI judging. Shown at Amelia Island, Meadowbrook and Palm beach Concours. Only Phase I D/F Thunderbird with overdrive. Only Phase I D/F Thunderbird in the color, Inca Gold. Most complete documentation of all Phase I D/F Thunderbirds. Much rarer then the “F” birds. The Phase I D/F Thunderbirds were built 5 months before the “F” bird production.  Auction Source: 2011 Monterey Daytime Auction by Mecum

1957 Ford Thunderbird D/F-Code Phase I

Thunderbird Phase I D/F 312/300 HP, 3-Speed – sold for $260,000. 1 of only 15 Thunderbirds hand built for racing. Only 8 known to exist. Ownership chain is known and documented. Drag raced by original owner, Dewey “Gilley” Gilleland. Restored by CTCI Authenticity Chairman, Gil Baumgartner. First Thunderbird to receive perfect score in CTCI judging. Shown at Amelia Island, Meadowbrook and Palm beach Concours. Only Phase I D/F Thunderbird with overdrive. Only Phase I D/F Thunderbird in the color, Inca Gold. Most complete documentation of all Phase I D/F Thunderbirds. Auction Source: 2011 Mecum Indy Spring Classic

1957 Ford Thunderbird D/F-Code Phase I

1957 Ford Thunderbird Df Phase 1 – sold for $250,000 Last of 15 cars specially built. Built by Ford to participate 1957 Daytona Speedweek for flying mile. Original build sheet paperwork. Possibly the best Phase 1 in existence. Finished in striking Torch Red with a Red interior, Black top and Red steel wheels with center caps, the car is in impeccable condition and comes with documentation that includes the all-important original build sheet and paperwork. Auction Source: 2011 Mecum Kissimmee, FL Auction
