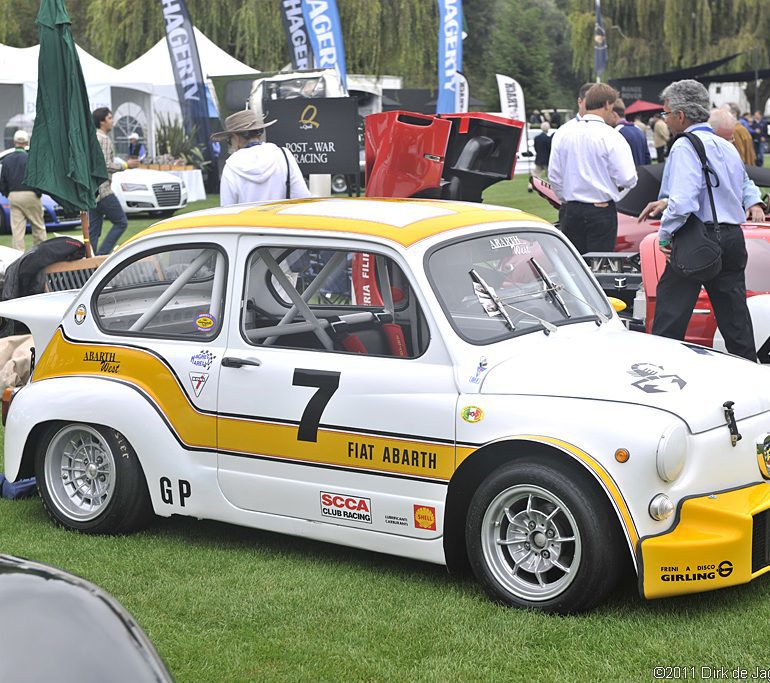

1964 Fiat Abarth 1000 Berlina Corsa


1964 Fiat Abarth 1000 Berlina Corsa

1964 Fiat Abarth 1000 Berlina Corsa

After modifying Fiat’s 500/600 line for nearly a decade, Abarth became one of the most sought after and ambitious Fiat tuners. Made in partial agreement with Fiat, these 1000 Berlina Corsa’s represented the last and most potent evolution of these models. As such, the 1000 benefited from all the versions which came before. SO much so, the 1000 raced successfully up to 1970.

The first 1000 Berlinas appeared in 1962 and used a version of the Fiat 600D engine. Prepared for road and track, these cars helped win points in the 1000cc Touring Car Class. Limited to only 68 bhp, and only finishing 32nd at the Rally Monte Carlo, the racing version was replaced by the Berlina Corsa in 1964.

The Berlina Corsa was distinguished by its front mounted radiator that was placed upfront and in between the bumper bars. Its engine was tuned to produce 76 bhp helped the car reach 185 kph. Cooling was aided by permanetly opening the engine hood.

In 1965, the model was updated with a larger radiator and support shroud which eliminated the need for a fan to cool the rear unit. The window wipers also used a new linkage and a fuel filler cap was located in the center of the front hood. These verions helped dominate the 1965 Division 1 Championship for 1000cc and smaller cars. They also secured similarly structured Italian Championship sub-classes.

Abarth continued on with this model in 1966 with a larger front radiator shroud that extended the entire width of the car. This was good to win the Division 1 Touring Car Championship and the similar Italian Championship. The cars also competed in many Hillclimbs and Rallies with intermittent success. Many of the factory works cars in 1966 were painted with red checkerboard roofs.

Beyond 1967, the cars continued to race much in the same vein as they did in previous years, dominating the 1000cc class of the Italian Championship and the International Touring Car Championship. In 1970, they were updated with huge rear flares for Group 2 racing following the Appendix J International Regulations.

1964 Fiat Abarth 1000 Berlina Corsa

Bibliography and Further Reading

Braden, Pat & Schmidt, Greg. Abarth Fiat Simca Porsche Street Race Record, Osprey, United Kingdom: 1983.
Cosentino, Alfred. Abarth Guide, Nigensha Publishing, Japan: 1984.
Greggio, Luciano. Abarth, the man, the machines, Giorgio Nada Editoire, Italy: 2002.

1964 Fiat Abarth 1000 Berlina Corsa 1964 Fiat Abarth 1000 Berlina Corsa 1964 Fiat Abarth 1000 Berlina Corsa 1964 Fiat Abarth 1000 Berlina Corsa 1964 Fiat Abarth 1000 Berlina Corsa 1964 Fiat Abarth 1000 Berlina Corsa1964 Fiat Abarth 1000 Berlina Corsa

In Detail

type Racing Car
built at Turin, Italy
engine Inline-4
position Rear Longitudinal
valvetrain Pushrod OHV, 2 Valves per Cyl
displacement 982 cc / 59.9 in³
bore 65 mm / 2.56 in
stroke 74 mm / 2.91 in
power 56.7 kw / 76 bhp @ 6000 rpm
specific output 77.39 bhp per litre
bhp/weight 128.81 bhp per tonne
body / frame Unit Steel
driven wheels RWD
front tires 4.25×13
rear tires 4.25×13
front brakes Discs
rear brakes Discs
steering Worm & Sector
f suspension Independent w/Upper Trailing Arms, Transverse Leaf Springs, Hydraulic Dampers
r suspension Independent w/Upper Trailing Arms, Coil Springs, Hydraulic Dampers
curb weight 590 kg / 1301 lbs
wheelbase 2000 mm / 78.7 in
front track 1150 mm / 45.3 in
rear track 1160 mm / 45.7 in
length 3285 mm / 129.3 in
width 1380 mm / 54.3 in
height 1400 mm / 55.1 in
transmission 4-Speed Manual
top speed ~185 kph / 115.0 mph

Auction Sales History

1964 Fiat Abarth 1000 Berlina Corsa

1967 Fiat-Abarth 1000TC Berlina Corsa 100D2179468 – sold for $46,750. With input from Abarth specialist Al Cosentino. resh Abarth engine. A crowd-pleaser in motion or standing still. Auction Source: 2014 Arizona by RM Auctions
