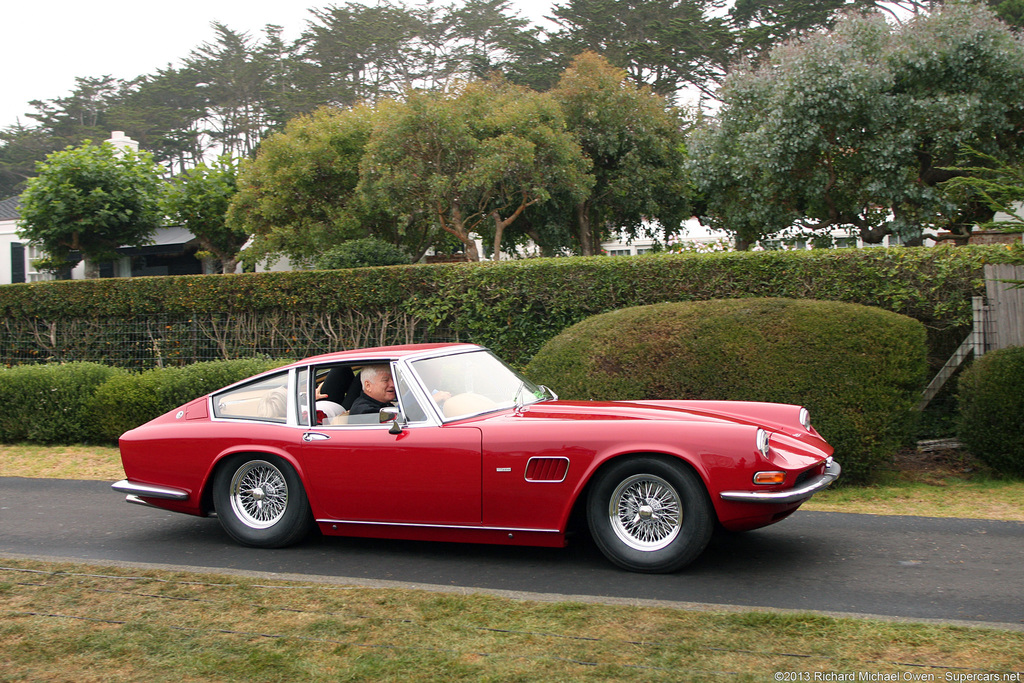

Unlike most cars by AC, The AC Frua was designed by Pietro Frua, instead of Caroll Shelby, of which it got it’s name from. This car is easily mixed up with the Maserati Mistral, but these two cars only share the front quarter view, the headlights and the slightly similar grille.

This car was extremely limited edition with only eighty one been made. It had a huge, seven litre big block V8 from the Ford Mustang of the time. Like most large, American V8s, the AC Frua tended to have the problem of heat leaking into the cabin.

From 1970 onwards to 1973 when production stopped, the AC Frua had 1 prototype made with electrically powered pop up headlights. It was planned for production but It was thought to be to expensive to make.

In Detail

type Series Production Car
production years 1965 – 1973
released at Not released
built at AC plant, England
body stylist Pietro Frua
interior designer Pietro Frua
coachbuilder None
engineers Pietro Frua
production 81
price $ $ 8,982
price €/td> €6,185
price £/td> £5,573
price ¥/td> ¥826,887

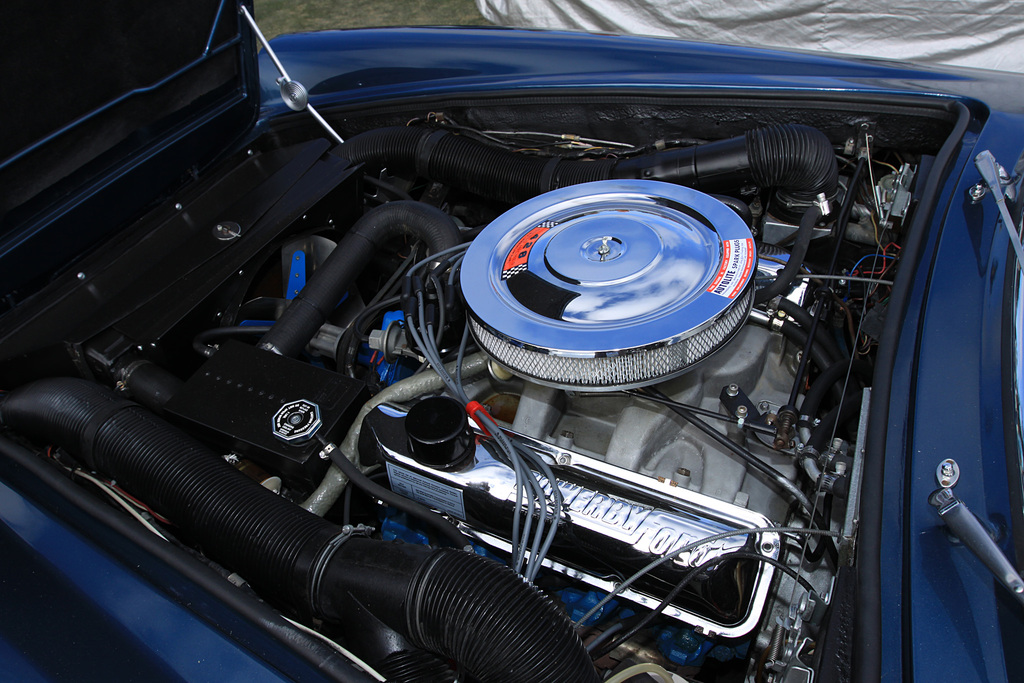

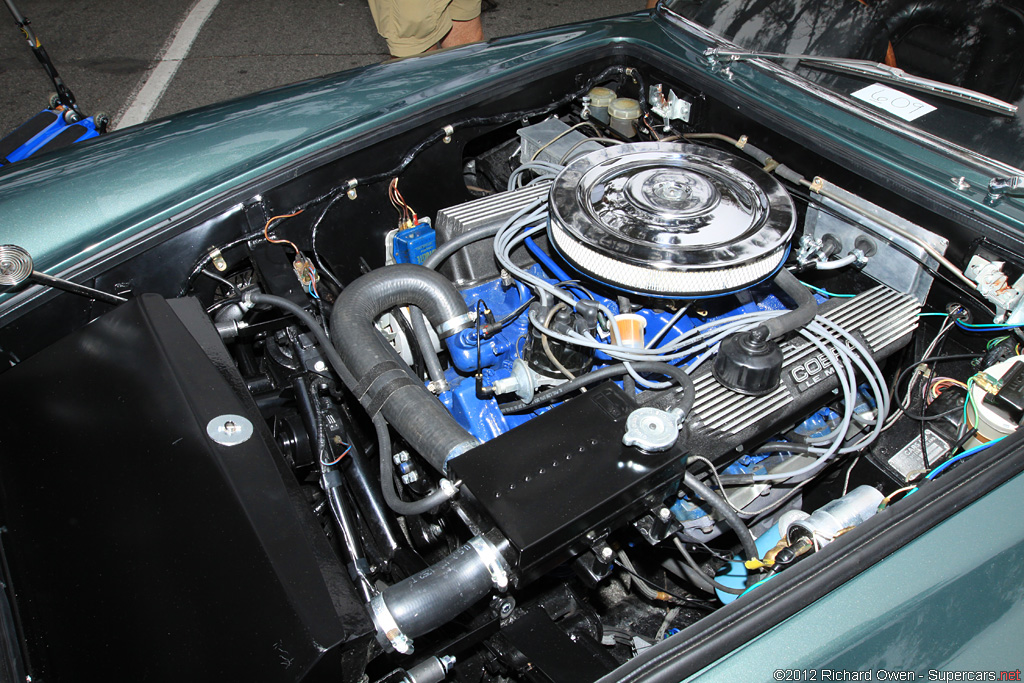

engine V8
position Front
aspiration None
ignition Unknown
block material Unknown
valvetrain DOHC
fuel feed Carburettors
displacement 6965 cc / 425.03 in³
bore 104.9 mm / 4.0999999 in
stroke 101.2 mm / 4 in
compression 5:1
engine designer Pietro Frua
power 257.29999 kw / 345 bhp @ 4600 rpm
specific output 49.53 bhp per litre
bhp/weight 241.26 bhp per tonne
torque 642.70001 nm / 474 ft lbs @ 3200 rpm
body / frame Steel tube frame
driven wheels RWD
wheel type Wire wheel knock off
front tires Unknown
rear tires Unknown
front brakes Discs
rear brakes Discs
steering Rack and Pinion
f suspension Fully adjustable independent suspension with double triangular wishbones, coil spring hydraulic telescopic shock absorbers.
r suspension Adjustable independent suspension with double triangular wishbones, coil spring hydraulic telescopic shock absorbers.
curb weight 1430 kg / 3153.1499 lbs
transmission 4 speed manual or 3 speed automatic
tran clutch unknown
final drive 3.0799999:1
top speed ~245 kph / 152.14999 mph
0 – 60 mph ~6.1999998 seconds
fuel econ epa 14.7 L/100 km or 16.4 mpg-us
fuel capacity 82 litres or 21.65 gal.

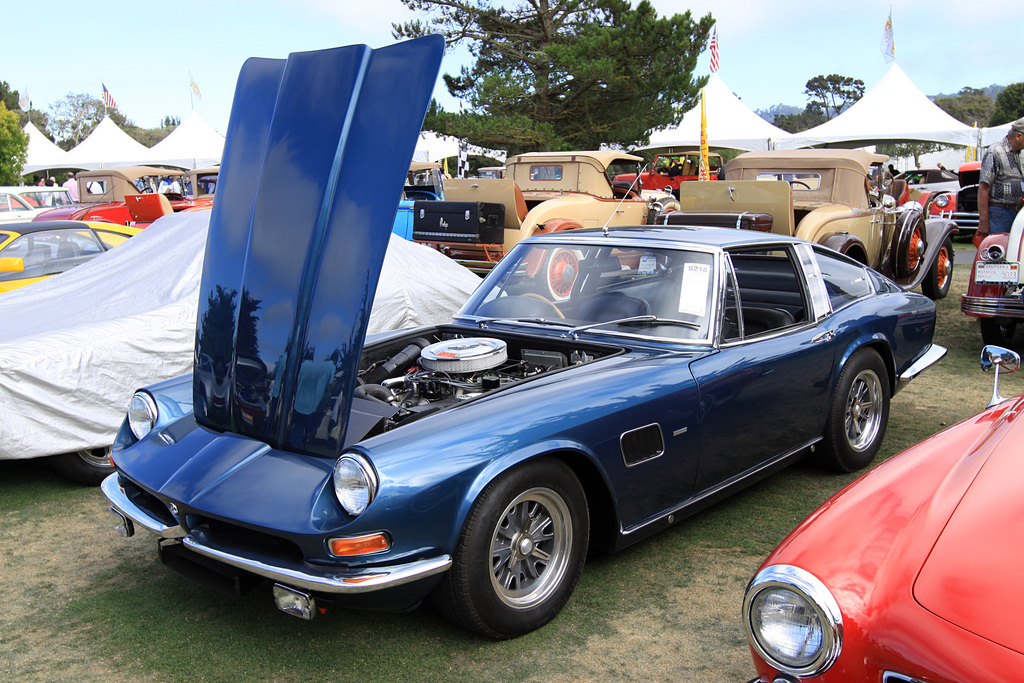

1968 AC Frua Coupe CF19 – did not sell for $160,000 Built on a chassis derived from 427 Cobra. Only 81 AC528 re built. 1 of 49 Coupes produced. 345 HP engine. Automatic transmission. Blue with Black interior. Restored.

1965→1973 AC 428

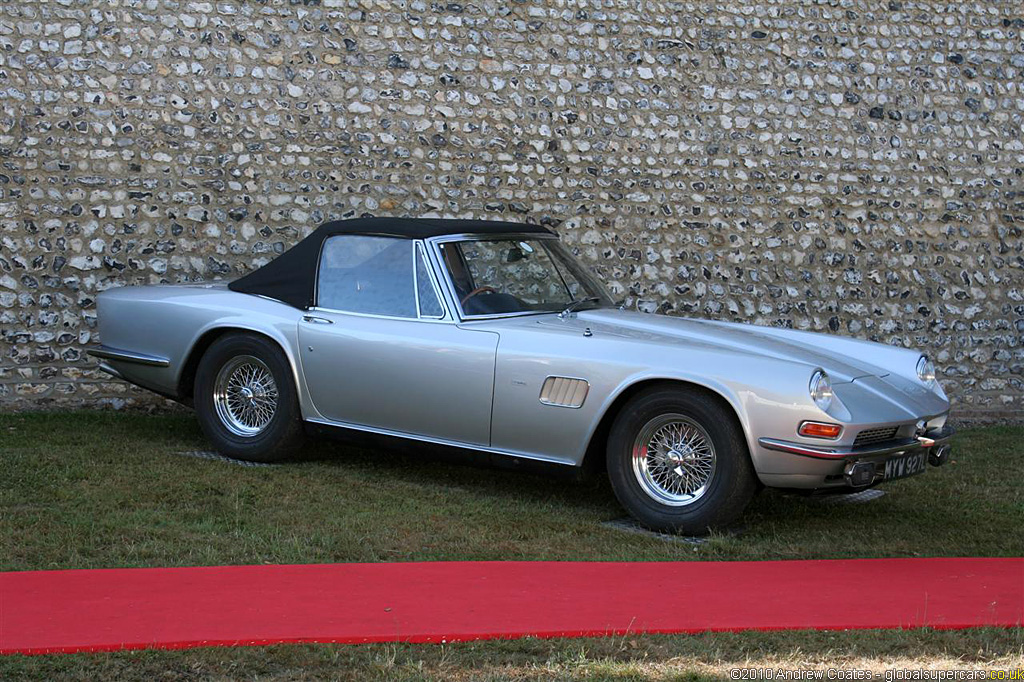

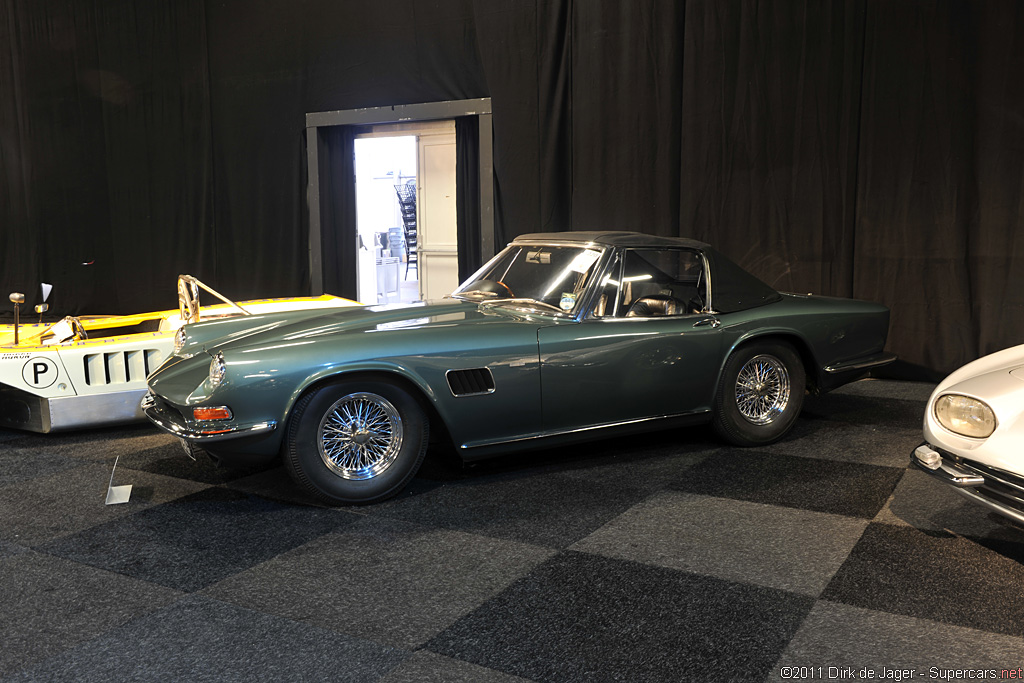

1969 AC 428 Frua Drophead Coupé CF31 – sold for €162,400

This particular AC 428 Frua Drophead is one of the only 29 convertibles to leave the Thames Ditton factory. The factory ledger supplied by the AC Owners Club suggests this particular convertible variant was finished on 31 January, 1969 in the same colour as it sports today, Live Oak over black. The car is thought to have been dispatched to Mike Spence Ltd. on consignment, subsequently sold to HR Owens Ltd. on 20 February, 1969 and finally registered on the 21st of February.
1965→1973 AC 428

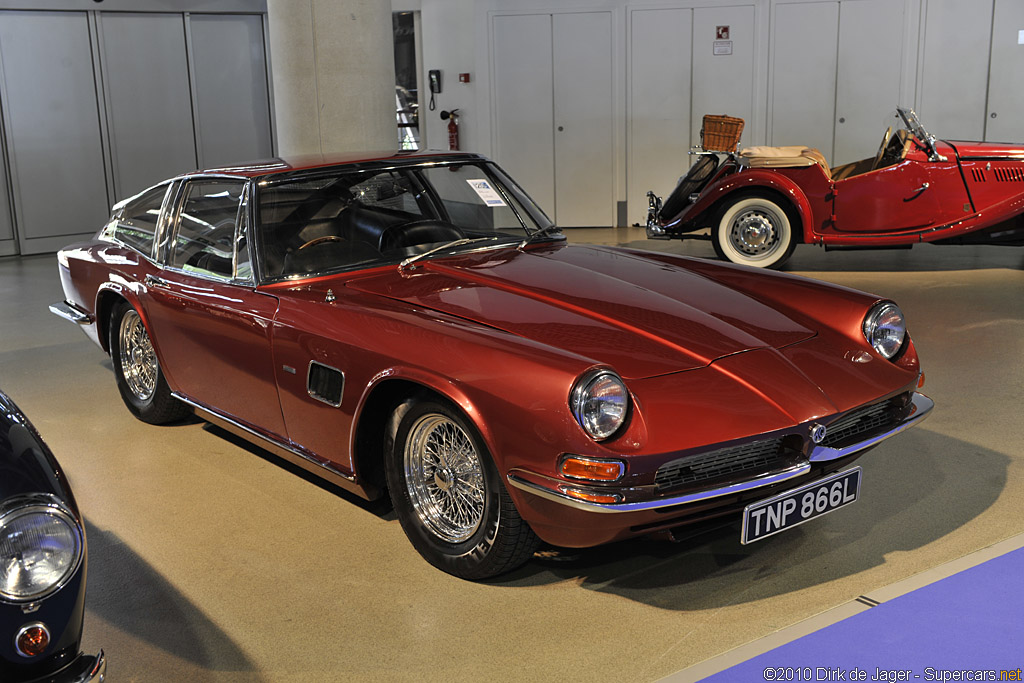

1972 AC 428 Frua Coupé –

Chassis no. CF65 is extraordinarily well documented, and its three-volume history file begins with invoices dating back to December 1974 and also includes MOTs from August 1975 to the present day. Registration changes are documented as well, along with a copy of the AC Cars build log. Furthermore, the car was featured in a five-page article for Classic & Sports Car’s May 1995 issue, as well as the AC Owners Club November 1999 newsletter. It has won numerous awards, including AC Owners Club concours wins in 1998 and 1999, for which a glass trophy is included.
