1967 Alfa Romeo T33 ‘Mugello’
After a successful campaign with the Tubulore Zagato (TZ) and the TZ2, Alfa’s racing wing known as Autodelta dedicated themselves to prototype racing. In 1967, the very first prototypes known as Tipo 33 (T33) were rolled out. During this formative year two different configurations were tested for the upcoming 1967 3-liter championship and the long-tail Mugello was one of them. It was introduced half was through the season to achieve higher top speed than the Perescopio spyder.
Leading up the 33’s debut at Fléron, Belgium, Autodelta became a public company owned primarily by Alfa Romeo. Under the direction of Carlo Chiti, Autodelta SpA was given the go ahead to race a 2-liter prototype in Group 6¹. They immediately turned their attention to a Scarabo Prototype which was first seen at the 1966 Paris Motor Show.
Designed by Guisseppe Busso under the direction of Oarzio Satta at Alfa Romeo, the Scarabo used a large-diameter H-frame chassis that also carried the fuel. These were riveted and made from exotic materials such as magnesium and aluminum alloy. Three Scarabos were completed by OSI. One turned into a concept car, but the others were tested at Autodelta for feasibility into a proper race car. These were known internally as project 105/33.
In 1966, Chiti became the director responsible for finalizing the 33’s design from the Scarabo prototypes¹. He had his team of engineers retain the Scarabo’s unusual H-frame chassis design, but constructed it entirely out of aluminum and then coated them inside with a plastic coating so they could double as 26 gallon fuel tanks. These were made at Areonautica Silcula, an aircraft company that had the necessary expertise.
The front and rear sections of the car were carried by a magnesium sub-frames with suspension pick-up points. These frames attached to the two ends of the H-Frame and were a critical point of failure in the initial design. Double wishbones were used all around, but the rear suspension made provisions for inboard brakes and a lower lateral arm.
In the middle of this chassis, Chiti had his team fit an entirely new 2-liter, aluminum V8 that drew inspiration from the Guilietta’s 4-cylinder.¹ Power was rated initially at 270 bhp using Lucas fuel injection but regular carburetion was tried later in the season. It’s rumored that Chiti was first designing his V8 engine while at Ferrari and walked out with the plans in 1962 when he left the company. It used a 180º flat-plane crankshaft, an aluminum alloy block and a dry sump lubrication system. Teddy Pilette of team VDS recalls “the engine in the early days was very fragile, so it was always going back to Milan for work.”¹
The initial body for the 33 was entirely new and two different styles were tried throughout the season. At the 1966 press launch at Alfa’s own Balocco test track, the car had a huge rear air intake and the press immediately nicknamed it the ‘Periscopica’. Chiti admitted this intake was borrowed from the Chaparral 2D. Alfa Romeo GP reported “In due course it will be decided how the lessons learned from this new venture can be used to improve the breed.”
1967 was a development year, but Autodelta was still keen to race and win the Targa Florio. They faced competition from Ferrari’s Dino and the Porsche 910. Not surprisingly, the 33 suffered from many retirements during the longer endurance races.
Owned by the Italian government, Alfa Romeo was keen to see the 33 win its debut race. Autodelta wisely chose a nearly unknown hill climb in Belgium called Fléron where the cars easily triumphed. It was later announced that Alfa would contest Sebring and the Targa.
At the prized Targa Florio, Autodelta prepared four cars and set sixth fastest time in qualifying. Nanni Galli and Teodoro Zeccoli led the 2-liter class for some of race but eventually their car gave out with front suspension failure. All the 33s would retire with similar grief.
The cars were prepared shortly thereafter for the Nürburgring 1000km, but only one car finished in fifth overall amidst a sea of Porsches. This was followed by several hill climb races until the 33’s next major race at Mugello.

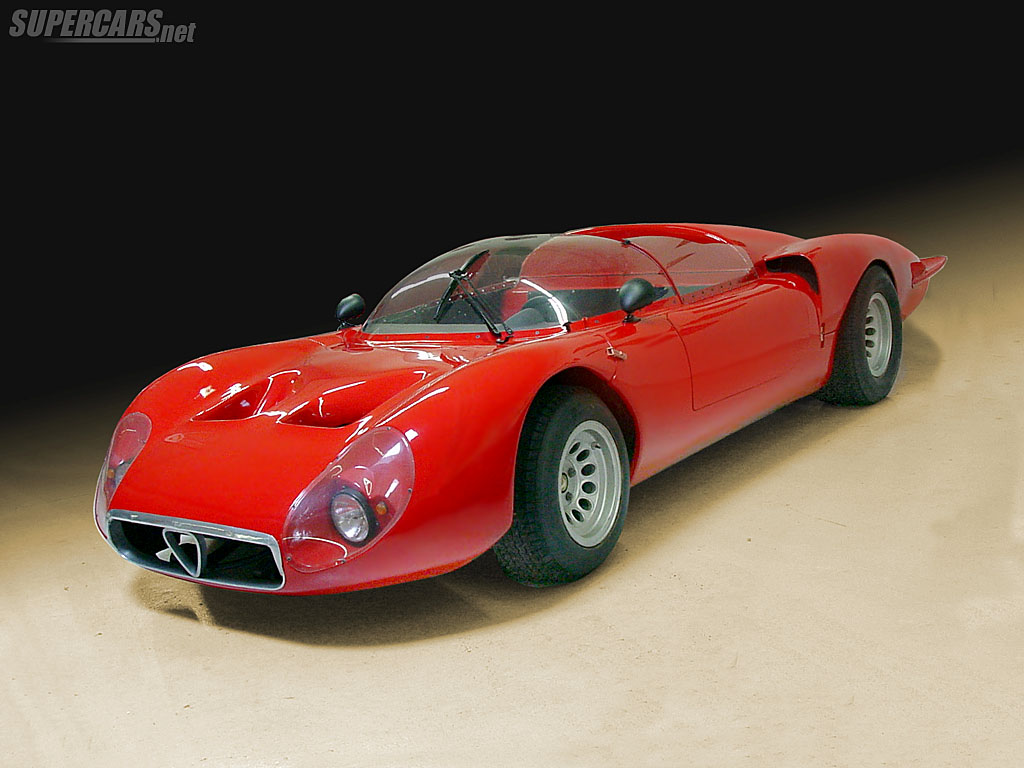

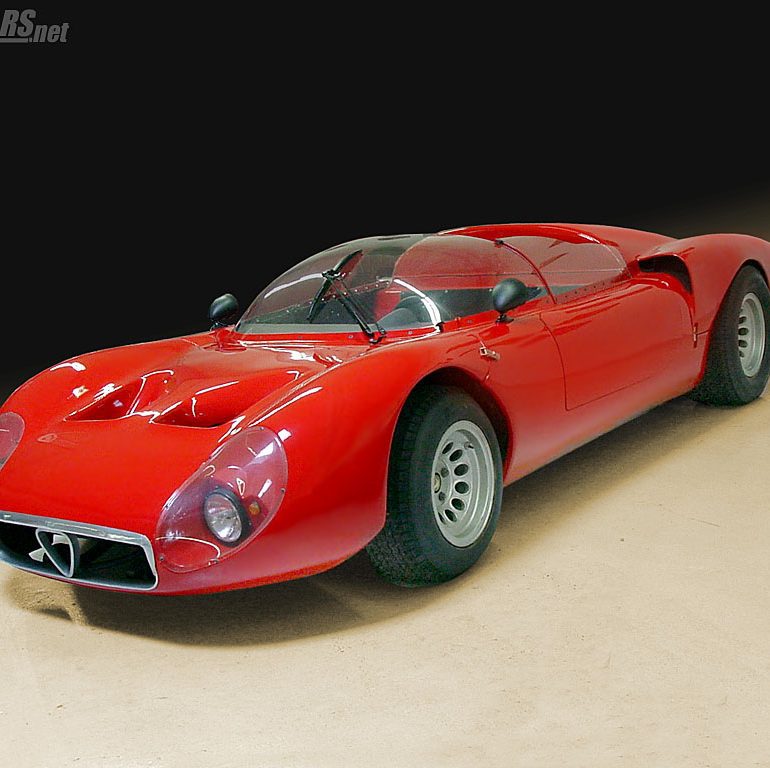

Before the Mugello race in July 1967, it was found that the huge air intake on the Periscopica was causing considerable front end lift. For the closed public roads of Florence that made the Mugello circuit, Chiti had a new type of body style fitted which had a long tail and air intakes on the side of the body. In this configuration the cars center of gravity moved forward and drag was decreased. 298 kph was also theoretically possible. Unfortunately, these upgrades did little to help the cars reliability and all three cars failed to finish. After the race, the long-tail version became known as Mugello.
From what seemed like an unsatisfactory season, Autodelta entered an obscure sports car race at Vallelunga with little opposition. The cars easily scored a 1-2 victory, but Chiti and everyone at Autodelta knew that new engineering was needed.
For the 1968 season, Autodelta prepared a stunning Stradale version and a new second-generation coupe called the Daytona which was almost entirely new.
Chassis no. 75033.005

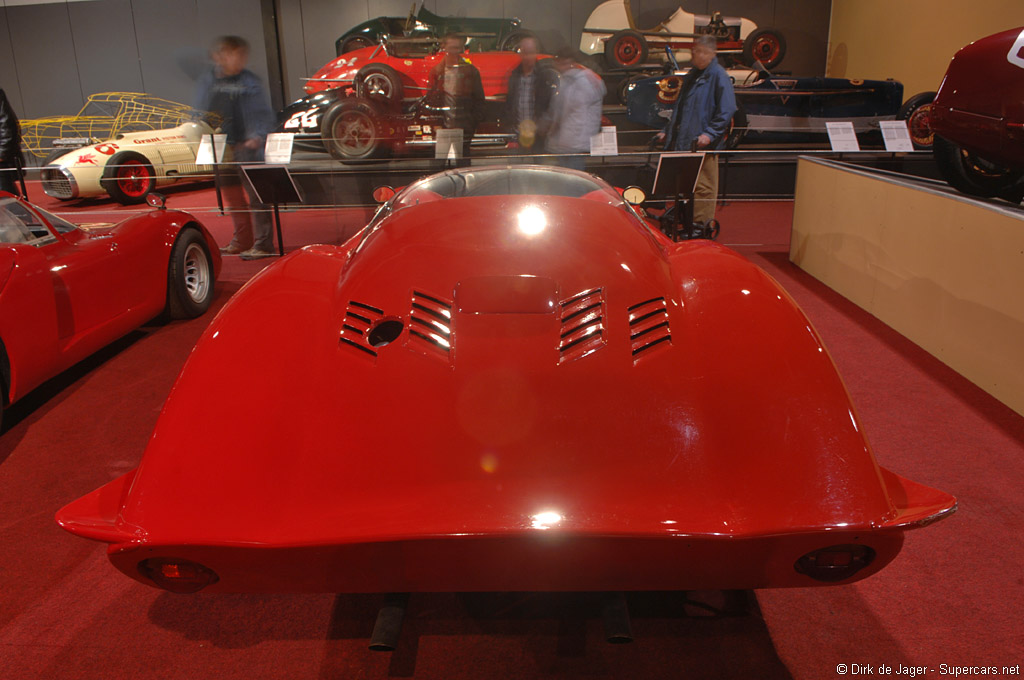

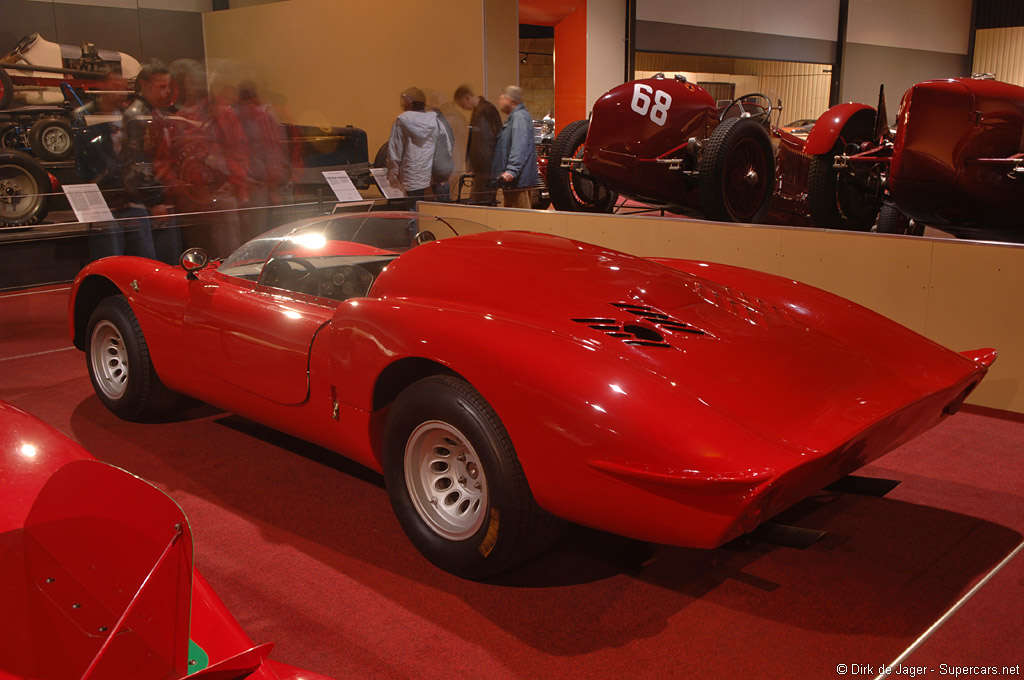

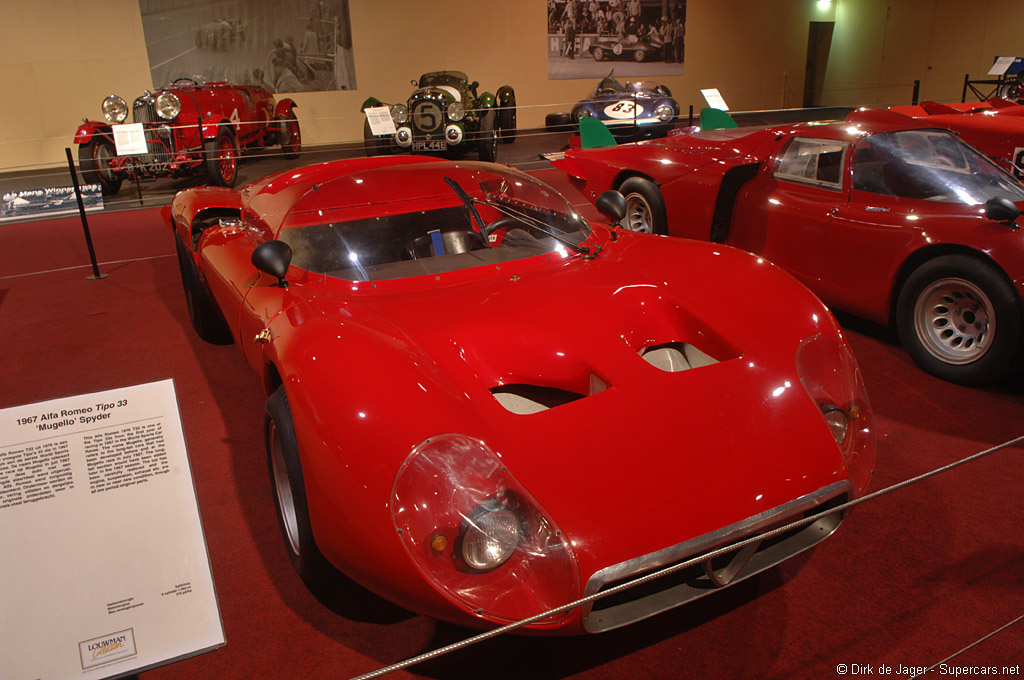

Residing in the Rosso Bianco collection for years, chassis number 5 is the only 33 that remains in the in Mugello specification with a long tail and no prominent air intake.
After being acquired by Louwman Collection along with the entire Rosso Bianco collection, the Mugello was offered for sale by Simon Kidston. He described the car as “carefully and sympathetically restored and the engine, suspension, exhaust, shock absorbers, etc. are in new or near new condition, though all are period original parts. This would be consistent with our information that these 1967 cars returned to Autodelta where they remained until being sold on at the end of Autodelta’s life in the 1980s. The cockpit has been only lightly restored, having been painted, and all original components are present. The tail section is characteristically very heavy as described to us by Autodelta driver Nanni Galli. There is a number on the steering rack: ‘3002723’.”² He also admits that this car is “possibly rebuilt from original chassis after Autodelta closed in the 1980s.”²
1. Collins, Peter et. al. Alfa Romeo Tipo 33.Veloce: December 2005.
2. Kidston, Simon. http://www.kidston.com. 2008
3.Chizzola, Gianni.Autodelta. Campanotto: 2004.
|built at||Settimo Milanese, Italy|
|engineers||Guisseppe Busso, Oarzio Satta, Carlo Chiti|
|engine||90º V8 w/Dry Sump Lubrication|
|valvetrain||Chain-Driven DOHC, 2 Valves per Cyl|
|fuel feed||Lucas Mark II Fuel Injection|
|displacement||1995 cc / 121.7 in³|
|bore||78 mm / 3.07 in|
|stroke||52.5 mm / 2.07 in|
|power||201.34 kw / 270 bhp @ 9600 rpm|
|specific output||135.34 bhp per litre|
|bhp/weight||465.52 bhp per tonne|
|body / frame||Aluminum Body over Aluminum Large-Diameter Frame w/Front & Rear Magnesium Subframes|
|front brakes||Vented Discs|
|rear brakes||Inboard Vented Discs|
|front wheels||F 33.02 x 20.32 cm / 13 x 9 in|
|rear wheels||R 33.02 x 22.86 cm / 13 x 9 in|
|steering||Rack & Pinion|
|f suspension||Double Wishbones w/Coil Springs, Telescopic Shock Absorbers, Anti-Roll Bar|
|r suspension||Double Wishbones w/Radius Rods, Coil Springs, Telescopic Shock Absorbers, Anti-Roll Bar|
|curb weight||580 kg / 1278.90 lbs|
|wheelbase||2250 mm / 88.58 in|
|front track||1760 mm / 69.29 in|
|rear track||990 mm / 38.98 in|
|top speed||~298 kph / 185.06 mph|
