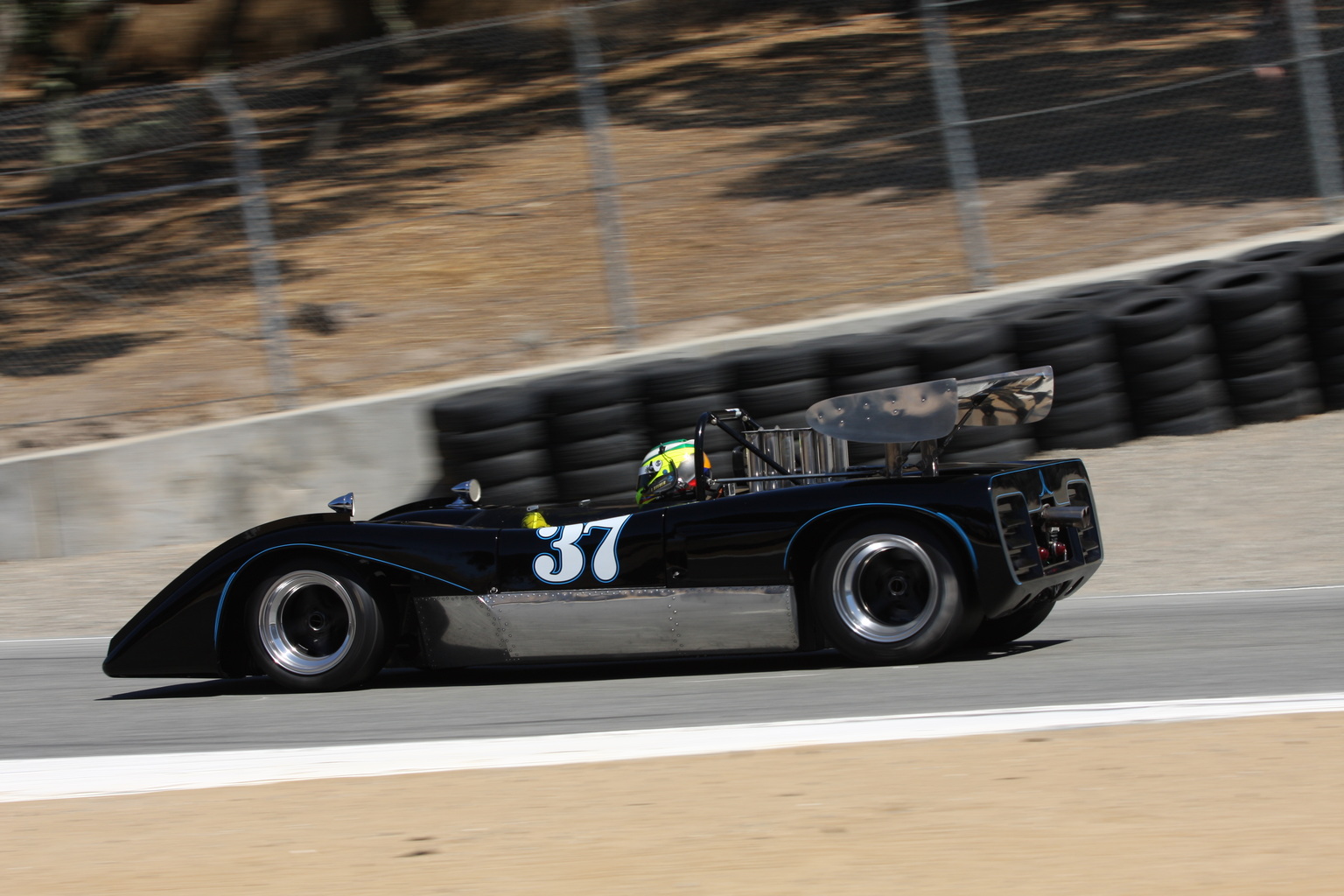

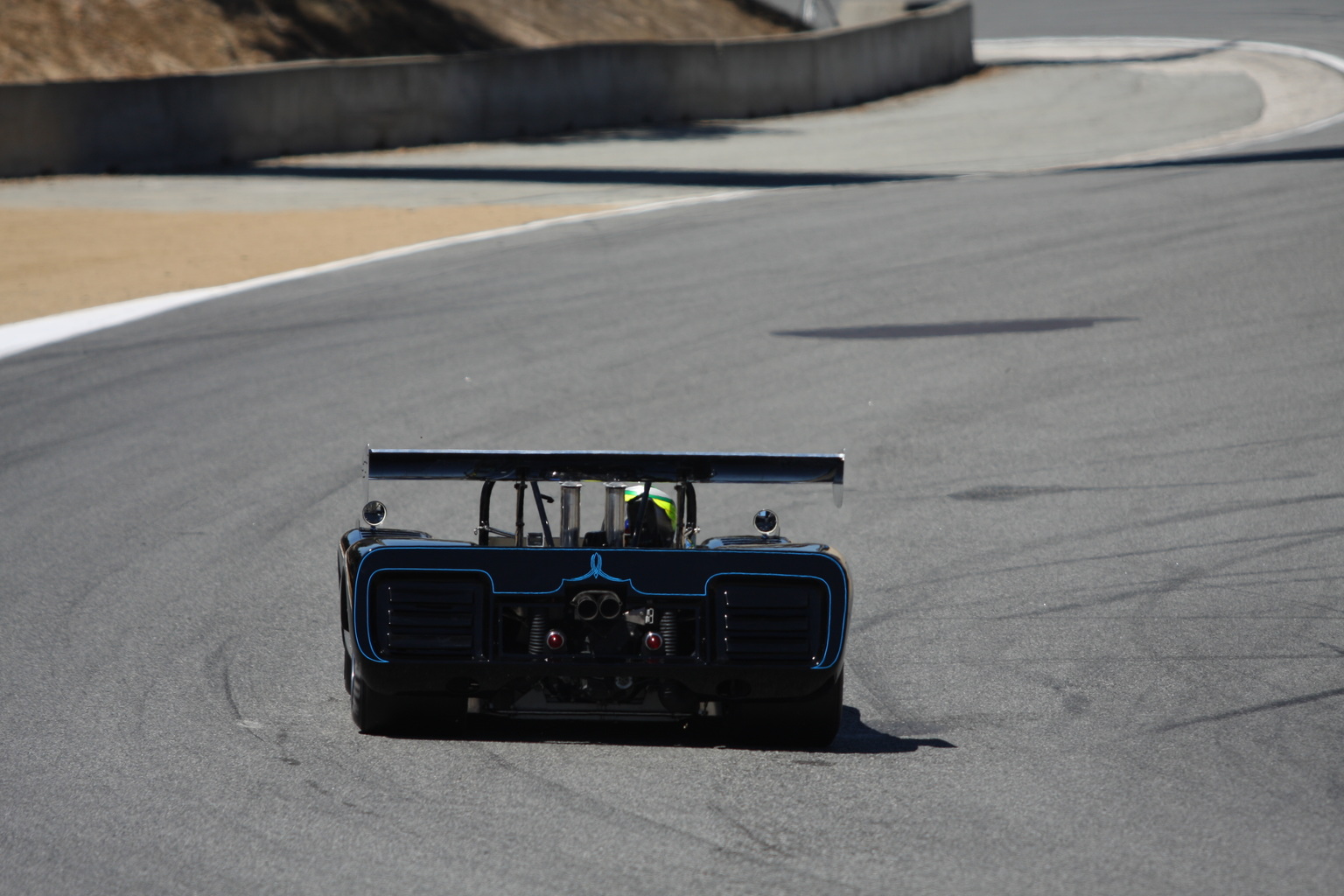

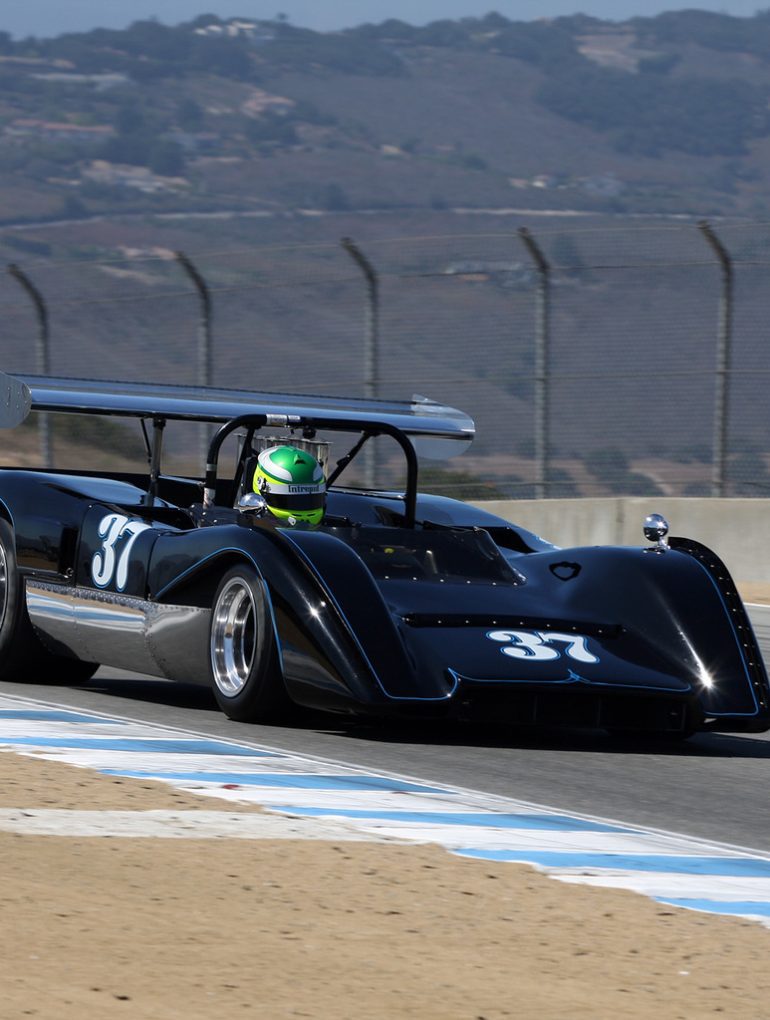

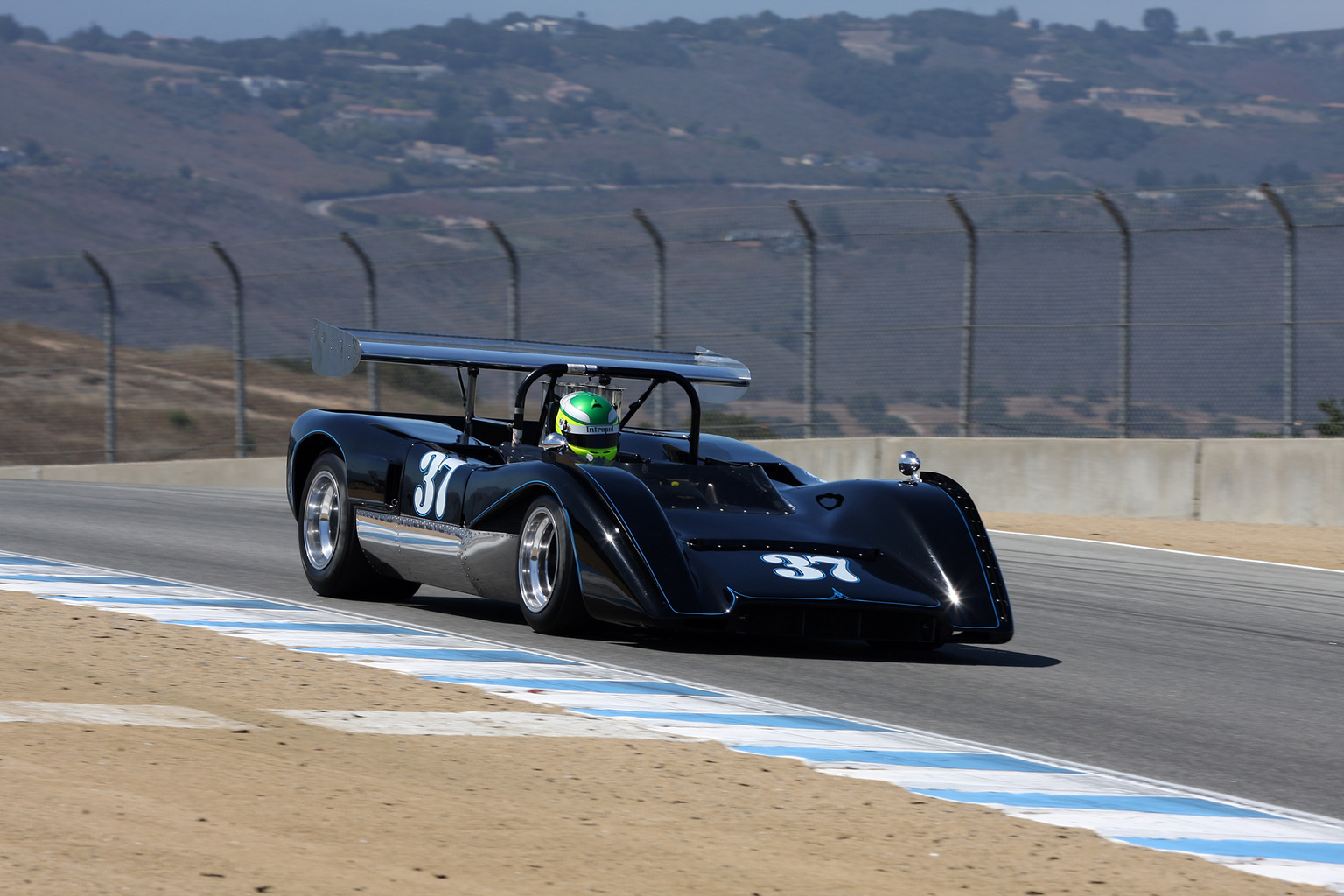

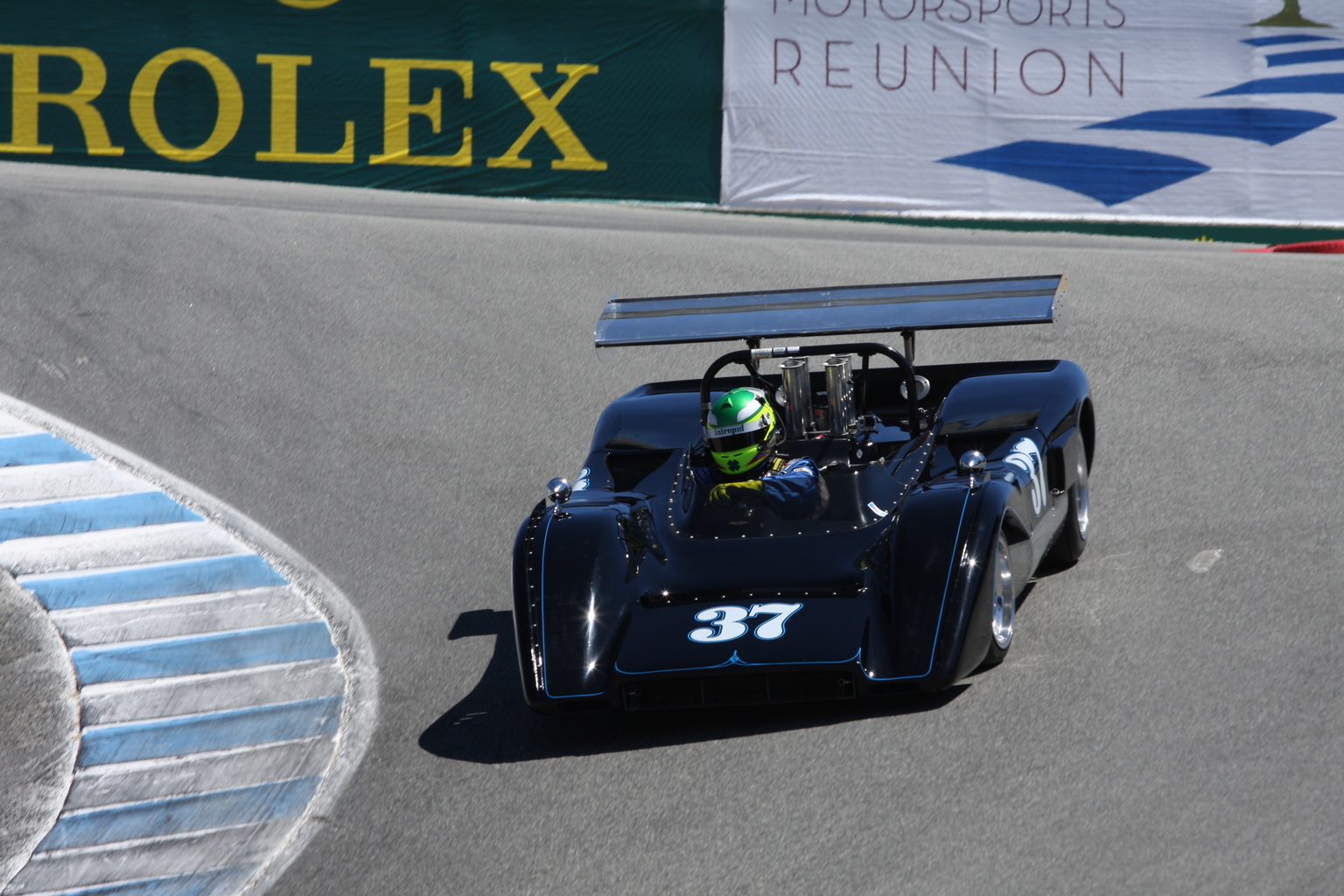

1968 McLaren M8C

In 1970 McLaren made their M8 available to customers with a lower chassis-mounted wing compared to its predecessors.

The earlier 1969 cars had larger suspension-mounted wings which performed well but failed due to the suspension vibration. A rule change for 1970 meant that the M8C and all later versions would use a chassis-mounted wing.

Another change was the engine mounted which was unstressed and allowed for either a big-block Ford or Chevrolet engine.

In Detail

tags canam
submitted by admin
type Racing Car
engine Chevrolet 90º V8
position Mid, Longitudinal
aspiration Natural
fuel feed Lucas Fuel Injection
displacement 6997 cc / 427 in³
power 484.7 kw / 650 bhp
specific output 92.9 bhp per litre
bhp/weight 1006.19 bhp per tonne
body / frame Fibreglass Body over Aluminum Monocoque
driven wheels RWD
front brakes Ventilated Steel Discs
rear brakes Ventilated Steel Discs
curb weight 646 kg / 1424 lbs
wheelbase 2387 mm / 94.0 in
front track 1473 mm / 0.0 in
rear track 1397 mm / 55.0 in
length 3886 mm / 153.0 in
width 1880 mm / 74.0 in
height 762 mm / 30.0 in
transmission Hewland LG500 4 speed Manual
