1969 Ford Mustang BOSS 302 Trans-Am

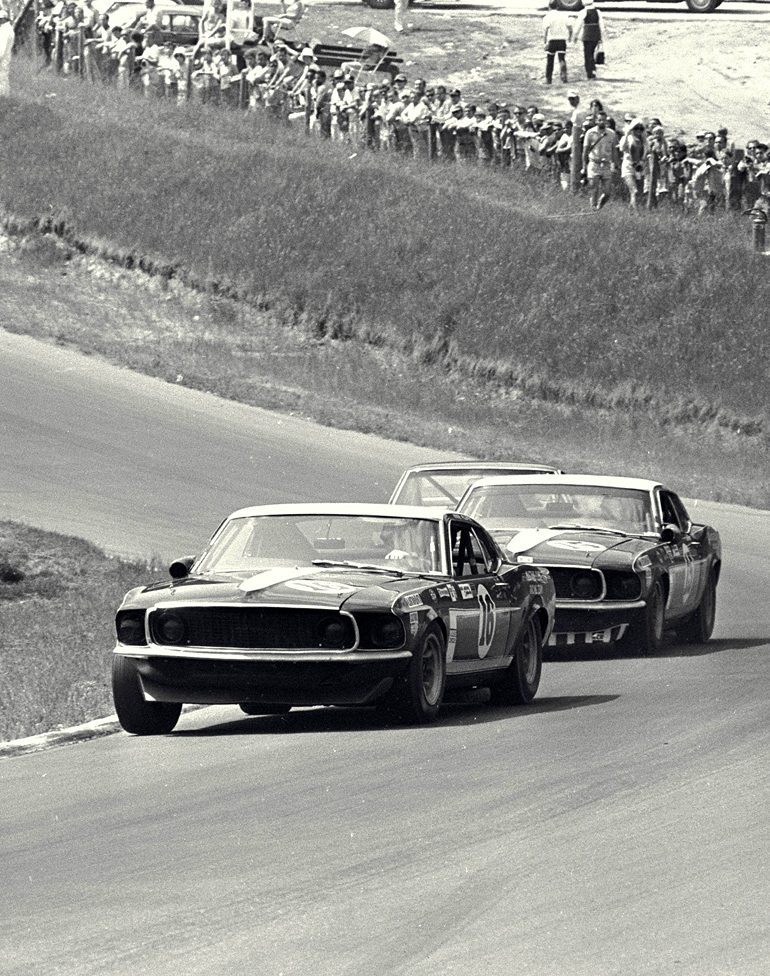

St. Jovite Trans Am, 1969. Georgew Follmer (#16) and Parnelli Jones (#15) in their Bud Moore Mustangs lead Mark Donohue's Penske Sunoco Camero. CD#0777-3292-0894-8.

1969 Ford Mustang BOSS 302 Trans-Am

1969 Ford Mustang BOSS 302 Trans-Am

For the 1969 Trans-Am Season, Ford and Kar Kraft helped both Shelby and Bud Moore prepare race versions of their M-Code Mustang to take on the Penke Camaros. Unlike the street cars these were completely reengineered and shared on some very basic components with the road-going BOSS 302.

Unlike previous seasons which were handled almost exclusively by Shelby, Ford decided use their own engineering talents at Kar Kraft for the 1969 season contender. This opened the door for Bud Moore to field two cars for complete season alongside the Shelby team. Both teams fought to regain the title from the Penske Camaros, but 1969 was not their year.

Ford president Semon “Bunkie” Knudsen personally ensured the 1969 Mustang had the style and performance that would help it succeed. Part of the right package came from Larry Shinoda at the Special Design Centre who encouraged the fastback model in Trans-Am and also designed the cars radical graphics and the BOSS name.

1969 Ford Mustang BOSS 302 Trans-Am
Watkins Glen Trans Am, Watkins Glen, NY, 1969. Bud Moore/Parnelli Jones Mustang in action. CD#0777-3292-0894-6.”


Kar Kraft in Brighton, Michigan built the first factory prototypes for the 1969 season. These were built from 428 Cobra Jet fastbacks and fully built up by Lee Dykstra’s team. After the team reached a final specification, seven more M-code Mustangs were ordered and converted by the race teams themselves except one built by Kar Kraft to for Smokey Yunick to race in NASCAR’s ‘Baby Grand’ stock car series.

The Kar Kraft blueprints called for a radically-altered car from standard specification. The cars were essentially stripped and re-engineered with weight distribution and the 2900 lbs limit in mind. Subtle changes included relocating the battery, lowering and positioning the 302 engine further back. On some of the cars, the front end bodywork was also modified so the fenders had a greater taper and sat lower to the ground. Both fender wells were pushed inward to provide clearance for the larger wheels and tires. Finally, Kar Kraft developed strut-tower braces and the individual teams made a roll cages that contributed to overall rigidity.

1969 Ford Mustang BOSS 302 Trans-Am
Kent Trans Am, Kent, WA, 1969.
George Follmer (#16) and Parnelli Jones (#15) in their Bud Moore Mustangs during race.

On this new platform the car was rebuilt using all-new components. This included a lower fuel tank and fabricating lighter components which were sometimes made of aluminum, or lightweight stampings or thinner glass.

Kar Kraft repositioned the suspension system so it sat deeper into the body which had the effect of lowering the car. Almost all the pickup points were relocated, the arms rose-jointed and connections converted to solid metal bushings. Braking was handled by 11.96-inch Lincoln discs with 4-piston Kelsey-Hayes calipers up front while the rear drums were replaced by the standard 11.3-inch units.

Engines for the 1969 BOSS came from a new design which similar to the road-cars, used the 351 Cleveland cylinder head on a 302 Windsor block. Specially built engines for racing used a completely new bottom and top end with two 1050cfm Holley Dominator 4-Barrel Carburetors on a ‘Cross-Boss’ manifold. Ford reported 470 bhp during the mid-season.

1969 Ford Mustang BOSS 302 Trans-Am


In Detail

type Racing Car
built at Brighton, Michigan, USA
coachbuilder Kar Kraft
engineers Lee Dykstra
production 10
engine V8
block material Cast Iron w/Aluminum Heads
valvetrain OHV
fuel feed 2 Holley Dominator 4-Barrel Carburetors
displacement 4949 cc / 302 in³
compression 12.0:1
power 350.5 kw / 470 bhp
specific output 94.97 bhp per litre
bhp/weight 356.87 bhp per tonne
redline 8000
body / frame Steel
driven wheels RWD w/3.9 Traction-Loc diff
wheel type Magnesium American Racing or Minilite
front tires 5.00 x 11.30
rear tires 6.00 x 12.30
front brakes Lincoln Discs w/4-Piston Kelsey-Hayes Callipers
rear brakes Ford Discs
front wheels F 38.1 x 17.8 cm / 15.0 x 7.0 in
rear wheels R 38.1 x 17.8 cm / 15.0 x 7.0 in
steering Recirculating Ball w/Power Assist
f suspension Fully Adj Double Wishbones w/Koni Shock Absorbers.
r suspension Solid Axle w/Leaf Springs, Traction Bars, Kar Kraft Panhard Rod
curb weight 1317 kg / 2900 lbs
wheelbase 2743 mm / 108.0 in
front track 1511 mm / 59.5 in
rear track 1511 mm / 59.5 in
length 4760 mm / 187.4 in
width 1824 mm / 71.8 in
height 1280 mm / 50.4 in
transmission Ford Top Loader 4-Speed Manual
gear ratios 2.78:1
0 – 1/4 mile ~12.9 seconds


Story by Ford Motor Co
