Just five years after the debut of the production Mustang, Semon E. “Bunkie” Knudsen signed off on a high-performance version of the Mustang which customers could have on the streets. It arrived mid-1969 as the BOSS 302 and was built to homologate the short-stoke engine in the Trans-Am series.

Knudsen put designer Larry Shinoda and engineer Howard Freers on task to create a visual exciting and highest-performing Mustang on the market.

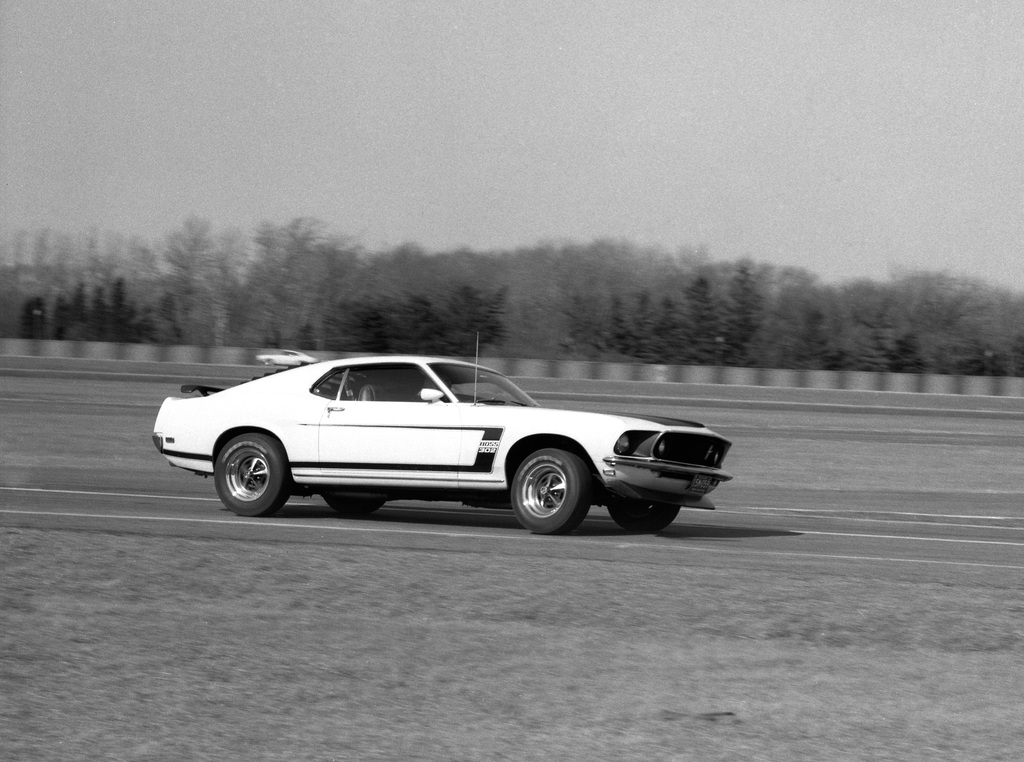

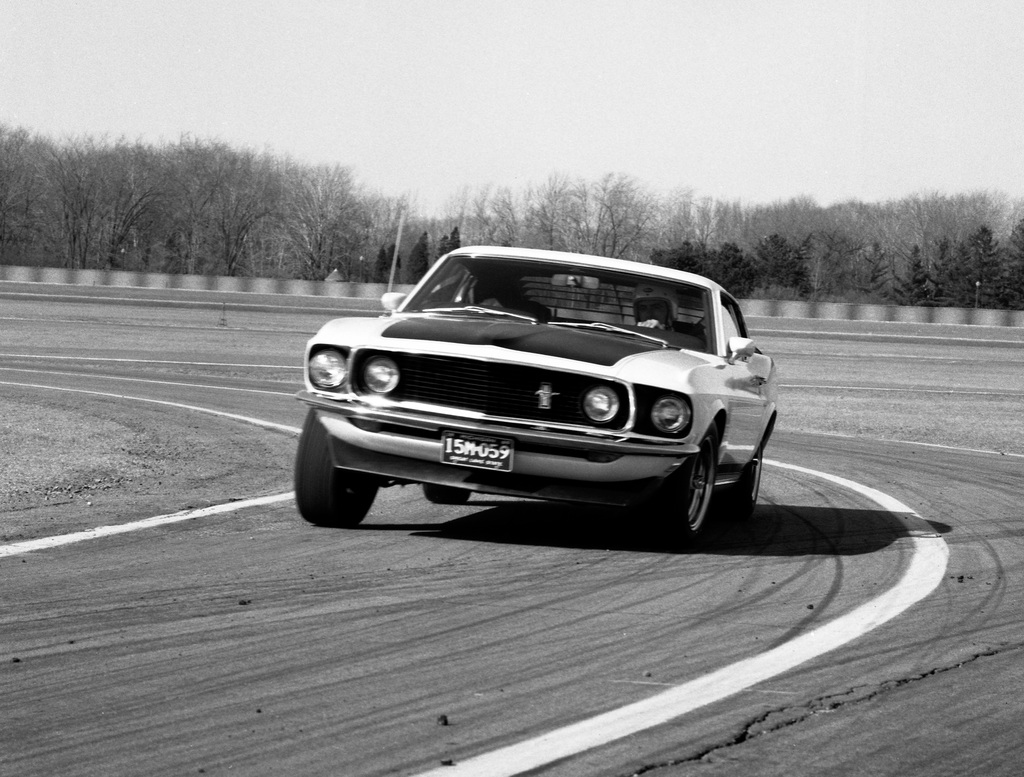

Chassis engineer Matt Donner worked on adapting a heavy duty suspension for Goodyear’s F60 Polyglas tires which was one of the highest performing street tires available. He fitted stiffer springs , shocks and special sway-bar tuning. During testing they also reinforced the chassis which later became standard on all Mustangs.

1969 Ford Mustang BOSS 302

Power came from the potent four-bolt main Windsor small-block 302 engine which made use of new wedge chamber cylinder heads from the 351 Cleveland engine. The forged steel crankshaft, connecting rods and pistons made exceptional use of the short stroke to produce 290 horsepower and 290 lb.-ft. of torque.

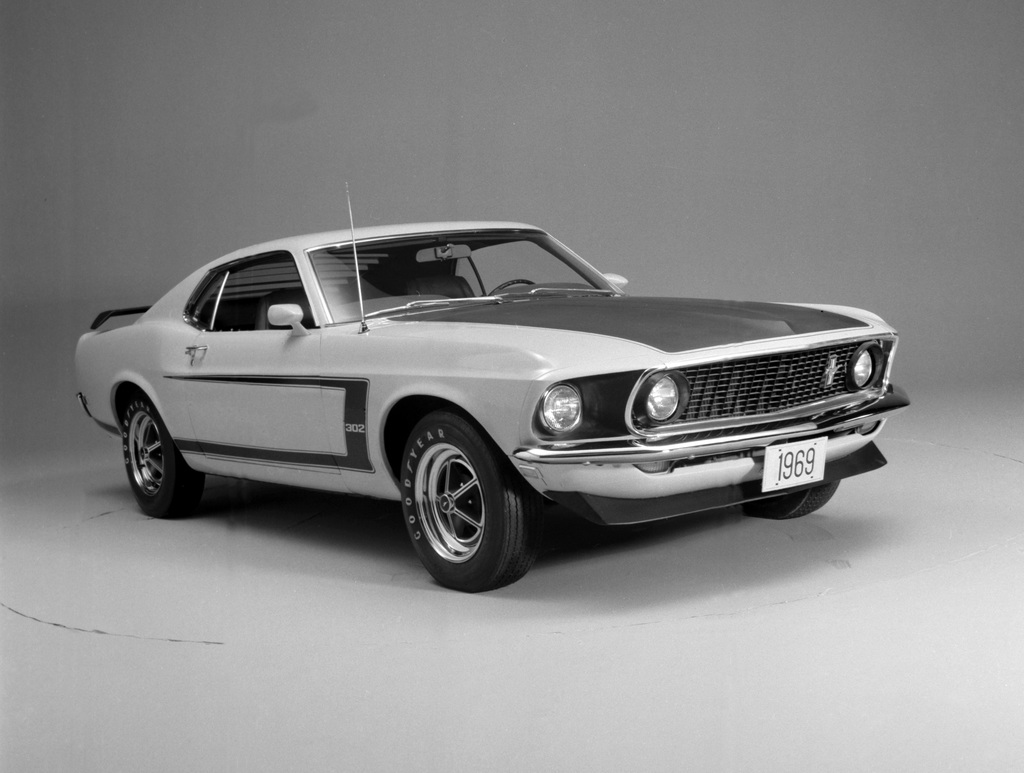

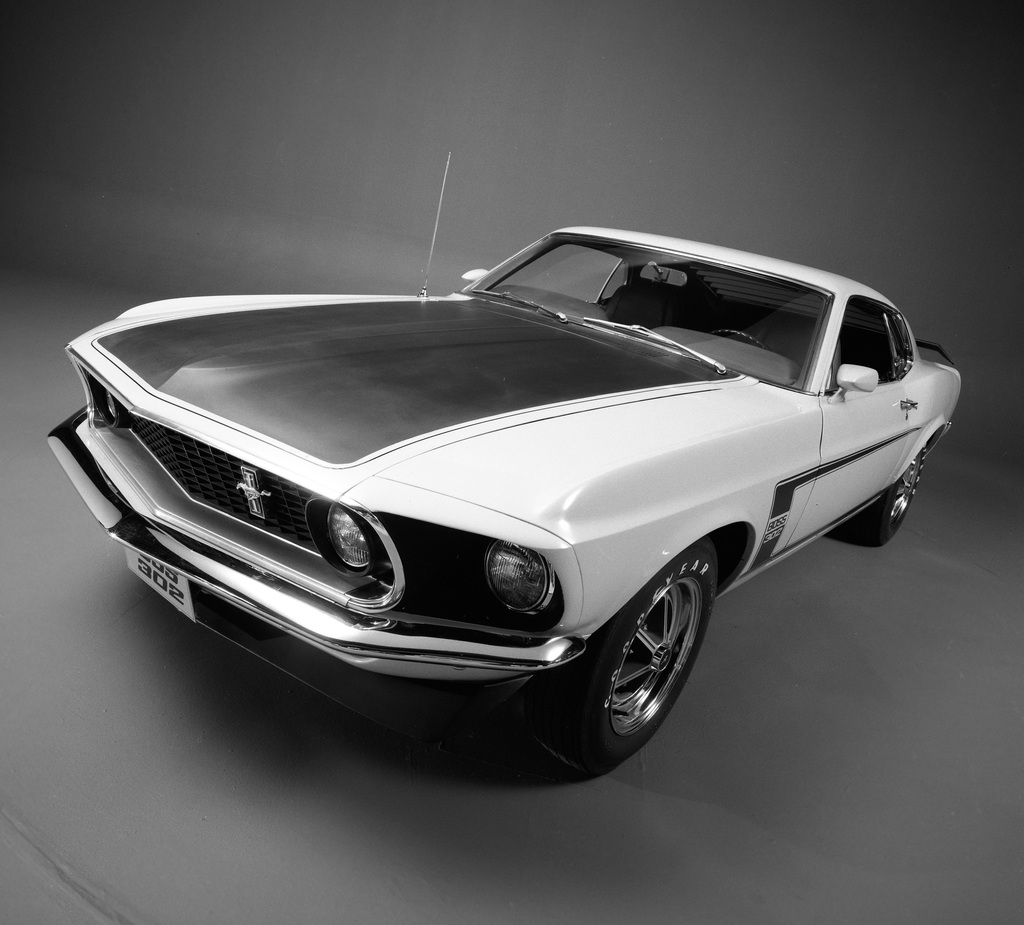

To match the performance upgrades designer Larry Shinoda designed the car around black stripes and body pieces; both the trunk and hood were black and C-shaped stripes along with the BOSS 302 were standard equipment on the BOSS 302.

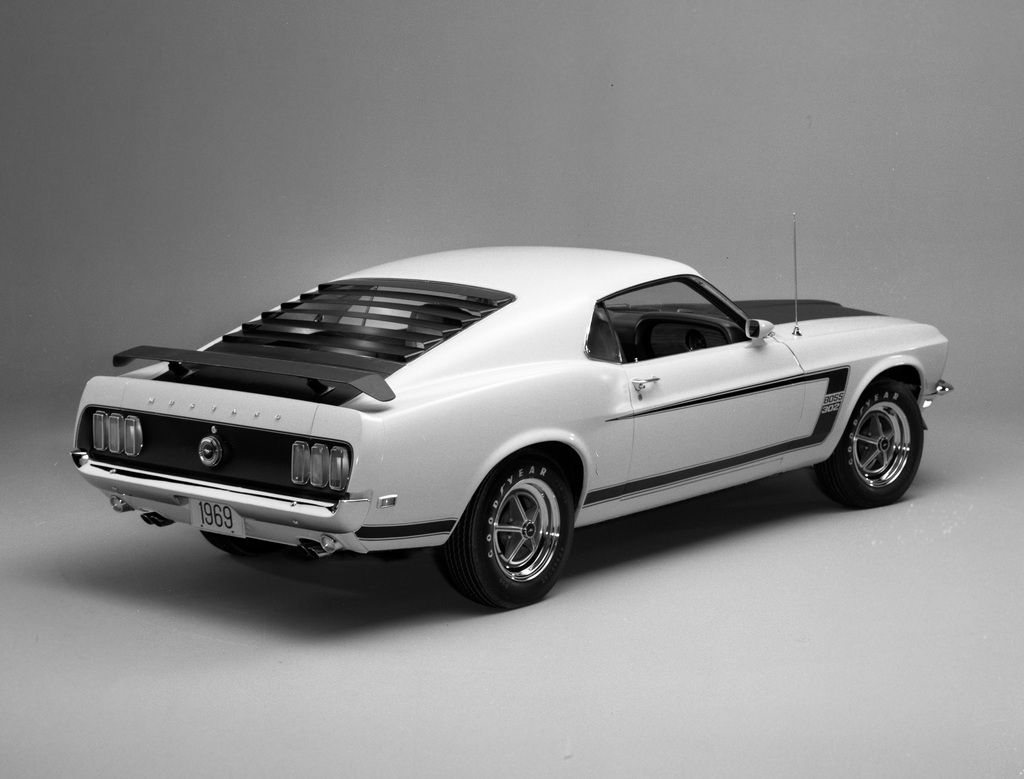

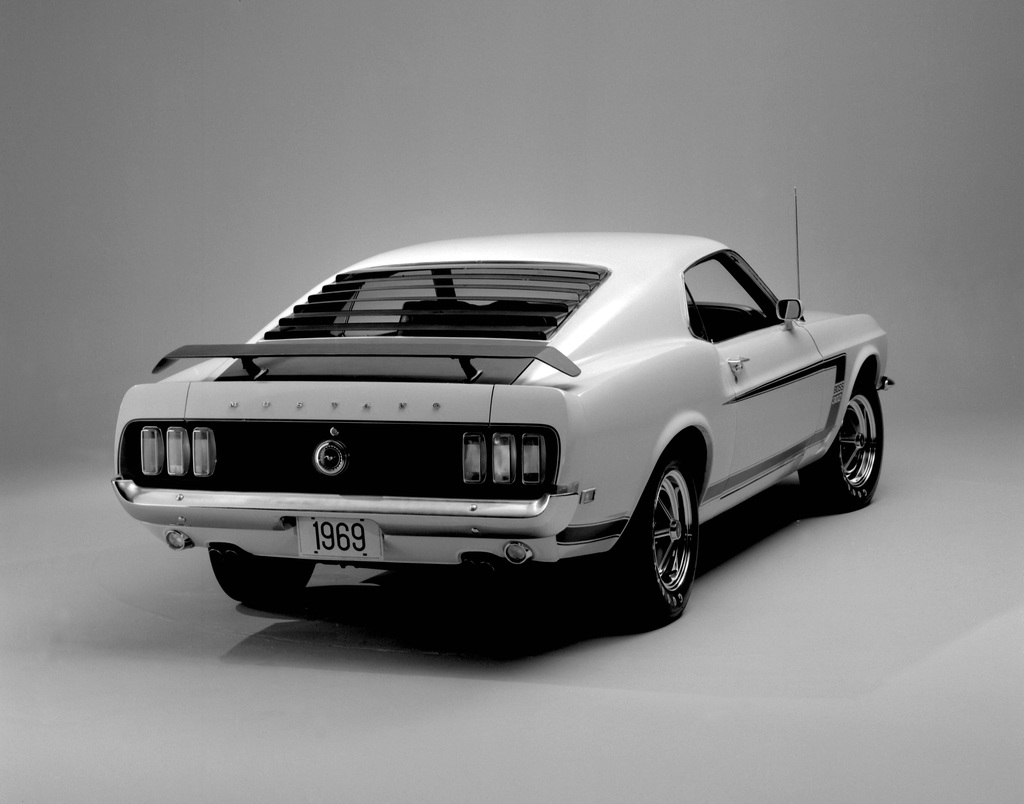

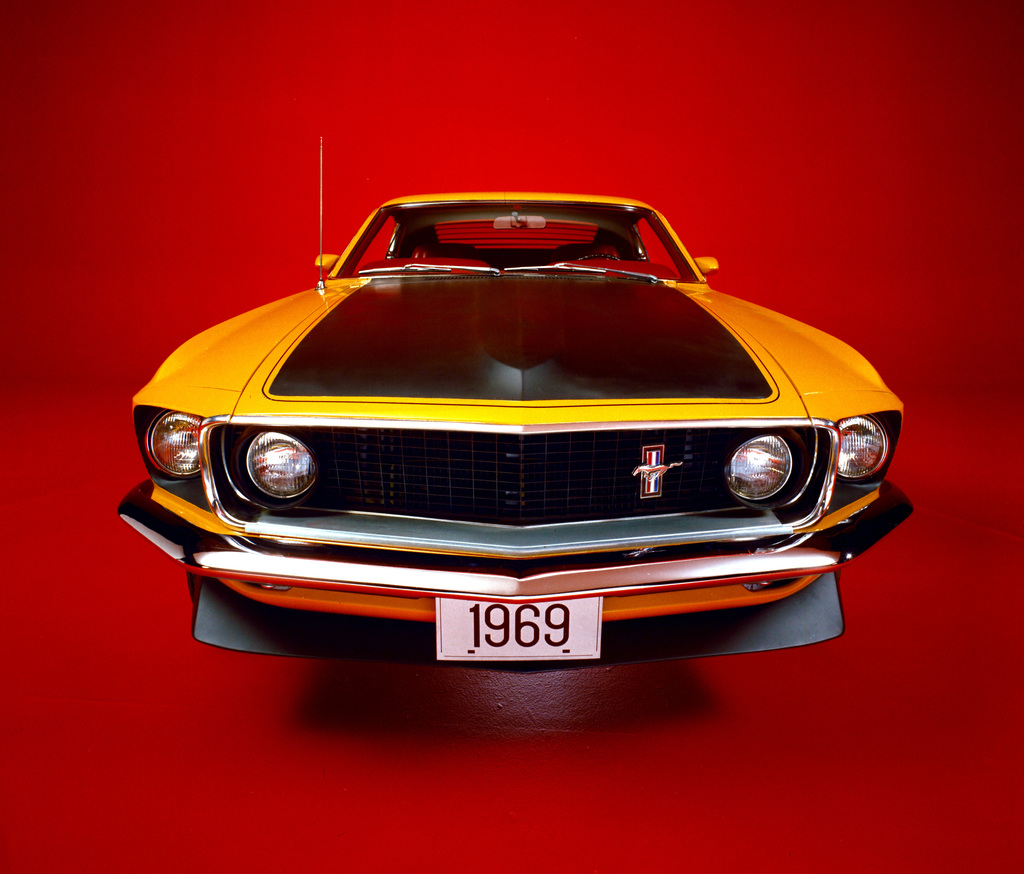

Furthermore Shinoda added a functional front spoiler to reduce lift. At the rear the a black wing was fitted along with black window shades and a painted taillight surround.

The 1969½ Mustang Boss 302 arrived in March and had a shirt production span before the 1970 model with an updated body style took its place.

Story by Richard Michael Owen

1969 Ford Mustang BOSS 302 Gallery

1969 Ford Mustang BOSS 302

In Detail

type Series Production Car
built at Brighton, Michigan, USA
engine V8
block material Cast Iron w/Aluminum Heads
valvetrain OHV
displacement 4949 cc / 302 in³
power 216.3 kw / 290 bhp
specific output 58.6 bhp per litre
bhp/weight 181.14 bhp per tonne
torque 393.2 nm / 290 ft lbs
body / frame Steel
driven wheels RWD w/3.9 Traction-Loc diff
wheel type Magnum 500
front brakes Discs w/Power Assist
rear brakes Drums w/Power Assist
front wheels F 38.1 x 17.8 cm / 15.0 x 7.0 in
rear wheels R 38.1 x 17.8 cm / 15.0 x 7.0 in
steering Recirculating Ball w/Power Assist
curb weight 1601 kg / 3530 lbs
wheelbase 2743 mm / 108.0 in
front track 1511 mm / 59.5 in
rear track 1511 mm / 59.5 in
length 4760 mm / 187.4 in
width 1824 mm / 71.8 in
height 1280 mm / 50.4 in
transmission 4-Speed Manual
gear ratios 2.32:1, 1.69:1, 1.29:1, 1.00:1



Auction Sales History

1969 Ford Mustang BOSS 302

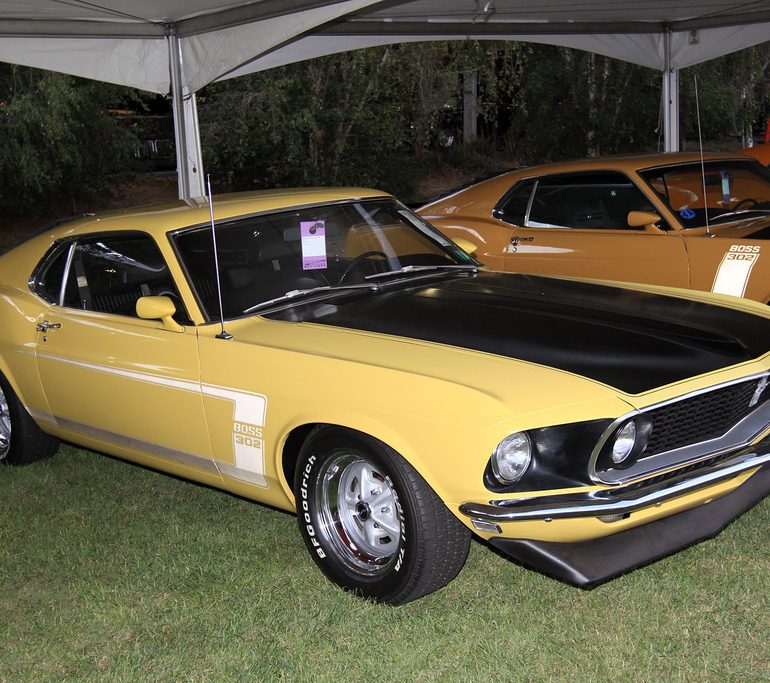

1969 Ford Mustang Boss 302 Fastback – sold for $65,000 From the McMurrey Family Collection. 45,900 original miles. Full ground-up restoration in 1988 and part of private collections since. Original service records and receipts. Auction Source: The Daytime Auction in Monterey by Mecum
