Ferrari Enzo – The Ultimate Guide

Ferrari Enzo

Inspired by Formula One technology, Ferrari’s new Gran Turismo benefits from over fifty years of Ferrari success. Named in honor of the company’s’ founder, the Enzo is one of a limited series of road cars including the 288GTO, F40 and F50. These cars represent Ferrari’s continuing desire to produce the most exclusive and technologically advanced road car.

Branding race-derived technology to road cars is not a new idea, especially to Ferrari. Up until the late fifties, Ferrari’s road and racing cars were practically the same product. Since that time, safety regulations, manufacturing costs and practicality have distinctly spilt the cars we race, from the cars we drive daily. The goal of the Enzo was to bridge this gap.

As Luca de Montezemolo states, ‘To bring together our racing success and the fundamental role of races, I decided that this car, which represents the best our technology is capable of, should be dedicated to the founder of the company, who always thought racing should lay the foundation for our road car designs.’

cool_car_ferrari_enzo_wallpaper_hd_5

Built in Maranello and tested around Fiorano by both Michael Schumacher and Dario Benuzzi, the Enzo was built from a wealth of talent within Ferrari. Internally, the project was know as the FX, which cost Ferrari 20 million euros to develop.

With an initial production run of 350 Enzos, four hundred were built in either red, yellow or black, or a custom color if the customer’s relationship with the firm was strong enough. The extra fifty cars brought in $28.8 million USD (24.4 million euros) for Ferrari, with each car being sold at a $554 00 USD (487,700 EU) profit. With these figures, Ferrari has proven they not only can sell half million dollar cars, they can yield quite a profit margin from them too.

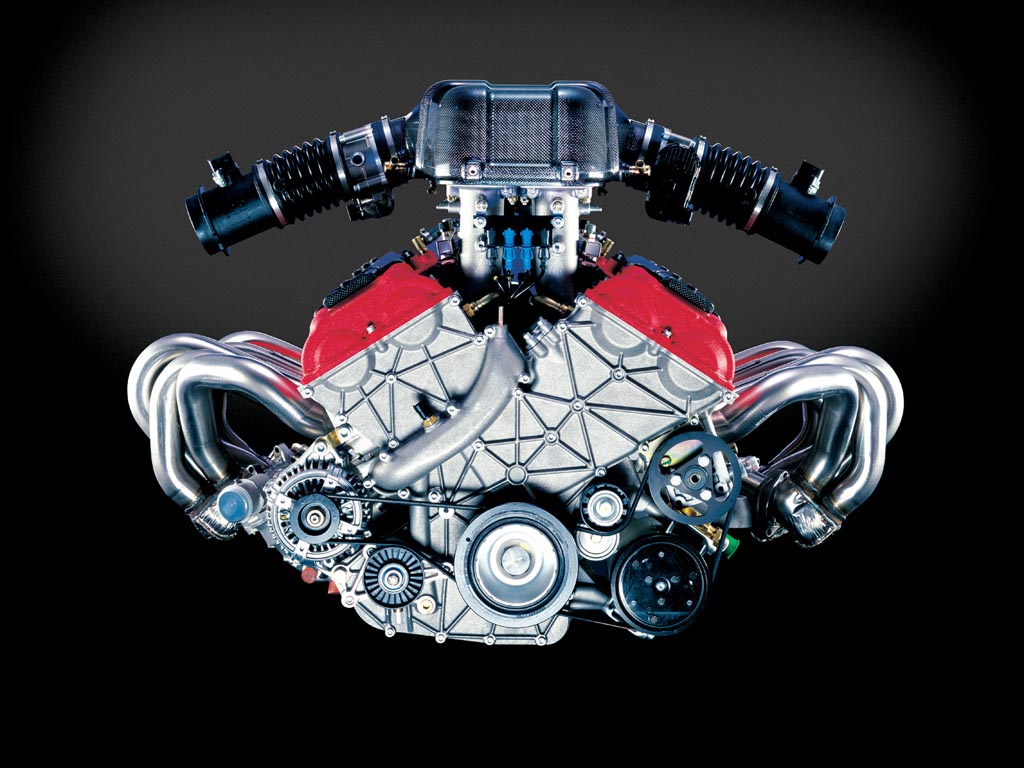

F140 V12 -One of Ferrari’s Largest

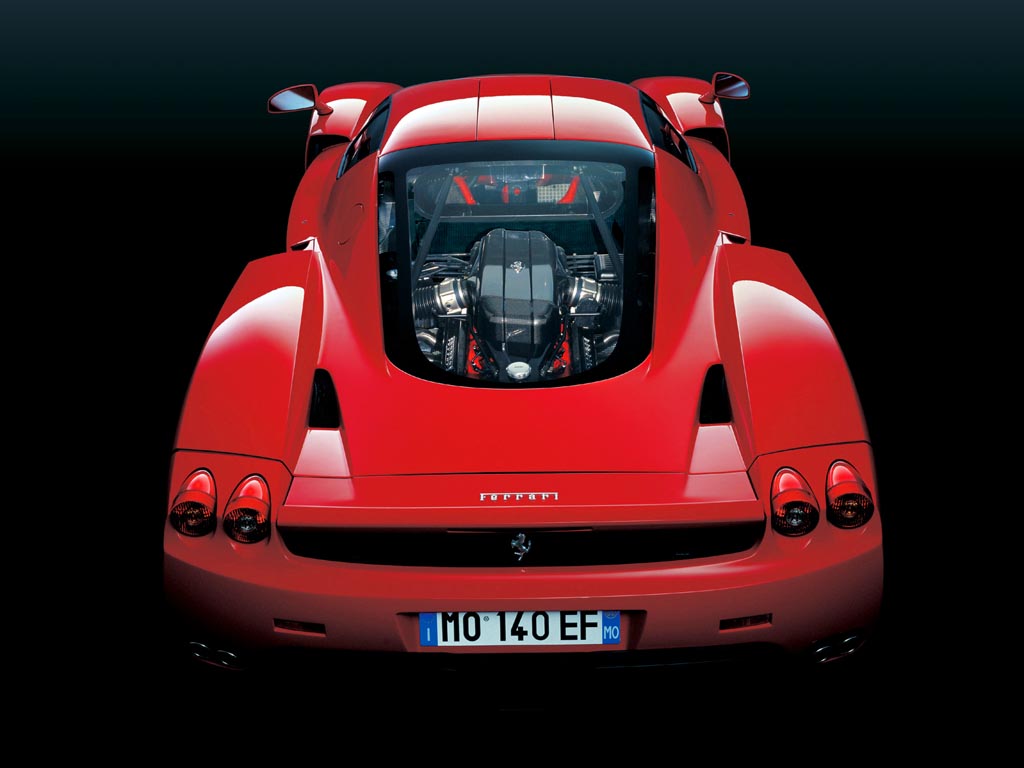

Racing-inspired technology lays the foundation of the Enzo. As such, the chassis is built from carbon fiber and aluminum honeycomb panels forming a rigid tub. At the center of the chassis is an all new, twelve-cylinder engine called the F140. At two points, the engine is attached to an alloy sub-frame which contains vibration from leaking into the passenger compartment. With this sub-frame, the Enzo is particularly unlike the F50 and unlike Formula One cars.

The F140 is one of the largest Ferrari engines, only being eclipsed by the Can Am units. Having such a large displacement allows the Enzo to deliver a healthy amount of torque, specifically 137 ft lbs (186nm) more than the F50 at 1000 rpm sooner. Despite the engine’s large displacement, it still manages to achieve 110 bhp/liter thanks to many variable systems.

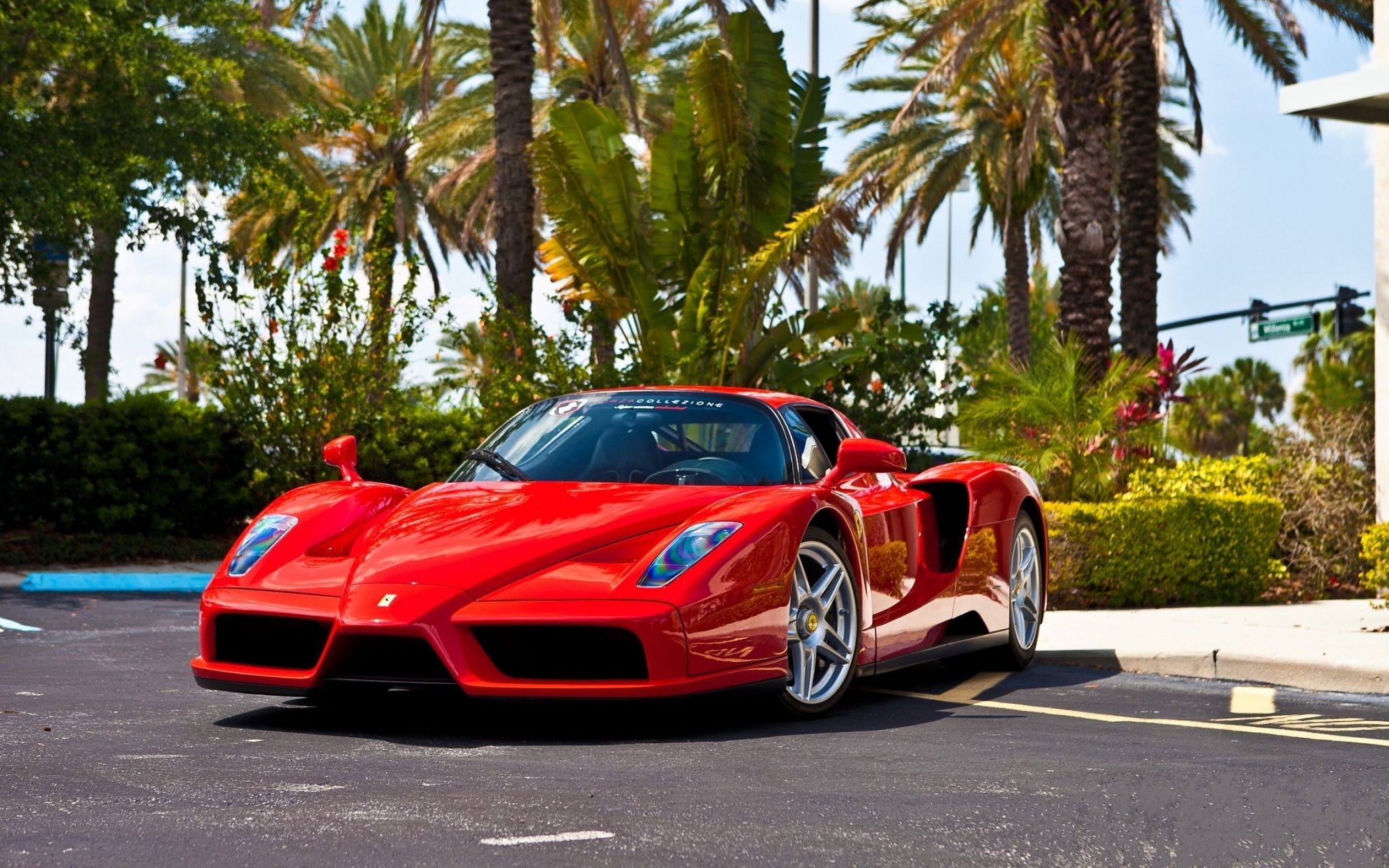

ferrari_enzo_red_76868_3840x2400

Borrowed straight from Formula One developments, highlights of the F140 engine include a continuously variable intake manifold and variable valve timing. Never combined on road car before the Enzo, these systems maximize fuel consumption and torque across the range.

F1 Transmission

Attached to the engine, the transmission unit also houses an oil tank, bevel gear, differential.

An electrohydraulic system automatically activates the clutch and gear changes. This gearbox is the first semi-automatic setup on a road-going, Ferrari V12. Developments from Formula One help it achieve gear changes in 150 milliseconds and close to 90 milliseconds when in sport mode.

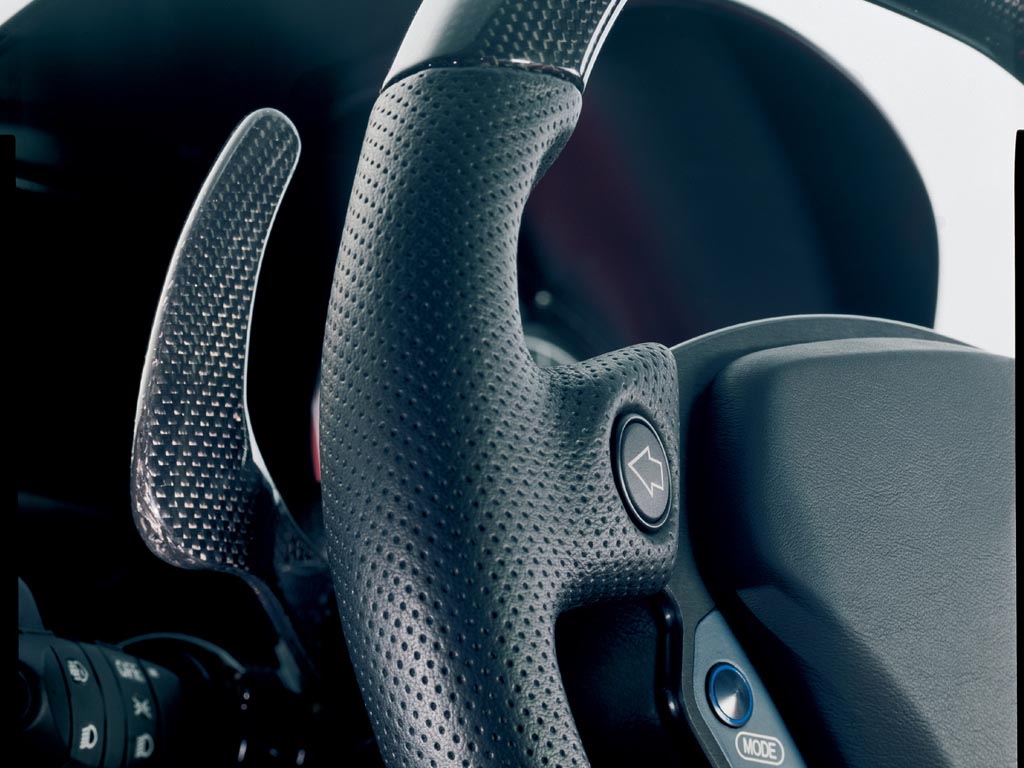

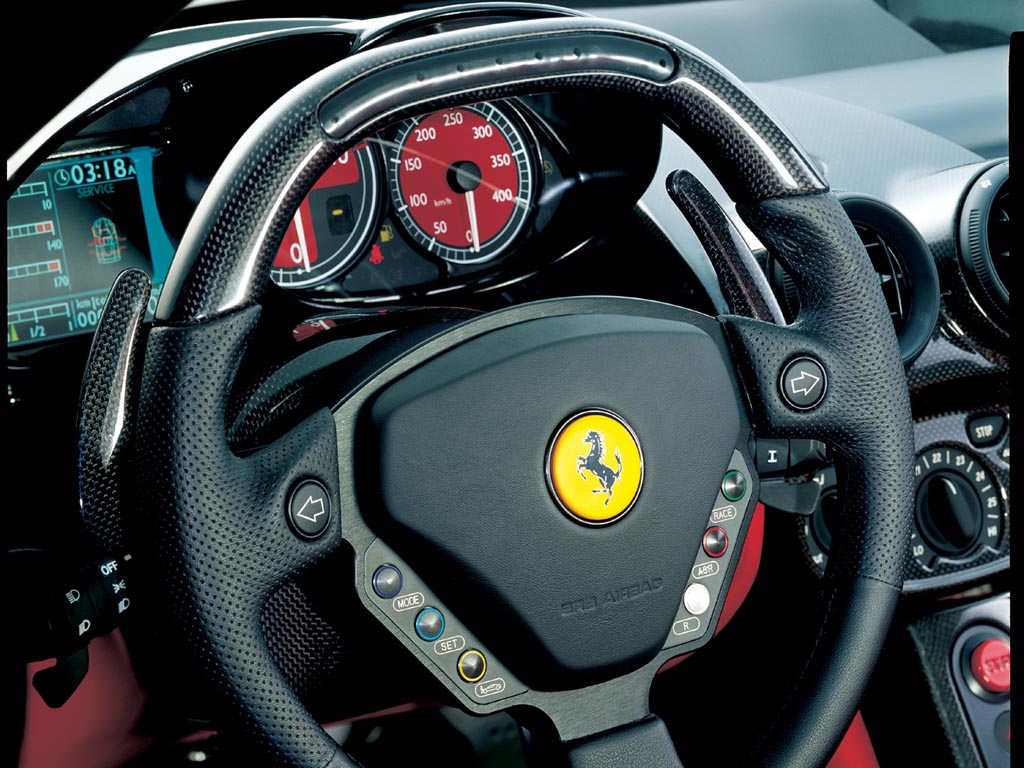

Four lights atop the steering wheel indicate to the driver when an up shift is needed. Gear changes are made via two paddles behind the steering wheel. No fully automatic selection is offered.

Imbedded Electronics

Designed by Ferrari Gestione Sportiva (Ferrari Sport Management), many embedded electronic systems help comfort of the Enzo driver. A central computer harmonizes the engine, suspension, transmission and aerodynamic subsystems to optimize performance and safety. How these subsystems communicate and their behaviors depend on which mode the driver selects from the steering wheel.

The Enzo has three distinct control settings which include Sport, Race and No ASR. These options primarily change the settings of the active damping, electrohydraulic shifting and traction control. In No ASR mode, the most agressive setting, the driver has the option of using Launch Control as borrowed from Formula One.

Getting much attention is the ASR which is Ferrari’s fancy term for traction control. The ASR works primarily with the ABS to guarantee a high level of stability during strong cornering forces. The ASR is so advanced that only drivers such as Benuzzi and Schumacher benefit from turning it off.

During the press preview at Fiorano all the test drives had to be done with the ASR on. This, however, did not stop 5th Gear’s Tiff Needell from promptly turning it off: ‘I can’t drive a Ferrari with that on’ promptly followed by ‘now the Ferrari is alive’ made his point well. Tiff fetched the best time of day, but remained over four seconds slower than Benuzzi.

12e31db62c522732084de6ecb0b07fcf_large

Active Suspension

As first seen on 575, the Enzo employs a system of continuously controlled electronic dampers. This active damping allows the Enzo to offer a comfortable ride in sport mode or a hard suspension in race modes. It works by continually adjusting internal proportional valves within the dampers.

Developed in conjunction with Brembro, the braking system in the Enzo provides world-class stopping power. All four wheels sport fifteen inch, carbon-ceramic discs which are less temperature sensitive like Formula One discs which only work well when they are very hot.

The carbon-ceramic brakes mark the first time a composite disc has been applied to a Ferrari road car. The system saves 27 lbs (12.5kgs) of unsprung weight when compared to conventional steel discs. The CCM material also has the advantage of being resistant to corrosion.

Pininfarina Styling & Aerodynamics

Pininfarina and Ferrari have a close relationship which started with the 1951 212 Inter Barchetta. Since that time, Pininfarina have styled most road-going Ferraris including the Enzo, which is their most radical design to date.

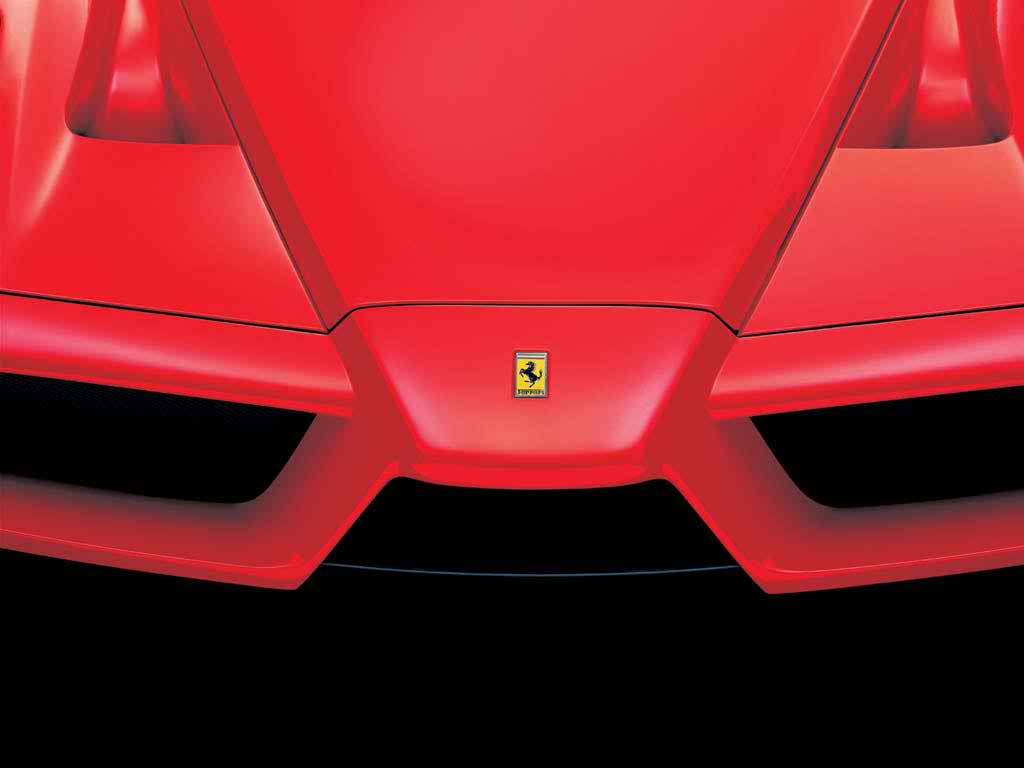

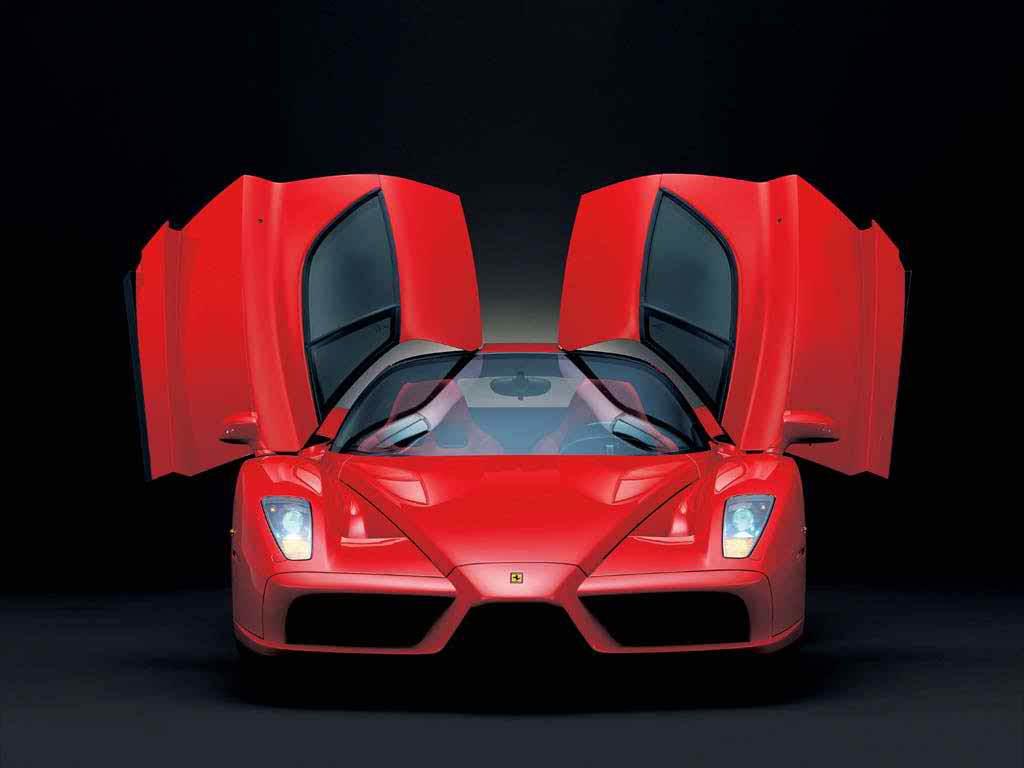

Pininfarina’s form combines complex detail with a clean and balanced overall shape. Aggressive lines adorn the exterior which include an interpretation of the Formula One nose, to which the Enzo owes it’s technology. These styling cues break ground in the area of design and will be copied both in future super cars and future Ferraris.

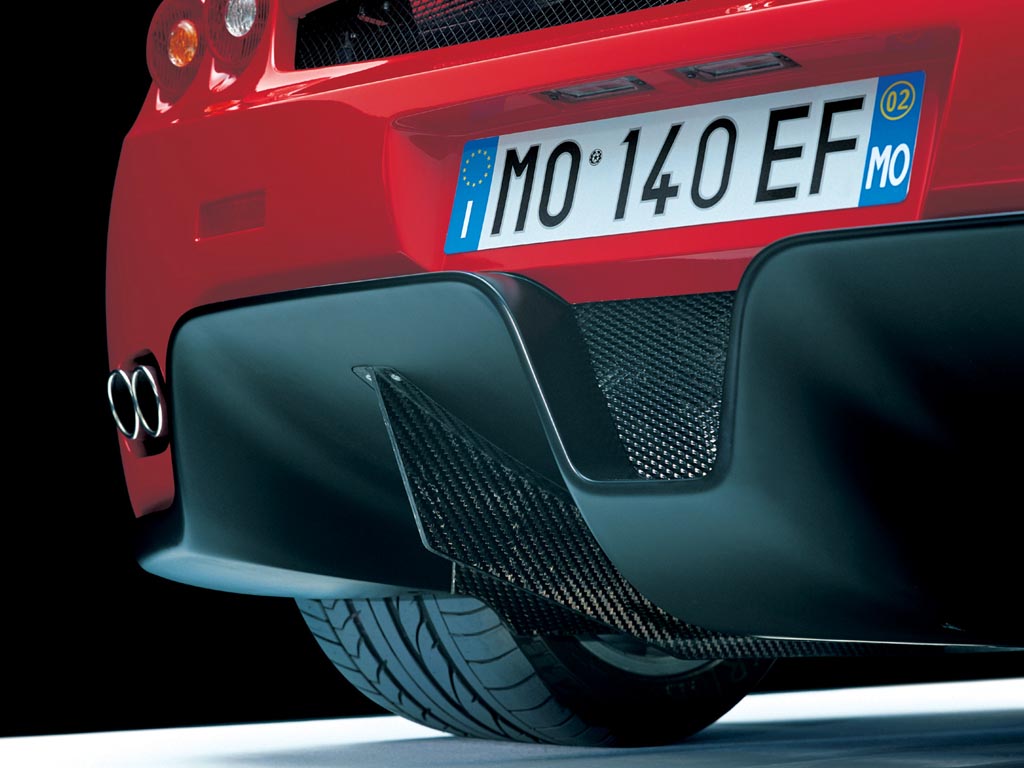

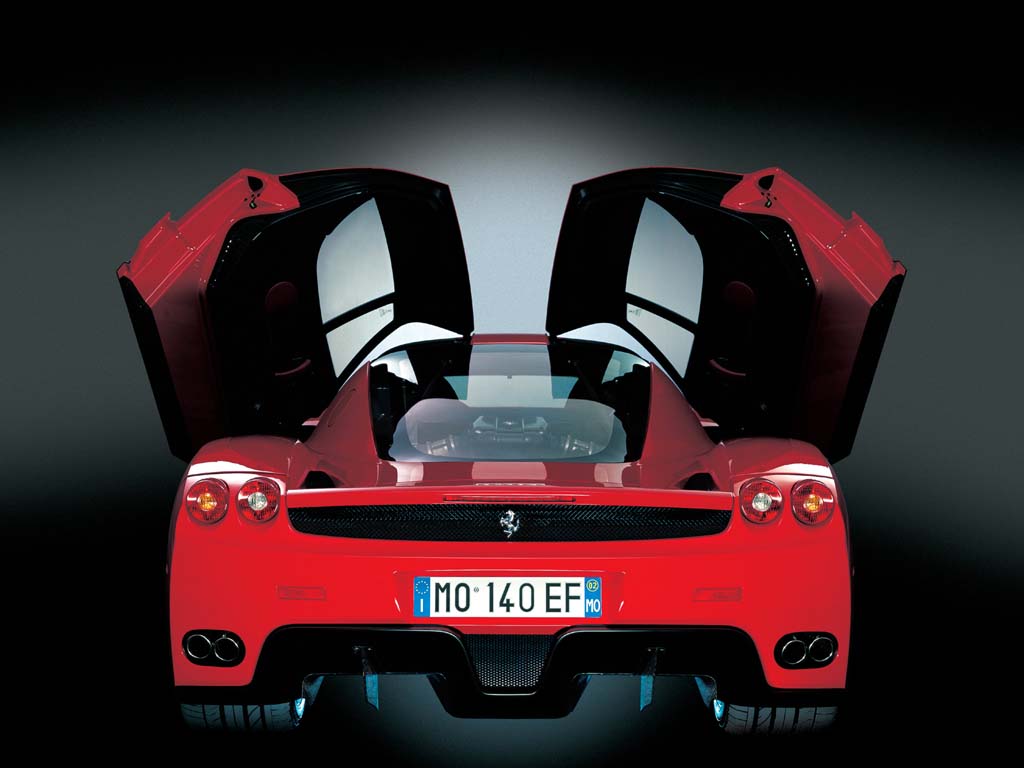

Unlike the F40 and F50 which came before it, the Enzo is devoid of any rear wing. The absence of the rear wing was possible due to the underbody at the rear of the car which includes two large diffusers. These diffusers generate sufficient down force to replace a drag-heavy rear wing.

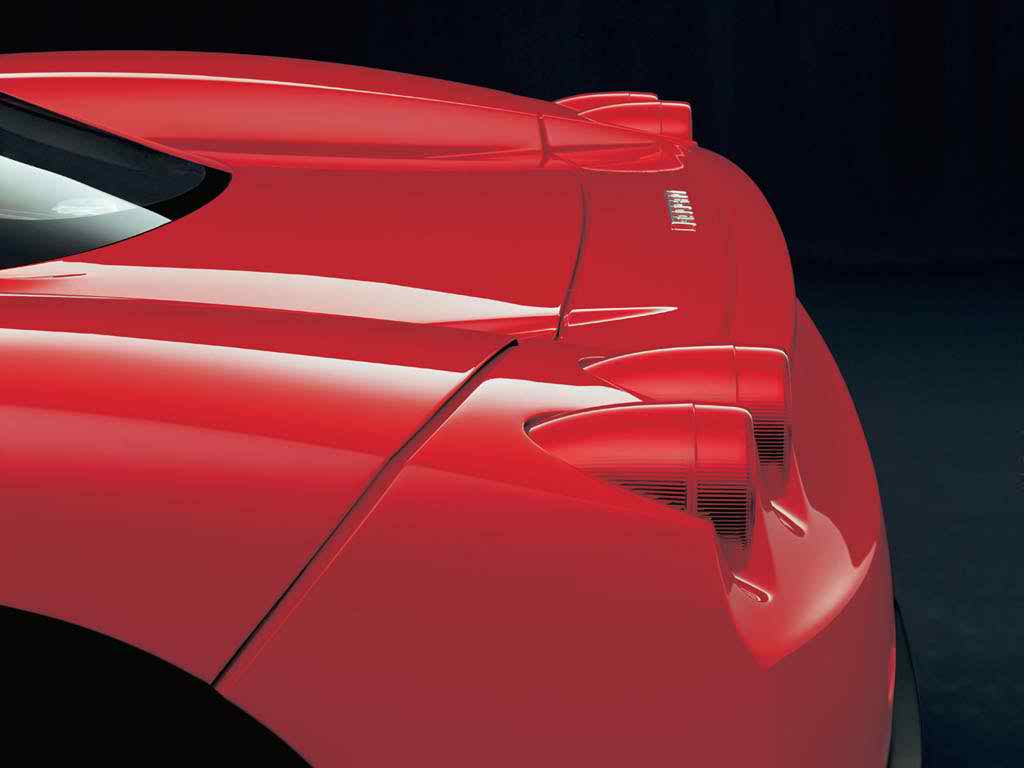

Further active aerodynamics help the Enzo maintain stability at all speeds. An adjustable rear spoiler and adjustable front flap allow for either high load or high speed aerodynamic setup. Above 186 mph (300kph) the Enzo reduces its down force from 1709 lbs (775kg) to 1290 lbs (585kg) allowing for a top speed of 217 mph (350 kph) .

Conclusion

During a period of great achievement for Ferrari, the Enzo reflects victories which include four consecutive F1 championships. The Pininfarina styling and semi-automatic, six-speed transmission trace their roots to heart of motor sport. No doubt, Enzo Ferrari himself would be most proud of this limited series named in his honor.

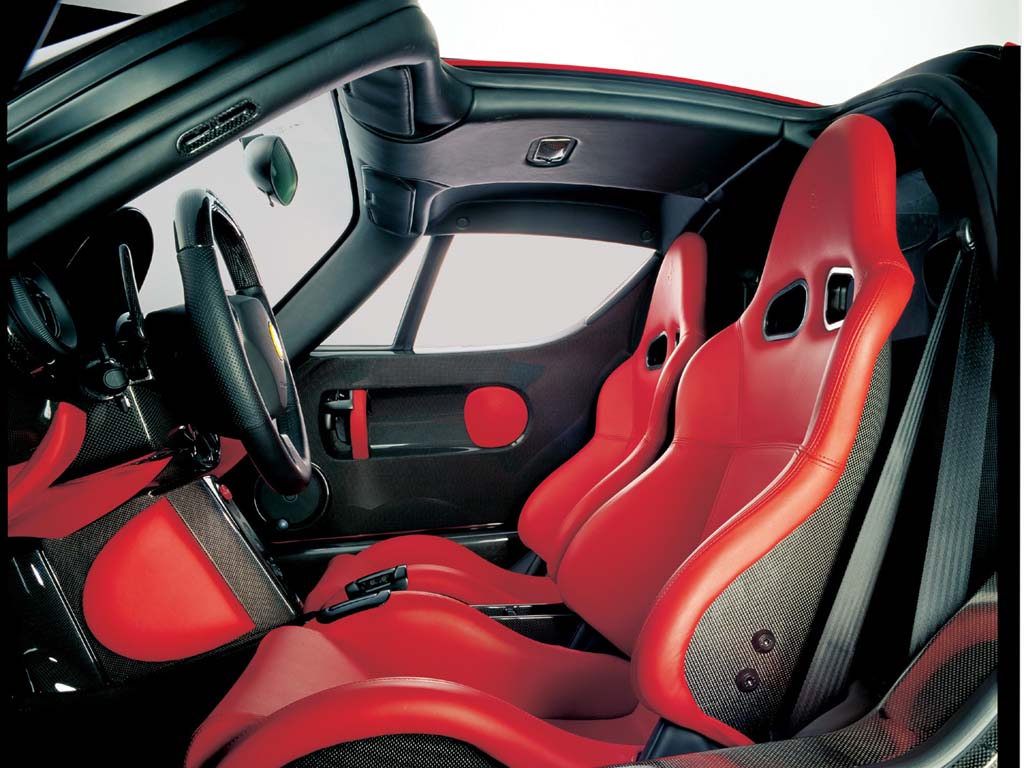

Unlike the Ferrari F50, the Enzo was made with compromises towards driver comfort. Fortunately, Ferrari have used sufficient active systems allowing level of comfort to be adjusted from the drivers seat. It is these sophisticated electronics, centered around Ferrari’s best road-worthy engine that make the Enzo as special as it is.

Specs & Performance

submitted by Richard Owen
type Series Production Car
production years 2002 – 2005

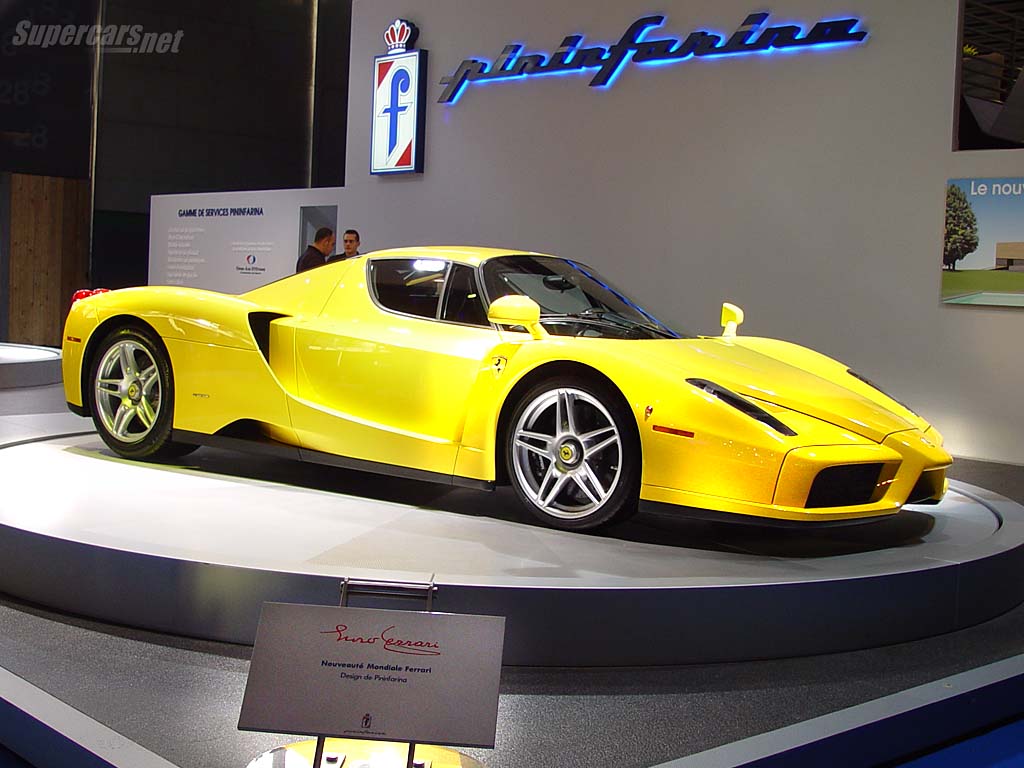

released at 2002 Paris Motor Show
built at Maranello, Italy
coachbuilder Pininfarina
production 440
price $ $670,000
price £/td> £450,000
engine 65 Degree, Type F140 Aluminum V12
position Mid Longitudinal
aspiration Natural
valvetrain DOHC, 4 Valves per Cyl w/Continuously Variable Timing
fuel feed Bosch Motronic ME7 Sequential Electronic Injection
displacement 5988 cc / 365.4 in³
bore 92 mm / 3.62 in
stroke 75.2 mm / 2.96 in
compression 11.2:1
power 492.2 kw / 660.0 bhp @ 7800 rpm
specific output 110.22 bhp per litre
bhp/weight 481.75 bhp per tonne
torque 657.57 nm / 485 ft lbs @ 5500 rpm
redline 8200
body / frame Carbon Fibre Body over Carbon Fibre Tub w/Rear Alloy Sub Frame
driven wheels RWD w/TCS
front tires Bridgestone Potenza RE050A Scuderia 245/35ZR19
rear tires Bridgestone Potenza RE050A Scuderia345/35ZR19
front brakes Brembro CCM (Carbon-Ceramic) Discs w/6-Pot Calipers, Power Assist ABS
rear brakes Brembro CCM (Carbon-Cer?amic) Discs w/4-Pot Calipers, Power Assist, ABS
front wheels F 48.3 x 22.9 cm / 19.0 x 9.0 in
rear wheels R 48.3 x 33.0 cm / 19.0 x 13.0 in
steering Rack & Pinion w/Power Assist
f suspension Double Wishbones w/Push-Rod Actuated Coil-Shock Units, Adaptive Dampers, Electronic Shock Absorbers, Anti-Roll bar
r suspension Double Wishbones w/Push-Rod Actuated Coil-Shock Units, Adaptive Dampers, Electronic Shock Absorbers, Anti-Roll bar
curb weight 1370 kg / 3020 lbs
wheelbase 2650 mm / 104.3 in
front track 1660 mm / 65.4 in
rear track 1650 mm / 65.0 in
length 4702 mm / 185.1 in
width 2035 mm / 80.1 in
height 1147 mm / 45.2 in
transmission 6-Speed Semi-Automatic w/Electrohydraulic Acuation, 215mm Twin-P
gear ratios 3.15:1, 2.18:1, 1.57:1, 1.19:1, 0.94:1, 0.76:1
top speed ~350 kph / 217.5 mph
0 – 60 mph ~3.4 seconds
0 – 100 mph ~6.5 seconds
0 – 1/4 mile ~11.3 seconds
0 – 100 kph ~3.7 seconds
city fuel econ epa 19.60 L/100 km or 12 mpg-us
hwy fuel econ epa 13.07 L/100 km or 18 mpg-us

Ferrari Enzo Gallery

See full 2002 Ferrari Enzo Gallery here

Ferrari Enzo Videos

See all our amazing Ferrari videos here

Auction Sales History

2005 Ferrari Enzo ZFFCZ56B000141920 – sold for $6,050,000. Gifted to His Holiness Pope John Paul II by Ferrari; the 400th and final Enzo built. One of very few finished in Rosso Scuderia (Scuderia Red). Fitted with unique options, Daytona seats, and a carbon fiber rear spoiler. Fully serviced by Ferrari of Central Florida in December 2014. As-new condition, with just 179 kilometers from new. Undisputedly the most desirable and historically important Enzo; provenance more fascinating than perhaps any other supercar. Auction Source: RM Sotheby’s Monterey 2015

2002 Ferrari Enzo ZFFCZ56B000129581 – sold for €1,260,000 Pininfarina’s 2002 Paris Motor Show car. Rare and desirable original colour combination. Offered with its original set of books, tools, and luggage. Ferrari Classiche certified. Auction Source: Villa Erba 2015 by RM Sothebys

2003 Ferrari Enzo ZFFCW56A830132664 – sold for $1,925,000 A rare and desirable original color combination. Recent service by Ferrari of Beverly Hills. Just over 8,000 miles and three owners from new. Offered with a complete set of books, tools, and accessories. Auction Source: 2014 Monterey by RM Auctions

2003 Ferrari Enzo ZFFCZ56B000133512 – sold for €868,000 Recently serviced and certified by Ferrari Classiche. Complete with all books, tools, and accessories. One of only 400 examples of Ferrari’s ground-breaking supercar. Just over 6,800 kilometres and two owners from new. Auction Source: 2014 Monaco by RM Auctions

2004 Ferrari Enzo ZFFCZ56B000138347 – sold for €1,069,600. The car offered here is among the lowest-mileage Enzos that RM Auctions has yet encountered, delivered in classic Rosso Corsa over black interior with red inserts, and it has covered only 1,028 kilometres since new in the hands of its one owner, who has lovingly maintained it within the walls of his private collection. It is unusually well-documented, accompanied by not only the tools and books expected with a quality Enzo, but also its original invoice of purchase, a letter from Ferrari chairman Luca Cordero di Montezemolo to the owner, and photographs taken when the new Enzo was collected from the factory in Maranello, as well as the original car cover. Auction Source: 2013 Villa d’Erba Auction by RM

2003 Ferrari Enzo ZFFCW56A030133923 – sold for $1,320,000 One of only 400 examples built. Reportedly one of six silver cars and the only one that exists in the United States.Just over 9,000 miles from new. Auction Source: 2013 Arizona Auction by RM

2003 Ferrari Enzo ZFFCW56A230131882 – sold for $1,485,000 A Milestone in Supercar Design. Exclusive 399-Car Production Run. Highly Sought-After US-Specification Example. Definitive Rosso Corsa over Black Color Scheme. Consistently Maintained Three-Owner Car. Approximately 2,250 Miles from New. Offered with Factory-Delivered Accessories. Auction Source: The 2013 Scottsdale Auctions by Gooding & Company

2004 Ferrari Enzo ZFFCW56A830135872 – sold for $1,430,000 Groundbreaking Maranello Supercar. One of Only 399 Examples Built. One of Only Four Finished in the Highly Desirable Grigio Titanio. Owned from New by an Esteemed Private Collector. Approximately 2,350 Miles from New. Offered with Factory-Delivered Accessories. Meticulously Maintained. Auction Source: 2012 Pebble Beach Auctions by Gooding & Company

2004 Ferrari Enzo 137339 – sold for €768,163 As a two-owner car with just 9,000 miles from new, 137339 is a European-specification 2004 Enzo Ferrari finished in Rosso Corsa and includes such desirable features as a Nero hide interior, medium racing seats, a four-point safety harness, a Rosso instrument dial, Scuderia Ferrari shields and black brake callipers. Supplied new to Italy on 18 May, 2004, the first Bolognese owner acquired it and registered the car on “CP 660 CJ.” In October 2005, it attended the first International Enzo Ferrari Rallye at Mugello, and then in 2009, the second owner acquired 137339. The car benefits from a recent service by official Ferrari service centre Graypaul Ferrari and is fully detailed and immaculate throughout. It is also complete with its full Ferrari service history, Ferrari Classiche certification and a car cover. Auction Source: 2010 Automobiles of London by RM Auctions

2002 Ferrari Enzo – sold for $830,500 A two-owner car from new, this 2003 Enzo Ferrari is finished in Rosso Corsa and has travelled fewer than 10,000 miles from new. It has always been properly maintained and serviced by a Ferrari dealership from new and is up to date in its servicing. While some paintwork was performed on the right front fender, the Enzo is complete with all service records. Please note the car does not come with a tool roll. Auction Source: RM Auctions’ 2010 Sports & Classics of Monterey

2003 Enzo Ferrari – did not sell for $850,000 The outstanding 2003 Enzo Ferrari presented here benefits from an expertly-applied and complete color change under the tenure of its second owner from the original Rosso Barchetta (red) finish to its current Nero (black) exterior. While the car had previously suffered some minor damage requiring the replacement of one wheel and the undertray, all work was carried out by the highly respected dealership, Ferrari and Maserati of Las Vegas. Auction Source: 2009 RM Auctions Sports & Classics of Monterey

Giallo Modena 2003 Ferrari Enzo – did not sell for $1,000,000 This beautiful yellow example is one of just eight Giallo Modena cars known to exist in the United States. It is a two owner car, originally sold in San Francisco, California, and has been serviced by Wide World of Cars where the four year service was completed in March 2007. The odometer reads just 2,960 careful miles. It includes two pieces of luggage, tools, hub wrench, car cover, books and extra key. Auction Source: 2009 RM Auctions Sports & Classics of Monterey

2004 Ferrari Enzo 136085 – sold for €852,500 The Enzo offered here is in showroom condition and has been garaged in London since new; it still retains its original Ferrari fitted lugged which is new and unused as well as all of its original Ferrari books and matching leather wallet. Chassis 136085 has covered just 2,729 km in its present ownership. Having been just serviced by official Ferrari dealers Lancaster of Colchester, this Enzo represents an opportunity to own a unique Ferrari. Auction Source: 2008 Leggenda e Passione
