2003 Volvo S60 R


2003 Volvo S60 R

2003 Volvo S60 R

First, there was Volvo’s Performance Concept Car (PCC), which presented an exciting glimpse into the future of high-performance driving. The production version of the PCC, the Volvo S60R, is an high-performance car featuring an adaptive active chassis, a 300-horsepower engine, Servotronic Steering, powerful Brembo brakes, and a Haldex electronically controlled all-wheel-drive.

The Continuously Controlled Chassis Concept, aptly called Four-C, employs seven electronic sensors to collect data on the movement of the car, adjusting shock valve damping almost instantaneously, based on driving style and road conditions.

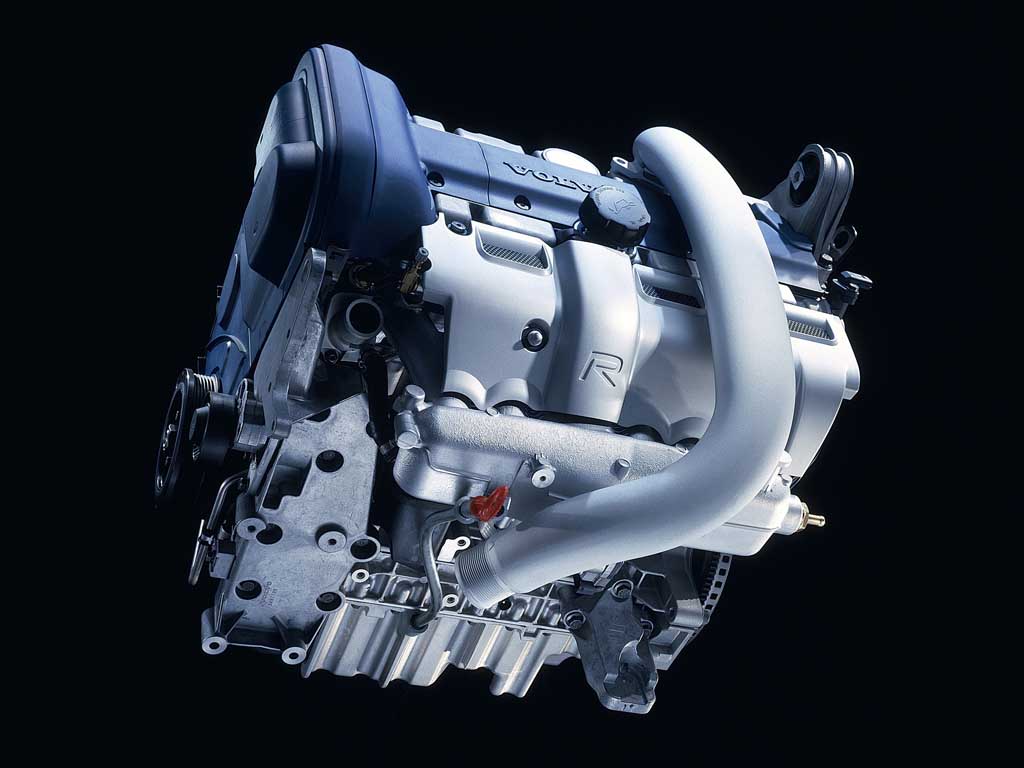

Under the hood of the Volvo S60R is a turbocharged 2.5 liter, 5-cylinder engine, which provides 300 hp and 295 ft/lbs of torque at 2,100 rpm, propelling the car to 155 mph (electronically limited). Two transmissions will be offered: an all-new compact 6-speed manual gearbox, developed by Volvo Cars, and a 5-speed Geartonic semiautomatic, which allows full automatic or manual gear selection.

Equally up to the task of bringing all of this fun to a safe stop are the four-piston Brembo brakes with aluminum calipers to help reduce heat buildup. Anti-lock brakes, traction control and Volvo’s Dynamic Stability Control System (DSTC) are all standard on the S60R.

The Volvo S60R will debut at the Paris Motor Show on September 26, 2002. A wagon version, the Volvo V70R based on the same technology, will be unveiled at the same time.

In Detail

engineTurbocharged Inline-5
positionFront Transverse
aspirationTurbocharged
valvetrainDOHC, 4 Valves per Cyl
displacement2435 cc / 148.6 in³
power223.7 kw / 300 bhp
specific output123.2 bhp per litre
torque399.97 nm / 295.0 ft lbs @ 2100 rpm
driven wheelsHaldex 4WD
front tires235/45R-18
rear tires235/40R-18
front brakesBrembro Discs w/4-Pot calipers, ABS, DSTC
f brake sizex 330 mm / x 13.0 in
rear brakesBrembro Discs w/4-Pot calipers, ABS, DSTC
r brake sizex 330 mm / x 13.0 in
transmission6-Speed Manual
gear ratios:1
top speed~249.4 kph / 155.0 mph
0 – 60 mph~5.7 seconds

Story by Volvo, Edited by Supercars.net
