2007 Honda Civic Type-R

2007 Honda Civic Type-R

2007 Honda Civic Type-R

29 August 2006- Honda will reveal production versions of the new CR-V compact SUV and the high performance Civic Type R, on its biggest ever stand at the Paris Motor Show in September.

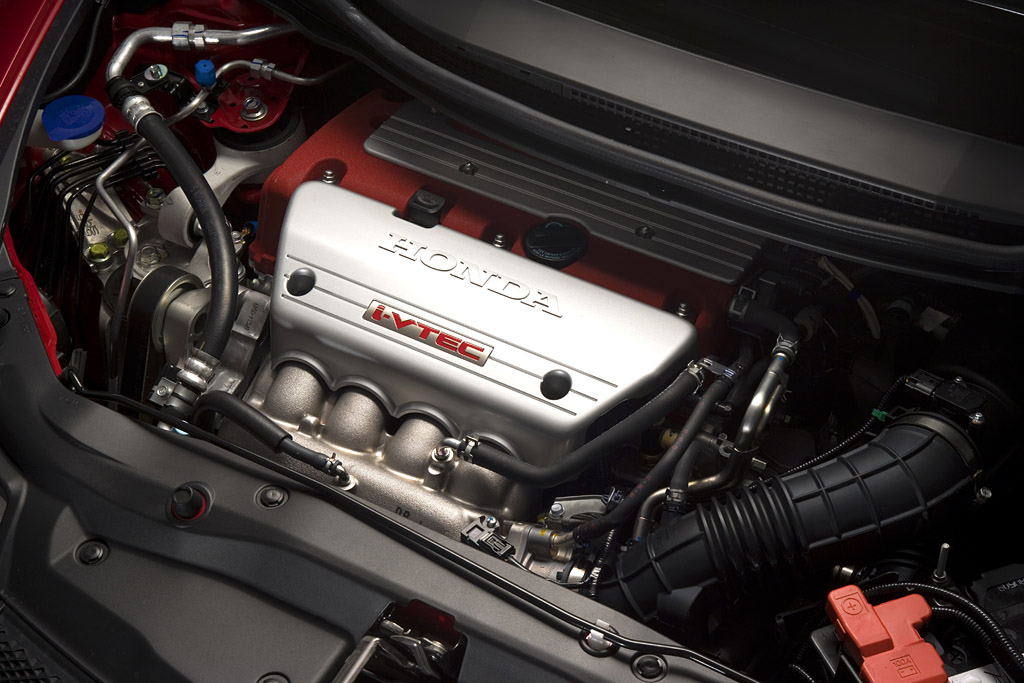

The new Type R continues to be powered by the naturally-aspirated, high-revving 2.0-litre DOHC i-VTEC engine but the unit has been significantly reworked to improve responsiveness using a new balancer shaft and drive-by-wire throttle control. VTEC variable valve timing and VTC variable inlet camshaft technology continue to underpin the engine structure.

Further development of the Type R unit means more useable torque, as the switch to high-lift, long duration valve timing (the cam change) now takes place at a lower 5,200rpm, and continues all the way to 8,000rpm. So that screaming, high rpm VTEC range is broader and more accessible.

Maximum power is now 201PS, reached at 8,000rpm (previously 200PS at 7,400rpm) and the car is more responsive generally, while improved aerodynamics ensure the new car cuts through the air more cleanly. Slightly lower gearing compensates for a small increase in kerb weight.

Acceleration figures are expected to be virtually identical to the 6.6-second 0-62mph time of the outgoing car – and the new car should match its top speed too, powering on to 146mph.

Building on the Civic Type S suspension, which is fine-tuned for sharper chassis dynamics, the Type R takes those modifications to the next level. Like the Type S, its rear track is 20mm wider than that of the 5-door model, but otherwise damper, bush and spring characteristics are all unique to Type R.

Broad 225/40 ZR18 tyres provide added grip, while a 15mm reduction in ride height further reduces body roll. Firmer steering, a quicker ratio and stiffer steering box mountings all provide pin-sharp responses to steering wheel input, while the fuel tank’s central location beneath the cabin floor helps to lower the centre of gravity and reduces the body’s inertia moment.

The Type R also builds on the Civic’s body structure and that rigidity plays a key role in the responsive chassis dynamics.
Extra strengthening has been introduced into the floor cross member just ahead of the central fuel tank, around the upper front suspension mountings, while the lower cross member (just ahead of the engine bay) provides greater rigidity. The overall result is a more predictable chassis, with levels of responsiveness and stability that are some of the best in class. At the same time, the damper settings deliver enhanced ride comfort, so the Type R is easier to use in all conditions and on all surfaces.

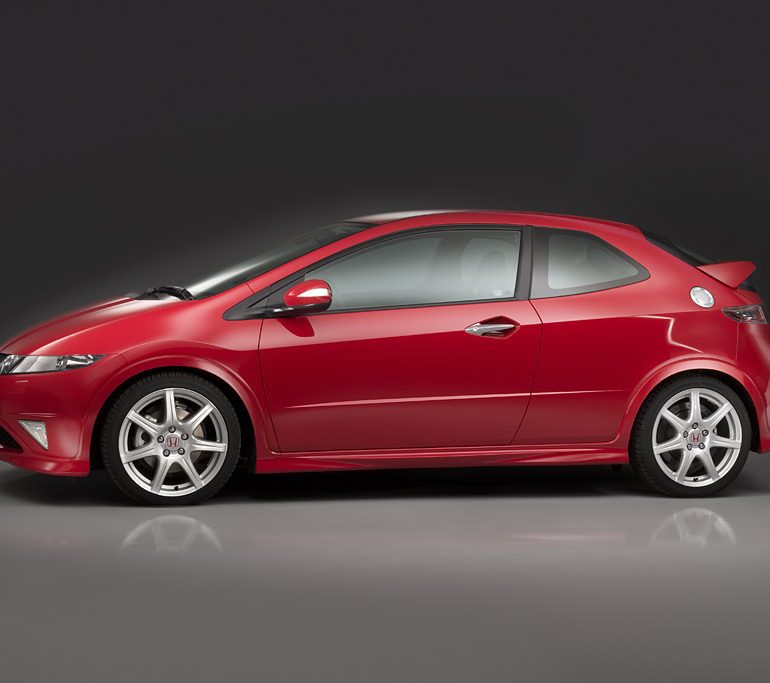

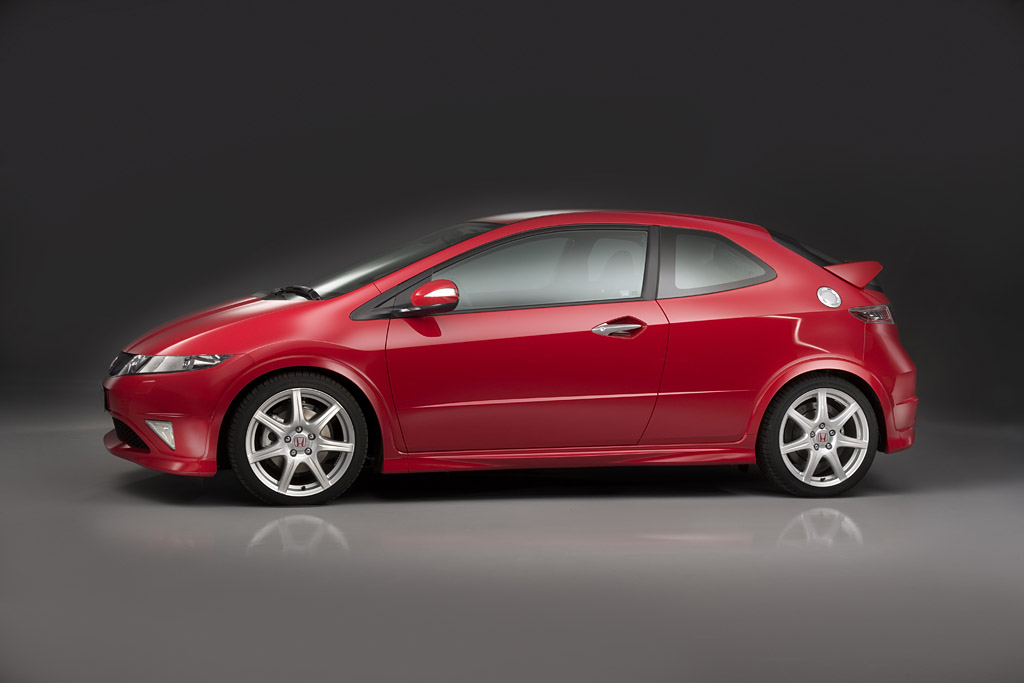

While the styling of previous Civic Type Rs has almost been an after-thought, the latest car enhances the already-bold appearance of the Civic to build an incredibly assertive look. Seven-spoke 18-inch alloy wheels are fitted as standard and these tuck neatly under the body coloured arches.

The deep front spoiler incorporates a larger air intake to channel air to the induction system, as well as triangular foglamps. There’s no missing the distinct body-coloured tailgate rear spoiler, which follows the kick-up line from the rear quarter windows, and provides added down-force. At the front, a black honeycomb mesh grille replaces the glass panel of other Civics, sporting the infamous red badge.

While more discreet than on the outgoing car, Type R logos feature throughout. Firstly, the front brake callipers wear the insignia, and stainless steel inserts on the door sills also carry the badge.

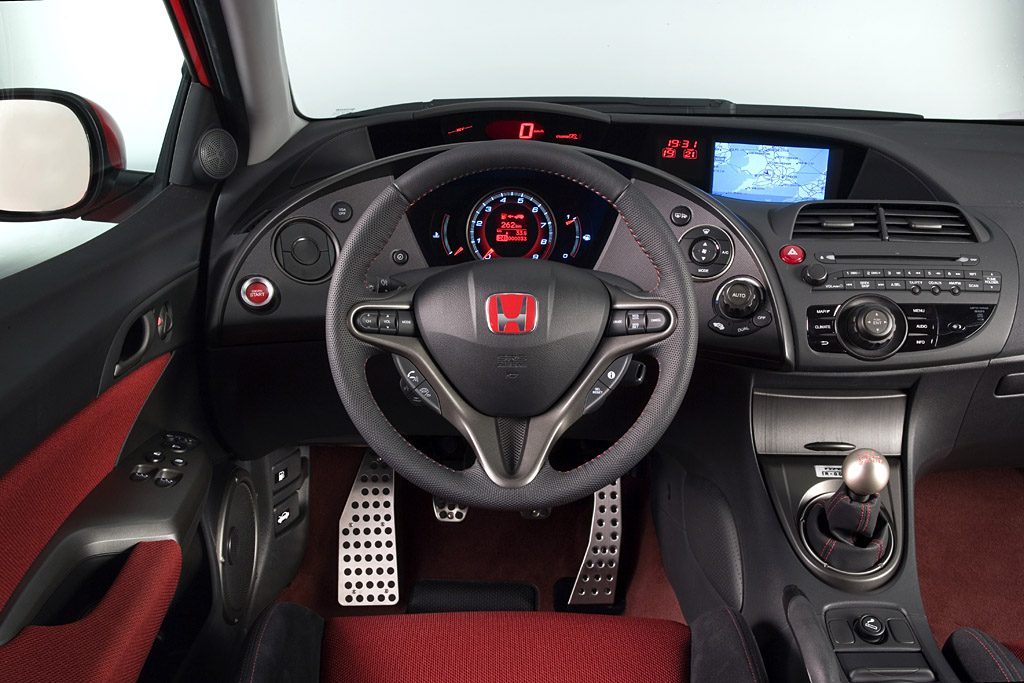

Inside, it’s all about the driving experience. Front seats are racing-style buckets with large black Alcantara bolsters and red stitching, red fabric seat cushions and backs. The seat bench in the back repeats the same colour combination.

The effective Dual Zone, two tier dash common to other Civic models also features in the latest Type R, but with red illuminated dials set off by gun-metal effect switch panels on either side of the central display. The driver grips a black, leather-covered steering wheel with red stitching and central logo, while the gear shift knob with aluminium-finish has a black boot with red stitching.

And, to make each Type R even more exclusive, a plaque engraved with the car’s unique serial number is placed just ahead of the gear lever.

Also available will be a fully-equipped GT version, with additional features such as cruise control, dual zone air conditioning, fog lights, automatic lights and wipers and curtain SRS bags. A voice-activated, state-of-the-art navigation system is offered as an option.

The hotly-anticipated Honda Civic Type R goes on sale in March 2007.

In Detail

submitted by Richard Owen
engine Inline-4
position Front Longitudinal
valvetrain DOHC, 4 Valves per Cylinder i-VTEC
power 149.1 kw / 200 bhp @ 8000 rpm
body / frame Unit Steel
driven wheels FWD
f brake size mm / in
r brake size mm / in
f suspension 25/40 ZR18
r suspension 25/40 ZR18
gear ratios :1
top speed ~235.0 kph / 146 mph
0 – 60 mph ~6.5 seconds
