2007 Pratt & Miller C6RS


2007 Pratt & Miller C6RS

2007 Pratt & Miller C6RS

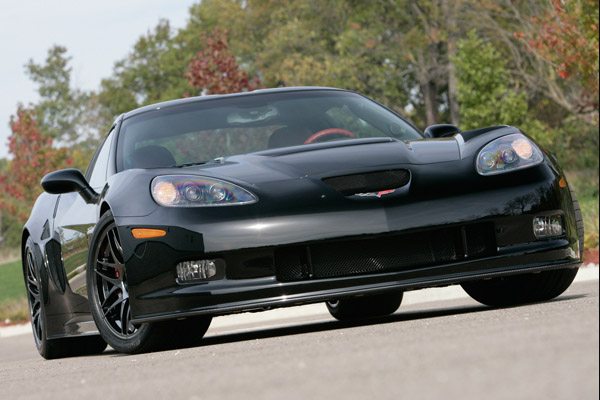

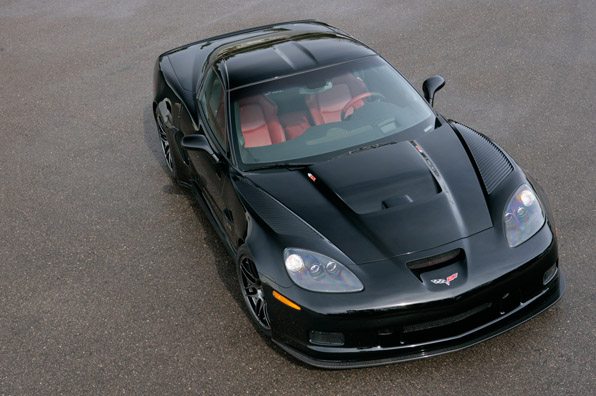

Conceived, designed, developed and constructed by the championship-winning Pratt & Miller team, the Corvette C6RS bristles with sophisticated materials and race-inspired technology. Pratt & Miller can take your Corvette C6, Z06, coupe, or convertible and transform it into a C6RS supercar. The aggressively styled lightweight body, made entirely of carbon fiber, measures 1.6 inches wider than a production Corvette Z06. The carbon fiber front fascia has integrated brake ducts and ram air induction. Aerodynamic enhancements include functional front fender louvers, a carbon fiber underwing and rear diffuser, enlarged front wheel vents and rear brake ducts, an integrated rear spoiler, and a front splitter.

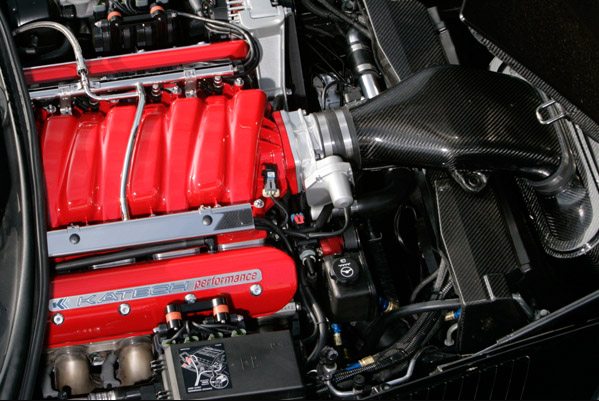

Powered by a Katech Performance 8.2-liter (500ci) all-aluminum small-block V-8 engine that produces 600 horsepower and 600 lb.-ft. torque, the Pratt & Miller Corvette C6RS employs a purpose-built carbon fiber body to reduce weight and improve aerodynamic efficiency. A computer-controlled adjustable suspension system, center-nut forged aluminum BBS wheels with Michelin tires, and massive Brembo monobloc disc brakes enhance vehicle dynamics. A two-tone leather interior and a comprehensive sound control system produce a quiet, comfortable environment for driver and passenger.

-All carbon fiber body – 1.6” wider than production Z06 front and rear
-1.5 inch C6.R style carbon fiber underwing
-Carbon front fascia with integrated brake ducts and ram air induction
-Ram air engine induction
-Front fender louvers – Functional C6.R style carbon fiber
-Carbon fiber front and rear inner fender liner
-Waterfall hood – C6.R style carbon fiber
-Enlarged front wheel vent
-Enlarged rear brake duct
-C6.R style carbon fiber rocker treatment with extended splitter
-Integrated rear spoiler
-Carbon fiber rear fascia with integrated 3rd brake light and L.E.D. reverse light
-Carbon fiber rear diffuser
-C6.R L.E.D. high output taillights
-Exclusive BBS center nut forged aluminum wheel with safety locking device
-Black chrome wheel finish
-Wheel size 18×11” front, 19×13.6” rear
-C6RS Pratt & Miller Badging – sides and rear
-Katech 8.2L Badging – 2 on hood

Interior

-Dynamat full vehicle sound deadening package
-French seamed leather wrapped IP, door and kick panels
-Two tone leather wrapped steering wheel
-Leather wrapped center console lid, shifter and e-brake
-Embroidered luxury tight knit loop floor mats
-Two tone leather bolstered, high lateral support seats
-Leather accented center nut torque wrench kit
-C6RS accented door sill plates
-C6RS logo embroidery on dash, seats and floor mats

Powertrain

-8.2 Liter Katech Performance 600 hp engine w/600 ft lb of torque*
-Side mounted coils
-Carbon fiber ram air induction with K&N filter
-Blue printed T-56 six speed transmission
-Center force high torque twin disk clutch with aluminum flywheel
-Dewitt high capacity aluminum radiator with dual cooling fans
-Corsa cat-back performance exhaust system
-Integrated oil – water heat exchanger
-Carbon radiator shroud
-High performance BMRS hoses and fittings

Suspension & Braking

-Arvin Meritor Dynamic Height Control suspension
-Pratt & Miller tuned dampening
-1.5” lower ride height than production Z06
-Park, drive and entry level ride height adjustment
-Combined air spring and composite leaf spring
-Brembo mono-block Grand Tourismo Brake package
-6 piston monobloc front, 4 piston mono-block rear
-14” front disk, 13.5” rear disk, aluminum hat floating disk
-Integrated rear parking brake
-Carbon fiber ram air dual outlet front brake ducts
-AP600 High temp brake fluid

-Pratt & Miller heavy duty single nut wheel hub & bearings

Story by Pratt & Miller

In Detail

submitted byRichard Owen
typeProfessionally Tuned Car
built atMichigan, USA
production6
price $$ 256,000
engineKatech V8 w/CF Intake Plenium,
positionFront Longitudinal
valvetrainOHV, 2 Valves w/Cyl
displacement5970 cc / 364.3 in³
bore101.6 mm / 4.0 in
stroke92 mm / 3.62 in
power447.4 kw / 600 bhp @ 5800 rpm
specific output100.5 bhp per litre
bhp/weight416.67 bhp per tonne
torque813.5 nm / 600 ft lbs @ 4600 rpm
body / frameCarbon Fibre Body over Hydroformed Steel Frame w/Aluminum & Magnesium Structural Components
driven wheelsRWD w/Electronic Traction Control
wheel typeBBS center nut forged aluminum
front brakesBrembro 6-Piston Calipers
rear brakesBrembro 64-Piston Calipers
front wheelsF 45.7 x 27.9 cm / 18 x 11 in
rear wheelsR 48.3 x 34.5 cm / 19 x 13.6 in
steeringRack & Pinion w/Speed Sensitive Power Assist
f suspensionArvin Meritor Dynamic Height Control w/Pratt & Miller tuned dampening
r suspensionArvin Meritor Dynamic Height Control w/Pratt & Miller tuned dampening
curb weight1440 kg / 3175 lbs
wheelbase2686 mm / 105.7 in
front track1577 mm / 62.1 in
rear track1542 mm / 60.7 in
length4435 mm / 174.6 in
width1844 mm / 72.6 in
height1246 mm / 49.1 in
transmissionT-56 six speed transmission
tran clutchCenterforce Dual-Friction Clutch
gear ratios2.97:1, 2.07:1, 1.43:1, 1.00:1, 0.71:1, 0.57:1
final drive3.42:1
top speed~289.7 kph / 180.0 mph
