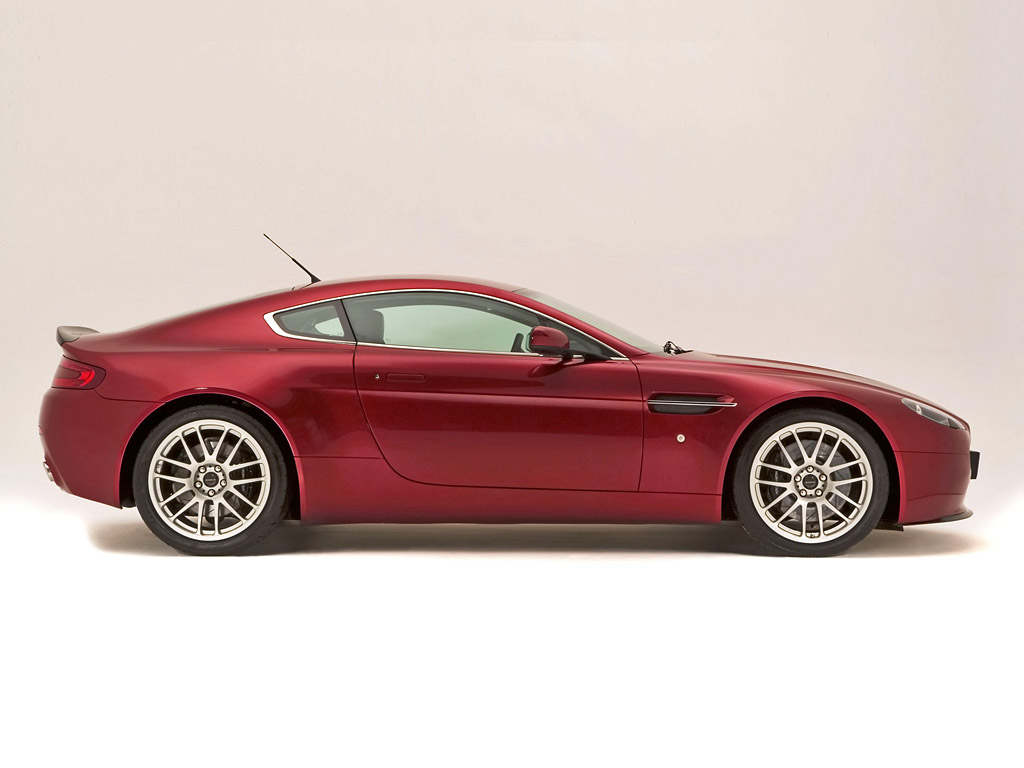

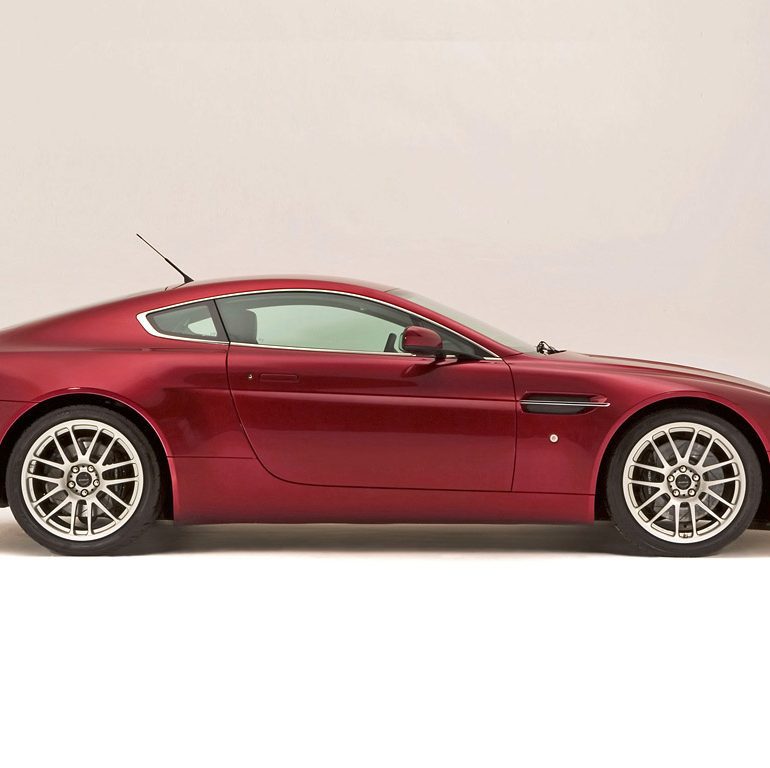

2007 Prodrive V8 Vantage
Prodrive has launched a range of parts for the Aston Martin V8 Vantage, which improves the car?s performance and enhances its driving dynamics. The range includes: a performance pack for the engine; new driver-adjustable suspension; unique forged wheels; and a discreet aero package.
Prodrive has tuned the 4.3 litre V8 engine to raise peak power from 283 kW (380 bhp) to 317 kW (425 bhp), as well as increasing peak torque from 410 Nm (302 lbft) to 440 Nm (325 lbft). This reduces the car’s 0-100 km/h time from 5.0 secs to 4.7 secs (est) and increases the top speed by 13 km/h to 293 km/h (est). A new throttle map, combined with the increase in torque, also make the engine more responsive throughout the rev range.
Prodrive has worked with suspension specialists, Bilstein and Eibach, to develop new driver-adjustable suspension. A switch in the cockpit allows the driver to choose between normal and sports mode. The normal mode has been designed to enhance the V8 Vantage’s existing ride and handling characteristics, while the firmer sports mode delivers an even more focussed driving experience on the road or for track use.
The engine performance pack has a modified exhaust system with a low back pressure sports catalyst and a driver-controlled switch to manually override the V8 Vantage’s exhaust valve. This gives the option of a quiet mode, where the valve is permanently closed; auto, where the valve operates as it does on the standard car; and sport mode, where the valve is permanently open (where conditions allow).
The V8 Vantage’s aerodynamics have been analysed in the windtunnel to develop an aero package to reduce high speed lift. The result is discreet Prodrive designed and manufactured carbon composite front lip and trunk spoilers, which are in keeping with the Vantage’s classic styling. Together, these reduce lift by 45 per cent, improving both high speed stability and grip.
Prodrive runs the Aston Martin Racing team in partnership with Aston Martin. It has used its experience of designing and developing DB9 and V8 Vantage-based race and rally cars to help create this range of performance enhancements for the road car. It has also carried through the unique design of the wheels used on the Aston Martin DBR9 GT1 racing car to special 14 spoke 19” forged wheels made by Prodrive Japan for the V8 Vantage. These come complete with Pirelli P-Zero tyres, which have been selected to match the new suspension and optimise the ride and handling.
”The V8 Vantage is already one of the world’s best sports cars,” said Roland Cherry, Prodrive performance products director. ?Our aim was to develop a range of parts which enhanced the car’s performance but, most importantly, did not compromise the inherent Aston Martin driving characteristics or styling. I think we have achieved this with a range of parts owners can specify as a package or individually.”
Story by Prodrive
|submitted by||Richard Owen|
|price $||$ 101 552 GBP|
|engine||V8 w/Dry Sump Lubrication|
|valvetrain||4 Valves per Cyl w/Variable Inlet Camshaft Timing|
|displacement||4280 cc / 261.2 in³|
|bore||89 mm / 3.5 in|
|stroke||86 mm / 3.39 in|
|power||316.9 kw / 425 bhp @ 7500 rpm|
|specific output||99.3 bhp per litre|
|bhp/weight||270.7 bhp per tonne|
|torque||440.64 nm / 325 ft lbs @ 5400 rpm|
|body / frame||Aluminium Alloy, Steel, Composite & Magnesium Alloy Body over Bonded Aluminium Structure|
|driven wheels||RWD w/Traction Control|
|front tires||235/45 ZR18 Bridgestone Potenza|
|rear tires||275/40 ZR18 Bridgestone Potenza|
|front brakes||Ventilated & Grooved Discs w/4-Piston Brembro Calipers|
|f brake size||x 355 mm / x 14.0 in|
|rear brakes||Ventilated & Grooved Discs w/4-Piston Brembro Calipers|
|r brake size||x 330 mm / x 13.0 in|
|front wheels||F 45.7 x 21.6 cm / 18 x 8.5 in|
|rear wheels||R 45.7 x 24.1 cm / 18 x 9.5 in|
|steering||Rack & Pinion w/Power Assist|
|f suspension||Double Aluminium Wishbones w/Eibach Coils Over Bilstein Dampers, Anti-Roll Bar|
|r suspension||Double Aluminium Wishbones w/Eibach Coils Over Bilstein Dampers, Anti-Roll Bar|
|curb weight||1570 kg / 3461 lbs|
|wheelbase||2600 mm / 102.4 in|
|front track||1568 mm / 61.7 in|
|rear track||1562 mm / 61.5 in|
|length||4683 mm / 184.4 in|
|width||1866 mm / 73.5 in|
|height||1255 mm / 49.4 in|
|transmission||Mid-Mounted 6-Speed Graziano Manual Gearbox|
|gear ratios||3.154:1, 1.974:1, 1.435:1, 1.148:1, 0.935:1, 0.775:1, :1|
|top speed||~292.9 kph / 182 mph|
|0 – 60 mph||~4.7 seconds|
