2009 Porsche 911 Carrera 4S Coupé

Introducing a wide range of new highlights in technology, Porsche is raising the sportiness, efficiency and environmental compatibility of the classic rear-engined 911 to an even higher level than before. The all-new power units in the 911 Carrera models with their 3.6-litre and the 911 Carrera S versions with their 3.8-litre power units come with direct gasoline injection and are even available as an option with Porsche’s new double-clutch transmission (PDK).

The flat-six power units featuring direct fuel injection develop 345 bhp (254 kW), that is 20 bhp more than before, in the 3.6-litre version. Output of the 3.8-litre power unit in the S-models is up by 30 to 385 bhp (283 kW), pushing the extra-powerful S-version beyond the magic speed barrier of 300 km/h or 186 mph.

2009_Porsche_911Carrera4SCoup1

Despite this supreme power and performance, the new models in the 911 range once again boast a significant reduction of fuel consumption, the 911 Carrera Coupé with manual gearbox making do with an average of just 10.3 litres/100 km (equal to 27.4 mpg imp), the PDK version offering even greater fuel economy with average fuel consumption of just 9.8 litres/100 km, equal to 28.8 mpg imp (combined overall fuel consumption to the EU5 standard).

First Porsche double-clutch

The new Carrera models are Porsche’s first sports cars for the road to feature the Porsche double-clutch transmission (PDK). Having introduced the PDK transmission in motorsport more than 20 years ago, Porsche has been acknowledged ever since as the pioneer of this outstanding technology.

The double-clutch transmission in Porsche’s new sports cars comes with seven gears shifting electrohydraulically without the slightest interruption of traction, power and pulling force. Hence, the brand-new transmission combines the benefits of a manual gearbox with those of an automatic transmission, ensuring the outstanding dynamic performance of a thoroughbred sports car together with superior gearshift comfort and fuel economy.

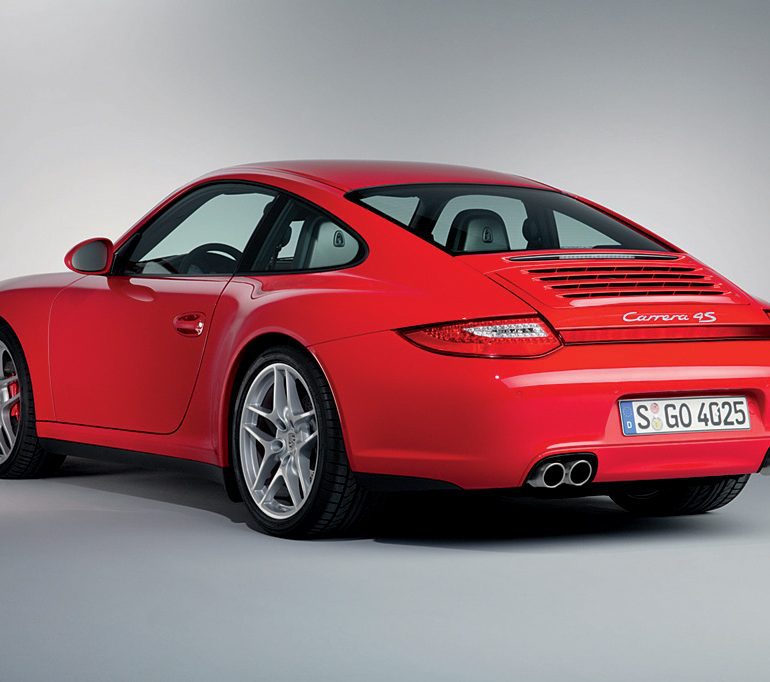

2009_Porsche_911Carrera4SCoup2

New PASM sports suspension

Featured as standard on the Carrera S models and available as an option on the “basic” versions, Porsche Active Suspension Management or PASM for short has been further refined for the new model generation, giving the new 911 even greater smoothness combined with the same dynamic performance and response as before.

The new sports suspension available as an option lowering the entire vehicle by 20 millimetres or 0.79” is now based on this active suspension technology, improving performance in both sports motoring and everyday use.

Larger brakes and upgraded PSM

The new 911 Carrera features upgraded, high-performance brakes ensuring superior stopping power and short stopping distances under all conditions. The brake discs now measure 330 millimetres or 12.99” all round and come on the 3.6-litre models with new brake callipers.

PSM Porsche Stability Management now also comprises the Brake Pre-Filling and Brake Assistant functions previously available only on the Carrera 4 and the Turbo to ensure even faster and more powerful brake response whenever required.

2009_Porsche_911Carrera4SCoup3

Story by Dr. Ing. h.c. F. Porsche AG.

In Detail

type Series Production Car
built at Stuttgart, Germany
engine Flat-6 w/Dry Sump Lubrication
position Rear, Longitudinal
aspiration Natural
block material Aluminum Block & Cylinder Heads
valvetrain DOHC, 4 Valves per Cyl w/Variable Valve Timing (VarioCam Plus), Hydraulic Valve Play Compensation
fuel feed Direct Fuel Injection (DFI)
displacement 3800 cc / 231.89 in³
bore 102.1 mm / 4.02 in
stroke 77.5 mm / 3.05 in
compression 12.5:1
power 287.1 kw / 385 bhp @ 6500 rpm
specific output 101.32 bhp per litre
bhp/weight 259.89 bhp per tonne
torque 420.3 nm / 310 ft lbs @ 4400 rpm
redline 7500
body / frame Unitary Steel Monocoque
driven wheels AWD w/
front tires 235/35 ZR 19
rear tires 305/30 ZR 19
front brakes Inner-Ventilated & Cross Drilled Discs w/4-Piston Aluminum Monobloc Calipers
f brake size 34 x 330.2 mm / 1.34 x 13 in
rear brakes Inner-Ventilated & Cross Drilled Discs w/4-Piston Aluminum Monobloc Calipers
r brake size 27.9 x 330.2 mm / 1.1 x 13 in
front wheels F 48.3 x 20.3 cm / 19 x 8 in
rear wheels R 48.3 x 27.9 cm / 19 x 11 in
f suspension McPherson Struts w/Longitudinal Arms, Active Dampers
r suspension Multi-Link w/Coil Springs, Active Dampers
curb weight 1481.4 kg / 3263 lbs
wheelbase 2350 mm / 92.5 in
front track 1488 mm / 58.6 in
rear track 1548 mm / 60.9 in
length 4435 mm / 174.6 in
width 1852 mm / 72.9 in
height 1300 mm / 51.2 in
transmission 6-Speed PDK Automatic
tran clutch Dual-Clutch
gear ratios 3.91:1, 2.29:1, 1.65:1, 1.3:1, 1.08:1, 0.88:1
top speed ~297 kph / 184.4 mph
0 – 60 mph ~4.6 seconds
drag 0.29 Cd
fuel econ epa 10.6 L/100 km or 22.2 mpg-us
city fuel econ epa 15.9 L/100 km or 18 mpg-us
hwy fuel econ epa 7.4 L/100 km or 26 mpg-us
fuel capacity 67 litres or 17.69 gal.
