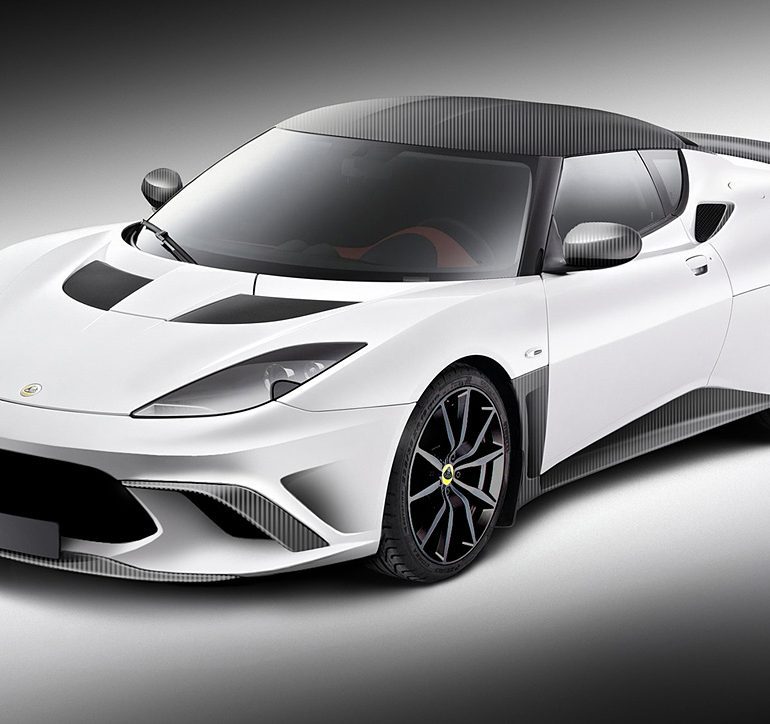

2011 Mansory Evora
Let’s be clear on this: contrary to media reports, what you’ll see in Geneva is NOT an Evora facelift. It’s a taste of the future of Lotus product customisation. Merely the first toe in the water and a showcase of the potential future.
In Detail
| type | Series Production Car |
| released at | 2011 Geneva Motor Show |
| built at | Hethel, England |
| body stylist | sel Carr |
| engine | Toyota 2GR-FE V6 |
| position | Mid, Transverse |
| block material | Aluminum Alloy |
| valvetrain | Chain-Driven DOHC, 4 Valves per Cyl w/dual VVTi |
| fuel feed | Electronic Injection |
| displacement | 3456 cc / 210.90 in³ |
| bore | 94 mm / 3.7 in |
| stroke | 83 mm / 3.27 in |
| compression | 10.8:1 |
| power | 205.8 kw / 276 bhp @ 6400 rpm |
| specific output | 79.86 bhp per litre |
| bhp/weight | 199.71 bhp per tonne |
| torque | 342 nm / 252.2 ft lbs @ 4700 rpm |
| redline | 7000 |
| body / frame | Plastic Body over Bonded & Extruded Aluminium Chassis w/Front and Rear Aluminum Subframes |
| driven wheels | RWD w/TCS |
| wheel type | Forged Aluminium Alloy |
| front tires | 225/40 ZR18 Yokohama |
| rear tires | 255/35 ZR19 Yokohama |
| front brakes | Vented & Drilled Discs w/Lotus AP Racing 4-Piston Calipers |
| f brake size | 33 x 350 mm / 1.3 x 13.8 in |
| rear brakes | Vented & Drilled Discs w/Lotus AP Racing 4-Piston Calipers |
| r brake size | 25 x 335.3 mm / 1.0 x 13.2 in |
| front wheels | F 45.7 x 20.3 cm / 18 x 8 in |
| rear wheels | R 48.3 x 24.1 cm / 19 x 9.5 in |
| steering | TRW Rack & Pinion w/Hydraulic Assist |
| f suspension | Forged Aluminum Wishbones w/Bilstein Dampers, Eibach Springs |
| r suspension | Forged Aluminum Wishbones w/Bilstein Dampers, Eibach Springs |
| curb weight | 1382 kg / 3047 lbs |
| weight distro | 38 % / 62 % |
| wheelbase | 2575 mm / 101.4 in |
| front track | 1567 mm / 61.7 in |
| rear track | 1574 mm / 62 in |
| length | 4340 mm / 170.9 in |
| width | 1849 mm / 72.8 in |
| height | 1221 mm / 48.1 in |
| transmission | Toyota 6-Speed Manual |
| gear ratios | 3.54:1, 1.91:1, 1.41:1, 1.09:1, 0.97:1, 0.86:1 |
| top speed | ~260.66 kph / 162 mph |
| 0 – 60 mph | ~4.9 seconds |
| 0 – 100 kph | ~5.2 seconds |
| drag | 0.337 Cd |
| city fuel econ epa | 13.07 L/100 km or 18 mpg-us |
| hwy fuel econ epa | 8.71 L/100 km or 27 mpg-us |
| fuel capacity | 60 litres or 15.84 gal. |
