2014 Mercedes-Benz C-Coupé AMG DTM

2014 Mercedes-Benz C-Coupé AMG DTM

2014 Mercedes-Benz C-Coupé AMG DTM

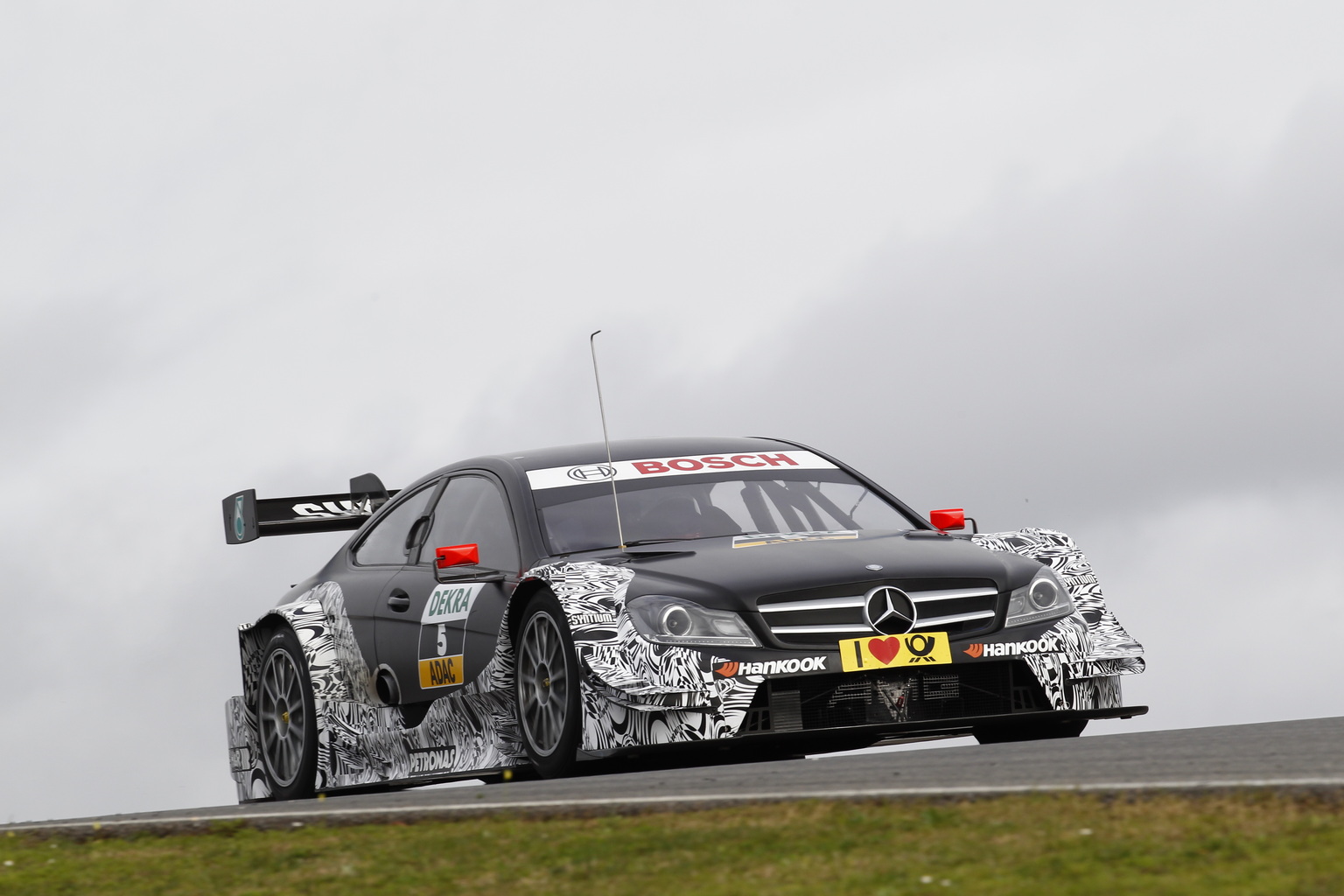

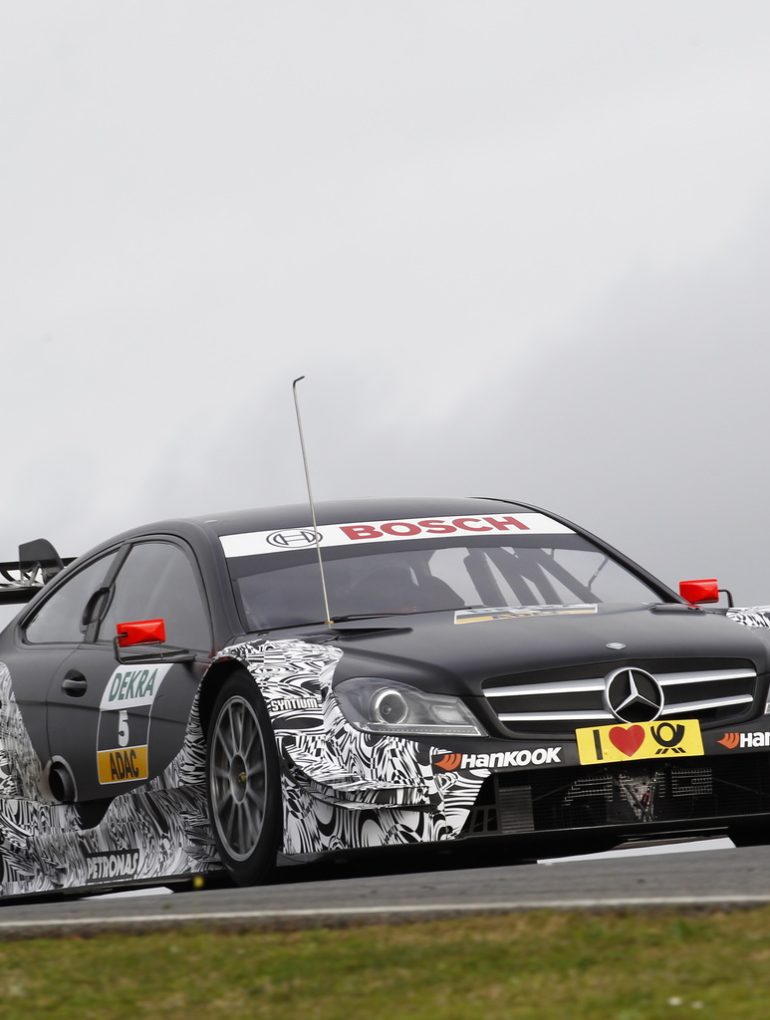

Mercedes-Benz chose the IAA International Motor Show in Frankfurt to present the new 2012 DTM AMG Mercedes C-Coupé. The new car is the successor to the AMG Mercedes C-Class, which scored 84 victories in 156 races to become the most successful vehicle in the 27-year history of the DTM. HWA AG began development, design and construction of the DTM AMG Mercedes C-Coupé in June 2010. The first chassis was assembled in June 2011, with the first vehicle completed in August.

The DTM AMG Mercedes C-Coupé was designed to meet the new and improved safety concept for 2012, which includes a state-of-the-art carbon fibre monocoque and a roll cage made of high strength steel. In order to improve driver protection in the event of an accident, all safety-related components such as the fire extinguishing system and fuel tank have been incorporated into the monocoque. Furthermore, each vehicle is equipped with six crash structures to give the driver additional protection to the front, rear and sides. These carbon fibre crash structures are designed to gradually absorb impact energy, so that the driver is not exposed to high deceleration forces.

The new safety concept was developed jointly by rights holder and promoter ITR e.V., the DMSB and the three manufacturers – Audi, BMW and Mercedes-Benz. In order to verify the performance of the DTM safety concept, the DMSB developed a test programme, which was carried out and analyzed by DEKRA, the independent testing organization. All tests were completed without any problems.

The new DTM AMG Mercedes C-Coupé is based on the latest Mercedes-Benz C-Class Coupé, which celebrated its world premiere in summer 2011. The C-Class Coupé rounds off Mercedes-Benz best-selling range and is offered with a choice of five engines – two diesel and three petrol units – developing from 115 kW (156 hp) to 225 kW (306 hp). The C-Class Coupé is manufactured at the Mercedes-Benz plant in Bremen. It’s the fourth model to be built on a single production line alongside the saloon and estate versions, plus GLK – a new production method for Daimler

In Detail

submitted by admin
type Racing Car
built at Germany
engine 90° V8
position Front, Longitudinal
aspiration Natural
displacement 4000 cc / 244.09 in³
power 372.9 kw / 500 bhp @ 7500 rpm
specific output 125.0 bhp per litre
bhp/weight 476.19 bhp per tonne
torque 500 nm / 368.8 ft lbs
body / frame Carbon Fiber Monocoque w/Steel Roll Cage
driven wheels RWD
front tires 300 / 680 R18
rear tires 310 / 710 R18
front brakes Carbon Fiber Discs
rear brakes Carbon Fiber Discs
front wheels F 45.7 x 30.5 cm / 18 x 12 in
rear wheels R 45.7 x 33.0 cm / 18 x 13 in
steering Rack & Pinion w/Power Assist
f suspension Double Wishbones w/Pushrod Inboard Spring/Damper Units
r suspension Double Wishbones w/Pushrod Inboard Spring/Damper Units
curb weight 1050 kg / 2315 lbs
wheelbase 2750 mm / 108.3 in
length 5010 mm / 197.2 in
width 1950 mm / 76.8 in
height 1210 mm / 47.6 in
transmission 6-Speed Sequential
tran clutch 3-plate Carbon Fibre
fuel capacity 120 litres or 31.68 gal.
