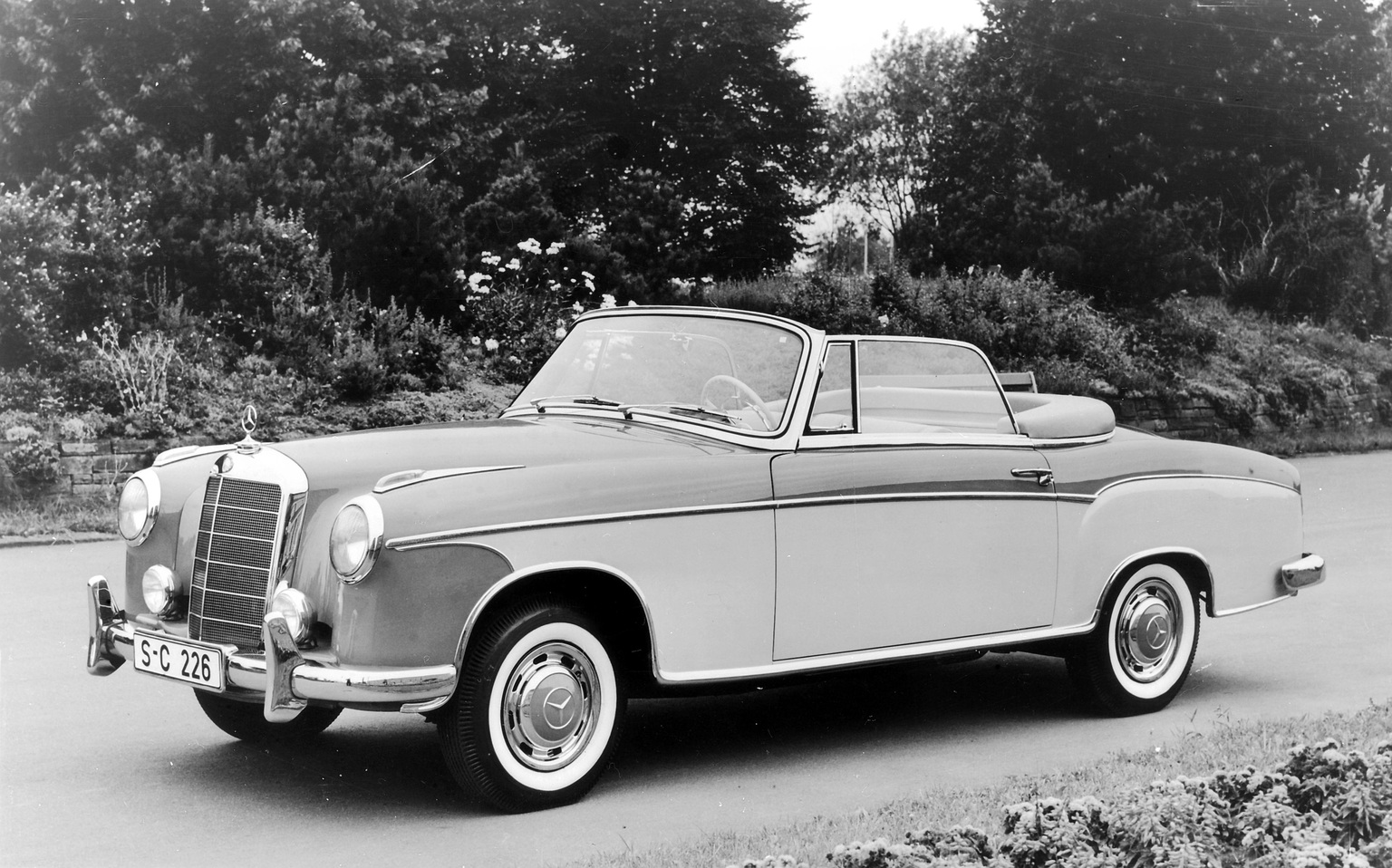

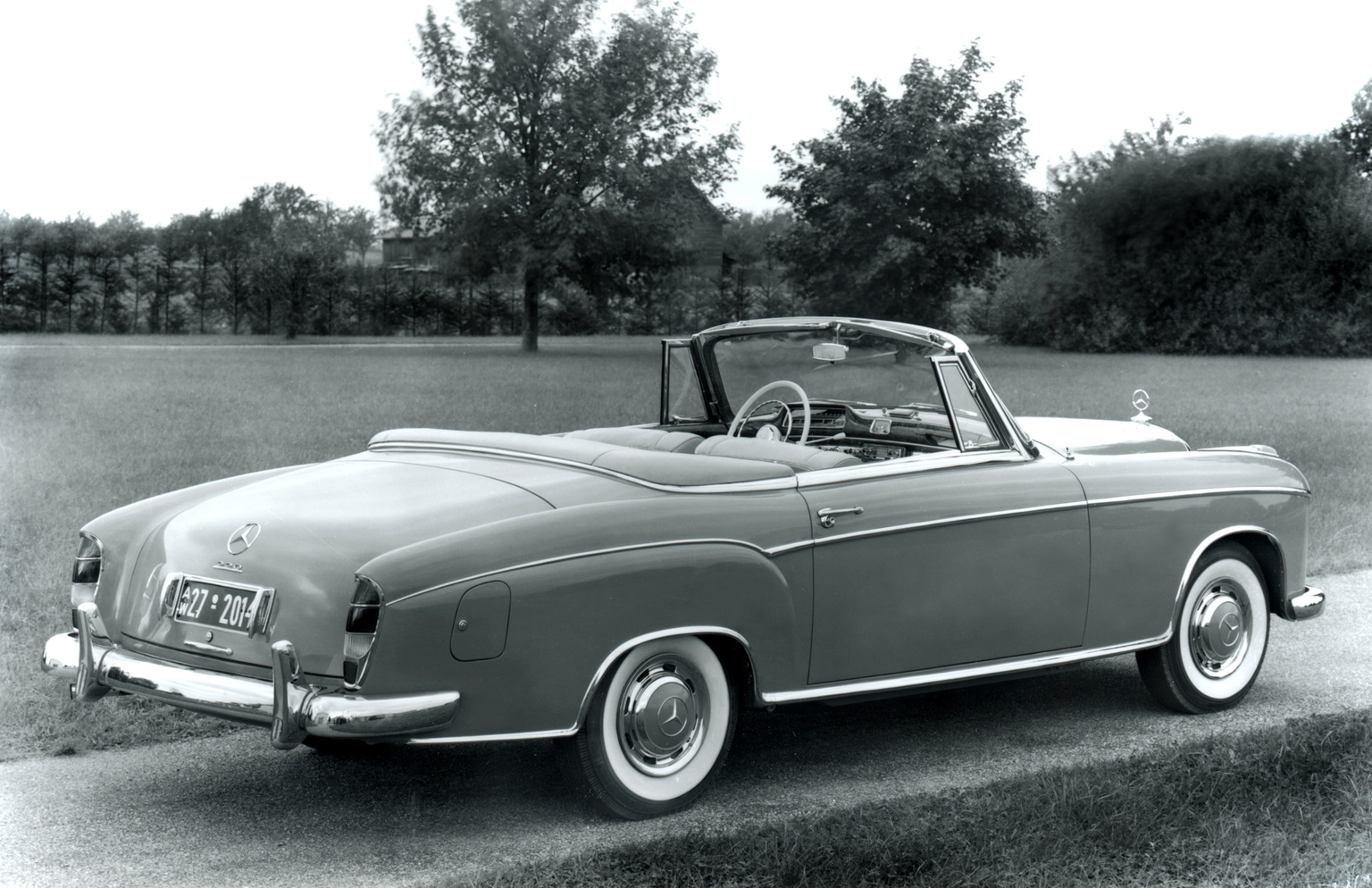

1956→1959 Mercedes-Benz 220 S Cabriolet

1956→1959 Mercedes-Benz 220 S Cabriolet

1956→1959 Mercedes-Benz 220 S Cabriolet

In 1956 Mercedes-Benz began to offer their 220 model in a lavish coupe and cabriolet that sold in much smaller numbers than the sedan they were based off.

From July 1956 until late 1959, 2,178 cabriolets were made alongside 1,251 coupes and over 55,000 sedans.

These cars used the M180.924 inline-6 engine which was one of the last to use regular carburetors over an injection system. The single carb units produced around 100 bhp while the later cars used two Solex 32s to produce 105 bhp.

All the cars used a 4-speed manual transmission, but Mercedes-Benz did offer a Hydrak automatic clutch that used switches in the column shift lever to activate.

In Detail

tags w180ii, 220s
submitted by admin
type Series Production Car
production years 1956 – 1959
built at Germany
production 2178
price $ $ 7,200
engine Inline-6
position Front, Longitudinal
aspiration Natural
valvetrain Chain-Driven SOHC
fuel feed 2 Solex 32 Carburettors
displacement 2195 cc / 133.95 in³
bore 80 mm / 3.15 in
stroke 72.8 mm / 2.87 in
compression 7.6:1
power 74.6 kw / 100 bhp @ 4800 rpm
specific output 45.56 bhp per litre
torque 161.3 nm / 119 ft lbs @ 3500 rpm
body / frame Unitary Steel Monocoque
driven wheels RWD
steering Recirculating Ball
f suspension Double Wishbones
r suspension Swing Axle w/Radius Arms
dry weight 1453 kg / 3200 lbs
wheelbase 2700 mm / 106.3 in
front track 1430 mm / 56.3 in
rear track 1470 mm / 57.9 in
length 4760 mm / 187.4 in
width 1765 mm / 69.5 in
height 1530 mm / 60.2 in
transmission 4-Speed Manual
top speed ~160 kph / 99.36 mph
fuel capacity 64 litres or 16.90 gal.


Auction Sales History

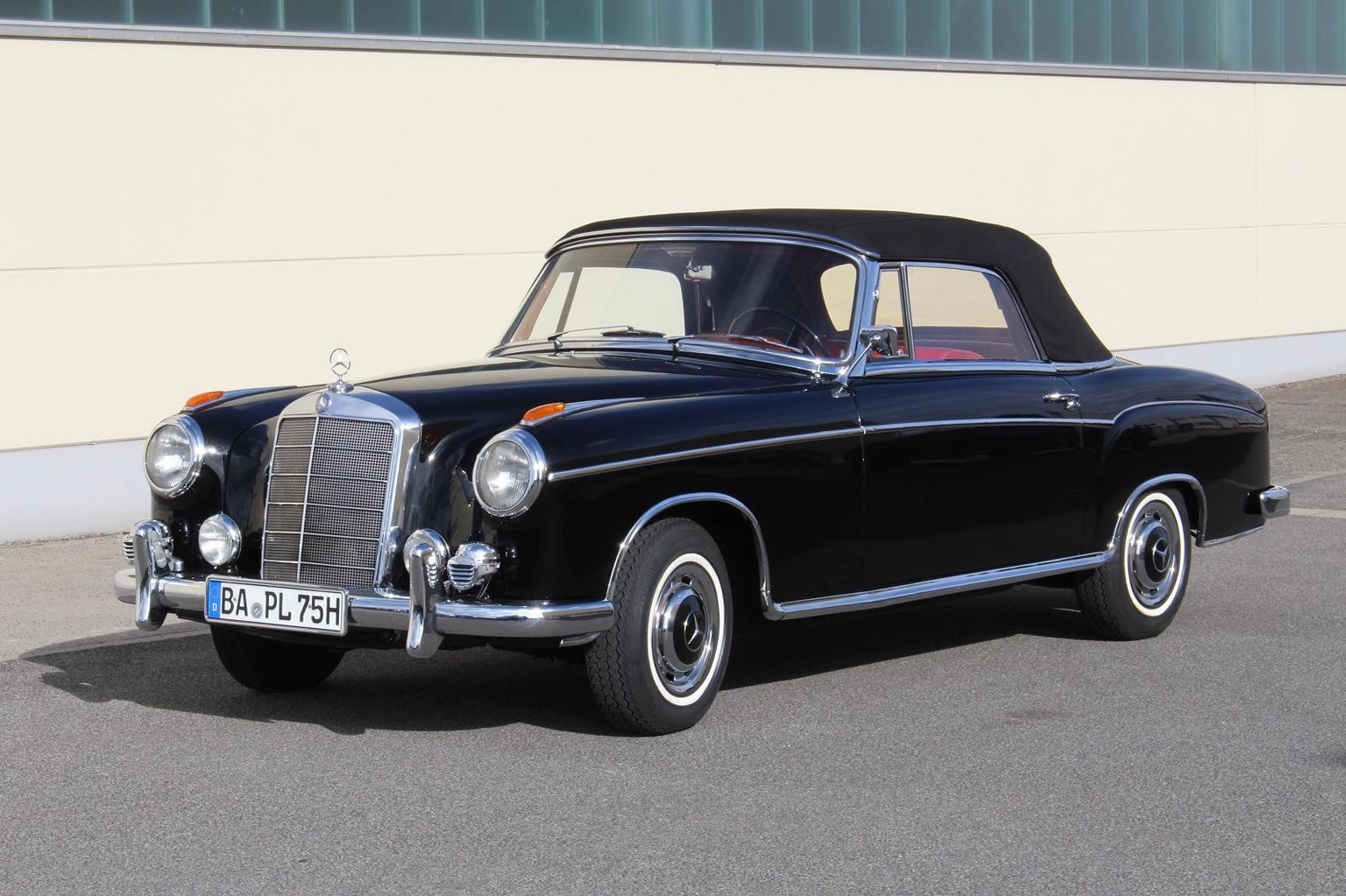

1958 Mercedes-Benz 220 S ‘Ponton’ Cabriolet 180030N8506104 – sold for €135,700
This 220 S convertible was bought new from Mercedes-Benz in Bamberg, Germany and has remained in the same family’s ownership ever since. In February 2010 the vendor took the car into his private ownership and commissioned specialists Auto Sauer of Bamberg, Germany to undertake restoration work as necessary. This included a complete re-spray in original Mercedes-Benz Black (40H), re-chroming of brightwork, renewal of the soft-top and all cabin carpets, and re-varnishing of the interior wood embellishment and dashboard. All mechanical components received attention as detailed below. Invoices totalling more than €45,000 are on file.
Auction Source: The Mercedes-Benz Sale 2015 by Bonhams

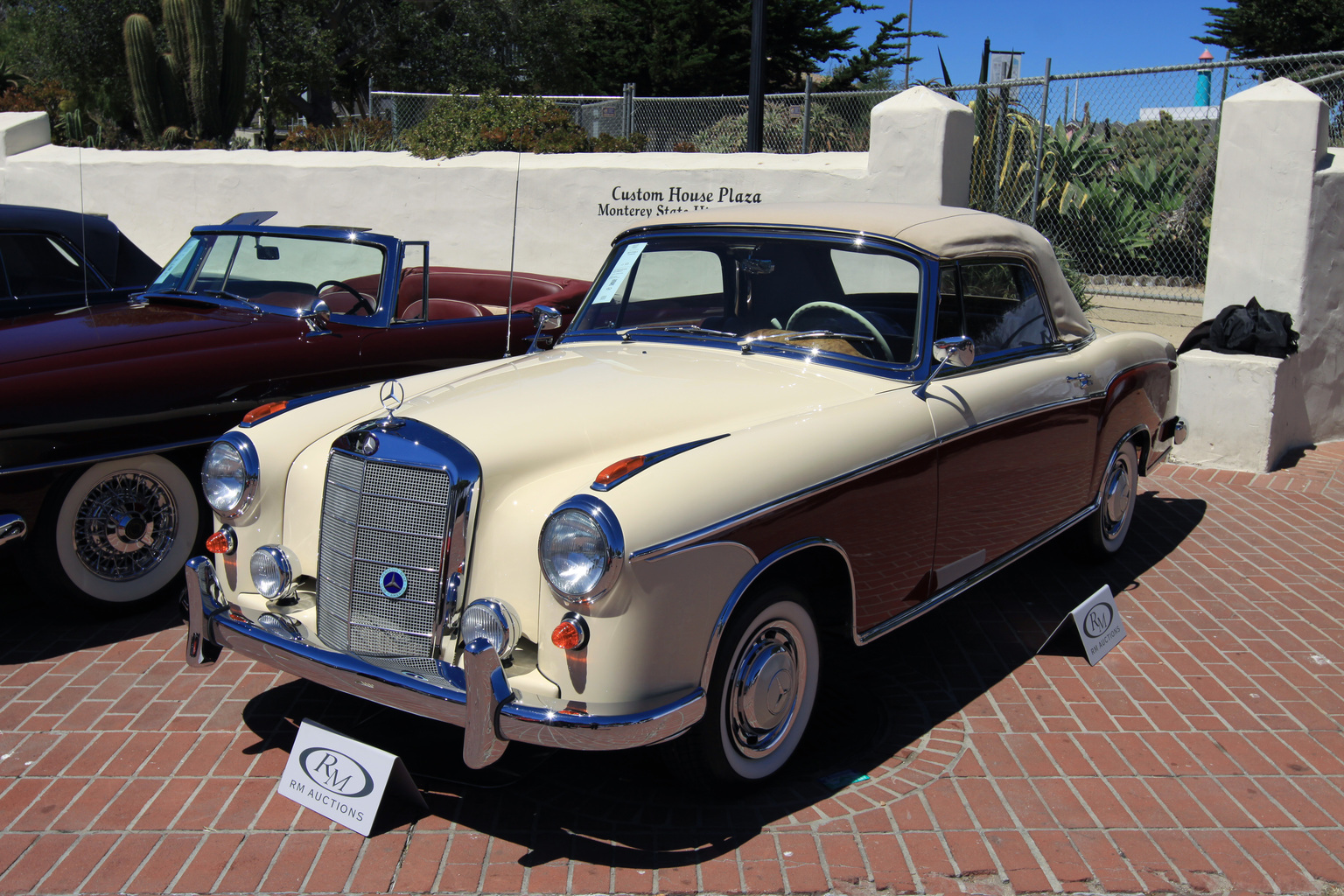

1957 Mercedes-Benz 220 S Cabriolet 180.030Z.7512620 – sold for $187,000 Limited-production example and hand built in the classic Mercedes-Benz tradition. One of just 1,066 220 S Coupes and Cabriolets produced for 1957. Finished in striking Light Ivory and Tartan Red over dark red leather. Equipped with an ivory steering wheel, front bucket seats, and whitewall tires.
Auction Source: 2014 Monterey by RM Auctions

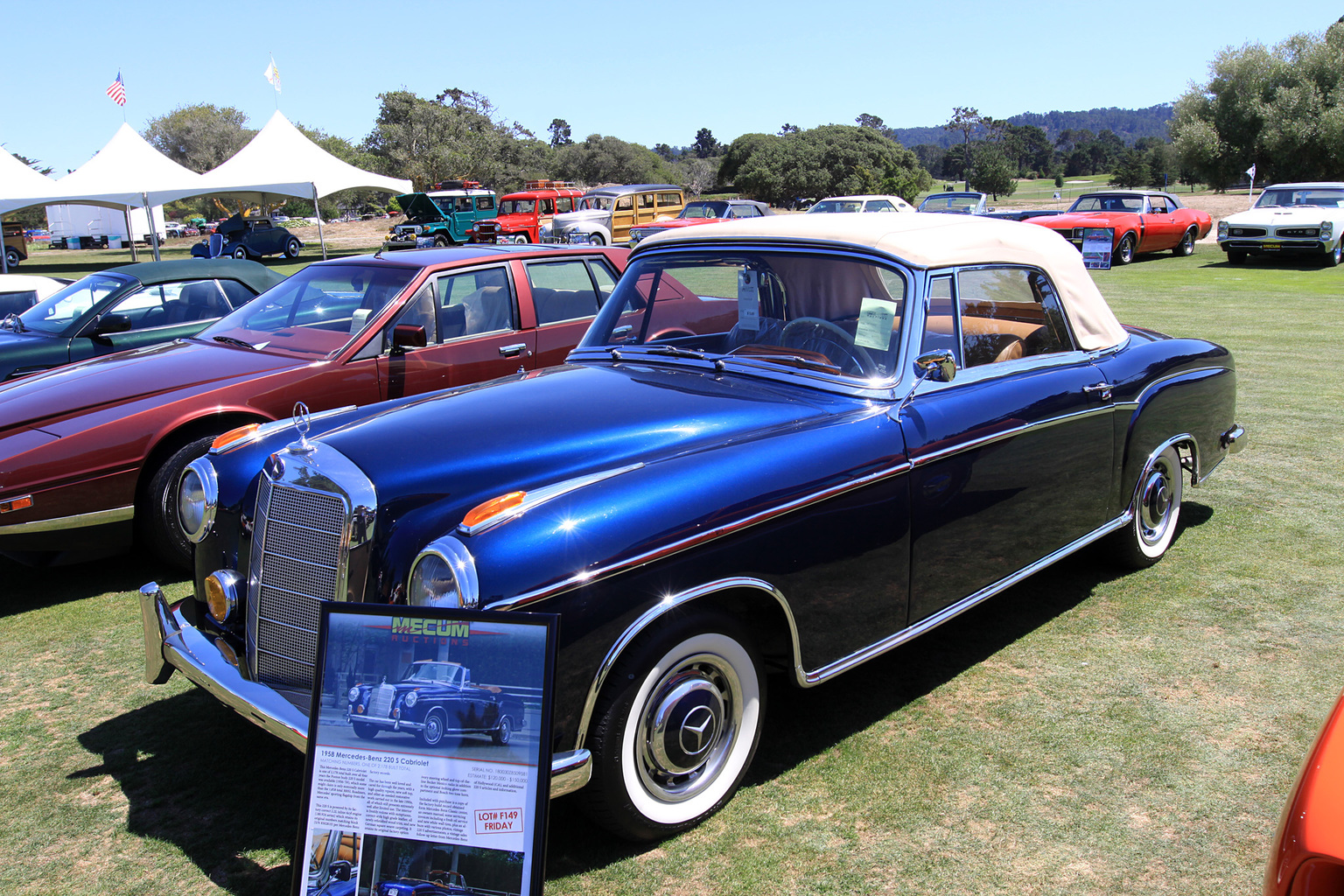

1958 Mercedes-Benz 220S Cabriolet – sold for $120,000 One of 2,178 Produced in total from 1956-59. Older Restoration Showing Excellent. Original engine. Numbers matching per factory records. New Leather and Wood Trim. Excellent Brightwork. Becker Mexico radio. Factory optional Ivory steering wheel. Fresh mechanical servicing. New whitewall tires. Copy of factory build record from Mercedes-Benz Classic Center.
Auction Source: The Daytime Auction in Monterey by Mecum

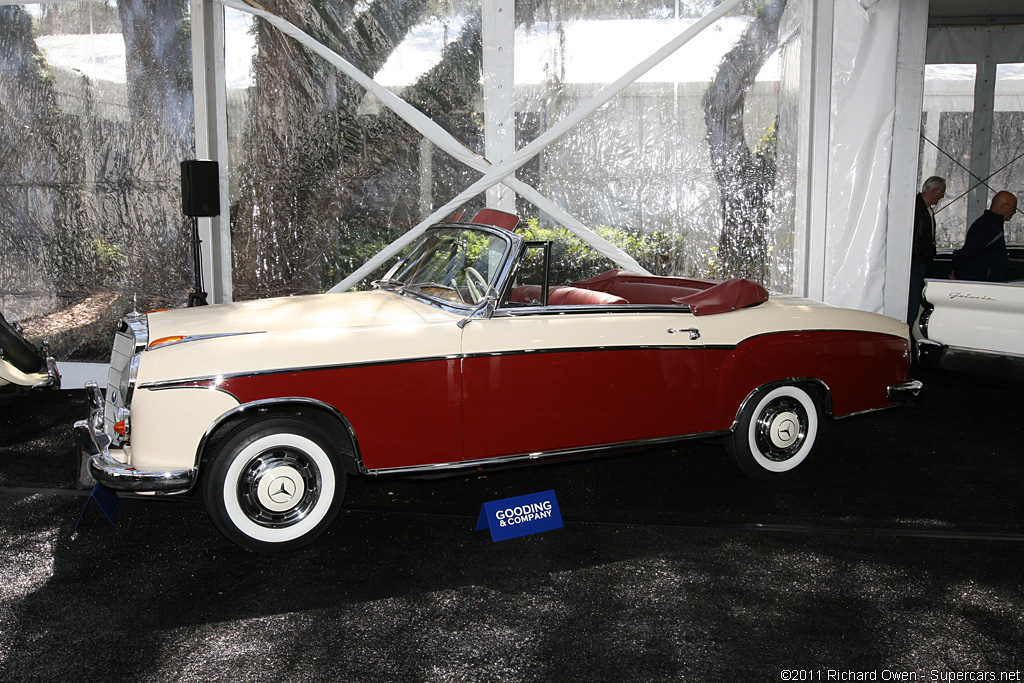

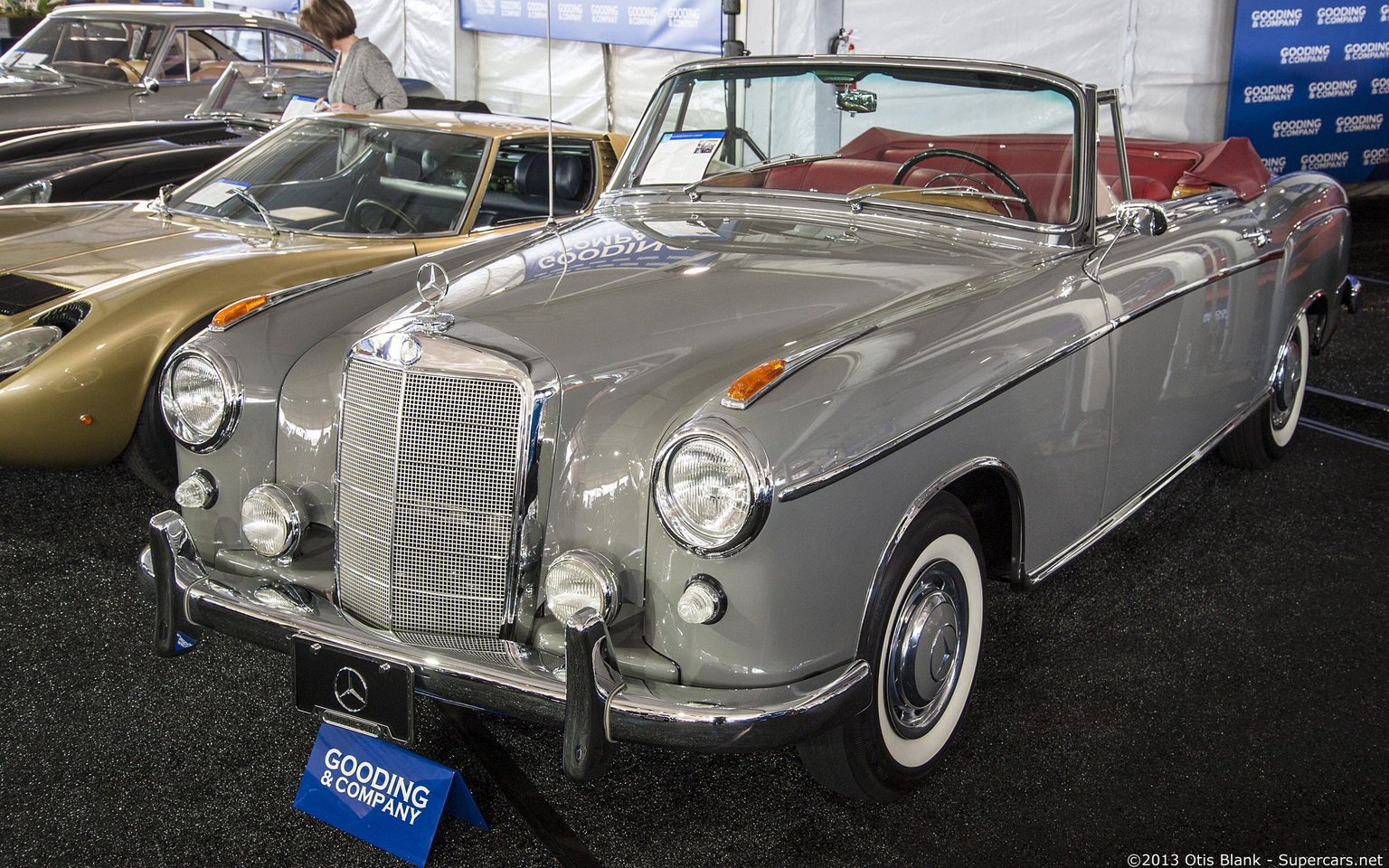

1959 Mercedes-Benz 220 S Cabriolet – sold for $151,250 Groundbreaking Ponton Mercedes-Benz. Rare Cabriolet Body Style. Authentically Restored. Highly Attractive Color Scheme.
Auction Source: The 2013 Scottsdale Auctions by Gooding & Company

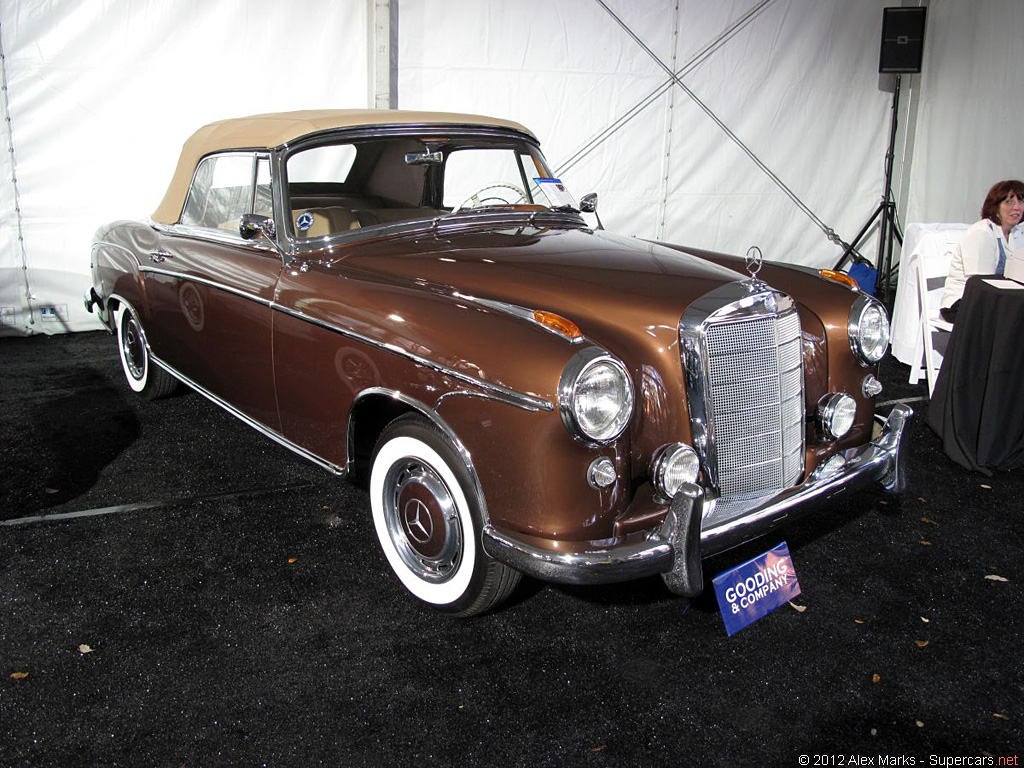

1957 Mercedes-Benz 220 S Cabriolet 180030Z.7511749 – sold for $77,000 Elegant Ponton-Series Mercedes-Benz Cabriolet. Originally Delivered to the US with Borranis and Air-Conditioning. Highly Optioned Example. Documented by Mercedes-Benz Build Sheets and Receipts.
Auction Source: The Amelia Island Auction 2012 by Gooding & Company


1957 Mercedes-Benz 220S Cabriolet – sold for $62,500
Produced from the mid to late 1950s, the Mercedes Benz 220 S(standing for “Super”) capitalized on the company’s engineering and quality resources in a midsized luxury performer that was arguably at its best in convertible form. This brilliantly restored 220S Cabriolet from the Harold R. Wing collection features all new paint and a brand new Red leather interior highlighted by the exotic wood trim on the dash, A pillars and doors. The rebuilt alloy 2.2 liter OHC straight 6 engine has been rebuilt and performs with typical Mercedes Benz smoothness and responsiveness through a 3-speed transmission.
Auction Source: 2011 Monterey Daytime Auction by Mecum


1957 Mercedes-Benz 220 S Cabriolet – sold for $143,000

Beautiful Presentation of a Classic 1950’s Mercedes-Benz.* Delivered New to the US. Well-Kept Professional Restoration. Matching-Numbers Engine. Charming, Period-Correct Livery. Offered with an Extensive File of Documentation.

By September 1996, less than a year after the project got underway, the 220 S was finished. According to the owner’s fastidious record keeping, over $125,000 had been spent on the car and an impressive file that includes restoration photos, receipts and correspondence attests to the passion that went into this worthy project.

Even after the restorative work was complete, the car was consistently maintained and any detail work that was deemed necessary was performed. Today, this lovely Mercedes-Benz presents beautifully in all respects and appears to have seen little use since restoration.

Auction Source: 2011 Amelia Island Auction by Gooding & Company
