1964→1966 Lotus Elan S2

Lotus Elan S2

1964-1966 Lotus Elan S2

In November of 1964 Lotus upgraded the Elan to S2 specification that included better Girling Disc brakes and numerous body changes. It was also the car that brought Lotus back into full-scale production and so they began to offer more options.

The S2 was was also the first model available with an S/E package. The S/E was a heavier car with some interior appointments such as safety belts and deluxe carpeting. It also got a “C” camshaft that raised power to 115 hp and a dual-circuit master cylinder with vacuum assist.

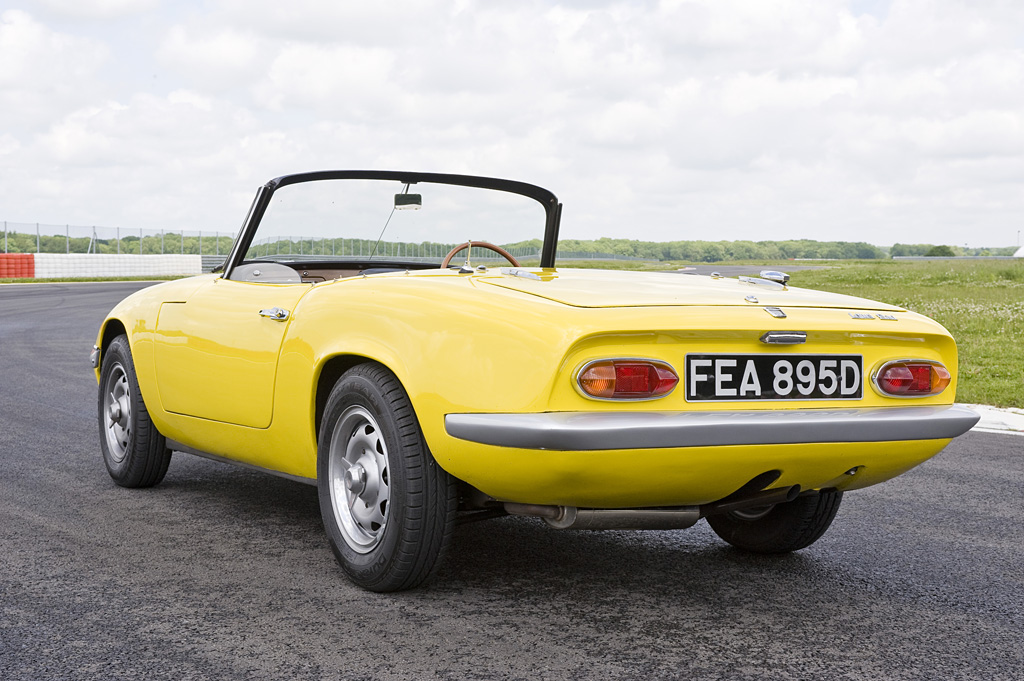

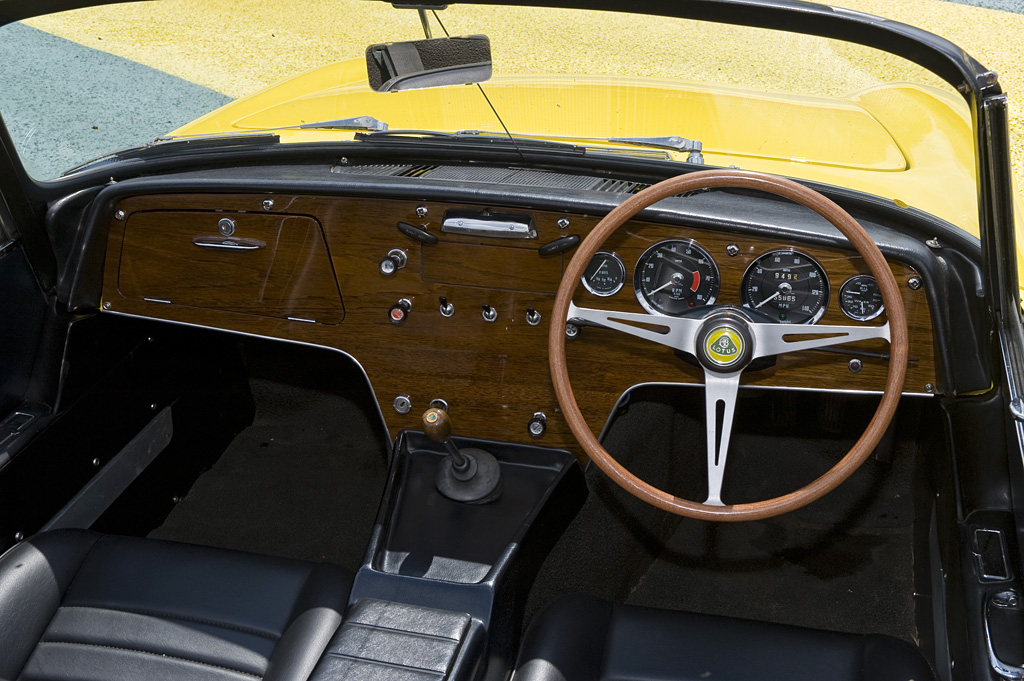

The S2 introduced a full-width veneer wood dash with a lockable glove compartment. The car also got clustered rear tail lights.

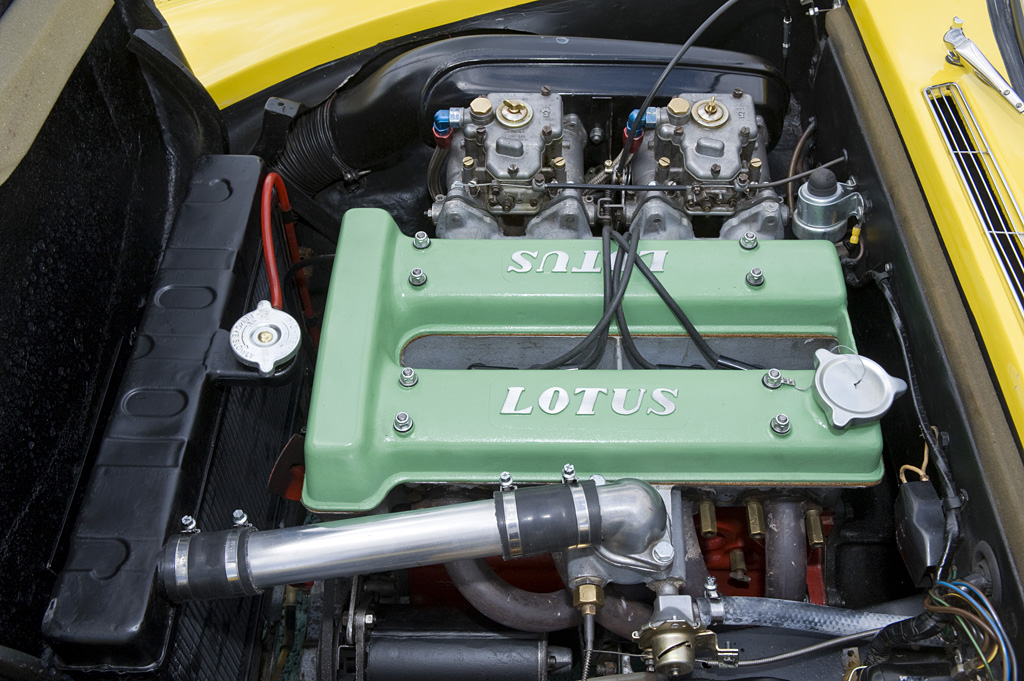

For the S2, Lotus cast their own block as Ford stopped production of the Ford Cortina 116E. The new 2731E block was virtually identical, but the cylinder-head featured a new stiffening rib between spark plus #2 and #3. Detail upgrades included iron tappet sleeves, stronger 125E connecting rods and a 6-bolt flywheel.

Related: Lotus Race Car List / Lotus Current Lineup / All Lotus Models / Lotus News


Specs & Performance

submitted by admin
type Series Production Car
production years 1964 – 1966
built at England
price $ $ 4,980
engine Lotus 2731E Inline-4
position Front, Longitudinal
aspiration Natural
ignition Lucas 25D4 Distributor
block material Cast-Iron w/Aluminum Cylinder Head
valvetrain Chain Driven DOHC, 2 Valves per Cyl
fuel feed 2 Weber DCOE/2 Sidedraft Carburettor
displacement 1588 cc / 96.91 in³
bore 82.6 mm / 3.3 in
stroke 72.8 mm / 2.9 in
power 78.3 kw / 105 bhp @ 5500 rpm
specific output 66.12 bhp per litre
bhp/weight 148.31 bhp per tonne
torque 146.4 nm / 108 ft lbs @ 4000 rpm
redline 6500
body / frame Monocoque Fiberglass Body over Pressed Steel Chassis
driven wheels RWD
wheel type Knock-off Steel Discs
front tires 5.20-13 Dunlop SP 41
rear tires 5.20-13 Dunlop SP 41
front brakes Girling Discs
rear brakes Girling Discs
front wheels F 33.0 x 11.4 cm / 13 x 4.5 in
rear wheels R 33.0 x 11.4 cm / 13 x 4.5 in
steering Triumph Rack & Pinion
f suspension Wishbones w/Coil Springs, Anti-Sway Bar
r suspension Half Shafts w/Lateral Link, Coil Springs, Anti-Sway Bar
curb weight 708 kg / 1560 lbs
weight distro 48 % / 52 %
wheelbase 2133 mm / 84 in
front track 1193 mm / 47 in
rear track 1193 mm / 47 in
length 3683 mm / 145 in
width 1422 mm / 56 in
height 1168 mm / 46 in
transmission Ford 4-Speed Manual
tran clutch 8.5-Inch Dry Plate
gear ratios 2.92:1, 2.51:1, 1.64:1, 1.00:1
fuel capacity 45.42 litres or 12 gal

 Lotus Elan S2 Prices

1964→1966 Lotus Elan S2

1964 Lotus Elan S2 26/3957 – sold for €41,400. A left-hand drive model, this competition-modified Elan S2 drophead coupé was restored in 2008 and has always been well maintained. Prepared by the well-known Lotus workshop of Marco Montanari in Reggio Emilia, Italy, the Elan won the Italian Historic Championship in 2010 following a class win in 2009. The car is described as ready to race, its engine producing some 183bhp, and comes with current FIA HTP documents. Auction Source: 2013 Les Grandes Marques du Monde au Grand Palais
