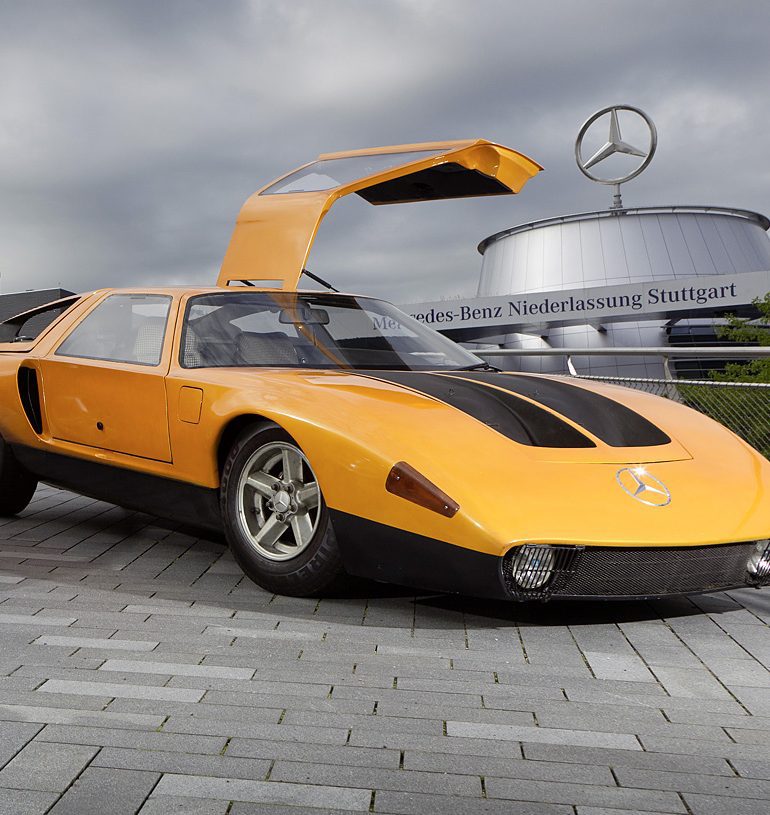

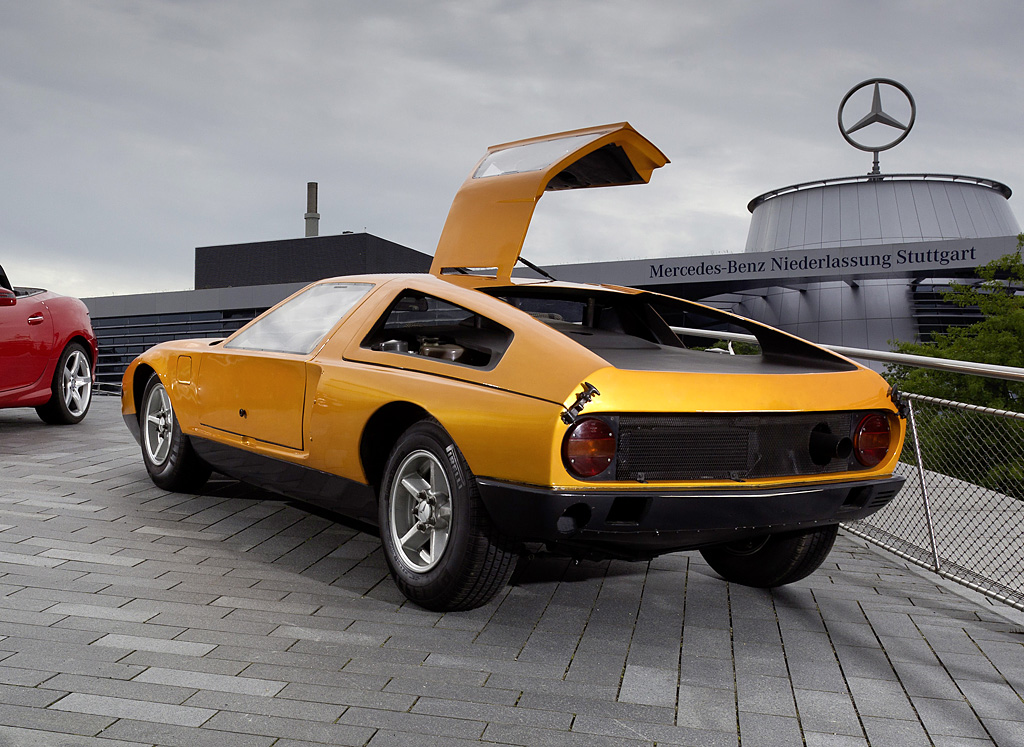

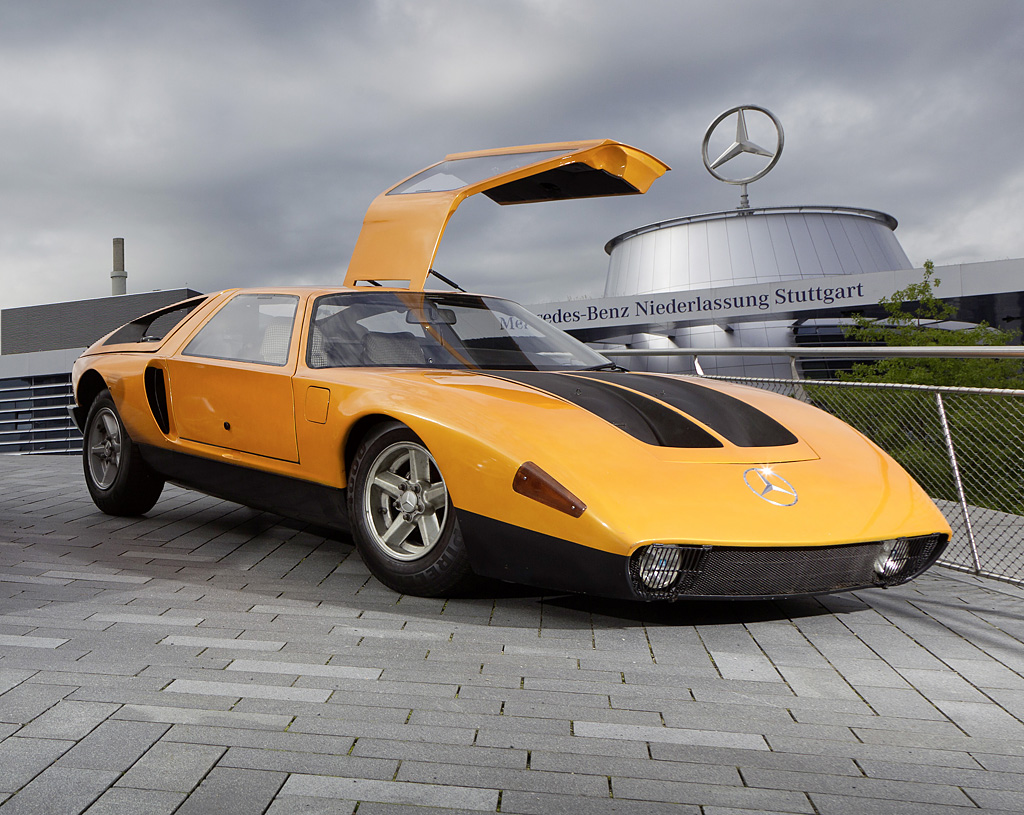

1976 Mercedes-Benz C111-IID

1976 Mercedes-Benz C111-IID

In the fall of 1973, a boycott of the oil-producing countries brought about the so-called oil crisis and crude oil, hitherto an inexpensive commodity, became a precious resource. In 1976 engineers installed low-consumption diesel engine with five cylinders in the C 111-II for the first tests. In the car, now called C 111-IID, the OM 617 LA engine developed as much as 190 hp, thanks to turbocharging and intercooling.

With this powerful diesel engine under the bonnet of a spectacularly styled gull-wing model, painted in bright orange, Mercedes-Benz was soon geared up for some record-breaking drives. The C 111-II D powered its way to some sensational records at the Nardo circuit in southern Italy in 1976. For a whole hour, for example, it circled the high-speed track at anaverage speed of 253.770 km/h. It went on to collect further records in all categories – over distances of 10 to 10,000 kilometres and over periods of 6 to 24 hours.

No one had previously thought a diesel vehicle capable of such performance.

In Detail

submitted by Richard Owen
type Record Car
built at Germany
production 1

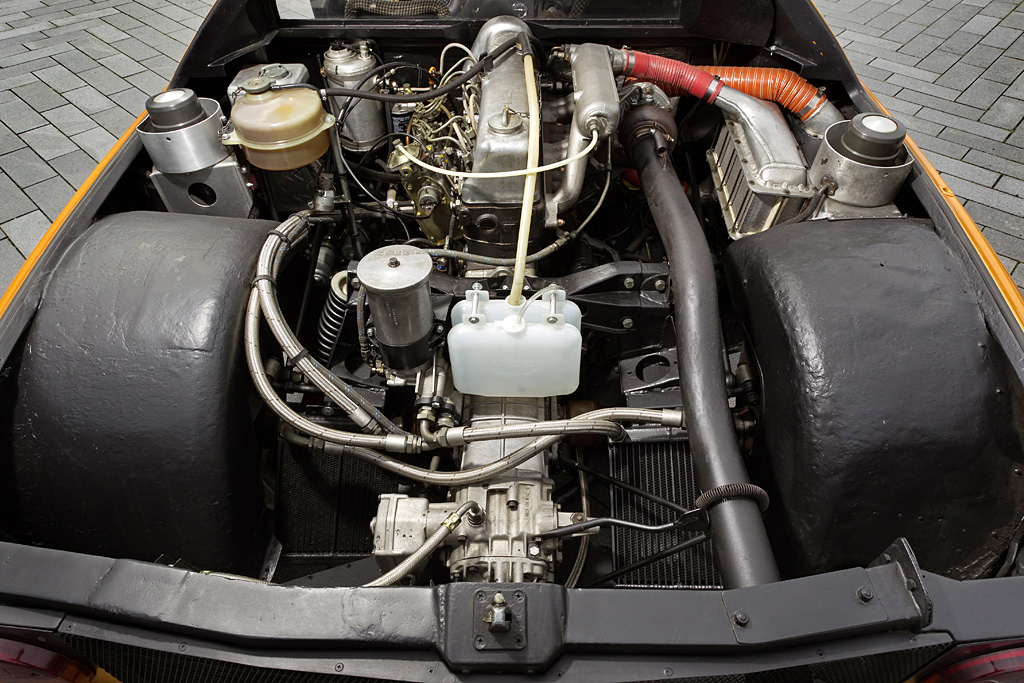

engine 5-Cylinder
position Front
aspiration Natural
displacement 3000 cc / 183.07 in³
power 141.7 kw / 190 bhp
specific output 63.33 bhp per litre
bhp/weight 153.23 bhp per tonne
body / frame Fiberglass Reinforced Plastic Body over Sheet Steel Chassis
driven wheels RWD
front tires 4.50/11.60-15
rear tires 5.50/13.60-15
front brakes Internally Ventilated Discs w/Vacuum Assist
rear brakes Internally Ventilated Discs w/Vacuum Assist
steering Recirculating Ball
f suspension Double Wishbones w/Torsion Bar, Spring Struts
r suspension Tripple Wishbones w/Torsion Bar, Spring Struts
curb weight 1240 kg / 2734 lbs
wheelbase 2620 mm / 103.1 in
front track 1410 mm / 55.5 in
rear track 1405 mm / 55.3 in
length 4440 mm / 174.8 in
width 1800 mm / 70.9 in
height 1120 mm / 44.1 in
transmission 5-Speed ZF 5 DS-25/1 Transaxle
final drive 3.166:1
top speed ~300 kph / 186.4 mph
0 – 60 mph ~4.7 seconds
