In 1977 Kremer sufficiently improved the 935 to begin series production of their own version. It was the third Kremer built on Porsche’s successful platform and many 935/934s were updated to reflect ideas from the brothers in Cologne.

“Once the car was finished, we took it on the autobahn at night for a road test!” That’s how Kremer racing manager Achim Stroth tested the car.1

Erwin and Manfred Kremer were well versed in upgrading Porsches and running against factory-built cars. They started racing since the inception of the 911 and made their own versions of a RSR from a bodyshell. The K3 version of their 935 was a great success and won the 1979 24 Hours of Le Mans, 1980 Sebring 12 Hours outright.

There’s no doubt Kremer was influenced by the 1977 works factory cars and included some of the new features on the K3. These included the reshaped rear profile which used a second window and running boards which better controlled air underneath the car. Unlike Porsche’s fibreglass, Kremer opted for Carbon-Fiber/Kevlar composite. These were made by Design Plastics.

1977 Kremer K3

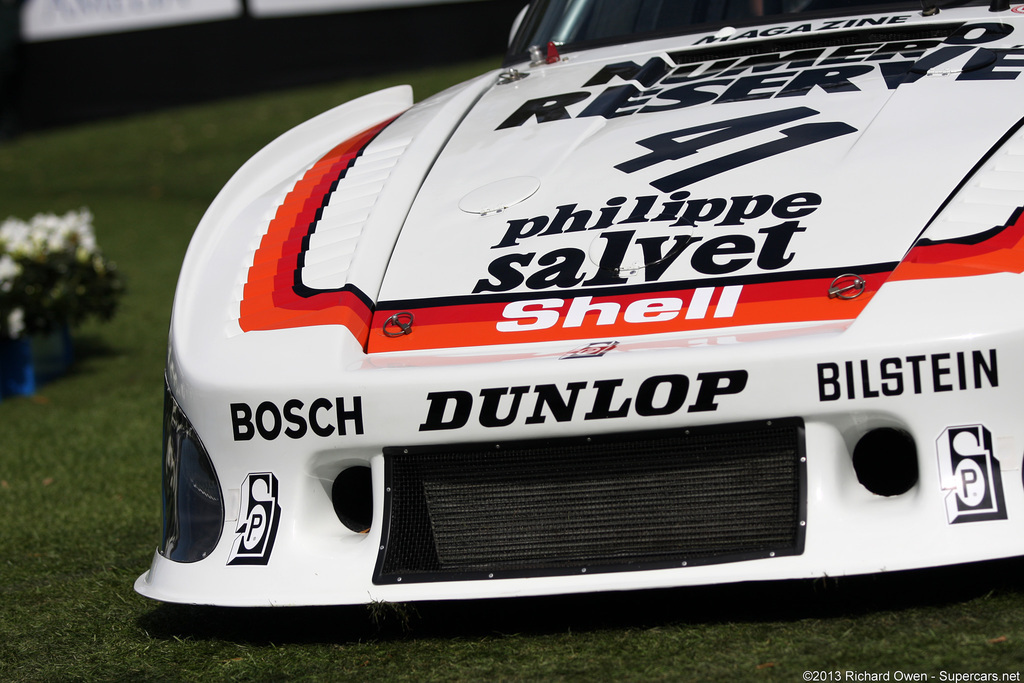

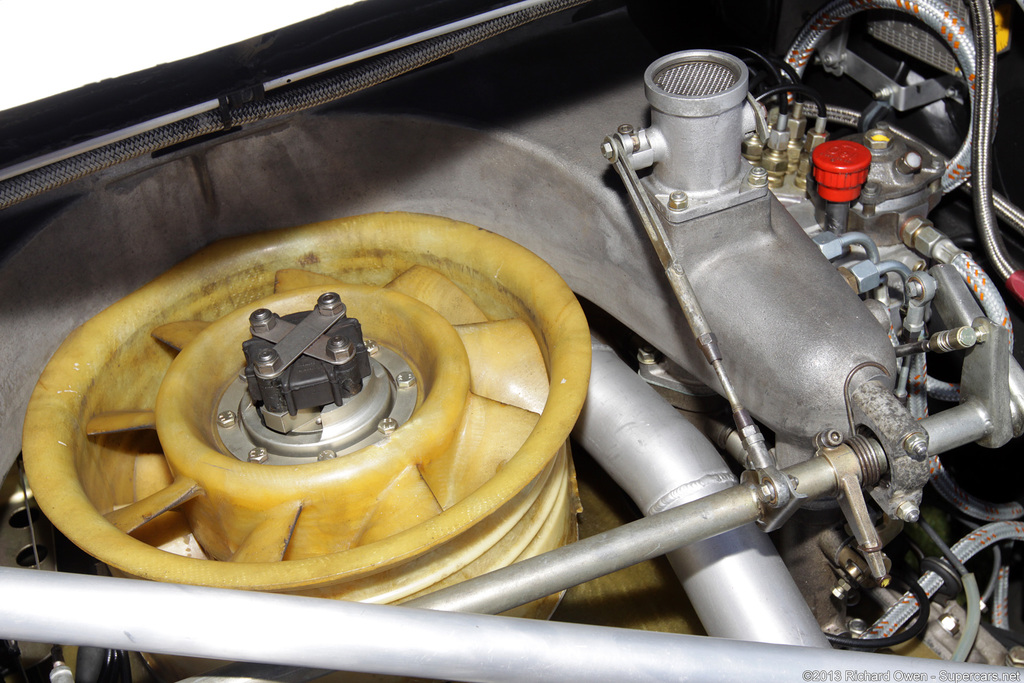

Kremer redesigned the engine cooling system that removed the water-to-air inter-cooling system with and air-to-air unit. Kremer racing manager Achim Stroth recalled “the secret of the K3 was the air-to-air intercooler and the ducting to the engine bay that the bodywork allowed. At the start of the races, the George Loos cars were as quick as our K3 but after a few laps, their engines ran hotter and the power fell off whilst ours kept on producing as much power.”

1977 Kremer K3

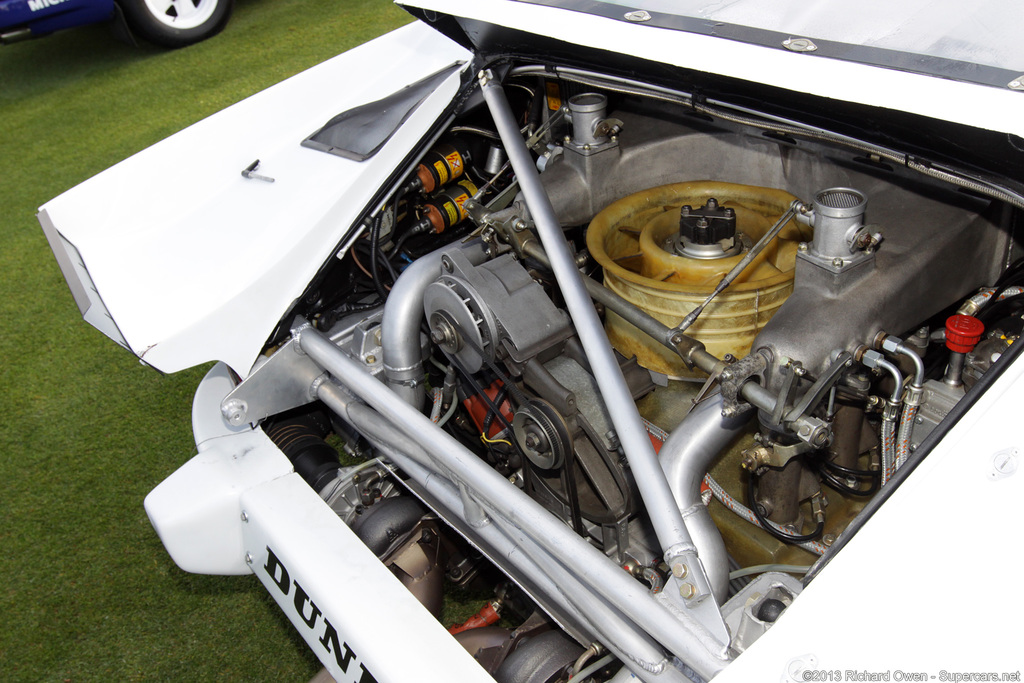

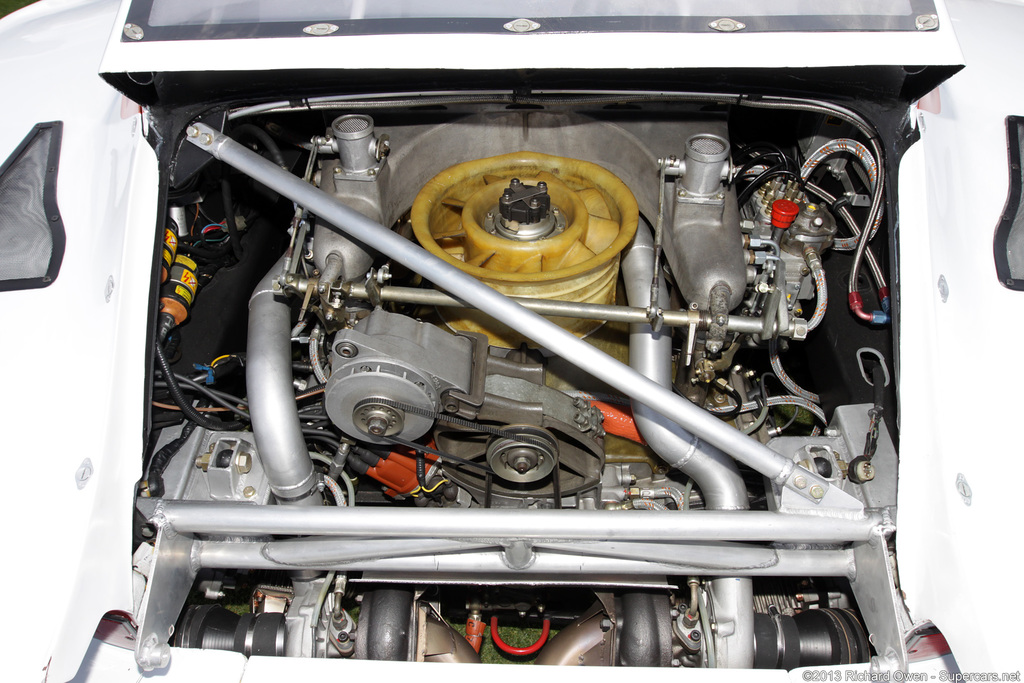

The engine itself was highly developed. Bored and stroked to 3163cc, 800 bhp was possible at 1.7-bar boosts while the reliable 1.4 bar ran 740 bhp all day long.

Achim also mentioned they “Lowered the car four centimeters by turning the gearbox upside-down…By moving the gearbox, we also made it possible to change the gears without taking out the engine. The factory was supplying new brakes but we chose ones that were 40% wider, so we would not have to change them in a 1,000 kilometer race.”

Klaus Ludwig had a great time with his K3 in the German Nation Championship. He won 11 of 12 races. Many famous teams fielded these cars including Dick Barbour, Gelo Team, ASA Cachia, Sekurit Racing.

In total Kremer sold 13 turn-key cars and offered a kit to upgrade a factory-customer 935 to K3 specification.

Videos

1977 Kremer K3 Image Gallery

Auction Sales History


1977 Kremer K31977 Porsche 935 Factory Built Customer Car 930 770 0911 – did not sell for $700,000

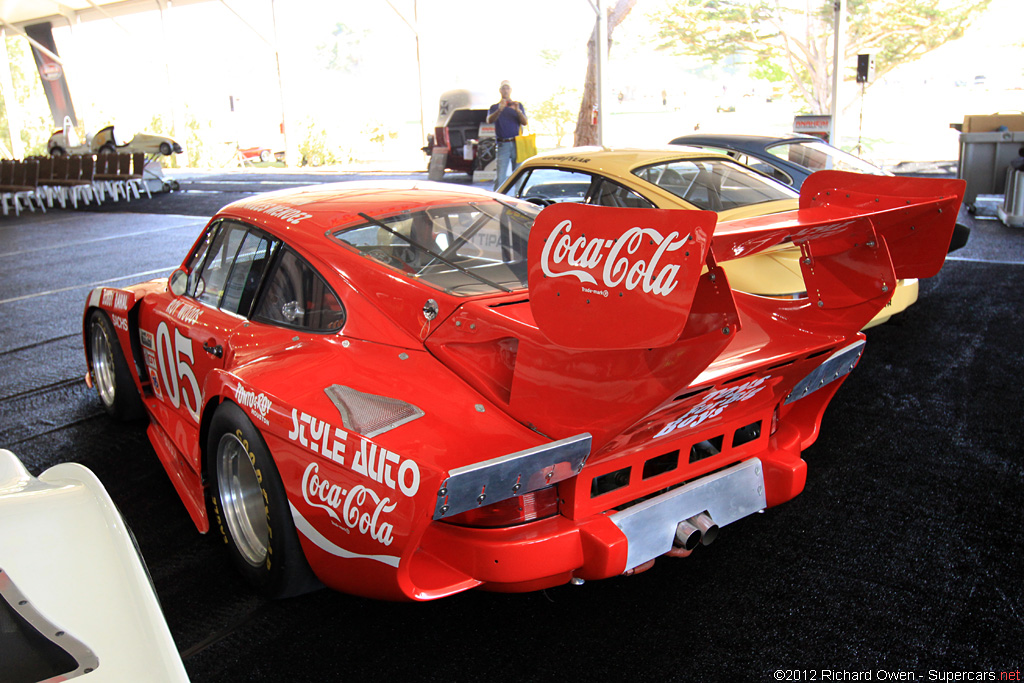

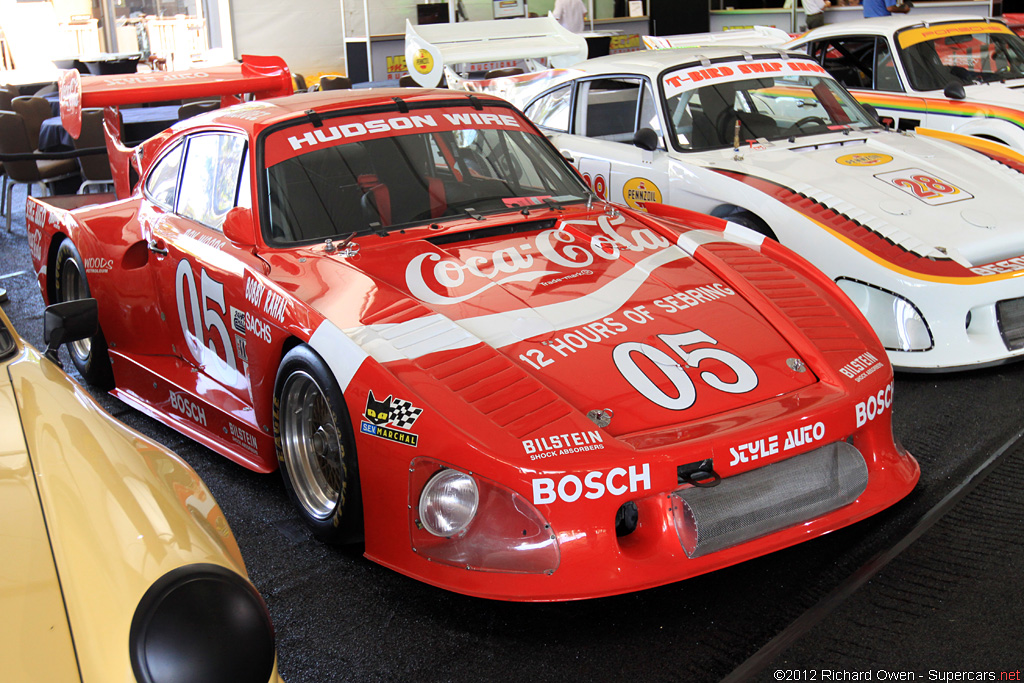

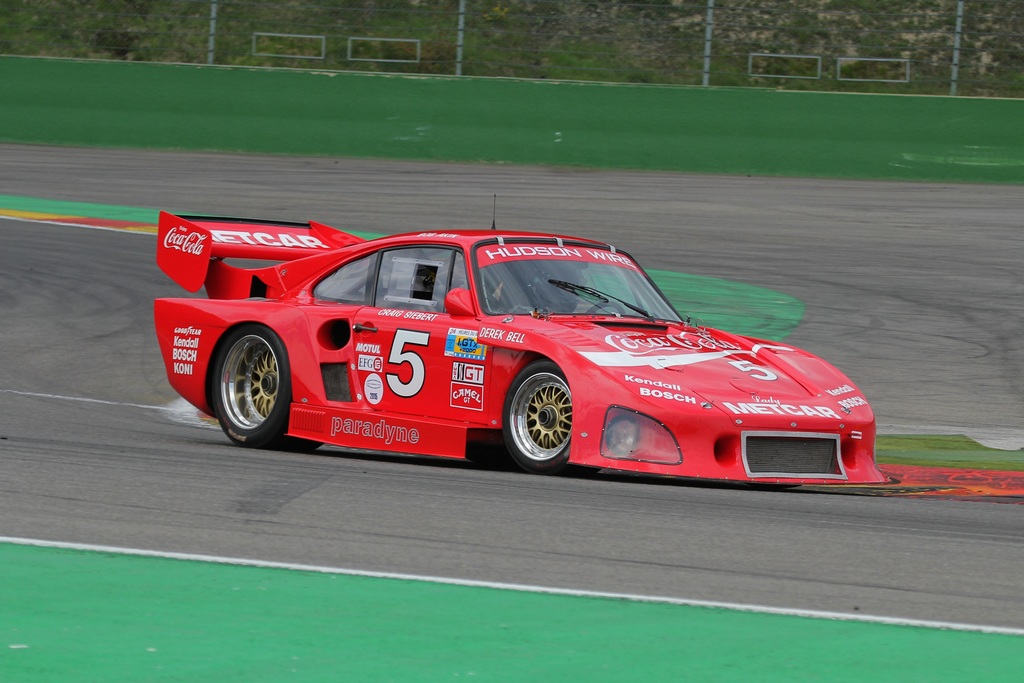

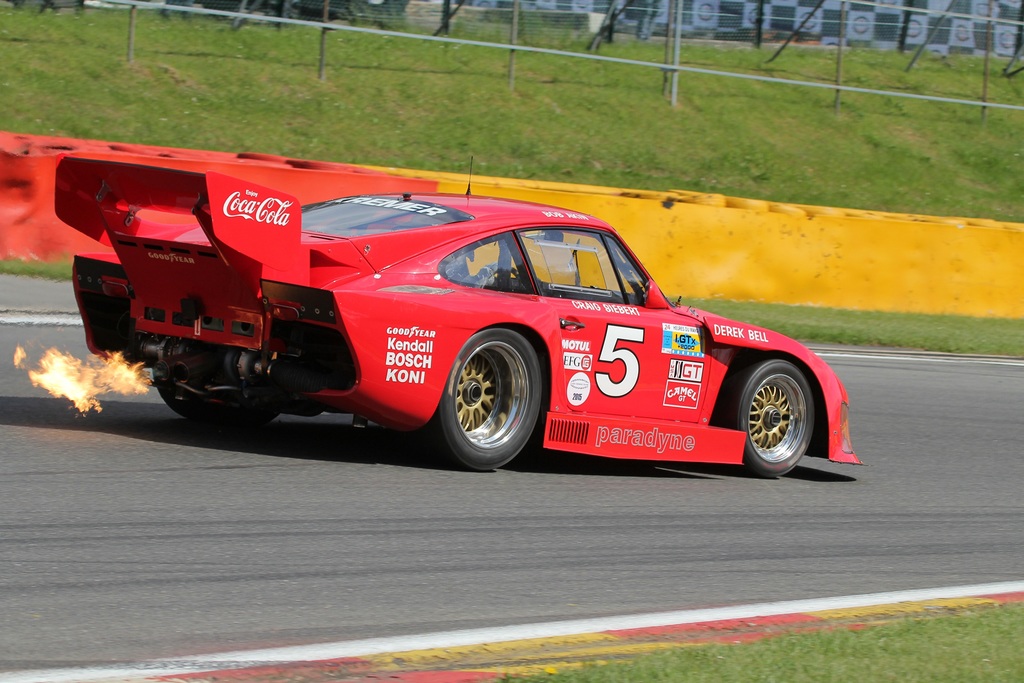

From the Steve Goldin Collection. 1 of 13 factory built cars in 1977 for Porsche racing customers. Bob Akin Racing/Chares Mendez Racing Coca-Cola sponsored 935. The original owner was Georg Loos, team owner of the famed GELO Racing “white door” Porsches. Unique 935 factory built car carrying both factory chassis no. and Kremer chassis no. 009 0005. Converted for the 1980 season by the Kremer Brothers to full K3 specs including famed K3 bodywork, twin turbo motor and upside down gearbox.
Auction Source: 2012 Daytime Auction by Mecum

In Detail

typeRacing Car
built atCologne, Germany
engineType 930/80 Boxer-6
positionRear, Longitudinal
aspirationTwin KKK Turbochargers
block materialAluminum
valvetrainSOHC, 2 Valves perCyl
fuel feedBosch-Kugelfisher Mechanical Fuel Injection
displacement3163 cc / 193.02 in³
bore95 mm / 3.7 in
stroke74.4 mm / 2.9 in
compression7.2:1
power596.6 kw / 800 bhp @ 8000 rpm
specific output252.92 bhp per litre
bhp/weight780.49 bhp per tonne
body / frameUnitary Steel Monocoque w/Carbon-Kevlar Panels
driven wheelsRWD
front brakesVentilated Discs w/4-Piston Calipers
rear brakesVentilated Discs w/4-Piston Calipers
front wheelsF 40.6 x 26.7 cm / 16 x 10.5 in
rear wheelsR 48.3 x 38.1 cm / 19 x 15 in
steeringRack & Pinion
f suspensionMacPherson Struts w/Bilstein Dampers, Adjustable Anti-Roll Bar
r suspensionDouble Wishbones w/Bilstein Dampers, Adjustable Anti-Roll Bar
curb weight1025 kg / 2260 lbs
weight distro40 % / 60 %
wheelbase2271 mm / 89.4 in
front track1501 mm / 59.1 in
rear track1557 mm / 61.3 in
length4681 mm / 184.3 in
width1971 mm / 77.6 in
transmission4-Speed Manual
0 – 60 mph~3.0 seconds
0 – 100 mph~5.8 seconds
