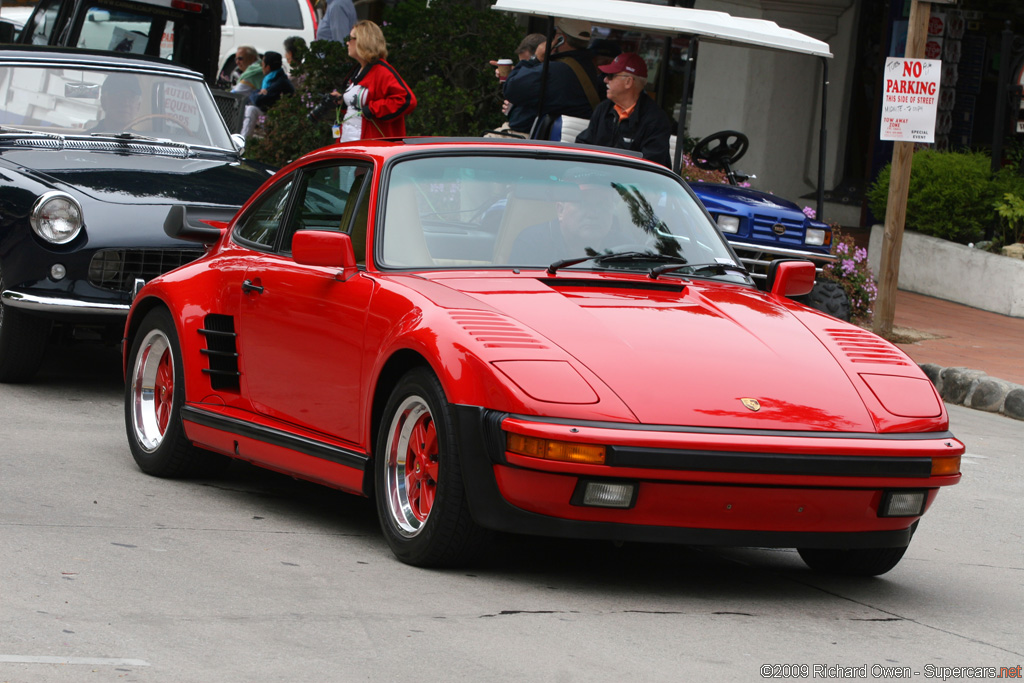

1987 Porsche 911 Turbo ‘Flachbau’


1987 Porsche 911 Turbo ‘Flachbau’

In 1986 Porsche finally offered the slantnose, called Flachbau in German, straight from the factory. The official designation in the UK was Turbo SE and it is also sometimes referred to as the flatnose. Offered as the ultimate 930 Turbo, the this model had an upgraded body and a 330 bhp engine.

Costing nearly double the standard model, the Flachbau was rarely ordered. Before 1986, Porsche had offered the Flachbau body option out of its customer service department known as Sonderwunschen. These were handmade cars, not limited to just the Turbo, but the Carrera and Carrera SC as well. In the 1987 model year, these were productionized with the M505 code for USA for an astounding $23,244 extra and M506 for the rest of the world.

Despite the panels being slightly heavier, they were modeled after the 935 race car for top speed. The conversion required extended rocker panels, wider rear flares with scooped vents and flip-up headlights up front with functional louvres.

With a jump in horsepower, it’s not surprising that the Flachbau was the fastest of all 930 models, reaching a factory claimed 171 mph. Acceleration was rated by the factory at 0-100 kph in 5.2 seconds.

The Flachbau was sold worldwide including in the US. Over 800 models were sold.

1987 Porsche 911 Turbo ‘Flachbau’

In Detail

type Series Production Car
built at Stuttgart, Germany
production 800
price £/td> £97,600
engine Turbocharged Flat-6
position Rear Longitudinal
aspiration KKK Turbocharger
valvetrain SOHC, 2 Valves per Cyl
fuel feed Bosch K-Jetronic Injection
displacement 3299 cc / 201.3 in³
bore 97.0 mm / 3.82 in
stroke 74.4 mm / 2.93 in
compression 7.0:1
power 246.1 kw / 330 bhp @ 5500 rpm
specific output 100.03 bhp per litre
bhp/weight 232.56 bhp per tonne
torque 431.2 nm / 318 ft lbs @ 4000 rpm
redline 7000
body / frame Unitary Steel Monocoque
driven wheels RWD
wheel type Forged Light Alloy
front tires 205/50ZR-16
rear tires 255/50VR-16
front brakes Vented & Cross-Drilled Discs w/ Vacuum Assist
front wheels F 40.6 x 17.8 cm / 16.0 x 7.0 in
rear wheels R 40.6 x 20.3 cm / 16.0 x 8.0 in
steering Rack & Pinion
curb weight 1419 kg / 3126 lbs
wheelbase 2272 mm / 89.4 in
front track 1433 mm / 56.4 in
rear track 1501 mm / 59.1 in
length 4290 mm / 168.9 in
width 1775 mm / 69.9 in
height 1311 mm / 51.6 in
transmission 4-Speed Manual
gear ratios 2.25:1, 1.30:1, 0.89:1, 0.625:1
final drive 4.22:1
top speed ~275.14 kph / 171 mph
0 – 100 mph ~5.2 seconds
