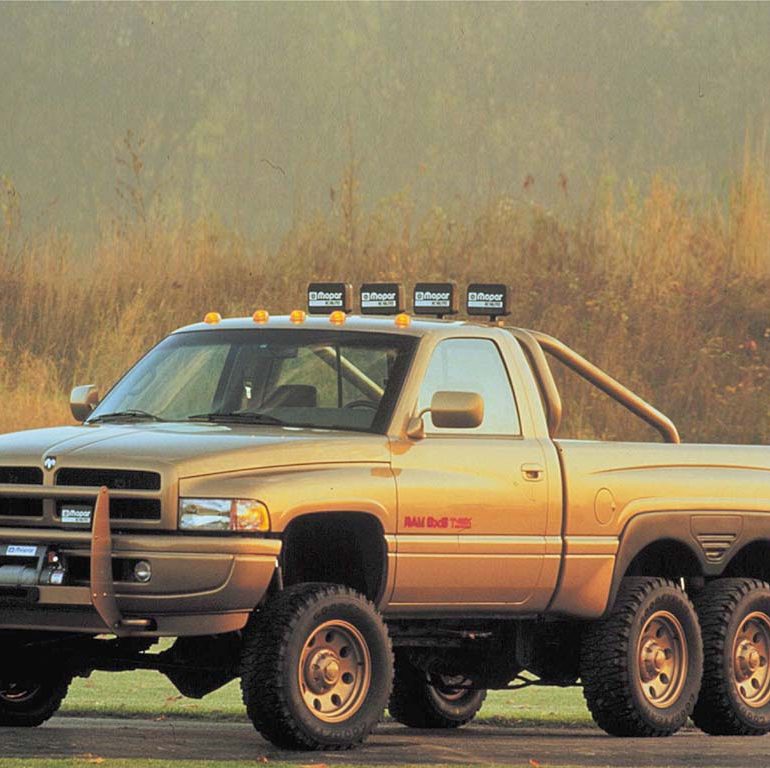

1997 Dodge T-Rex 6X6 Concept
Chrysler Corporation engineers have developed the ultimate Ram truck — a 500-hp V-10-powered tandem-axle, 6×6 concept pick-up that breaks new technological ground. The distinctive handling, traction and capacity capabilities of the T-Rex come from the unique six-wheel drive tandem axle design.
Muscle for its outstanding performance and towing ability is a result of its modified high-output 8-liter Magnum V-10 engine, while a computer-controlled adaptive air-suspension system provides the superior occupant comfort.
A stock V-10 engine was modified to boost power from 350 hp to 500 hp and torque from 450 foot pounds to 600. Modifications included high-compression pistons, billet crank, ported and polished heads, modified camshaft and tubular headers.
Transmission is the standard four-speed automatic for the Dodge Ram V-10 but strengthened to handle the increased load. The transfer cases are new and specifically designed to handle high torque.
Story by DaimlerChrysler
In Detail
| price $ | $ Prototype |
| engine | Magnum Modified V10 |
| displacement | 8000 cc / 488.2 in³ |
| compression | 12.0:1 |
| power | 370.6 kw / 497.0 bhp @ 5400 rpm |
| specific output | 62.13 bhp per litre |
| bhp/weight | bhp per tonne |
| torque | 804.0 nm / 593.0 ft lbs @ 3700 rpm |
| body / frame | Steel |
| driven wheels | Front Engine / 6 Wheel Drive |
| front tires | F LT285/65R-17 |
| rear tires | R LT285/65R17 |
| f brake size | x 318 mm / x 12.5 in |
| r brake size | x 330 mm / x 12.9 in |
| front wheels | F 43.2 x 40.6 cm / 17.0 x 16.0 in |
| rear wheels | R 43.2 x 40.6 cm / 17.0 x 16.0 in |
| curb weight | 5443 kg / 12000 lbs |
| wheelbase | 3378 mm / 132.9 in |
| transmission | 47RE Automatic |
| gear ratios | :1 |
| 0 – 60 mph | ~7.7 seconds |
| 0 – 1/4 mile | ~16.1 seconds |
