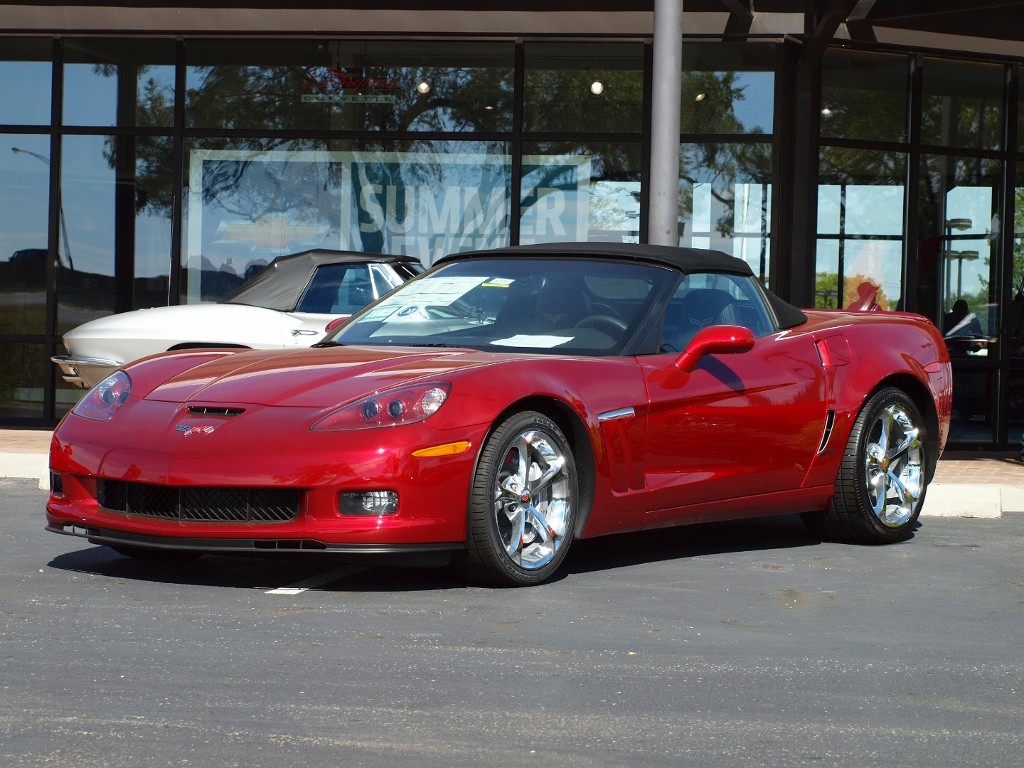

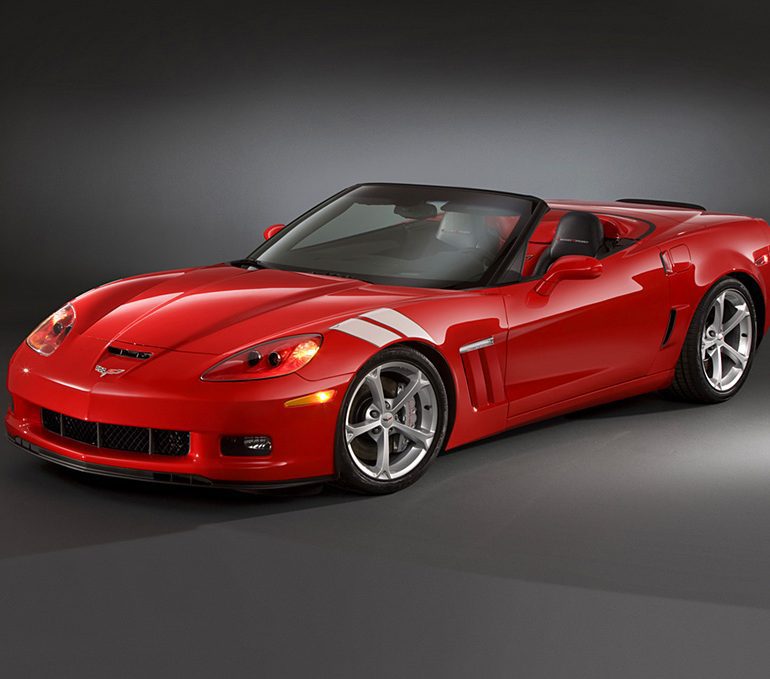

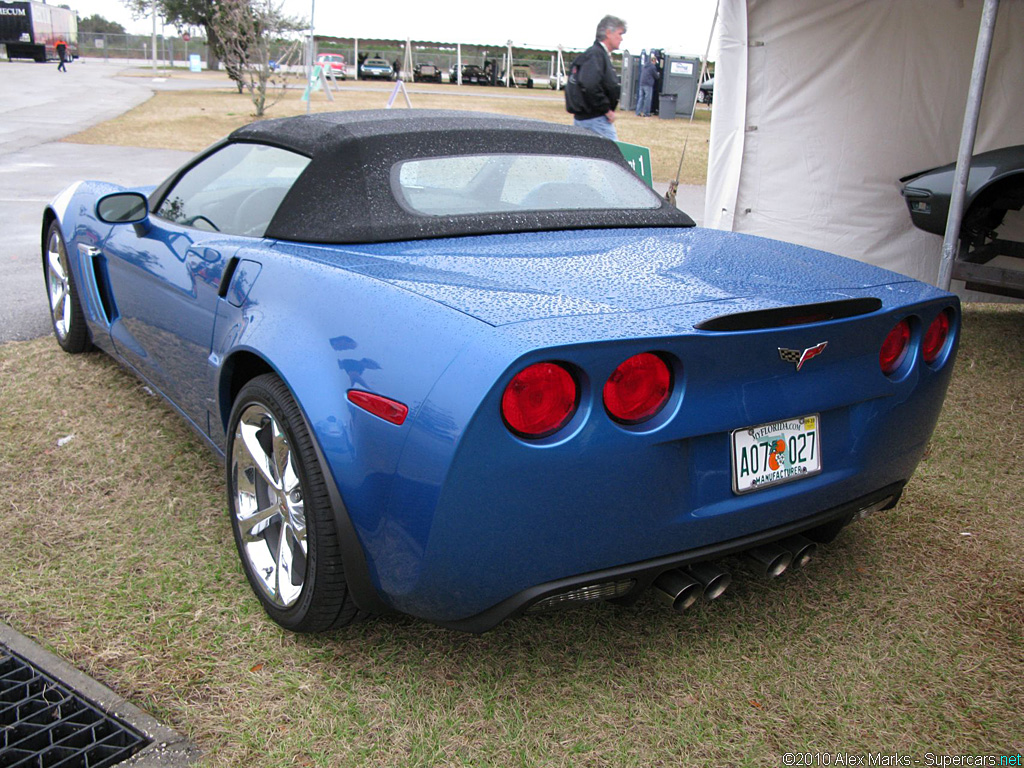

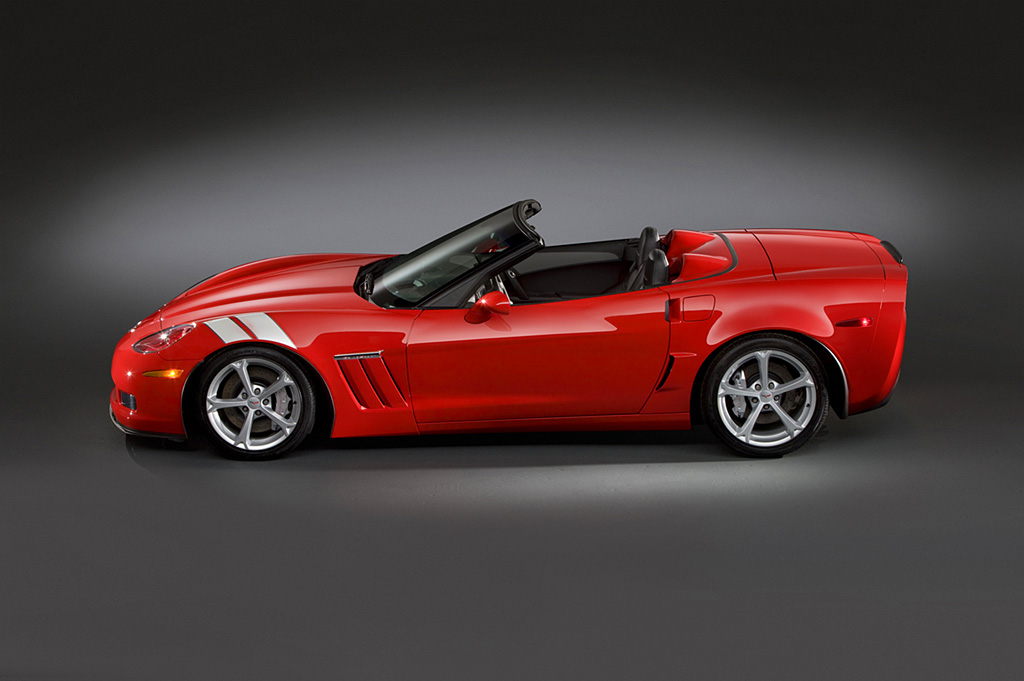

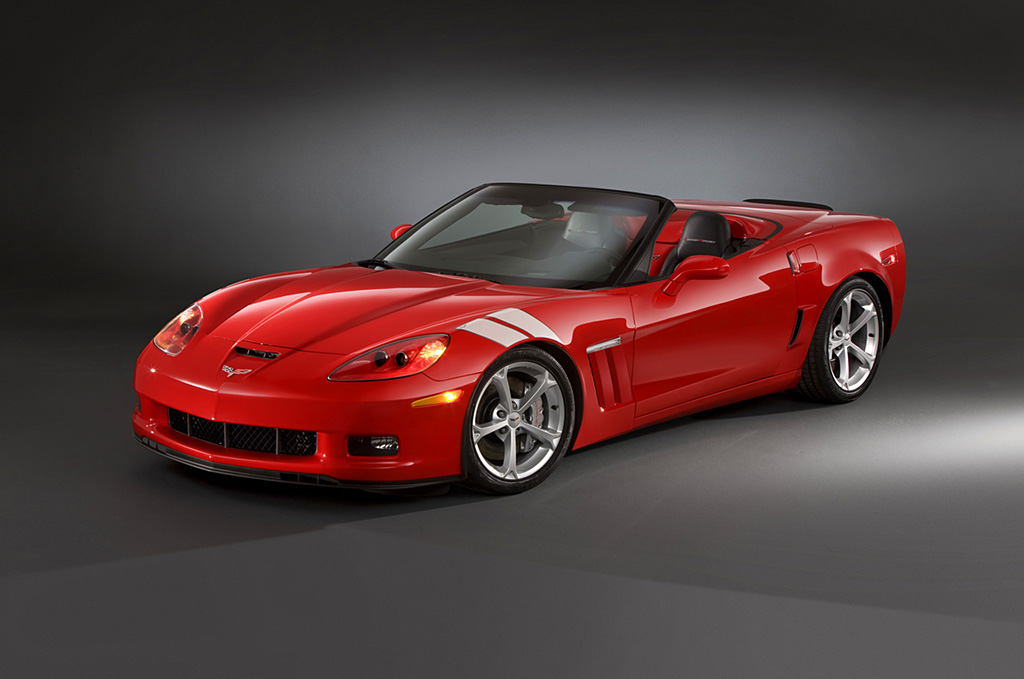

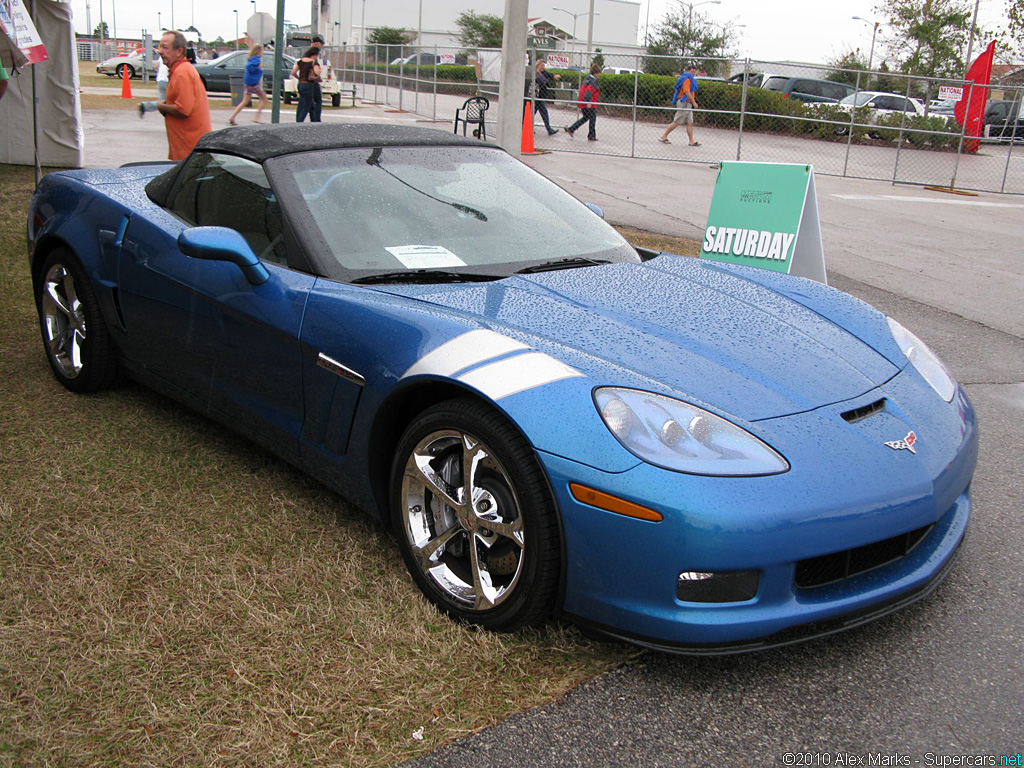

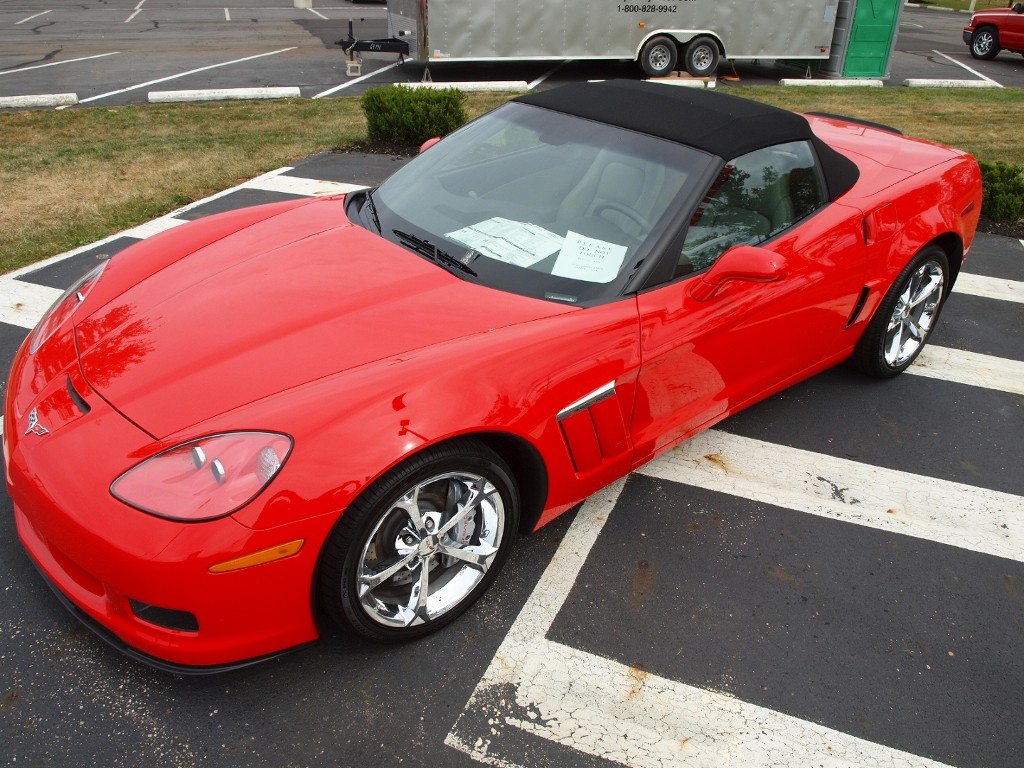

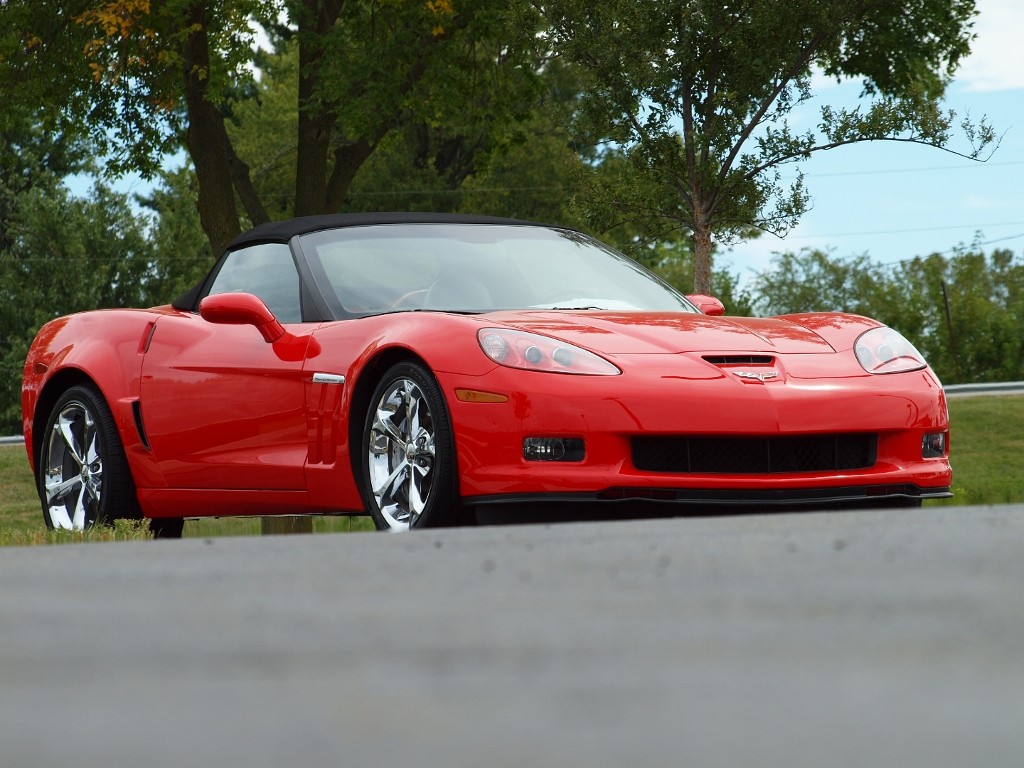

2010 Chevrolet Corvette Grand Sport Convertible
2010 Corvette Grand Sport. X10CH_CR002 (United States)

2010 Chevrolet Corvette Grand Sport Convertible

2010 Chevrolet Corvette Grand Sport Convertible

BOWLING GREEN, Ky. –Grand Sport. It’s one of the most storied monikers in Corvette’s illustrious racing heritage. Today, Chevrolet announced it is returning to the lineup in the new, 2010 Corvette Grand Sport model.

The announcement was made at the 12th annual C5/C6 Corvette Birthday Bash, held at the National Corvette Museum, in Bowling Green, Ky.

The new Grand Sport combines the Corvette’s LS3-based powertrain with unique, wide-body styling and a racing-bred suspension for a distinctive model that delivers a great balance of road and race track performance. It is offered in both coupe and convertible body styles, with either a six-speed manual or six-speed automatic transmission. The LS3 6.2L engine is rated at 430 horsepower (321 kW)* and 424 lb.-ft. of torque (575 Nm)* with the standard exhaust system. An optional two-mode exhaust system elevates the power ratings to 436 horses (325 kW) and 428 lb.-ft. (580 Nm).

The Grand Sport replaces the Corvette’s previous Z51 package and brings a greater degree of handling performance, with wider wheels and tires; revised shock, stabilizer bar and spring specifications; and specific gearing. The equipment enables cornering capability of 1.0 g, as well as a 0.2-second improvement in 0-60 acceleration vs. standard LS3-powered models.

Grand Sport coupe models equipped with the manual transmission are uniquely outfitted for race track competition, too, with a dry-sump oiling system, differential cooler and a rear-mounted battery.

The complete list of content and special features for the Grand Sport includes:

* Wider front and rear fenders – including specific front fenders with integrated Grand Sport badges
* Z06-style front splitter and tall rear spoiler
* Functional brake ducts and extra cooling
* Unique 18-inch front and 19-inch rear wheels; painted finish standard and chrome finish optional
* Large 275/35ZR18 tires in front and 325/30ZR19 tires in the rear
* Z06-size brakes, including 14-inch (355 mm) front rotors with six-piston calipers and 13.4-inch (340 mm) rear rotors with four-piston calipers
* Specific manual transmission gear ratios
* Specific rear axle ratio on automatic-equipped models

With its special equipment, the Grand Sport offers a unique blend of performance and amenities. Its suspension package approaches that of the Z06, but includes a removable roof on coupes (Z06 has a fixed roof) and, of course, the availability of a convertible body style. Also, the paddle-shift six-speed automatic transmission is offered, while a manual transmission is the only choice with the Z06.

All of Corvette’s exterior colors are offered on the Grand Sport, and an available Heritage package adds iconic front fender hash marks offered in four colors, as well as two-tone seats with Grand Sport embroidery. The Grand Sport can be ordered with 1LT, 2LT, 3LT and 4LT trim packages, too.

Grand Sport history

Envisioned by legendary Corvette engineer Zora Arkus-Duntov as a factory-built, lightweight and race-ready production model that would trump domestic and foreign road-racing competitors, the original Corvette Grand Sport was a promising idea that led to the production of five special prototypes in 1963. The project was later shelved, following GM’s agreement to stay out of manufacturer-backed motorsports.

The five prototypes were based on the styling of the 1963 Corvette and were hand-assembled under Duntov’s watchful eye. But while they looked like production models, the prototypes were purpose-built race cars that shared little with their assembly-line cousins. Duntov also oversaw the Grand Sport engine program that featured a special, 377-cubic-inch small-block V-8 with side-draft carburetors.

Although never officially sanctioned by General Motors, the five Grand Sport prototypes saw extensive racing experience throughout the 1960s in the hands of “private” racers who had strong contacts within Duntov’s engineering circle. All five original cars are accounted for today and are among the most valuable in the collector market.

Chevrolet offered a limited-edition Grand Sport production model in 1996, commemorating the original racing cars and marking the end of the C4 era in Corvette production. All of the 1,000 examples were painted Admiral Blue and featured a white center stripe and red “hash mark” graphics on the left front fender, a graphic scheme that mimicked the look of some of the original race cars.

Story by GM

In Detail

type Series Production Car
built at Bowling Green, Kentucky, USA
engine LS3 V8
position Front Longitudinal
aspiration Natural
block material Cast Aluminum
valvetrain OHV, 2 Valves per CYl
fuel feed Sequential Fuel Injection
displacement 6162 cc / 376.03 in³
bore 103.25 mm / 4.1 in
stroke 92 mm / 3.6 in
power 325.1 kw / 436 bhp @ 5900 rpm
specific output 70.76 bhp per litre
bhp/weight 291.99 bhp per tonne
torque 580.3 nm / 428 ft lbs @ 4600 rpm
body / frame Six-Speed Manual
driven wheels RWD w/TC
front tires P275/35ZR18
rear tires P325/30ZR19
front brakes Cross-Drilled Discs w/6-Piston Calipers, ABS
f brake size 32 x 355 mm / 1.3 x 14 in
rear brakes Cross-Drilled Discs w/6-Piston Calipers, ABS
r brake size 26 x 340 mm / 1 x 13.4 in
front wheels F 45.7 x 24.1 cm / 18 x 9.5 in
rear wheels R 48.3 x 30.5 cm / 19 x 12 in
f suspension Unequal Double Wishbones w/Control Arms, Transverse Composite Leaf Spring, Monotuble Shock Absorbers
r suspension Unequal Double Wishbones w/Control Arms, Transverse Composite Leaf Spring, Monotuble Shock Absorbers
curb weight 1493.21 kg / 3289 lbs
weight distro 51 % / 49 %
wheelbase 2685 mm / 105.7 in
length 4460 mm / 175.6 in
width 1928 mm / 75.9 in
height 1236 mm / 48.7 in
transmission Composite Panels over Hydroformed Steel Frame w/Aluminum & Magnesium Components
gear ratios 2.97:1, 2.06:1, 1.42:1, 1:1, 0.70:1, 0.56:1
final drive 3.42:1
city fuel econ epa 14.7 L/100 km or 16 mpg-us
hwy fuel econ epa 9.05 L/100 km or 26 mpg-us
fuel capacity 68.13 litres or 18 gal.
