2011 Honda TS-1X

2011 Honda TS-1X

2011 Honda TS-1X

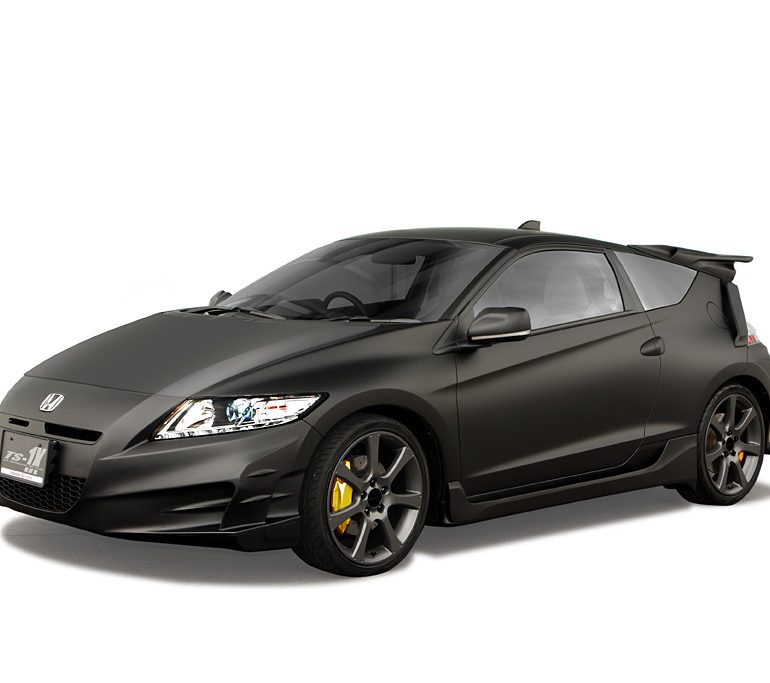

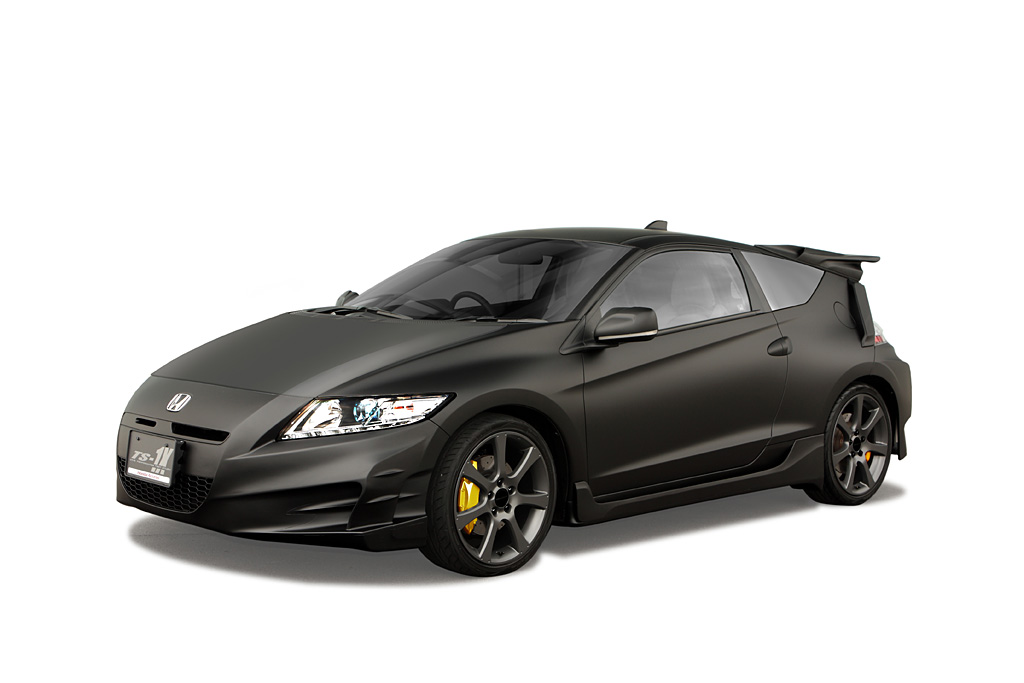

For the 2011 Tokyo Auto Salon, Honda headlined their display by unveiling the TS-1X. Based off the hybrid CR-Z, Honda call it a test study model, but it is built by Honda Access Corporation which builds genuine Honda aftermarket parts and accessories. The TS-1X could therefore be seen as an upcoming testbed for CR-Z accessories

2011 Honda TS-1X Gallery

See full 2011 Honda TS-1X Gallery here

In Detail

type Concept / Prototype Car
released at 2011 TAS
built at Japan
production 1
engine Inline-4 w/IMA hybrid system
position Front, Transverse
aspiration Turbocharged
block material Aluminum Alloy
valvetrain SOHC 4 Valves per Cyl w/i-VTEC
displacement 1497 cc / 91.35 in³
bore 73 mm / 2.9 in
stroke 89 mm / 3.5 in
power 91.0 kw / 122 bhp @ 6000 rpm
specific output 81.5 bhp per litre
bhp/weight 103.39 bhp per tonne
torque 173.5 nm / 128 ft lbs @ 1000 rpm
redline 6300
body / frame Unitary Steel Monocoque
driven wheels FWD
f suspension MacPherson Struts w/Stabilizer Bar
r suspension Torsion Beam w/Stabilizer Bar
curb weight 1180 kg / 2600 lbs
transmission 6-Speed Manual
