Supra Owner Places A GoPro In His Intake Manifold

If you’ve ever wondered what goes on inside the intake manifold of a turbocharged engine, between the throttle body and the cylinders, do we have a video for you!

This video by Warped Perception on YouTube shows what it looks like when you go partial throttle, blip the throttle, and in some cases even go wide open throttle. It’s also extremely relevant as turbocharged supercar engines are becoming more and more prevalent as the quest for more horsepower and torque heats up into hypercar territory.

While many who read understand the internal workings of engines, there really is no replacement for actually seeing it happen.

Inside a Supra intake manifold

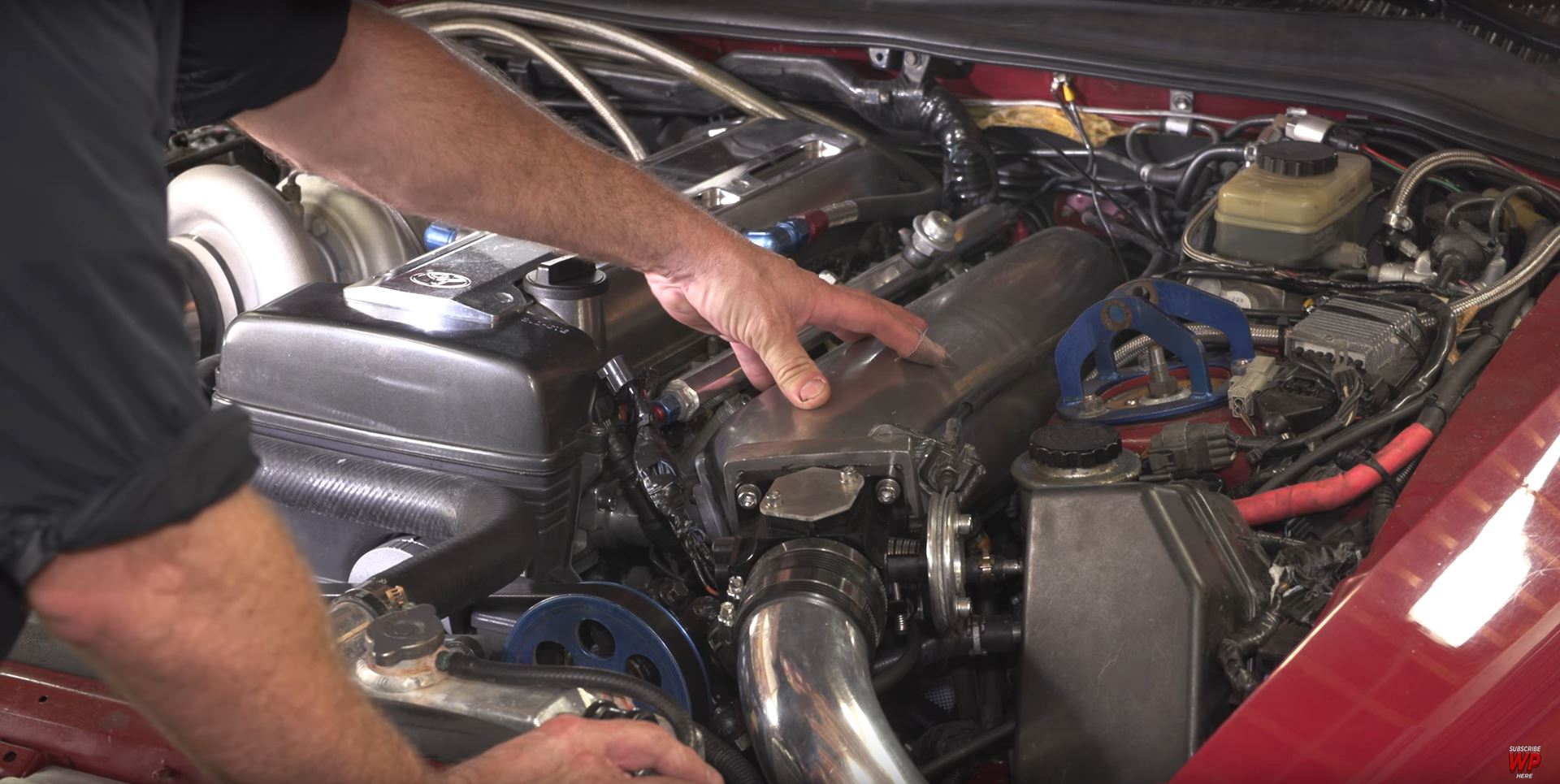

The manifold itself, with the injector rail tight to it, and the 2JZ-GTE engine to the left of that

In a manifold holding 12-16 PSI of air pressure, you get a great view as the incoming air forces it’s way down the velocity stacks of the manifold, mixes with the fuel from the injectors, and get sucked down into the cylinders.

Inside a Supra intake manifold

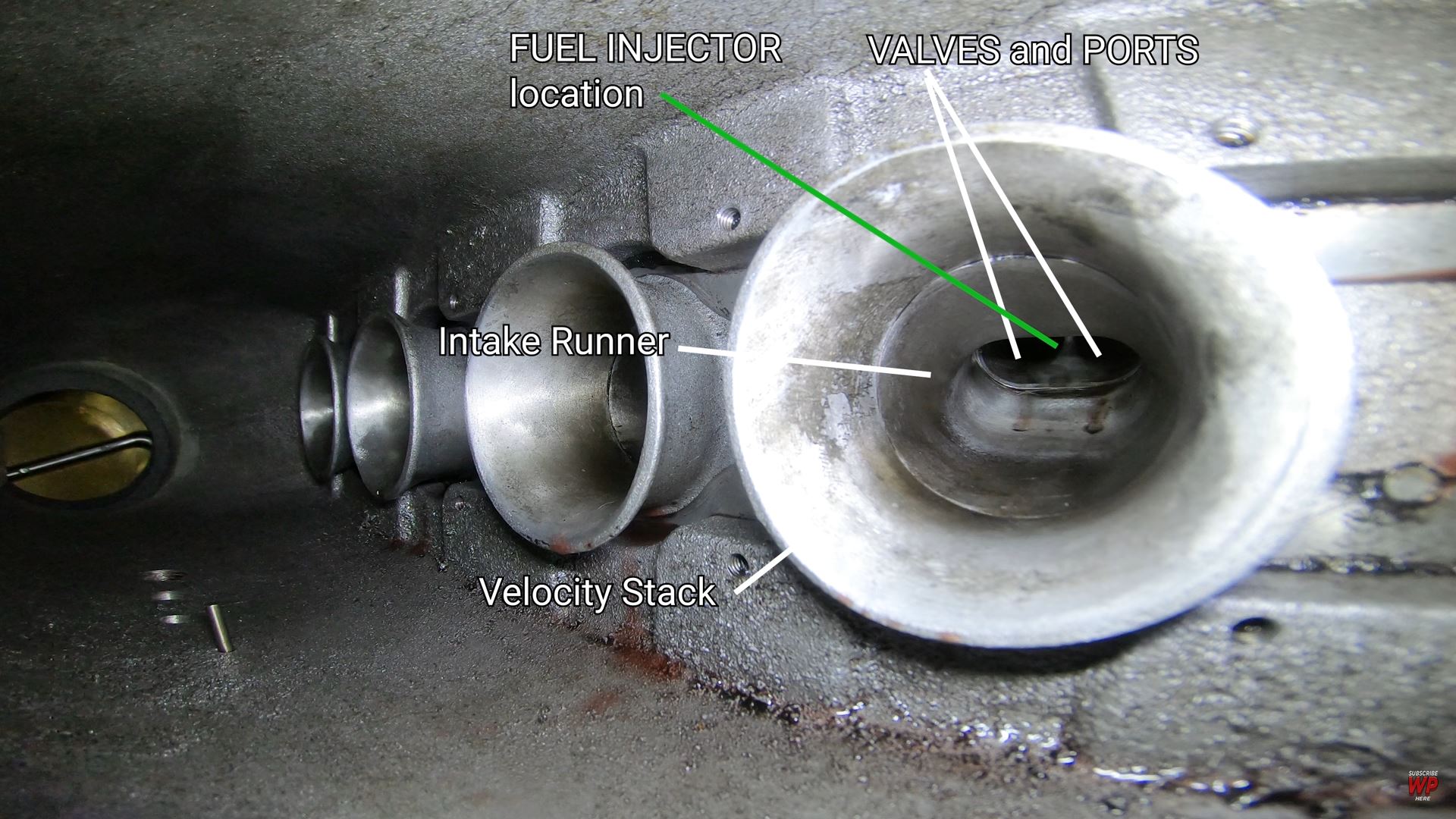

Handy labeling!

It’s also worth noting that when coming off throttle, during the blowoff phase, you can actually see quick flashes of the compressed air expanding back up the velocity stacks. This is especially noticeable in the third intake.

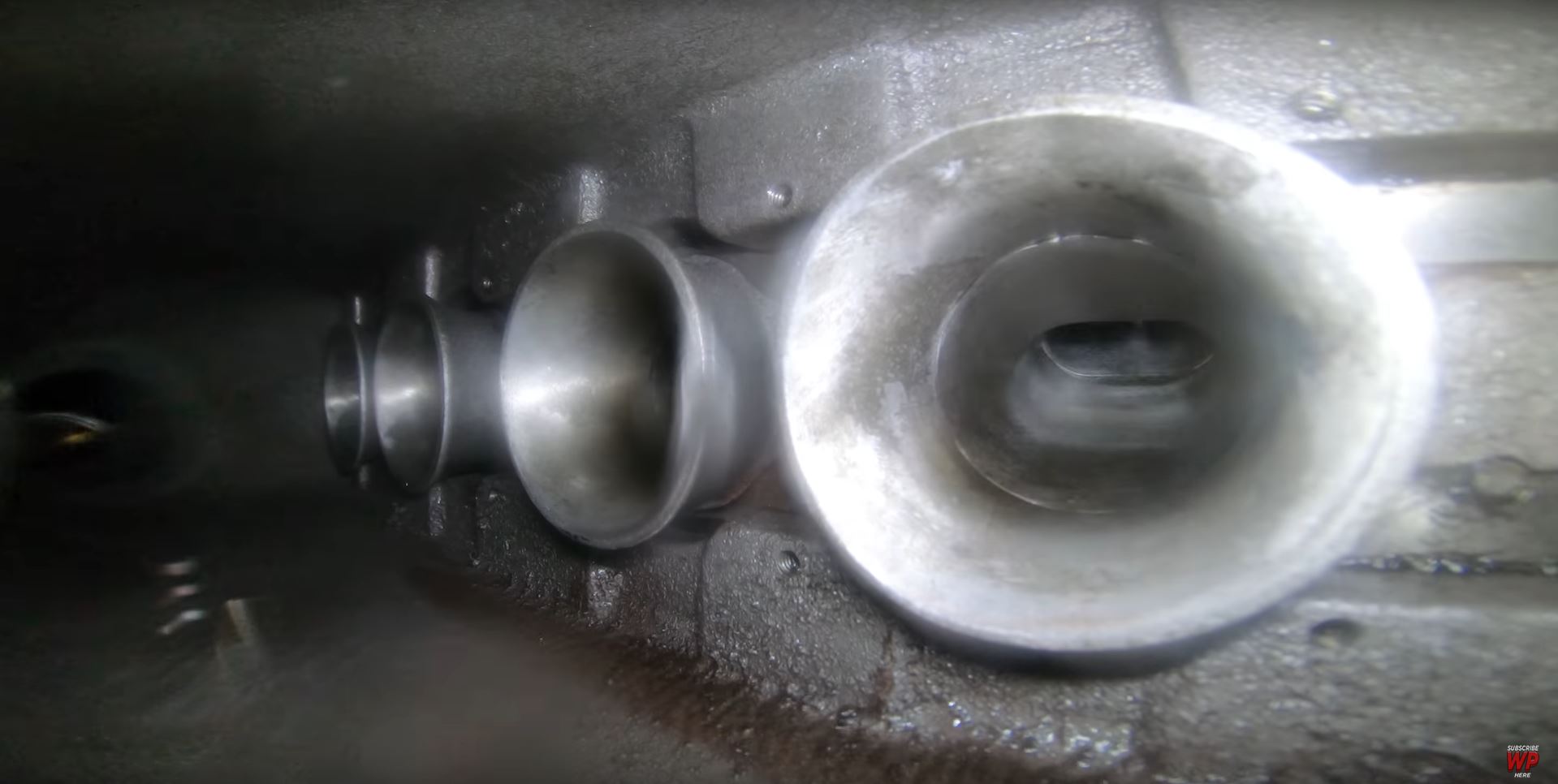

Inside a Supra intake manifold
When coming off throttle suddenly, like in a shift, the compressed air expands and also blows back a little of the fuel from the injectors.

This view is similar to what you would see inside such turbocharged beasts as the Porsche 911 Turbo S, the Bugatti Chiron, the Ferrari SF90 Stradale, and the like.

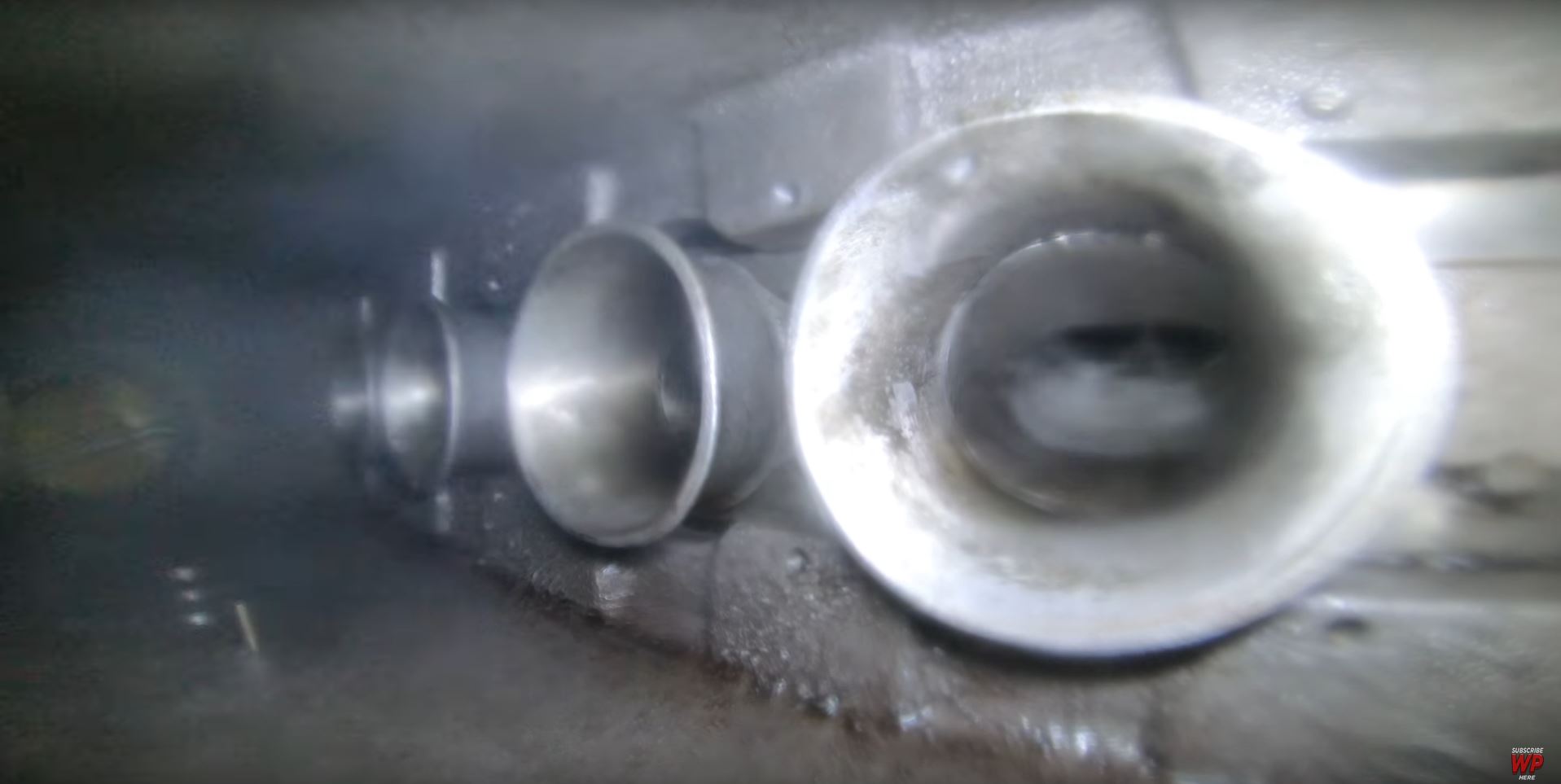

Inside a Supra intake manifold
Wide-open throttle, full pressure, the injectors are just dumping fuel in as fast as they can

Sometimes, it’s just really cool to look inside what we take for granted every day, that being the power of the engines of the cars we depend on and love so much!
