1955 Ferrari 410 Sport

1955 Ferrari 410 Sport

1955 Ferrari 410 Sport

The 410 was Ferrari’s top sports-racing car in 1955 and effectively replaced the 375 Plus which won Le Mans in 1954. It was specifically designed for a race stretching up the newly built Mexican highway called the Carrera Panamerica and was named ‘Carrera Messicana’ internally by Ferrari. For the long and straight sections, where the car ran at full tilt for miles, the 410 was built with a powerful engine and five speed transaxle.

To take full advantage, the 410’s engine became the most powerful version Lampredi’s ‘long block’ 60º V12. Displacing 4962cc, the 410 Sport had 380 bhp on tap and was the most powerful car Ferrari produced. Richie Ginther claimed just that, and Enzo Ferrari mentioned that “this was the best Ferrari he ever built.”

The first two cars, called 410 Speciale, were fitted with single plug ignition and Weber W40 DCF/3 carburetors to produce 345 bhp. The factory works cars followed Ferrari’s F1 practice, using twin-spark ignition and Weber 46 DCF carburetors to produce 380 bhp. Only two of these more developed cars were produced and they were called the 410 S or 410 Sport. Lubrication was provided by a dry sump system with a reservoir located in near the passenger-side seat.

A specially designed chassis was drawn up for the 410 which had shortened the 375’s wheelbase from 2600 to 2420 mm. The same dimensions were used on the seminal 250 Testa Rossa in 1958. Made to cope with the brutal Mexican roadways, the chassis has two very large oval chassis rails that were substantially cross braced.

Suspension was typical of the period with independent A-Arms up front and a de Dion-type axle with transverse leaf spring in the rear. Braking was provided by massive drum brakes which were mounted clear of the wheels to aid in drum cooling.

Scaglietti was essentially a quazi-factory effort in the fifties and bodied almost all of Ferrari’s factory race cars. Many designs to come from Scaglietti were based on another carozzeria’s design, but a rare few Ferrari’s were completely Scaglietti. Whenever this was case, as with the 410 Sport, Scaglietti fitted their badge behind the front wheels. Unlike the 375 Plus penned by Pinin Farina, the 410 featured a huge elongated front grill and an extended tail to fit the huge 195 liter (51.5 gallon) fuel tank. Scaglietti also fitted an enormous front hood to provide more than sufficient access to the engine bay. Like the 375 Plus, the 410 had an optional cover that was used over the passenger-side seat.

Unfortunately, the 410 Sport saw little action contesting international motor sport. After the 1956 edition of the Carrera Panamerica was canceled, Ferrari instead raced the cars once at Buenos Aires where they retired with transaxle failure. Afterward they were sold to private teams. An attempt was made to include 0598CM as private entrants in the Mille Miglia but this was sidelined due to the factory effort which was instead concentrated on 860 Monzas and 290 MMs. One of the cars, chassis 0598CM, went to Californian John Edgar who had Carol Shelby drive it to much success in American SCCA racing.

After the brief 410 racing program, Ferrari focused on a fledging inline-4 and inline-6 initiative before Ferrari and Lampredi departed ways. Ferrari then hired Andrea Fraschetti to further develop the 290MM/315S/335S V12 cars from where Colombo and Lampredi left off.

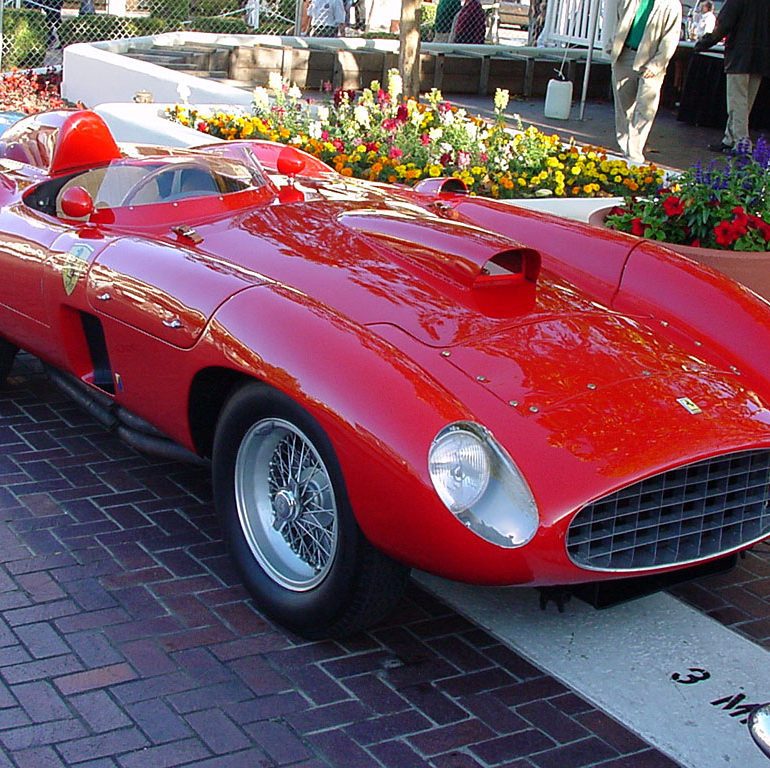

1955 Ferrari 410 Sport Gallery

See full 1955 Ferrari 410 Sport Gallery here

1955 Ferrari 410 Sport 1955 Ferrari 410 Sport 1955 Ferrari 410 Sport

In Detail

submitted by Richard Owen
type Racing Car
built at Maranello, Italy
body stylist Scaglietti & C.
coachbuilder Scaglietti & C.
production 2
engine Tipo 126C TwinSpark V12
position Front Longitudinal
aspiration Natural
valvetrain SOHC 2 Valves / Cyl
fuel feed Weber 46 DCF Twin Barrel Carburettors
displacement 4961 cc / 302.7 in³
bore 88 mm / 3.46 in
stroke 68 mm / 2.68 in
compression 8.5:1
power 283.4 kw / 380.0 bhp @ 7000 rpm
specific output 76.6 bhp per litre
bhp/weight 316.67 bhp per tonne
torque 546.39 nm / 403 ft lbs @ 5000 rpm
body / frame Aluminum over Tipo 519C Steel Oval-Frame Chassis
driven wheels RWD
front brakes Hydraulic Drums
rear brakes Hydraulic Drums
steering Worm & Wheel
f suspension Parallel A-Arms w/Coil Springs, Houdaille Shock Absrobers
r suspension De Dion Type w/Transverse Leaf Spring, Trailing Arms, Houdaille Shock Absrobers
curb weight 1200 kg / 2646 lbs
wheelbase 2420 mm / 95.3 in
front track 1455 mm / 57.3 in
rear track 1450 mm / 57.1 in
transmission 5-Speed Transaxle
fuel capacity 195 litres or 51.48 gal.
