1986 BMW Z1

1986 BMW Z1

1986 BMW Z1

 With the roadster coming under increasing criticism in the ’60s and ’70s in terms of both safety and comfort, it took 29 years before the next roadster bearing the white-and-blue logo entered the market. This was the BMW Z1 launched – ahead of its time in technical terms – in 1988.

The body of the Z1 was a steel monocoque made of pressed and welded metal
panels and with its plastic floor bonded into place. The entire outer skin was made up of plastic elements and panels likewise bolted on to the car, with the doors retracting on request into the high side-sills even while driving.

The 170-horsepower 2.5-litre straight-six power unit and most of the car’s axle
components came from the 3 Series. With the engine being fi tted behind the front axle, the BMW Z1 was a front mid-engined car, to use the technical term.

Acceleration from a standstill to 100 km/h came in less than eight seconds and the car’s top speed was 225 km/h or 140 mph.

Through its extremely harmonious combination of materials and technologies, the BMW Z1, weighing just 1,250 kg or 2,756 lb, was a truly dynamic roadster still thrilling today in terms of stiffness, its low centre of gravity, and stability in bends. The first units of the car built largely by hand were delivered to customers as of January 1989, the base price of DM 80,000.– ensuring lasting exclusivity. Production of the BMW Z1 finally ended in June 1991, after a production run of exactly 8,000 units.

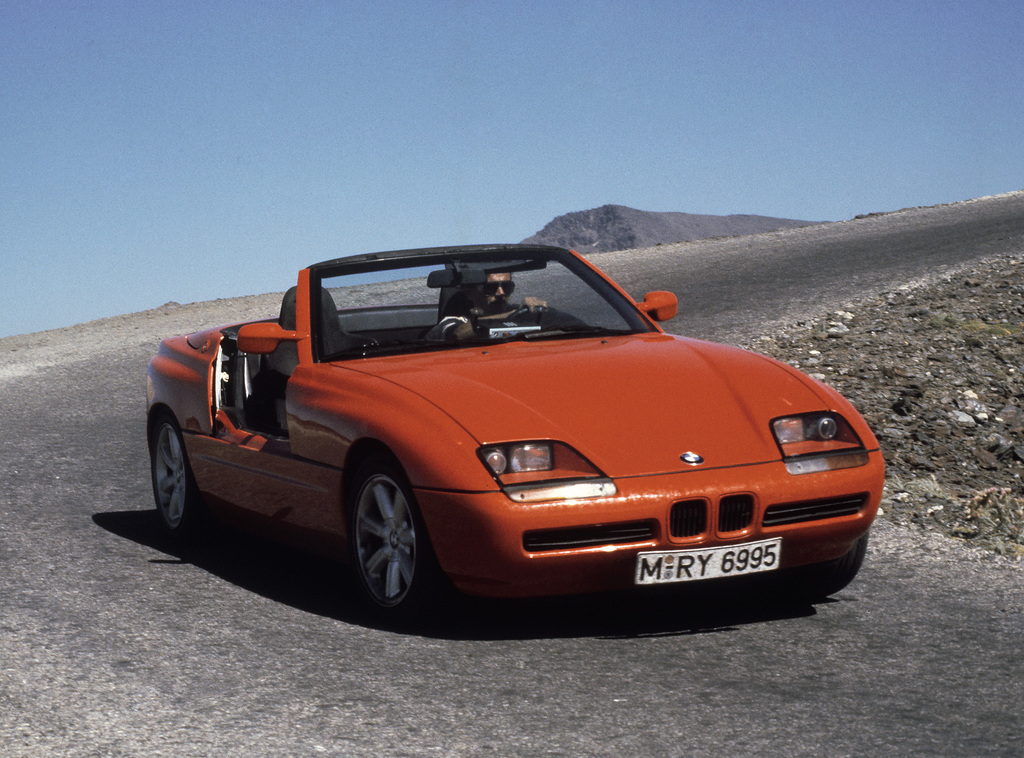

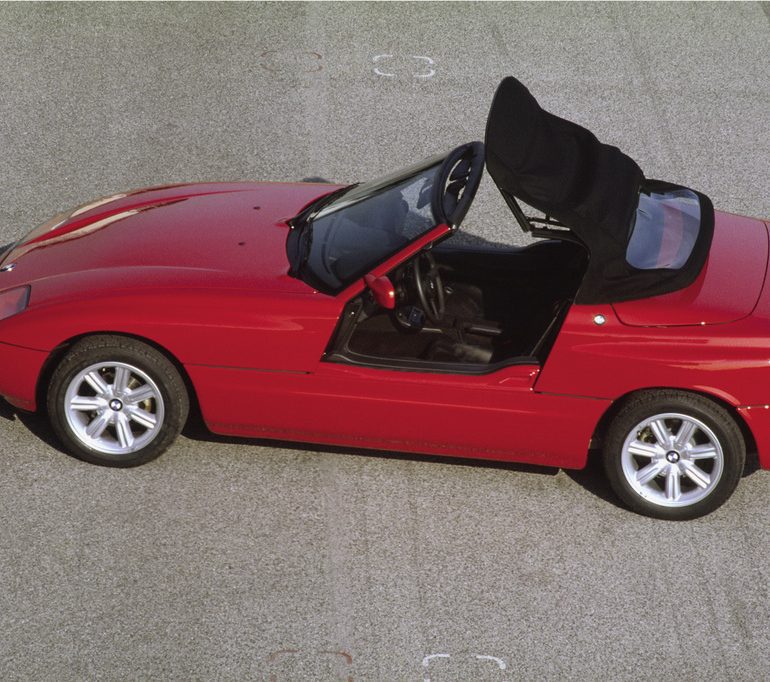

1986 BMW Z1 Gallery

See full 1986 BMW Z1 Gallery here

In Detail

submitted by Richard Owen
built at Munich, Germany
engine Inline-6
valvetrain SOHC 2 Valves / Cyl
displacement 2494 cc / 152.2 in³
bore 84.0 mm / 3.31 in
stroke 75.0 mm / 2.95 in
compression 9.7:1
power 126.8 kw / 170.0 bhp @ 5800 rpm
specific output 68.16 bhp per litre
bhp/weight 131.78 bhp per tonne
torque 226.42 nm / 167.0 ft lbs @ 4000 rpm
driven wheels Front Engine / RWD
front tires 205/55VR-15
rear tires 205/55VR-15
front brakes Vented Discs w/ABS
front wheels F 38.1 x 17.8 cm / 15.0 x 7.0 in
rear wheels R 38.1 x 17.8 cm / 15.0 x 7.0 in
steering Rack & Pinion
curb weight 1290 kg / 2844 lbs
wheelbase 2450 mm / 96.5 in
front track 1354 mm / 53.3 in
rear track 1471 mm / 57.9 in
length 3925 mm / 154.5 in
width 1690 mm / 66.5 in
height 1248 mm / 49.1 in
transmission 5-Speed Manual
gear ratios 3.83:1, 2.20:1, 1.40:1, 1.00:1, 0.84:1
final drive 3.64:1
top speed ~218.9 kph / 136.0 mph
0 – 60 mph ~7.9 seconds
0 – 100 mph ~23.3 seconds
0 – 1/4 mile ~15.9 seconds
