Deeply rooted in the MANSORY philosophy is the motto of always supplying prized automobile possessions. With the customised McLaren MP4-12C, the luxury manufacturer from the Bavarian town of Brand has once again succeeded in delivering another such highlight.

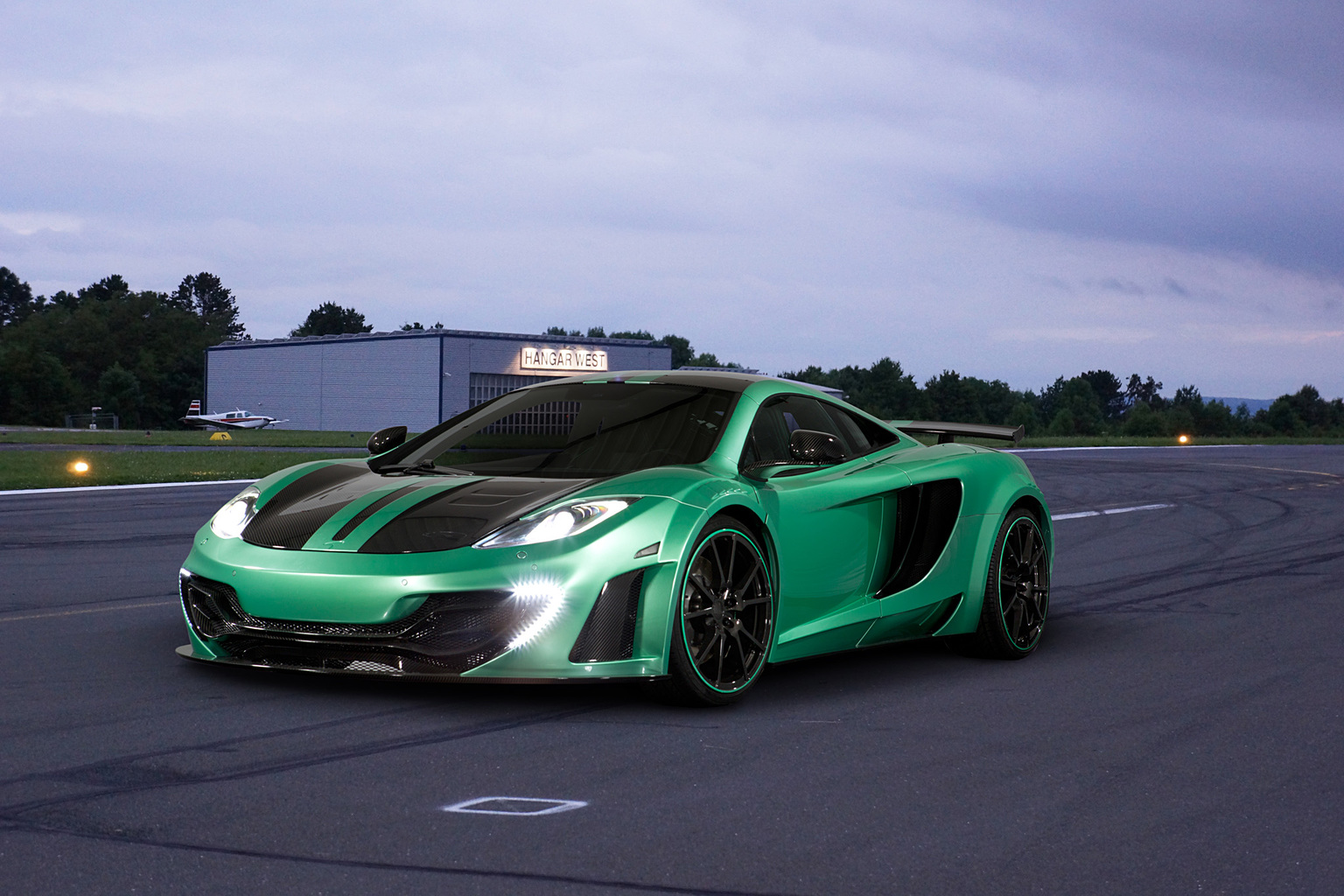

In particular the body package makes it clear that MANSORY wanted to differentiate itself significantly from the series vehicle. Besides design elements such as the ultralight bonnet with exposed carbon-fibre sections or the proprietary daytime driving lights, a number of targeted measures deliver a boost in aerodynamics.

Be it the roof, the front or rear apron, the mirror housing, or the wings, which widen the vehicle by 60 millimetres, all components are made of carbon fibre and hardened in the autoclave under high pressure and temperature. This high-tech process brings some impressive benefits: Both the acceleration values and the braking distance and fuel consumption are improved by the reduction of the vehicle’s weight.

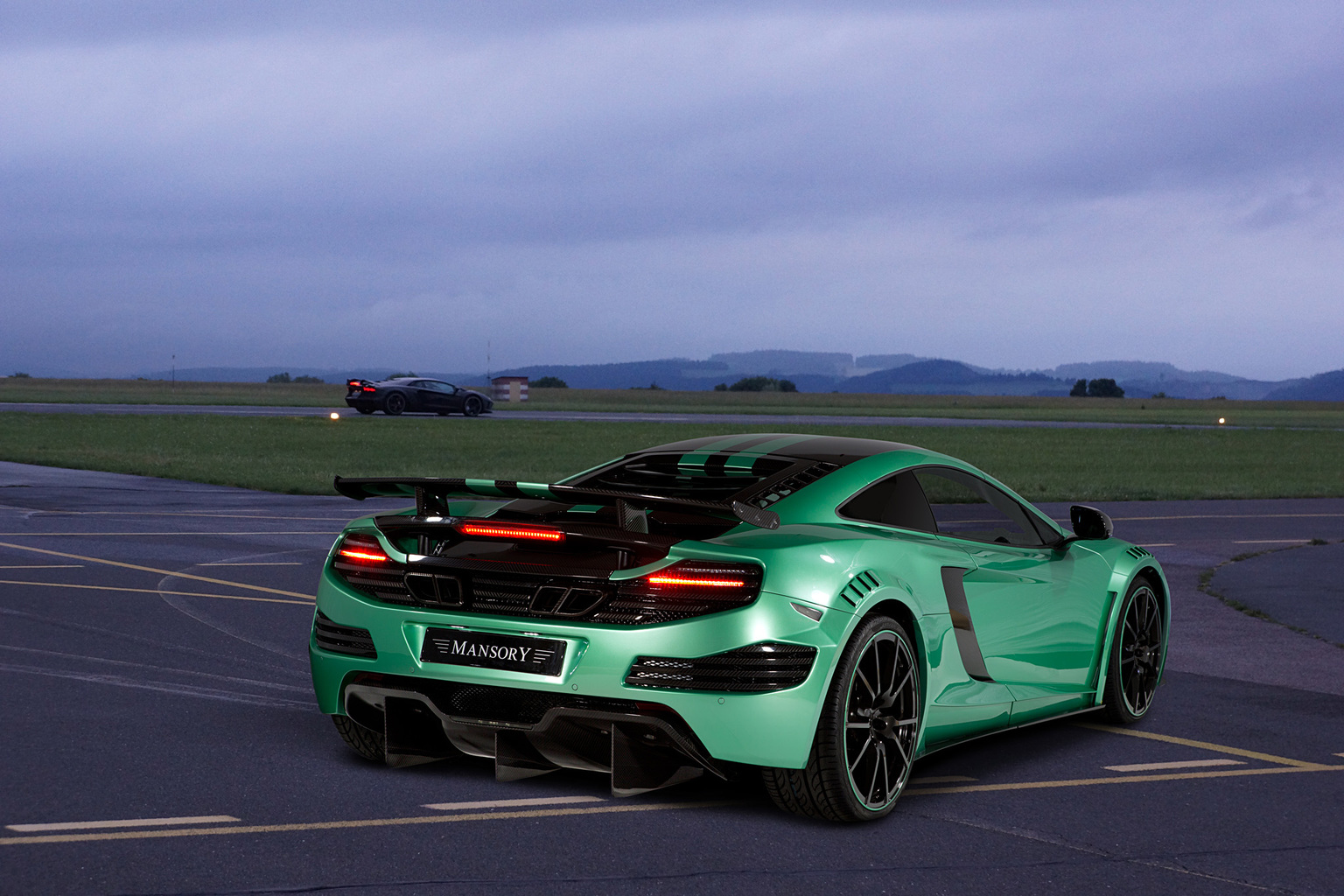

Furthermore, the newly designed side sill set steadies the airflow between the two axles. A wing profile, in combination with the diffuser, delivers greater contact pressure on the rear axle.

The improved agility and handling that this delivers provides scope for increased performance. Here, too, MANSORY applies its considerable expertise. MANSORY offers the centrepiece of its customisation programme with a powerful performance enhancement.

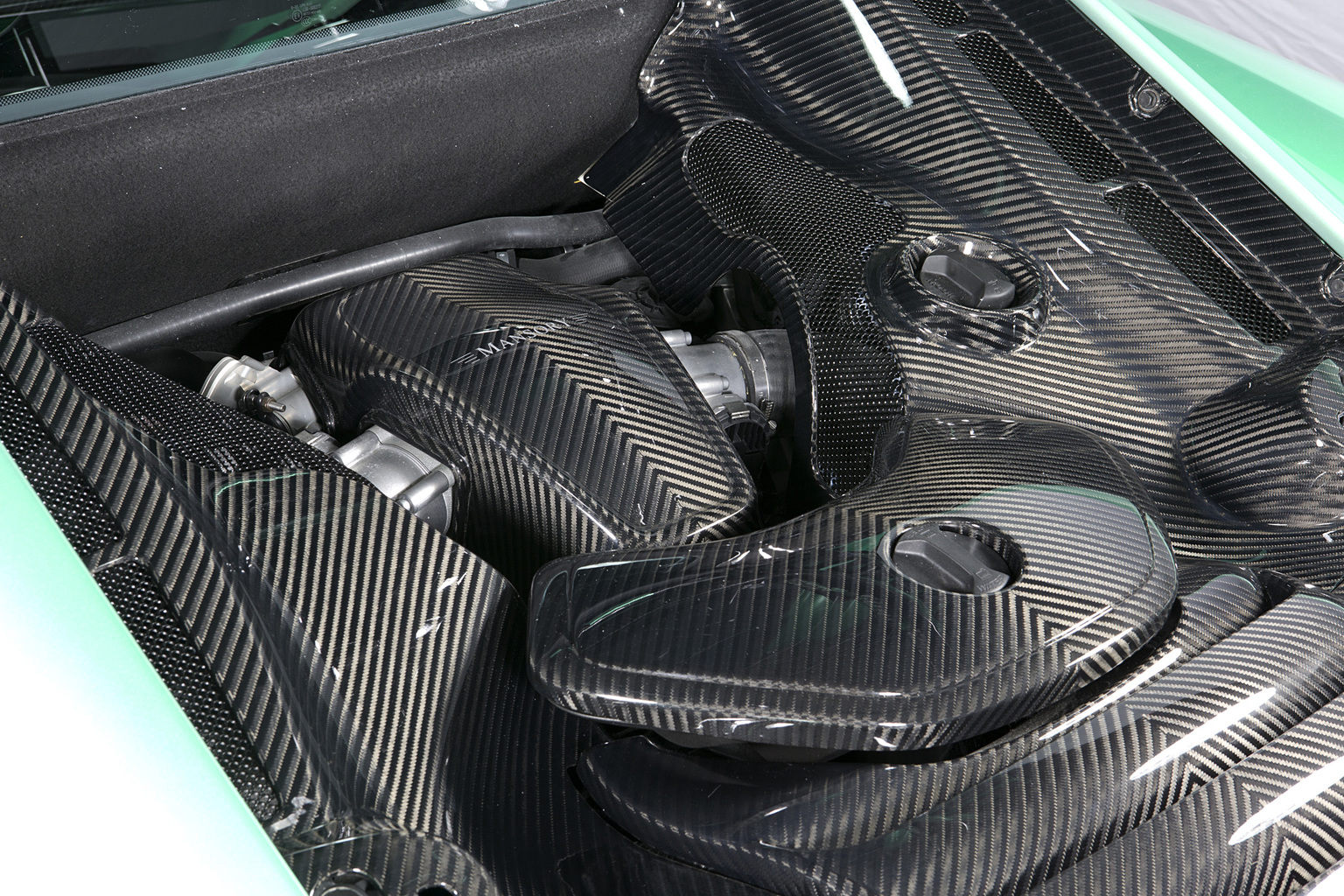

The upgrade includes a high-performance exhaust system, a new engine-management system and a sports air filter with increased air throughflow. The combination of these components results in a power of ca. 670 PS / 493 kW at 7,100rpm (series: 608 PS / 447 kW at 7,000 rpm). At the same time, the maximum torqueclimbs to an imposing 675 Nm, which is available in the range 3,000 to 6,500 rpm(series: 600 Nm at 3,000–6,500). After modification, the top speed is 353 km/h.

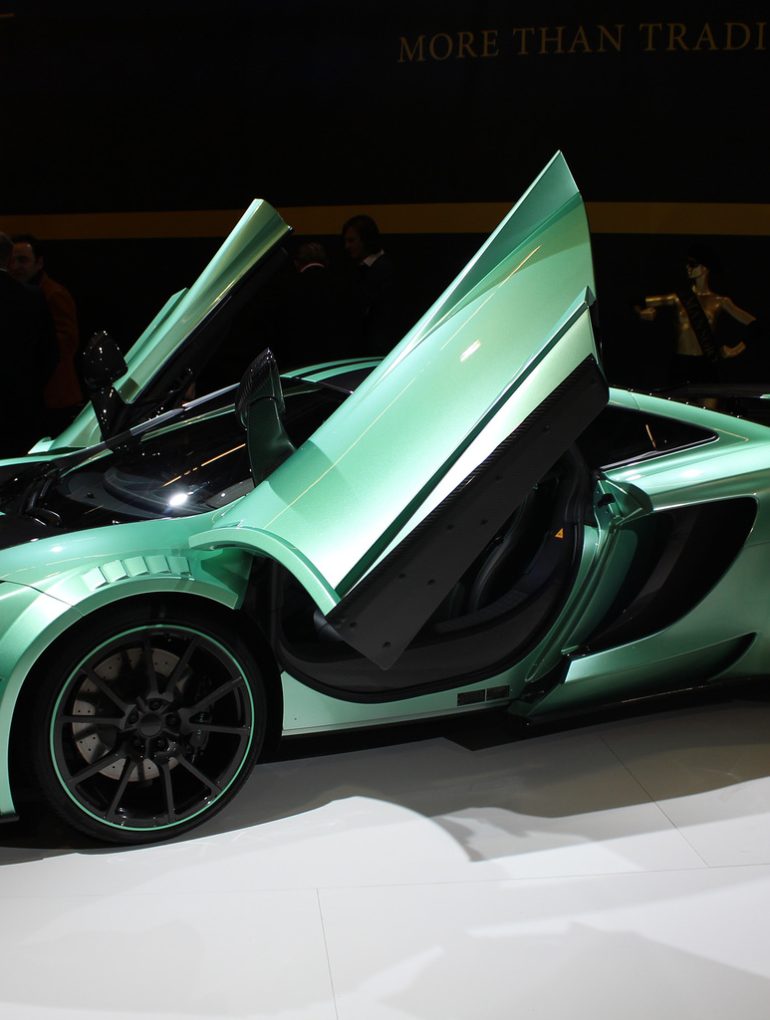

In line with the McLaren’s dynamic new presence, MANSORY fits the two-seater with striking light-metal wheels. Manufactured using forging technology, these wheels areultralight and especially robust. On the front axle, the selected wheel-tyre combination is 9.0Jx20-inch with tyres of the size 245/30ZR20. At the rear, 11Jx21 -inch rims are paired with 305/25ZR21 tyres.

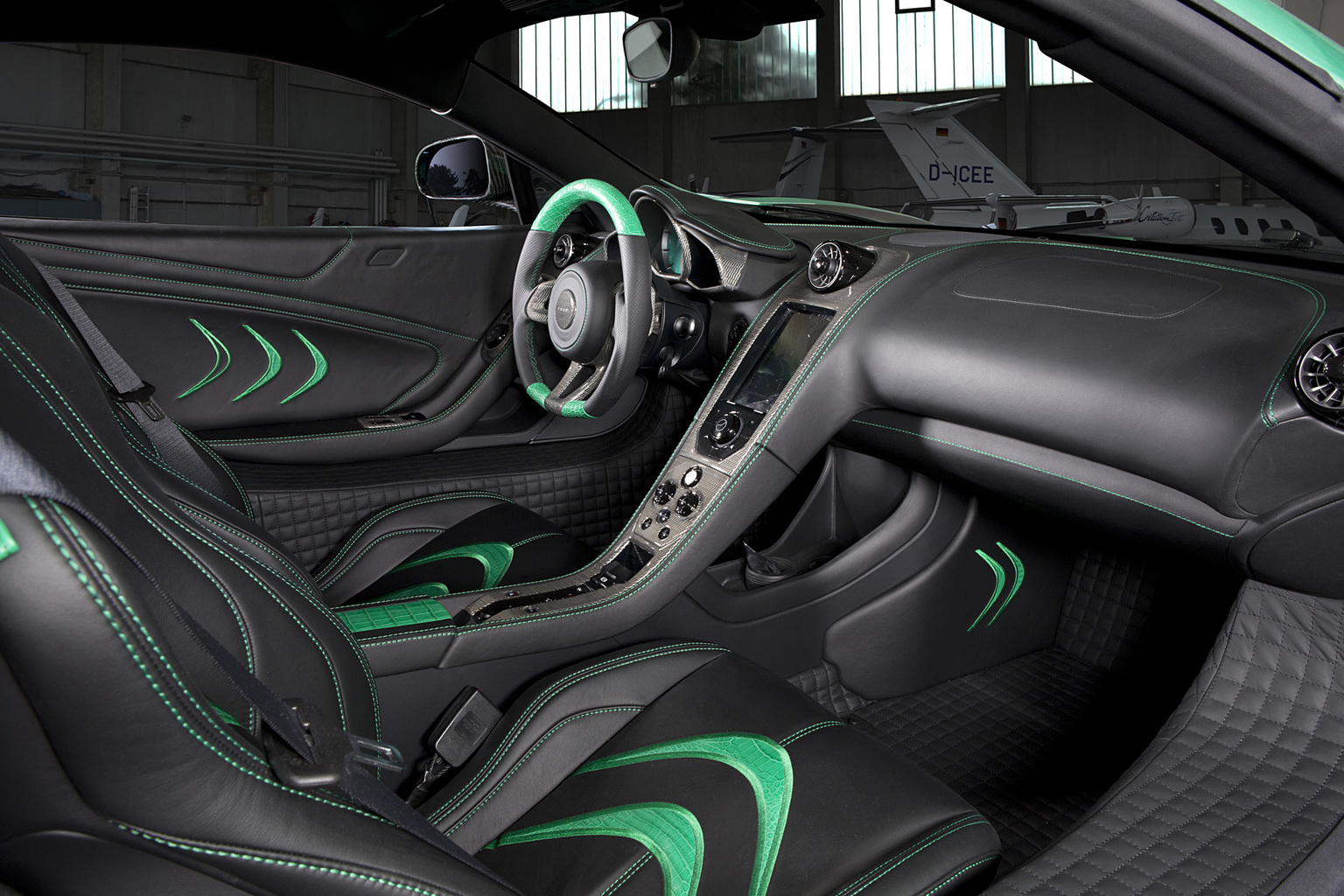

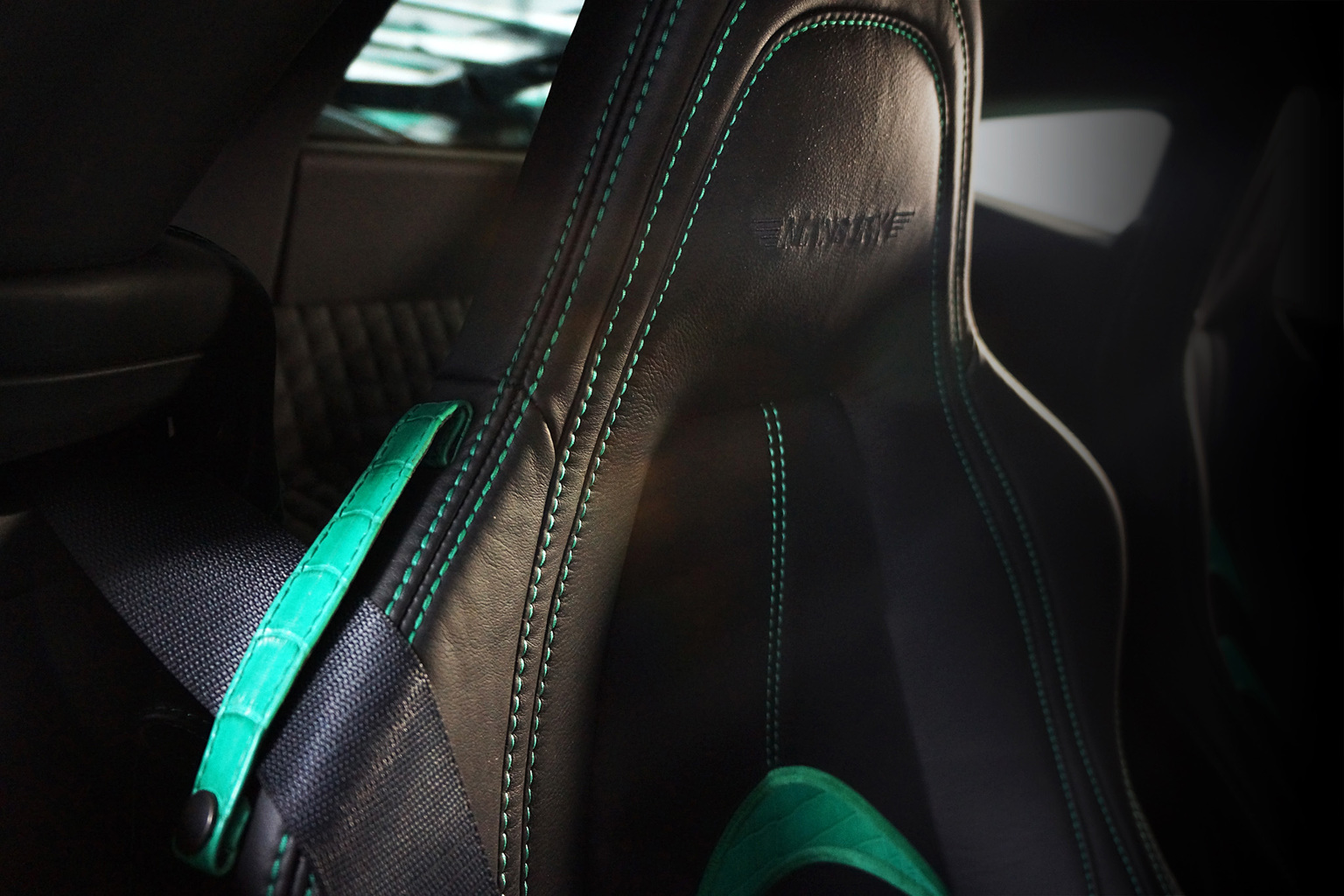

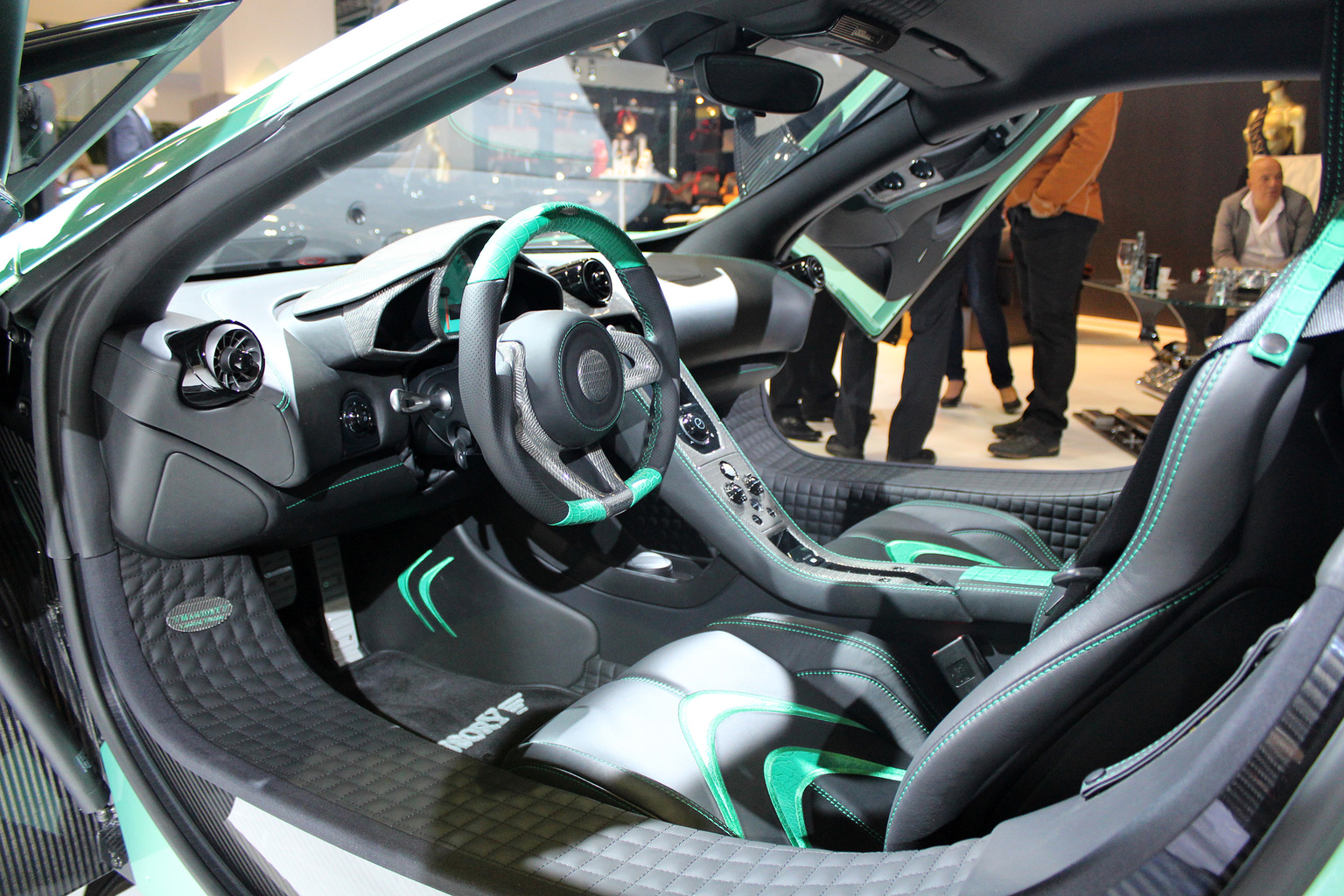

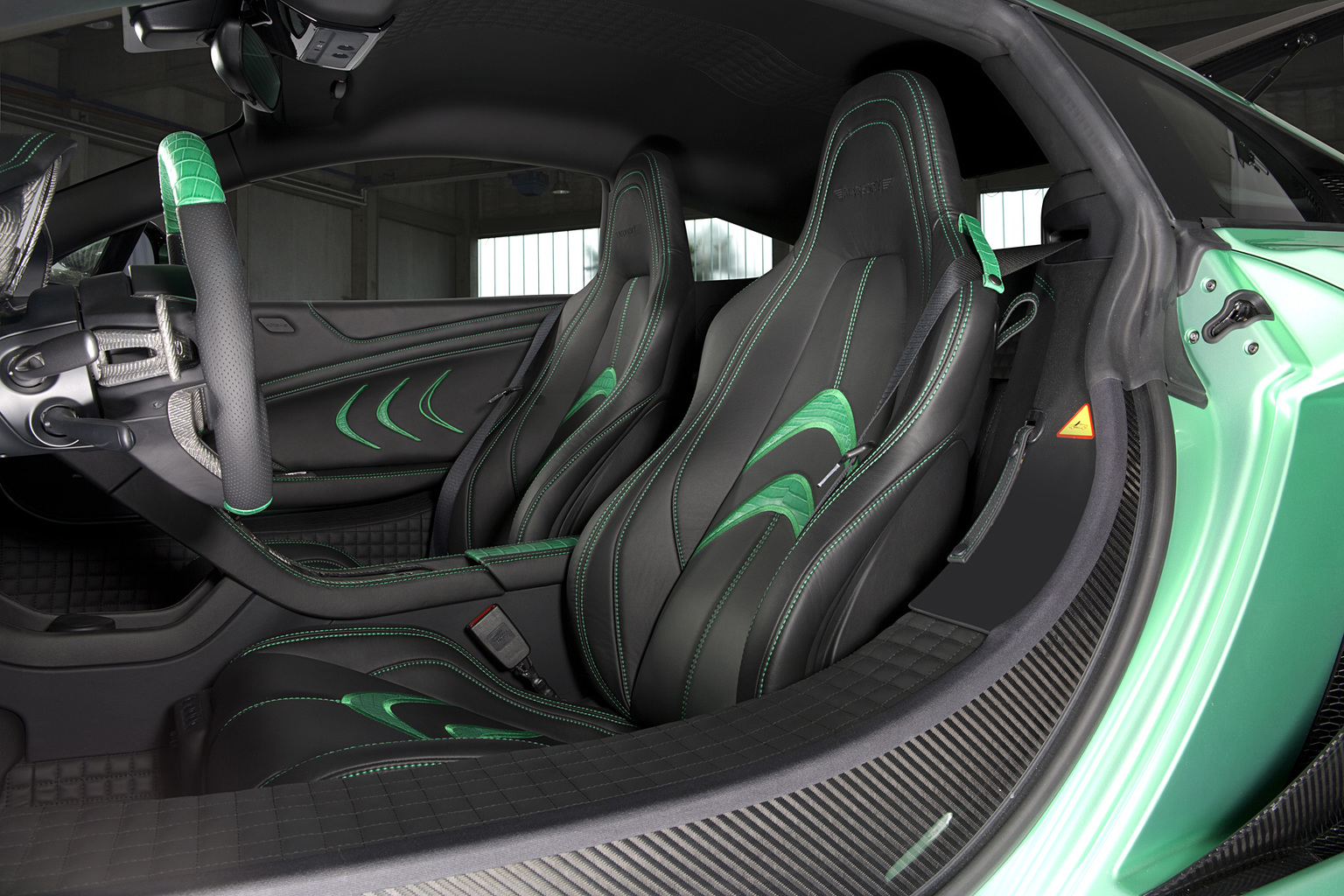

The finest materials are used in the interior, giving occupants a feeling of the utmost comfort. The leather of the MANSORY’s interior is treat ed by master craftsmen and is both especially hardwearing and extraordinarily soft. Only flawless natural hides are fitted in the interiors and stitched with contrasting thread by the in-house saddlery.

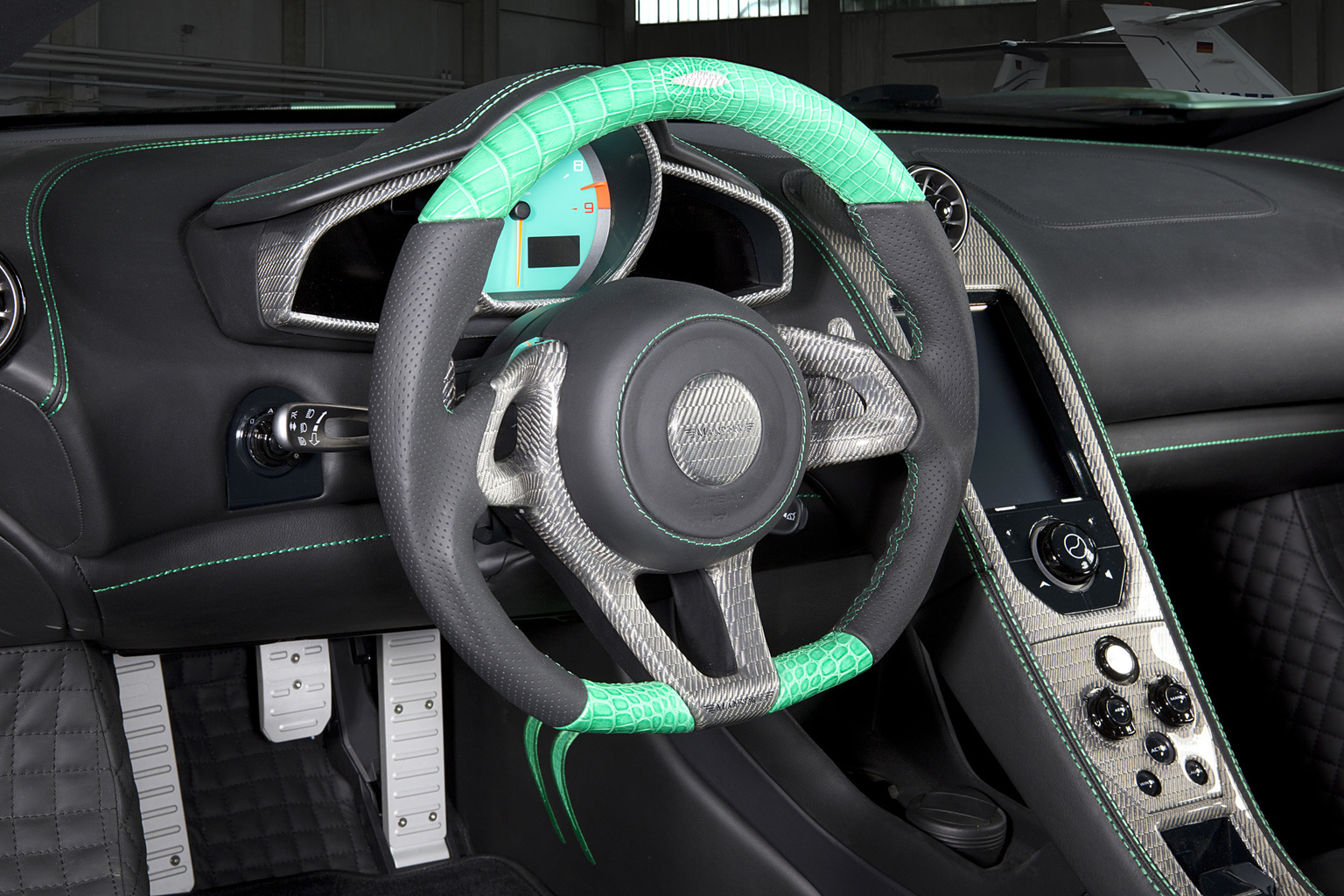

The newly designed airbag sports steering wheel, the aluminium pedals and the real carbon-fibre elements complete the exquisite overall feel in the McLaren MP4-12C.

MANSORY achieves the perfect symbiosis of sports functionality and luxurious ambience. MANSORY–the specialist for high end car-refinements and innovative engineering design offers therefined McLaren MP4-12C for a price of 420,000 Euros.

Story by Mansory Design & Holding GmbH 2013

In Detail

submitted by admin
type Professionally Tuned Car

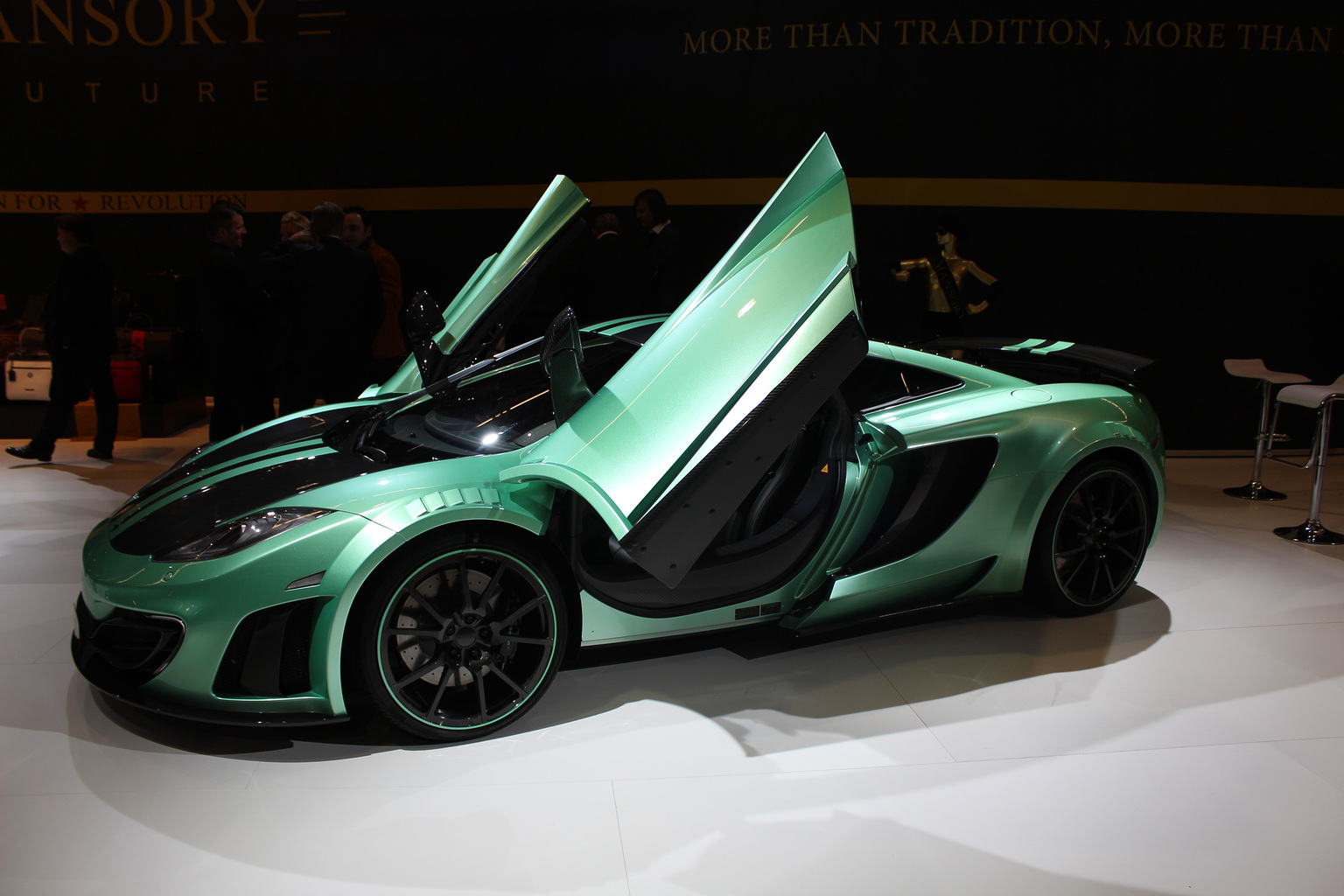

released at 2013 Frankfurt Motor Show
built at Woking, England
price €/td> €420,000
engine 90º M838T V8 w/Dry Sump Lubrication
position Mid, Longitudinal
aspiration Twin Turbo
block material Aluminum
valvetrain DOHC, 4 Valves per Cyl w/dual VVT
displacement 3799 cc / 231.83 in³
bore 93 mm / 3.7 in
stroke 69.9 mm / 2.8 in
compression 8.7:1
power 493 kw / 661.1 bhp @ 7000 rpm
specific output 174.02 bhp per litre
bhp/weight 461.02 bhp per tonne
torque 675 nm / 497.9 ft lbs @ 3000 to 6500 rpm
redline 8500
body / frame Carbon Fiber Monocoque ‘MonoCell’ w/Aluminum Front & Rear Subframes
driven wheels RWD
wheel type Forged Aluminum
front tires 245/30ZR20
rear tires 305/25ZR21
front brakes Cast Iron Discs
rear brakes Cast Iron Discs
front wheels F 50.8 x 22.9 cm / 20 x 9 in
rear wheels R 50.8 x 29.2 cm / 20 x 11.5 in
f suspension Double Wishbones w/Coil Springs, Active Hydraulic Dampers
r suspension Double Wishbones w/Coil Springs, Active Hydraulic Dampers
curb weight 1434 kg / 3162 lbs
weight distro 42.5 % / 57.5 %
wheelbase 2670 mm / 105.1 in
front track 1656 mm / 65.2 in
rear track 1583 mm / 62.3 in
length 4507 mm / 177.4 in
width 1909 mm / 75.2 in
height 1199 mm / 47.2 in
transmission 7-Speed Seamless Shift
tran clutch Dual-Clutch
