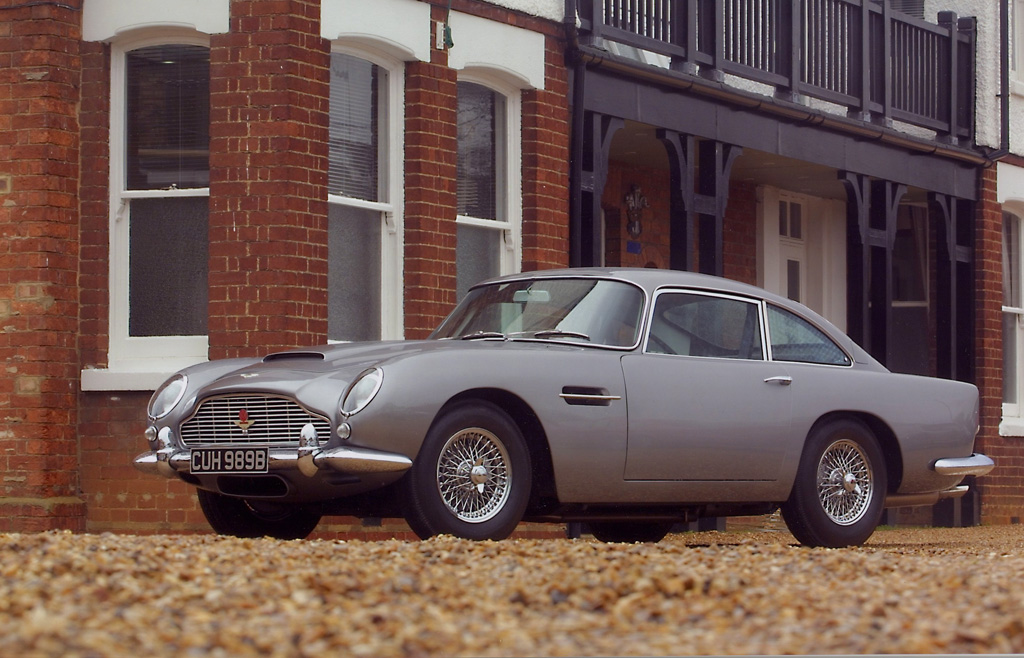

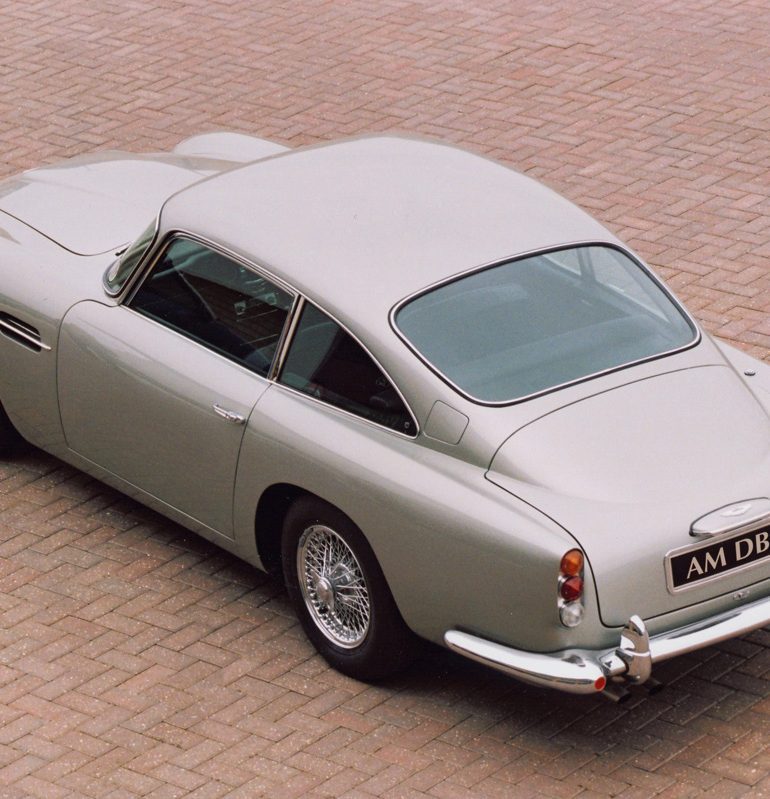

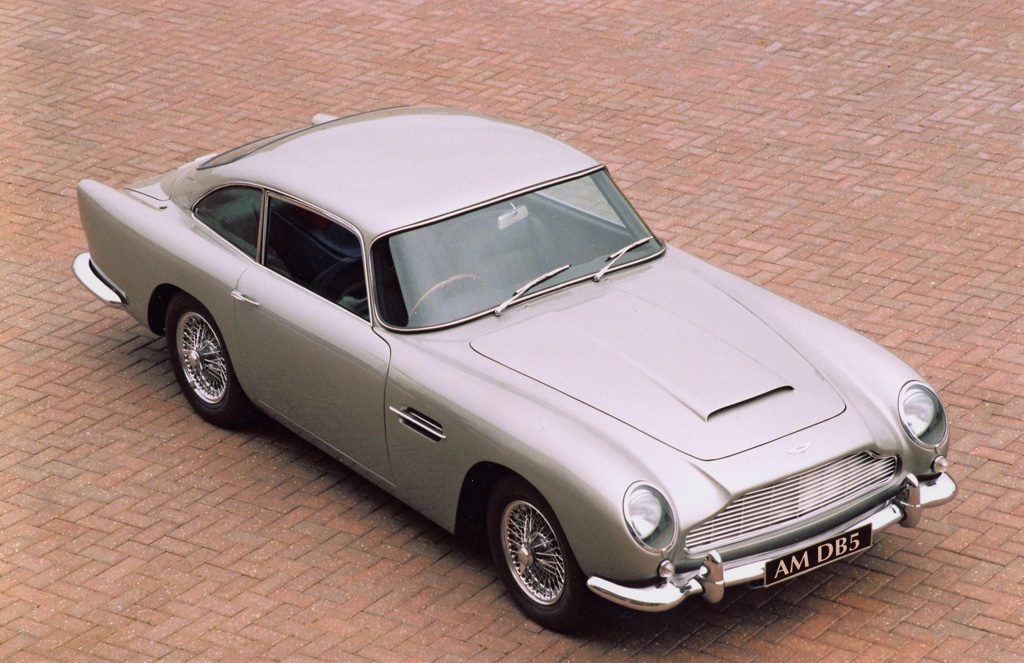

1963→1965 Aston Martin DB5

1963→1965 Aston Martin DB5

1963→1965 Aston Martin DB5

Perhaps the most famous Aston Martin because of the specially equipped silver birch DB5 that starred in the James Bond films “Goldfinger” and “Thunderball”. The DB5 made a comeback to the big screen in the 1995 film “GoldenEye”.

Regarded by many as the most beautiful Aston Martin produced, DB5 shares many similar traits to DB4. However, DB5’s most substantial change occurred under the bonnet. The 6 cylinder engine increased its capacity to 4 litres by increasing the bore to 96mm. Significant too was the introduction of a true full synchromesh ZF 5 speed gearbox. Other chassis changes included the adoption of the Girling disc brakes that had only been used on the DB4GT, and 15” wheels.

A convertible was also offered and was available with a steel hard top with an exceptionally large rear window.
Story by Aston Martin Lagonda Limited

In Detail

submitted by Richard Owen
type Series Production Car
production years 1963 – 1965
built at England
production 886
price $ $ 12,995
price £/td> £4,175
engine Inline-6
valvetrain DOHC
displacement 3995 cc / 243.8 in³
bore 96.01 mm / 3.78 in
stroke 91.9 mm / 3.62 in
compression 8.9:1
power 210.3 kw / 282.0 bhp @ 5500 rpm
specific output 70.59 bhp per litre
bhp/weight 192.36 bhp per tonne
torque 379.6 nm / 280.0 ft lbs @ 4500 rpm
driven wheels RWD
front brakes Discs
rear brakes Discs
steering Rack & Pinion
f suspension A-Arms w/Coil Springs, Anti-Roll Bar
r suspension Live Axle w/Watts Link, Trailing Links, Coil Springs
curb weight 1466 kg / 3233 lbs
wheelbase 2489 mm / 98.0 in
front track 1377 mm / 54.2 in
rear track 1359 mm / 53.5 in
length 4572 mm / 180.0 in
width 1676 mm / 66.0 in
height 1321 mm / 52.0 in
transmission 5-Speed Manual
gear ratios 2.73:1, 1.76:1, 1.23:1, 1.00:1, 0.83:1
top speed ~228.48 kph / 142 mph
0 – 60 mph ~7.5 seconds
0 – 100 mph ~20.2 seconds
0 – 1/4 mile ~16.2 seconds
