1966 Dino 206 S Montagna Corsa


1966 Dino 206 S Montagna Corsa

1966 Dino 206 S Montagna Corsa

Ferrari converted two 206 Spiders from their regular configuration to this potent design for the European Mountain Championship. Typical races included long mountain stretches which required excellent vision.

Built to Group 6 specification, the Montagna Corsa a had cut-down front windscreen and integrated roll bar.

Later the Montagna Corsa inspired the Ferrari 212 E Montagna which used a flat-12 engine in a similar chassis and body.

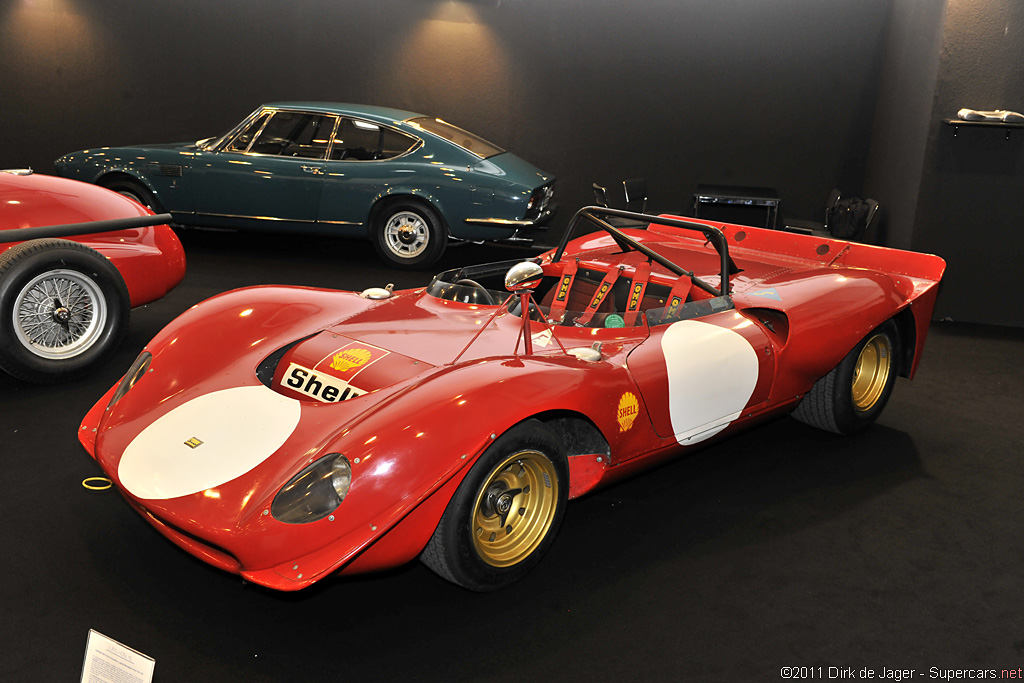

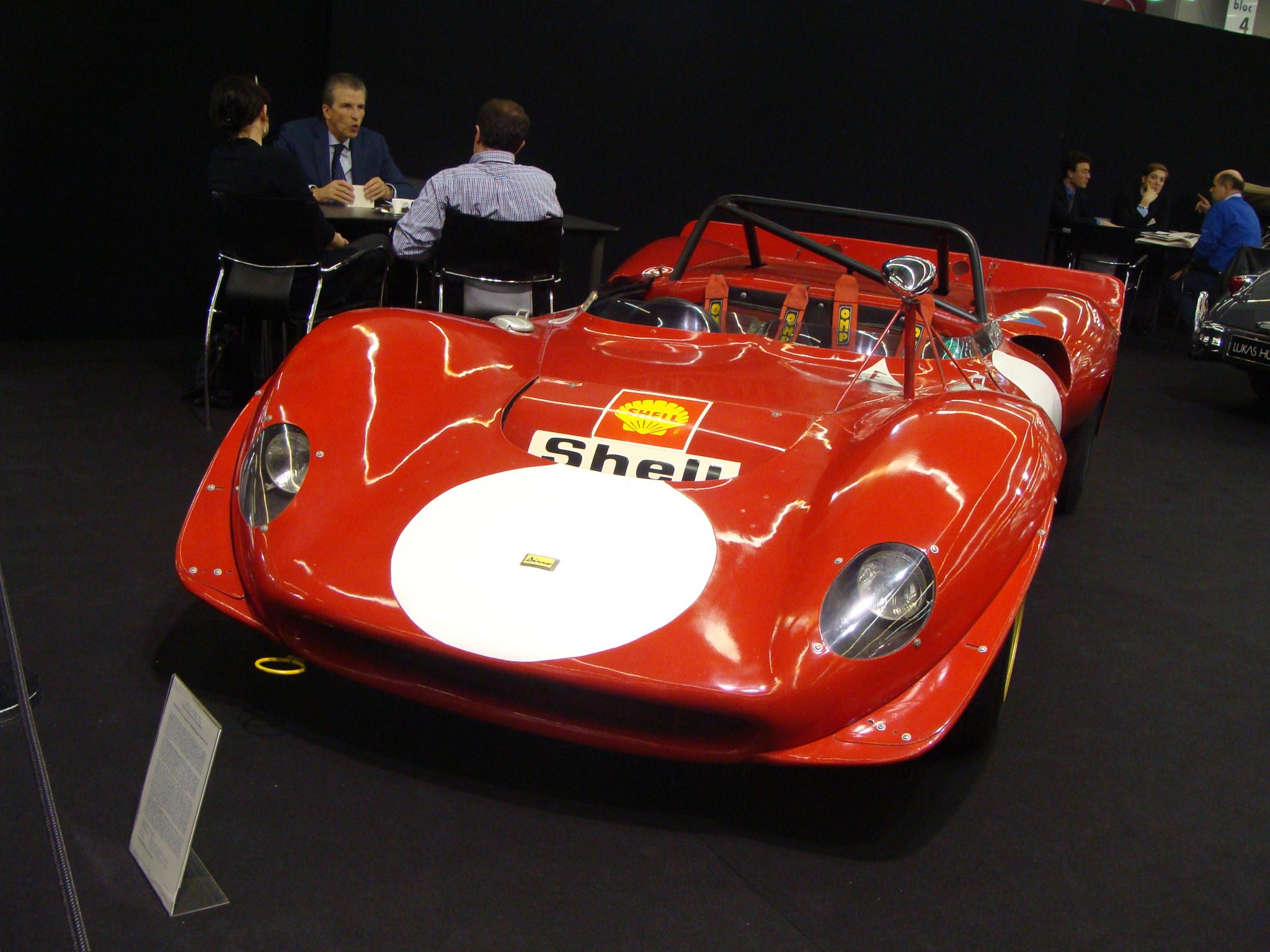

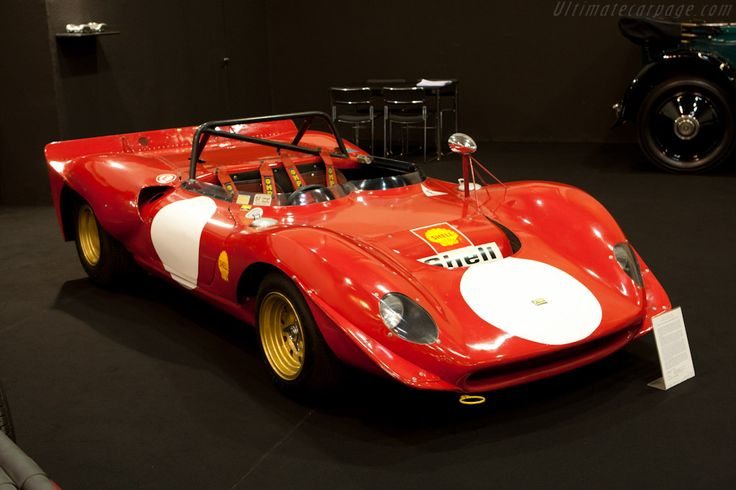

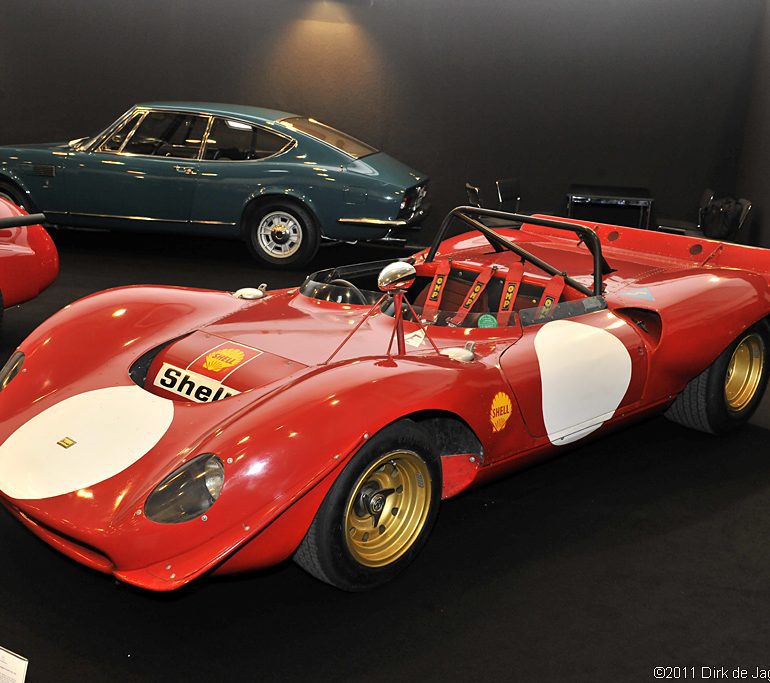

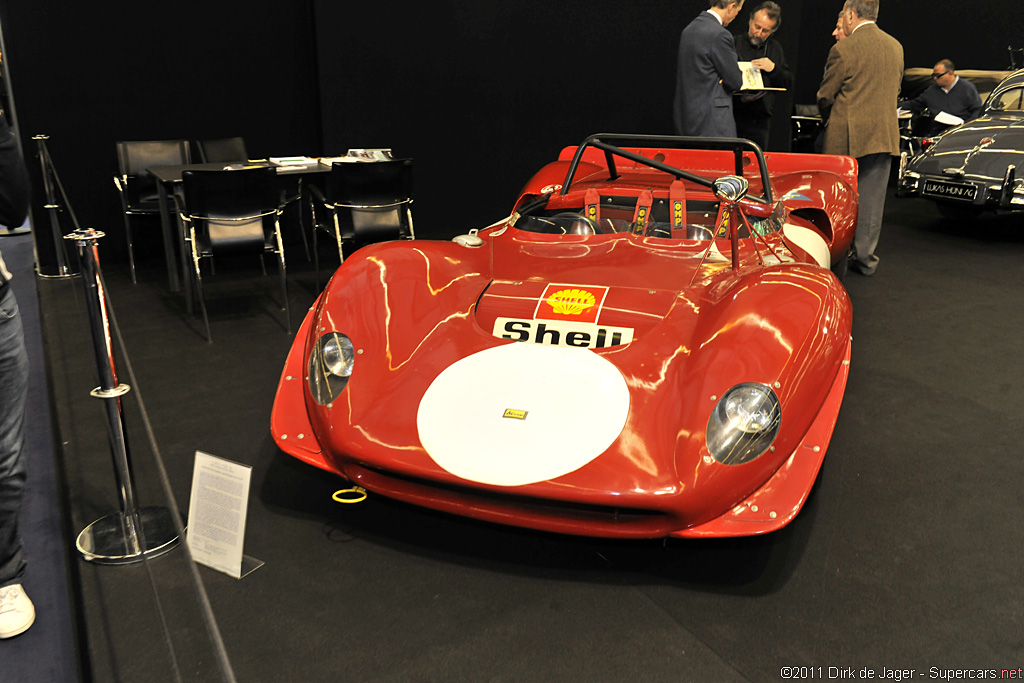

Our feature example is chassis 018 which was originally delivered with a regular body for Luigi Chinetti and the North American Racing Team. In 1967 the car was at the factory and converted into the mountain climber specification for Scuderia Pescara. It won first time out at Monte Brice and continued to win throughout 1968 and 1969. It was also upgraded to the 231B engine with 3 valves per cylinder and Lucas fuel injection.

In Detail

type Racing Car
engine Type 231B 65º V6
position Longitudnal Mid Engine
aspiration Natural
valvetrain DOHC 3 Valves / Cyl
fuel feed Lucas Fuel Injection
displacement 1987 cc / 121.3 in³
bore 86 mm / 3.39 in
stroke 57 mm / 2.24 in
compression 10.8:1
power 162.6 kw / 218.0 bhp @ 9000 rpm
specific output 109.71 bhp per litre
bhp/weight 375.86 bhp per tonne
driven wheels RWD
front tires Dunlop R7 5.50×13
rear tires Dunlop R7 7.00×13
front brakes Girling Vented Discs
rear brakes Girling Vented Discs
front wheels F 33.0 x 19.0 cm / 13.0 x 7.5 in
rear wheels R 33.0 x 21.6 cm / 13.0 x 8.5 in
f suspension Independent, double wishbones, coil springs
r suspension Independent, double wishbones, coil springs
curb weight 580 kg / 1279 lbs
wheelbase 2280 mm / 89.8 in
front track 1360 mm / 53.5 in
rear track 1355 mm / 53.3 in
length 3875 mm / 152.6 in
width 1524 mm / 60.0 in
height 985 mm / 38.8 in
transmission 5-Speed Manual
